Eachine Aurora 68mm – super tiny brushless quad

by montis 14/03/2017 | 11:32 0 Posted in New products

Last year Eachine released Aurora 90, brushless micro quadcopter with carbon frame and prop guards. It has a few well known issues with flight stability and weird behavior. This year Eachine released Aurora 100 and shortly afterwards – Aurora 68. It is 68mm(!) size brushless micro quadcopter.?It looks like a shrinked version of Aurora 90. Motors are smaller – 1102 size and?11500?KV(!). Its the first time I see such a high KV brushless motor on a quadcopter. Of course these little beasts drive smaller?38.1?mm 4-blades propellers. Other electronics are the same as Aurora 90.

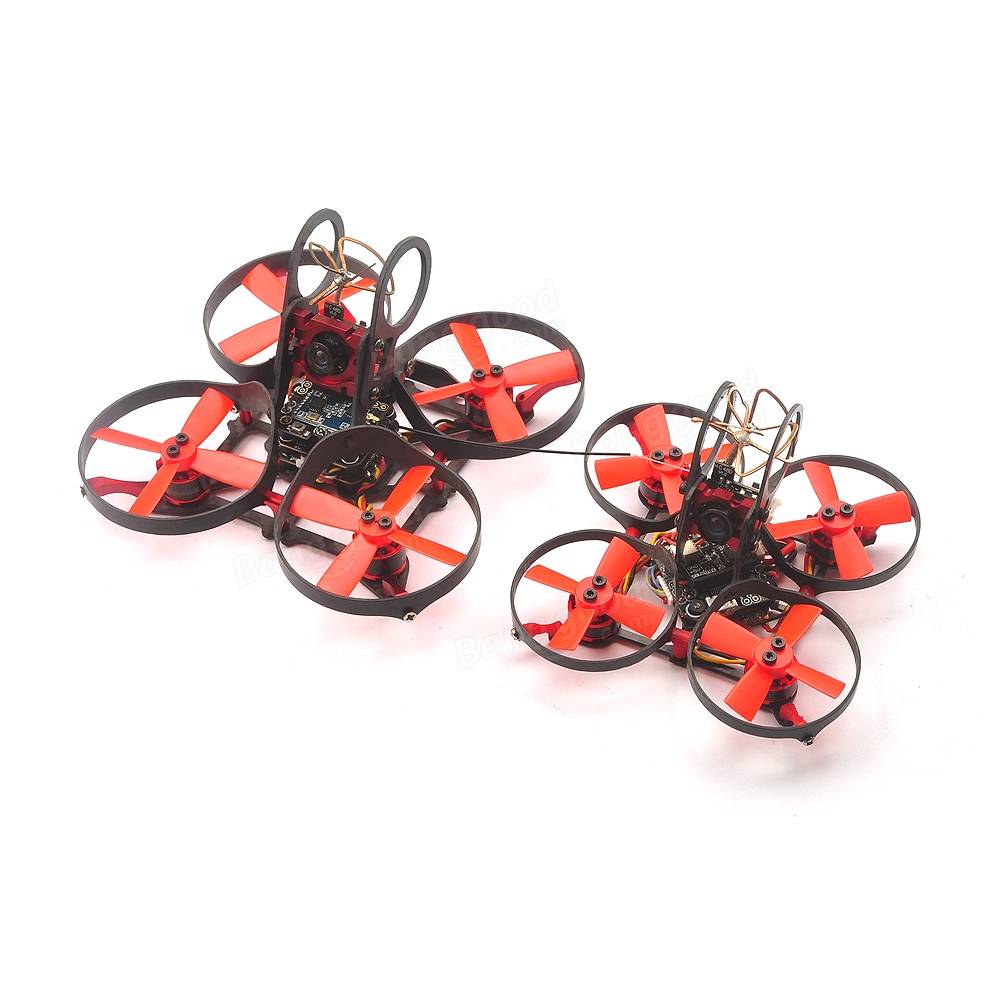

?Size comparison with Aurora 90:?

Check the availability @ Banggood:?http://www.banggood.com/Eachine-Aurora-68-68mm-Mini-5_8G-600TVL-FPV-Racing-Drone-BNF-with-F3-OSD-48CH-25mW-VTX-p-1132680.html

Specification:
Brand Name: Eachine
Model:?Aurora 68
Item Name:?Eachine Aurora 68 68mm Mini FPV Racing Drone

Wheelbase: 68mm

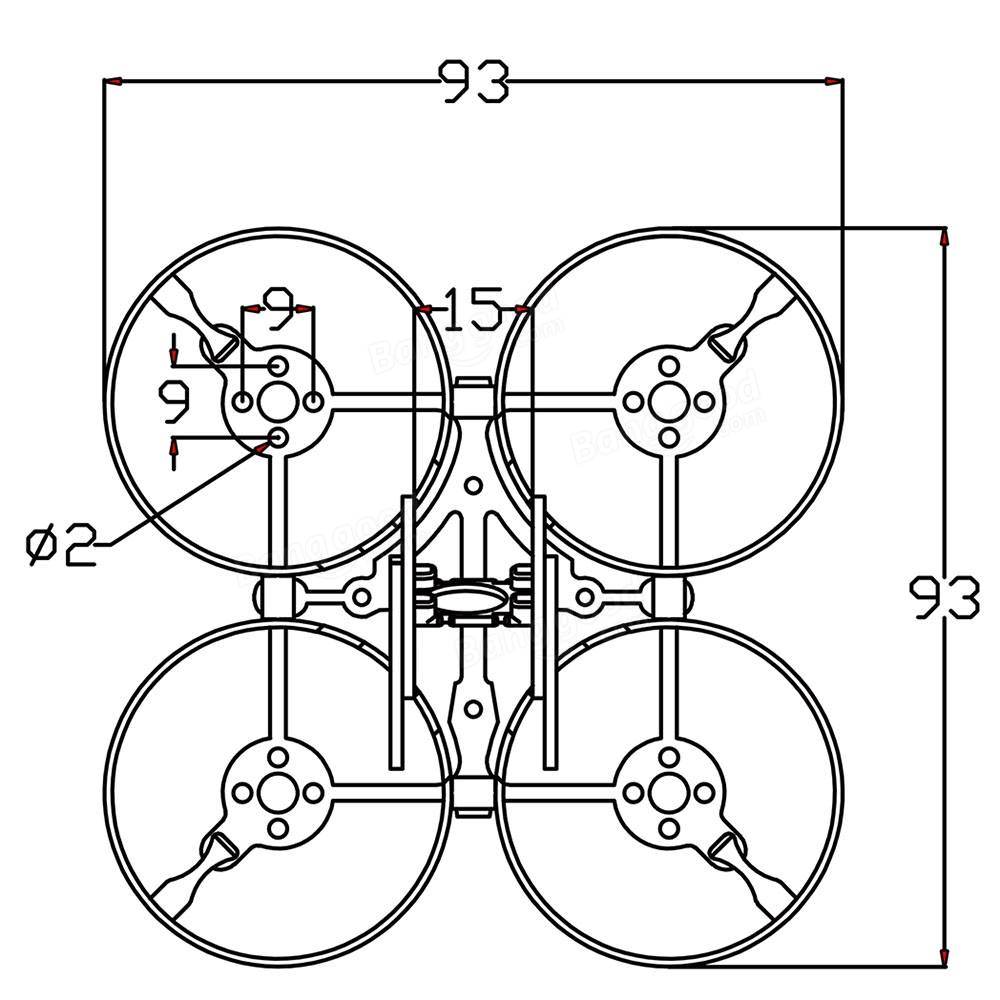

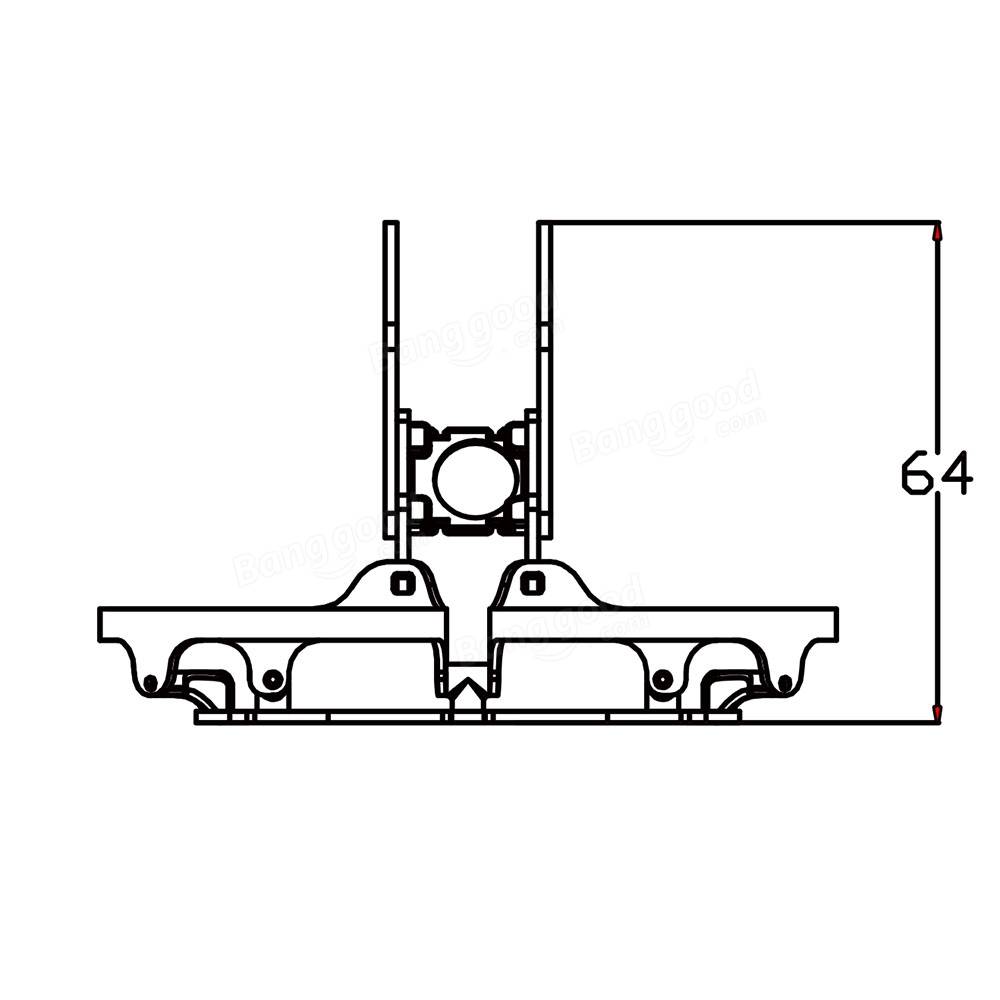

Size: 93mm*93mm*50mm

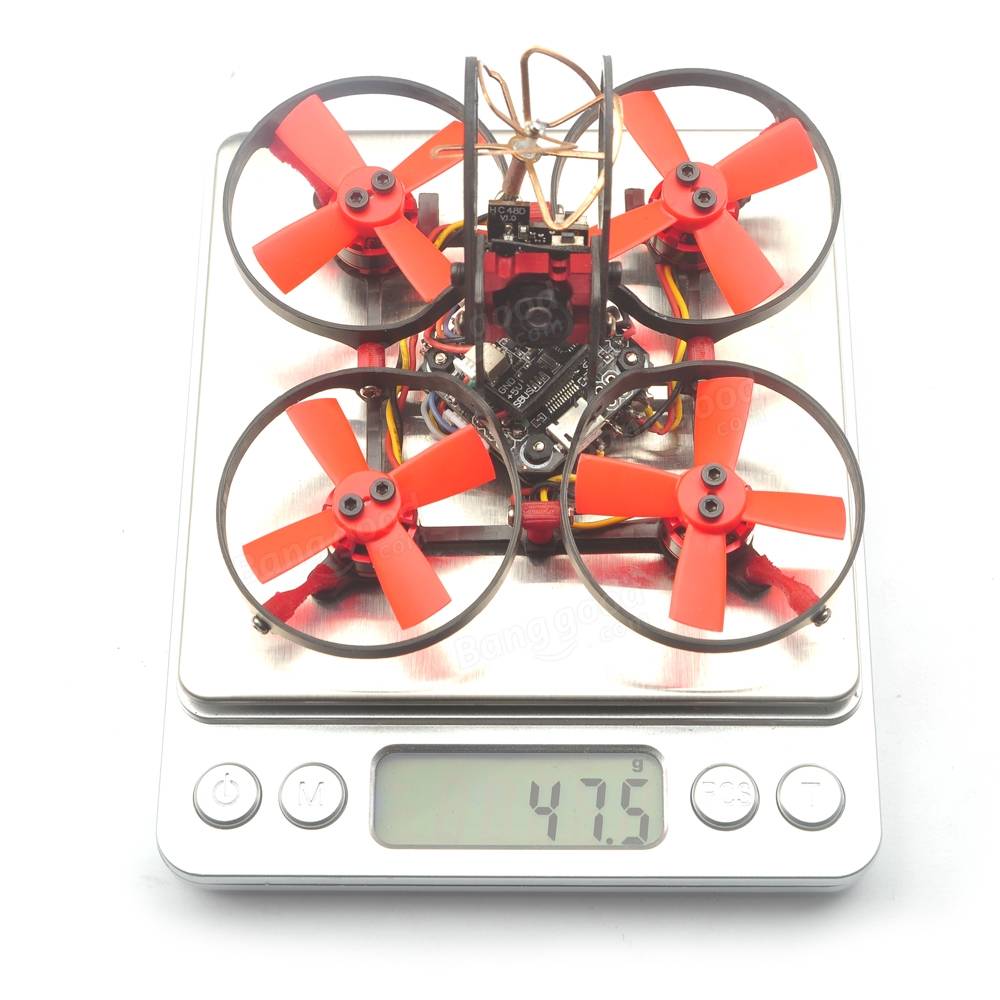

Weight: 48g( battery not include)
Receiver: ( Optional)
-Specktrum DSM2/DSMX Compatible receiver
-Flysky 8ch AFHDS2A receiver
-Frsky SBUS D8 mode receiver (RSSI Output)

Motor: Eachine 1102 KV11500 brushless motor

ESC: 10A BLHELI_S 16.5 1-2S 4 in 1 ESC Dshot600

Propeller: 38.1mm 4-blades propeller

Camera: 600TVL HD CMOS 1/4 inch

VTX: 5.8g 25MW 48CH NTSC/PAL video transmitter
Flight Control:?Minicube F3 Flight controller built-in OSD

OSD: Betaflight OSD

Firmware of flight controller: Betaflight 3.1

Flight time : 3 minutes

Rear LED Ready (LED_Strip function)

Buzzer Ready
Battery: 7.4V 400mah 40C lipo battery

Flight controller Specification:

-Size:27mm*27mm*5mm
