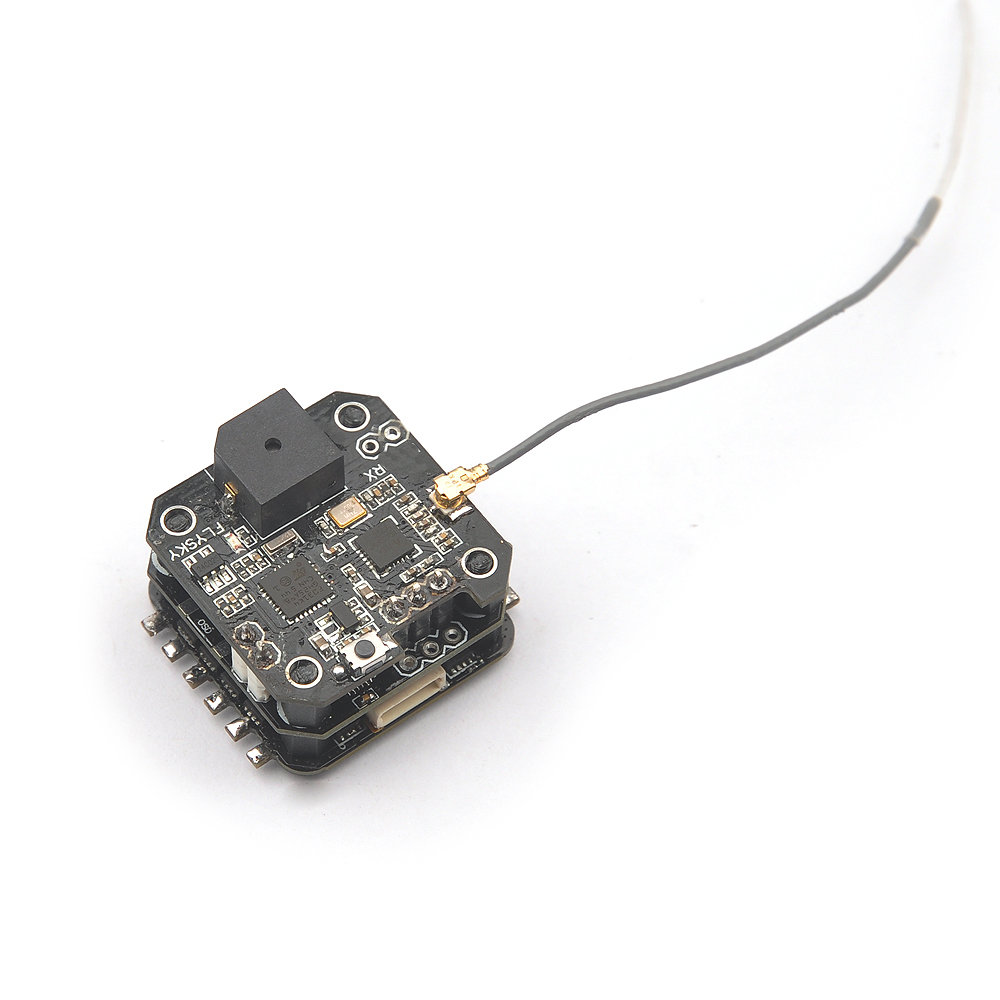

Eachine MiniCube – small all-in-one FC

by montis 26/01/2017 | 8:03 2 Posted in New products

New mini flight controller with ESC and receiver was listed – Eachine Minicube Flight controller. It consists of three 27x27mm sized (mounting holes?20x20mm) boards, stacked one on another. Total tower height is 20mm. Weight is only 9.4 grams.

This all in one solution features F3 flight controller with integrated Betaflight OSD in the middle deck. It has MPU6000 sensor chip working in SPI mode.

On the lower board you’ll have all-in-one ESC ?with 4x10A BLHeli?ESC. DShot600 ready out of the box.

You can choose between 3 receiver types – DSMX, Flysky and Frsky

EDIT(2017-2-17): Spare parts were listed on Banggood.

Flysky receiver module:

Frsky receiver module:

DSM2/DSMX receiver:

F3 Flight controller with integrated OSD:

4 in 1 ESC 10A BLHeli_S 1-2S BB2 Support Oneshot42 Oneshot125 Multishot Dshot:

Eachine?Minicube?Parts

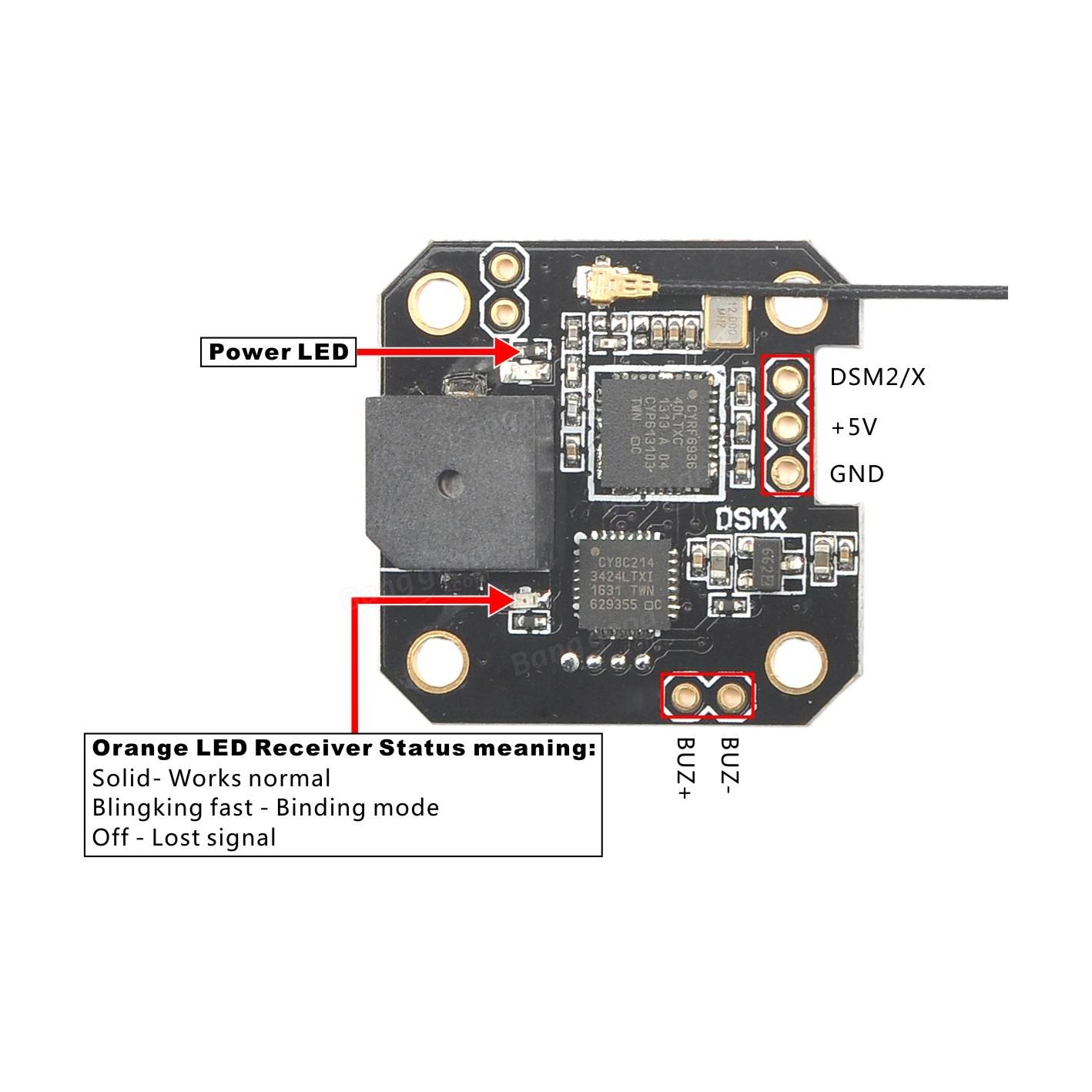

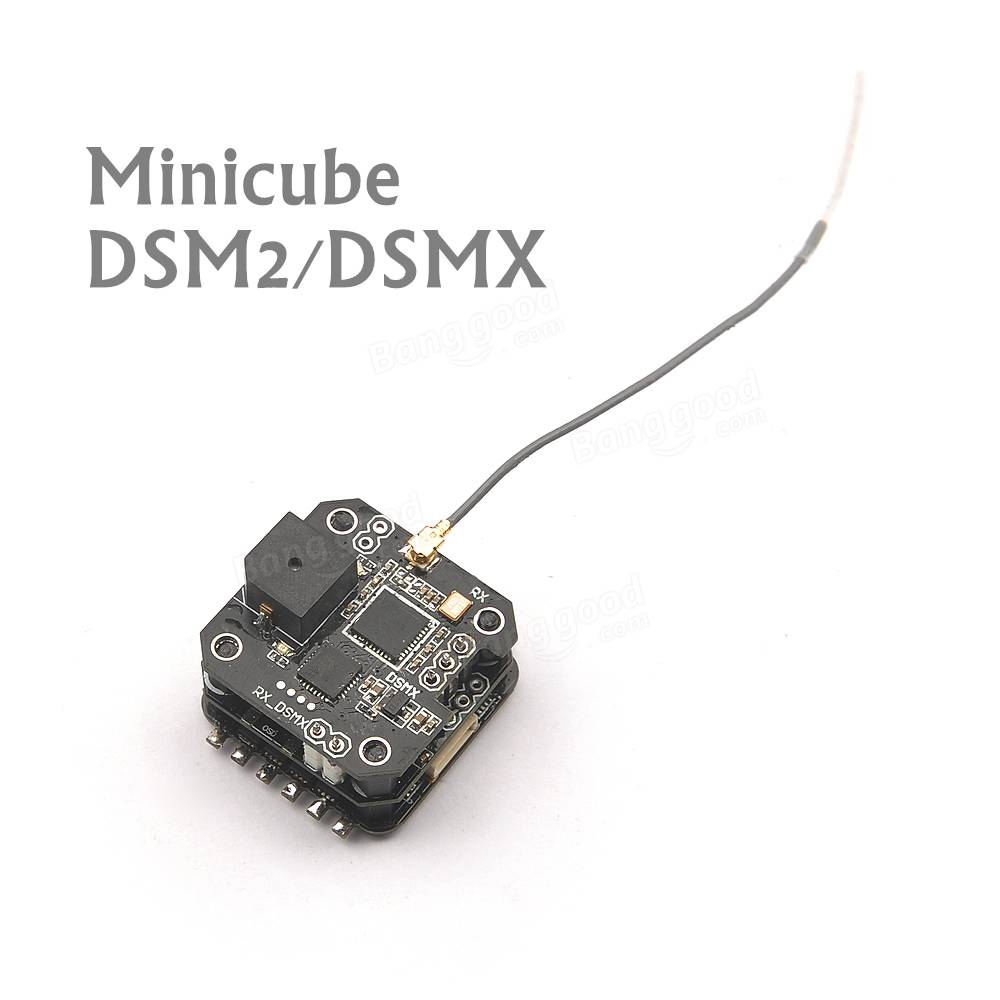

DSM2/ DSMX satellite Receiver?

Frequency range: 2.403-2.479Ghz

Input power: 5V

Response time: 22ms / 11MS

Resolution: 2048

Display method: LED

Operating voltage: 3.3V

Working current: 60MA

Size: 27mm*27mm*7mm

Mount hole:20mm*20mm

Weight: 3.1 g

Antenna length: 100mm

Data format: Serial port

Protoco: DSM2/DSMX

Distance: no ground interference (1 m from the ground ) > 300m

Uses: indoor small aircraft.

Compatible Transmitters: DSM2 / DSMX series of remote control

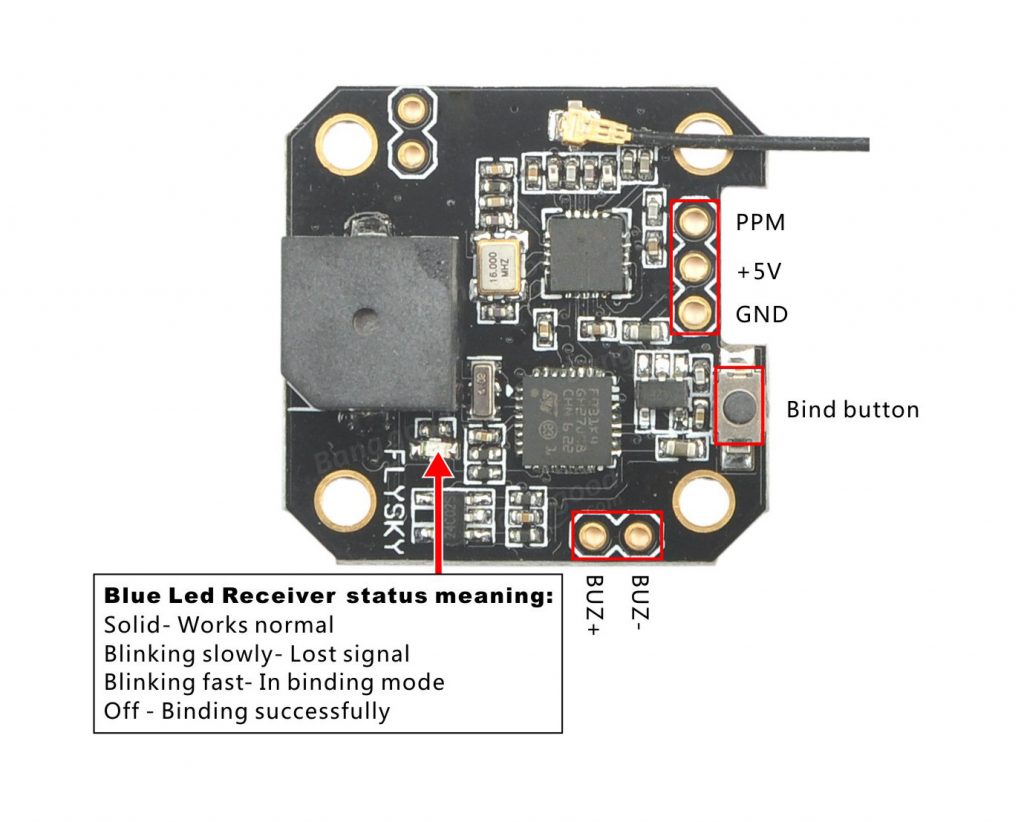

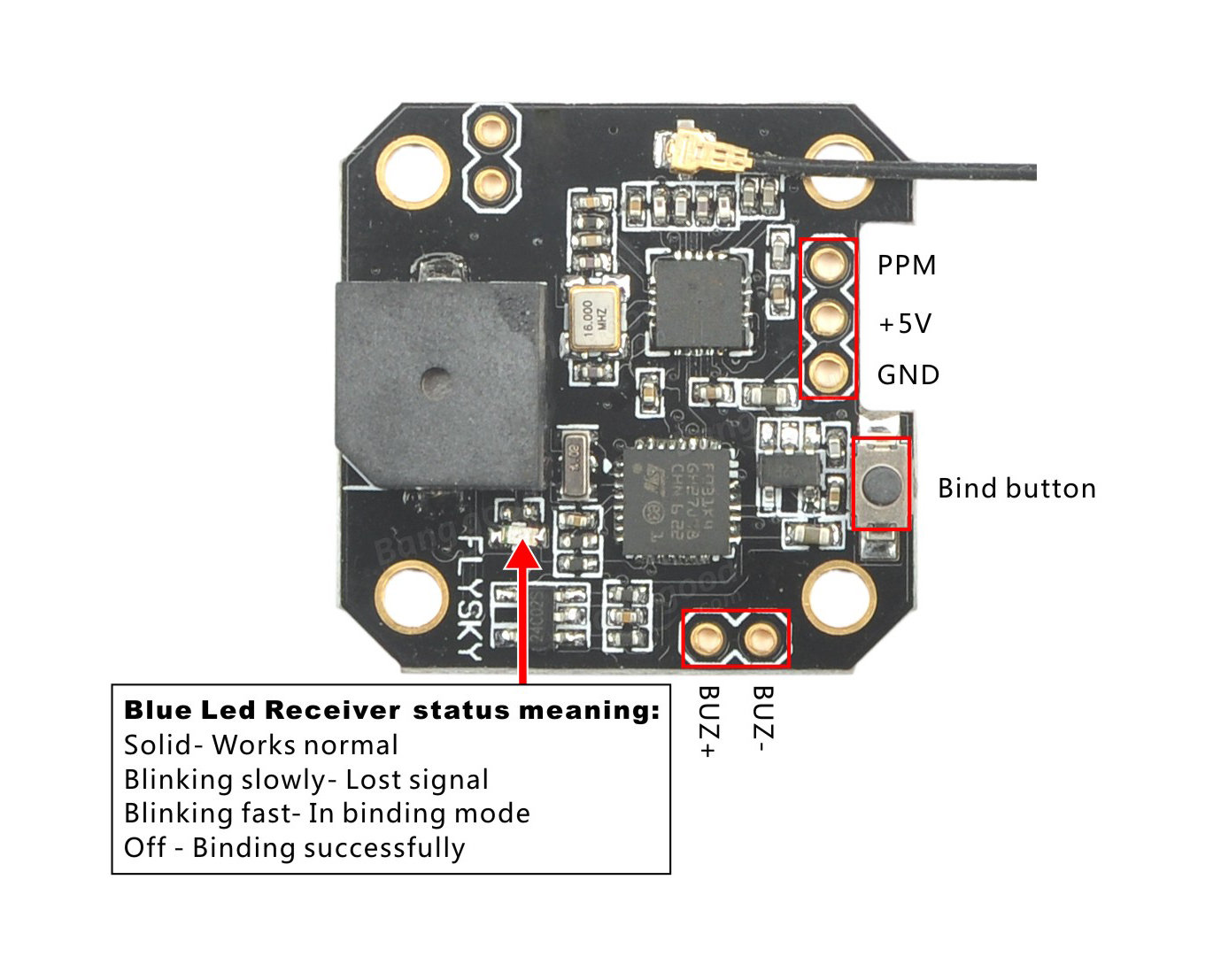

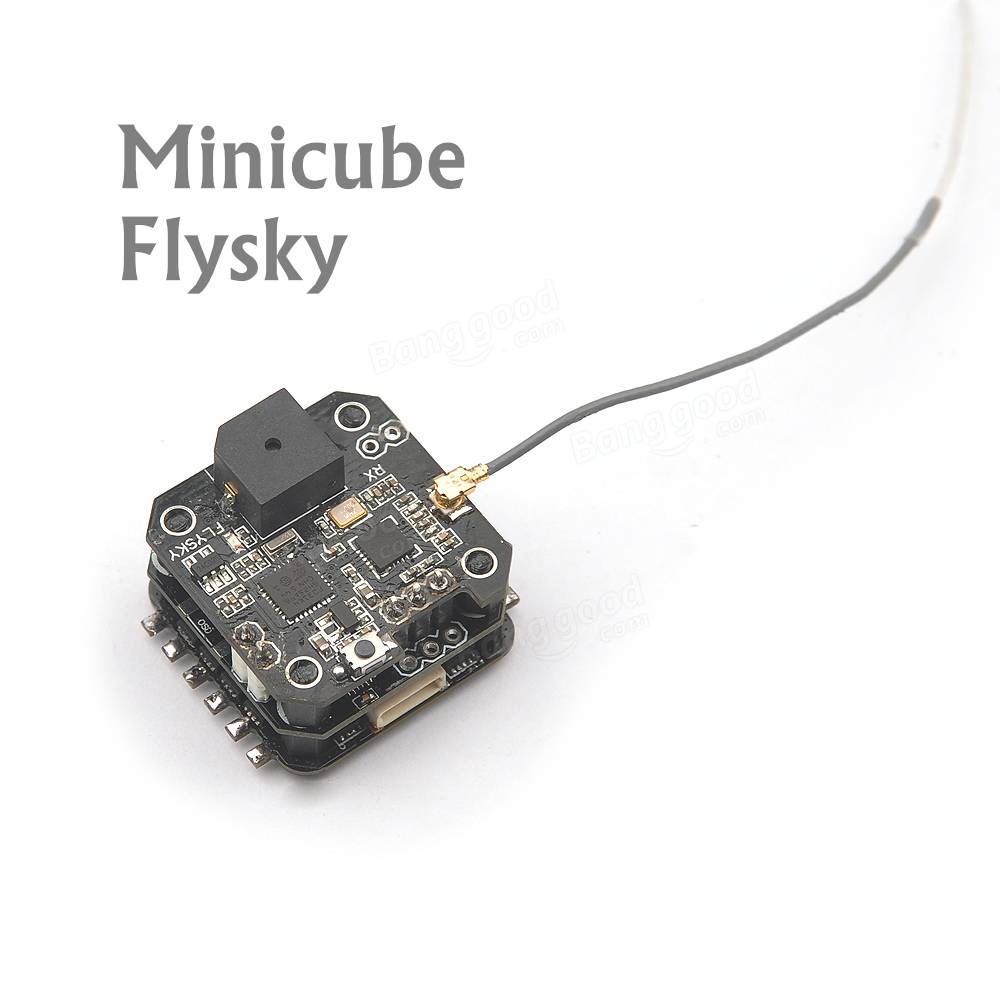

Flysky 8CH AFHDS2A receiver:

Channels: PPM 8CH

Model type: Multi-rotor

Frequency range: 2.408-2.475GHz

2.4GHz system: AFHDS 2A

Work Mode: PPM

Transfer method: FHSS

Built-in Buzzer (Low voltage alarm) Configure by Betaflight configurator

Antenna length: 100mm

No ground interference ( Transmitting and receiving 1 m from the ground): >300m

Working current: 40mA

Size: 27*27*7mm

Mount hole:20mm*20mm

Weight: 3.1g

Compatible Transmitter: Compatible with FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F

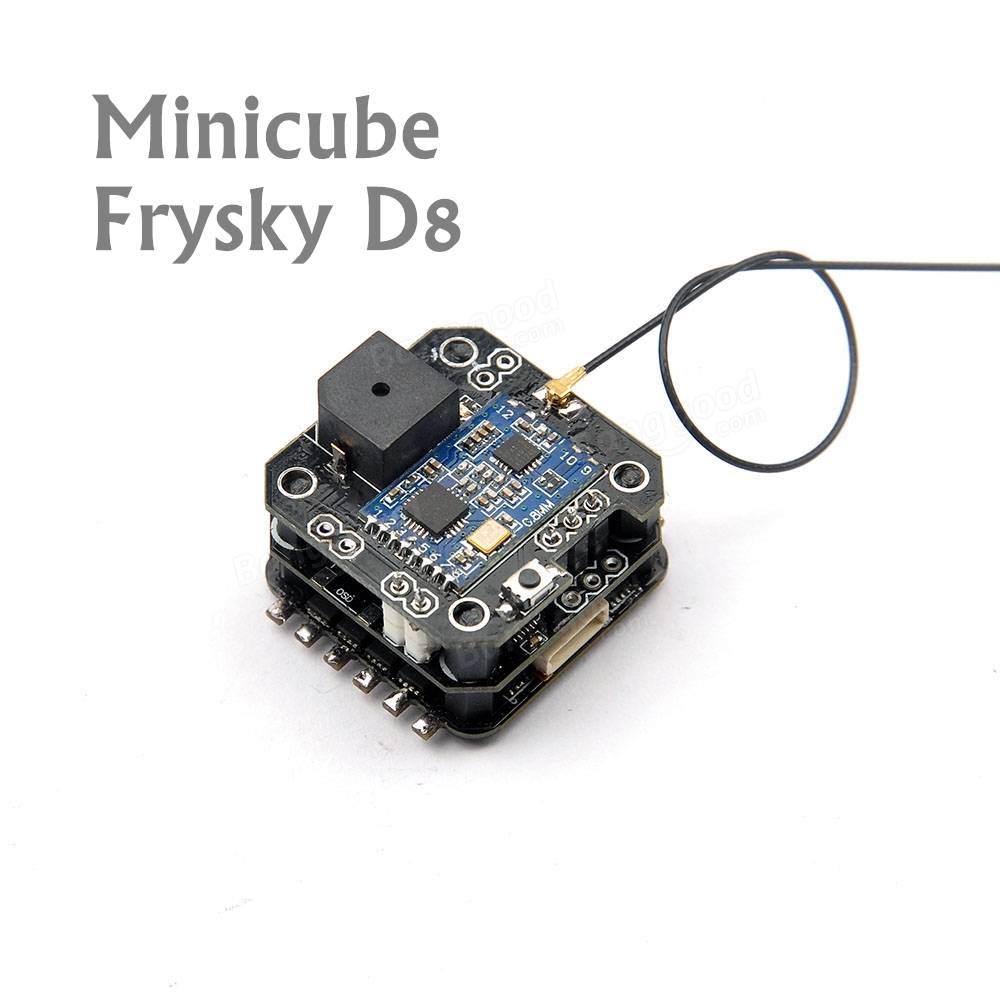

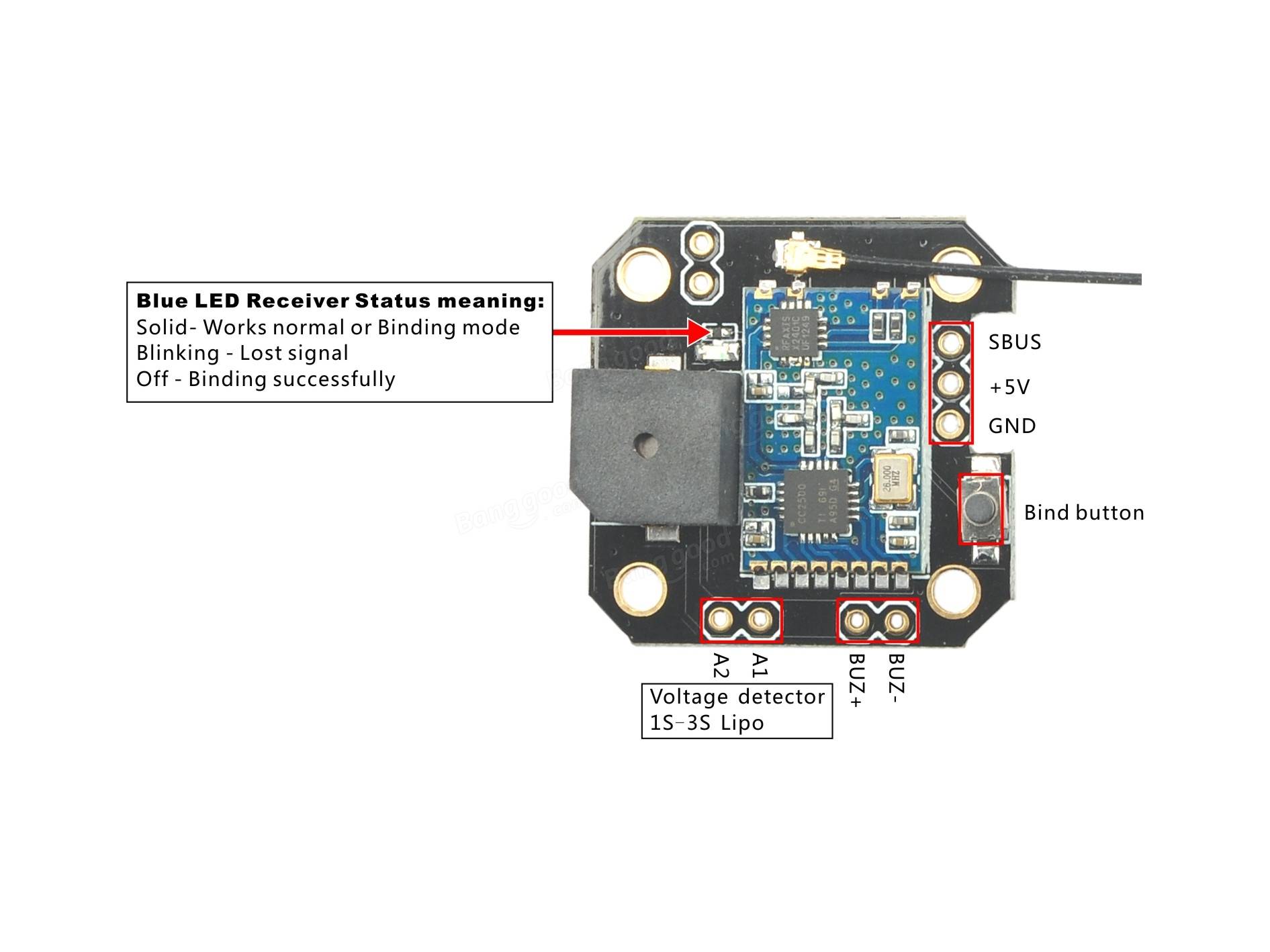

Frsky?Compatible 2.4G 8CH Receiver:

Frequency range: 2.403-2.479Ghz

Channels: 8CH

Work mode :D8 Mode

Output: SBUS

Antenna length: 100mm

No ground interference ( Transmitting and receiving 1 m from the ground): >500m

Built-in Buzzer (Low voltage alarm) Configure by Betaflight configurator

Working current: 80mA

Dimensions: 27*27*7mm

Weight: 3.5g

Compatible with FRSKY ACCST

Compatible with X9D(Plus)DJT/DFT/DHT

Telemetry: RSSI, 1S-3S voltage (A1), 1S-3S voltage (A2)

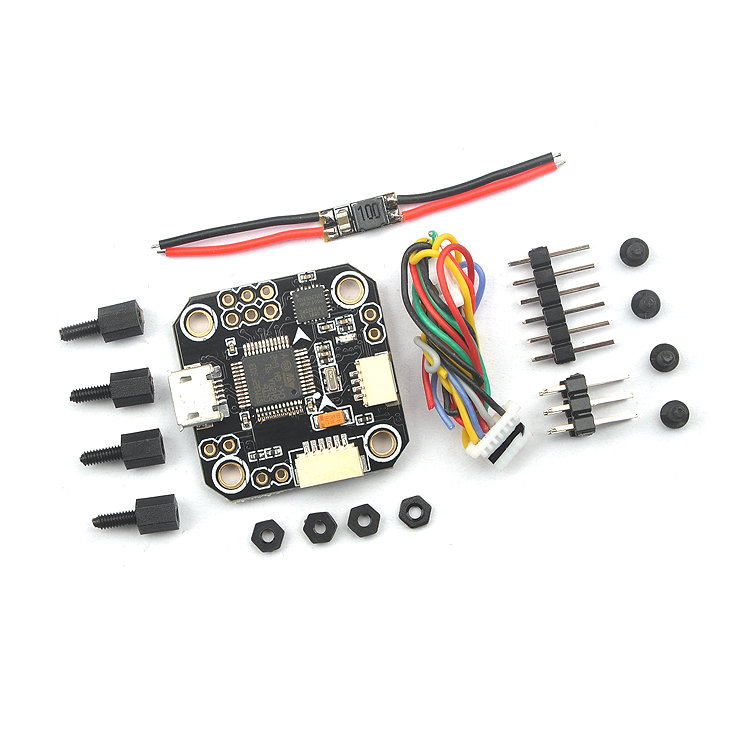

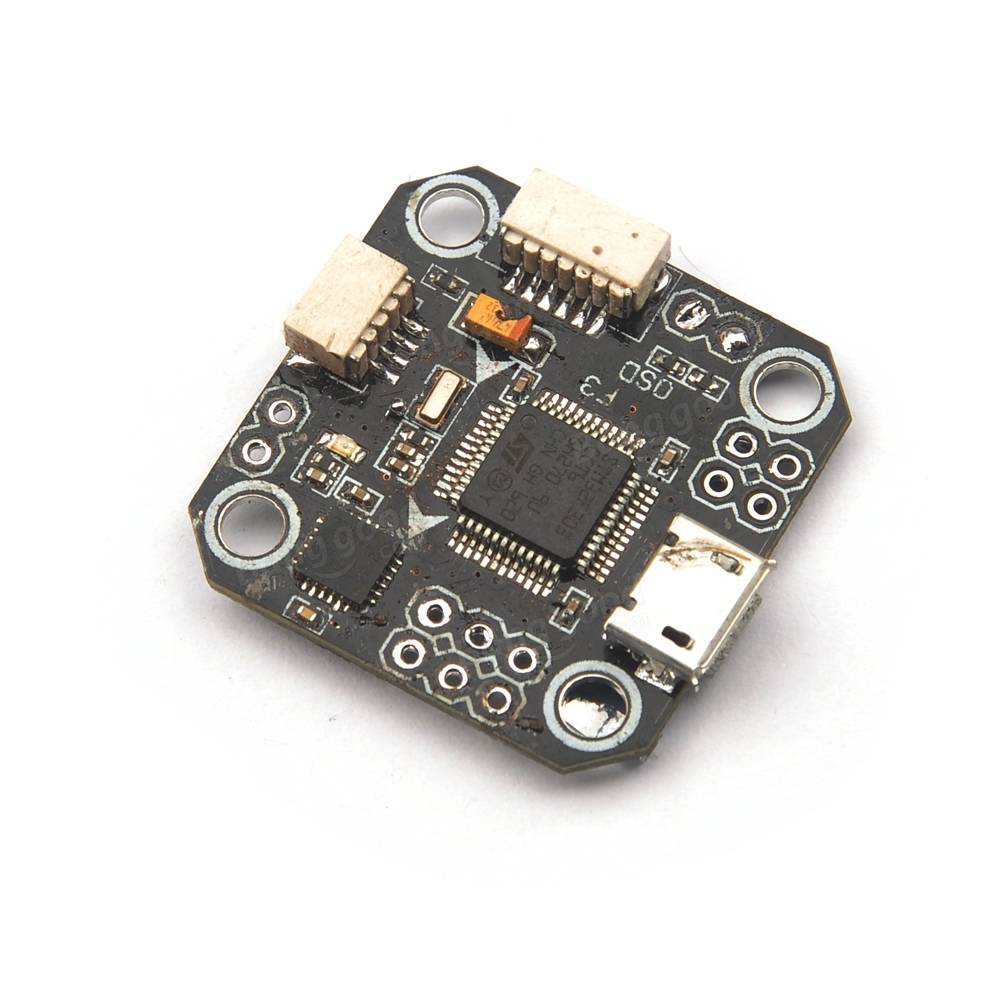

Eachine Minicube F3 6DOF Flight Controller:

Size: 27mm*27mm*5mm

Mount hole: 20mm*20mm

Processor: STM32 F303 MCU

Sensor: SPI Sensor MPU6000

Built-in Betaflight OSD ( Batt voltage, RSSI , Artificial Horizon , Fly mode , -Flytime, Craft name etz.)

Firmware version: Betaflight 3.1 Dshot ready

Target: OmnibusF3

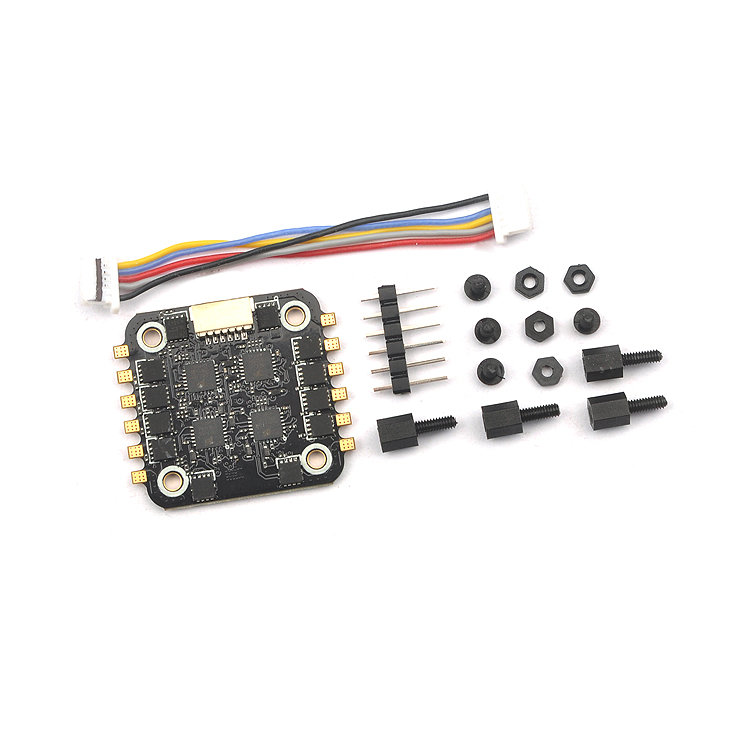

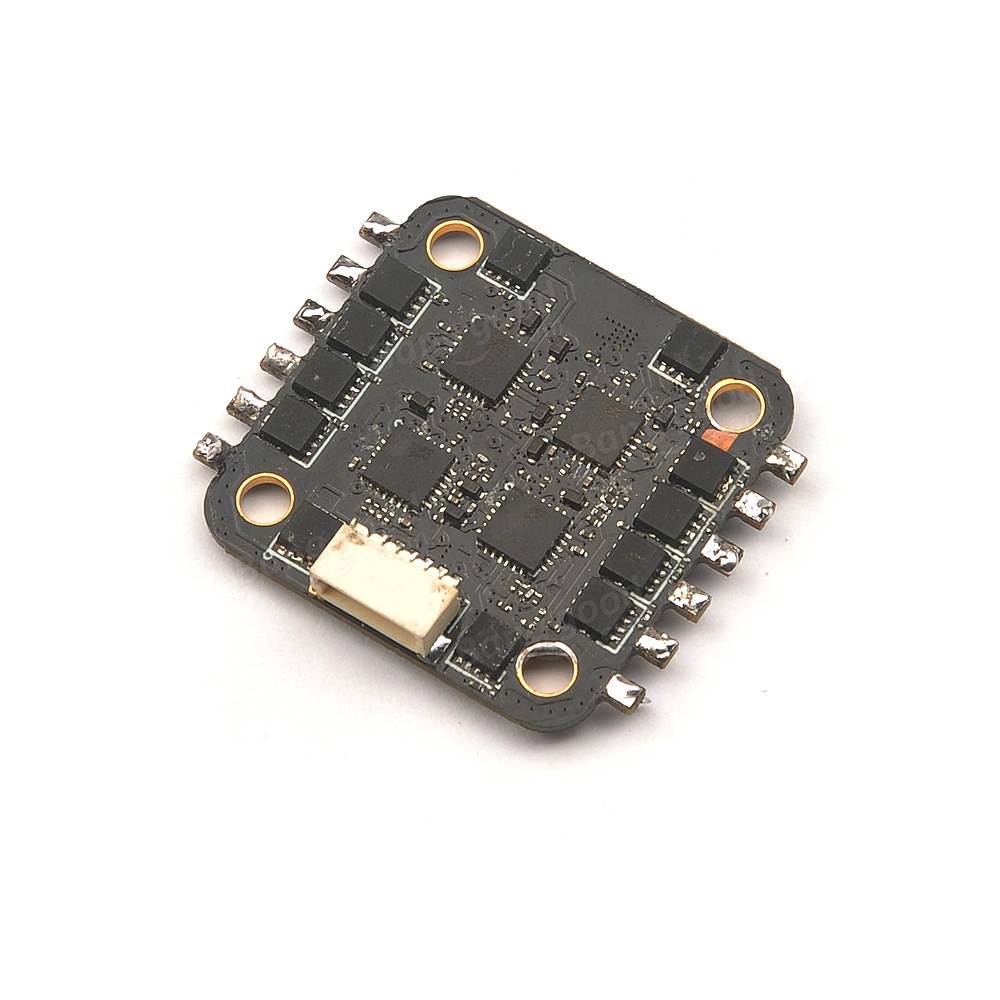

Eachine Minicube 10A BLHeli_S 4 In 1 ESC:

Size: 27mm*27mm*5mm

Mount hole: 20mm*20mm

Firmware version: BLHELI_S 16.5

BB2, 48MHZ Chip

Lipo Battery: 1-2S

Con. Current: 10A

Peak Current: 15A (10S)

BEC: 5V @0.1A

Programming: YES

Betaflight passtrough ready

Dshot600 ready(Default)

Support oneshot42 oneshot125 Multishot Dshot

Damped light on

montis

Comments

herve 18/09/2018 | 3:15

Hello. i need to make an update but the link betaflight_2.6.1_SPRACINGF3.hex is dead …
another? I can not find one …
thank you

Reply

montis 18/09/2018 | 4:00

Have you tried looking here: https://github.com/betaflight/betaflight/releases?after=v2.7.0 ? May I ask? Why do you need such an old firmware? Why not Betaflight V3.x ?
