Eachine 2S whoop TRASHCAN – seriously?

by montis 23/11/2018 | 10:21 0 Posted in New products

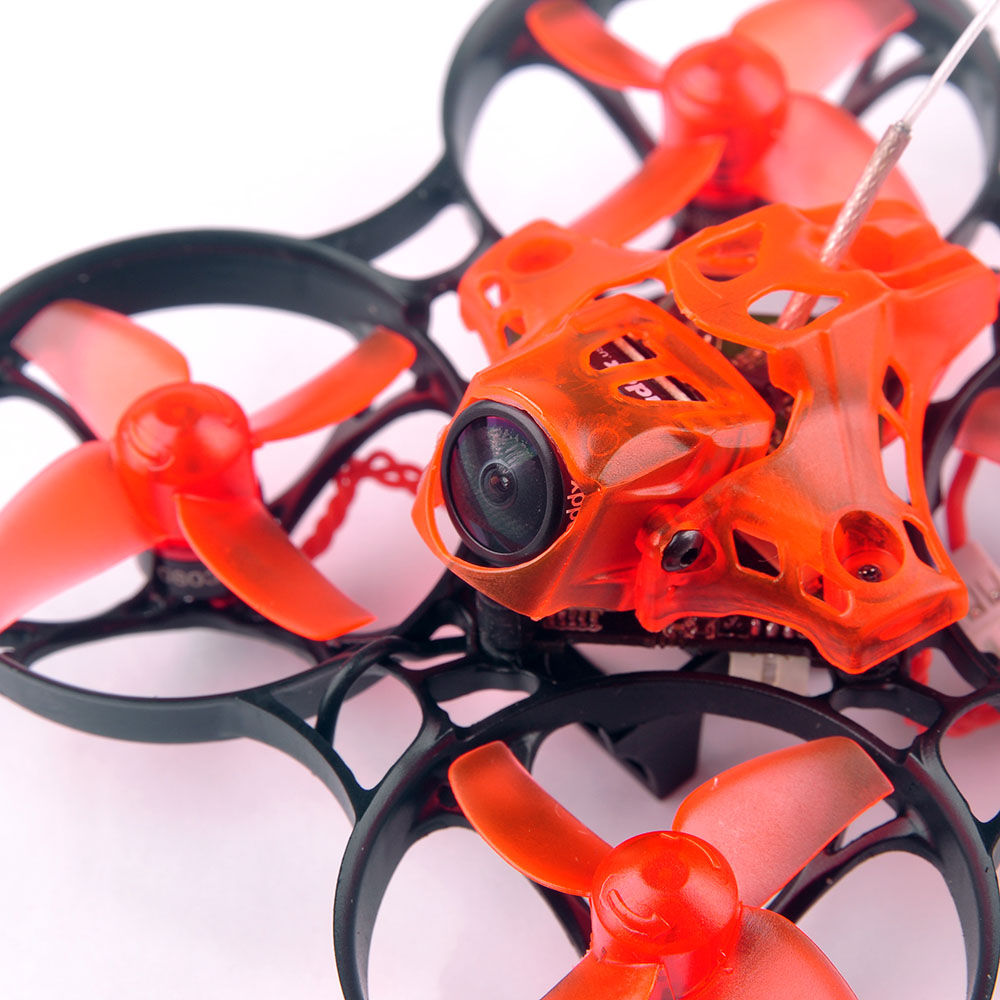

Eachine has announced the new 2S whoop called… TRASHCAN! No, it is not a joke. Eachine was in the mood of the black humour and decided to give the quad this funny and sarcasic name. And the specs are not rubbish for sure: TC0803 16000KV brushless motors, CRAZYBEEF4 PRO Flight controller with integrated Flysky, Frsky or DSM2 receiver, OSD and current meter. Eachine has chosen to use Caddx EOS2 1200TVL camera and this is really good choice for whoop camera. Eachine has redesigned the canopy to allow the camera to be tilted 0-35° degrees. VTX is smartaudio capable with power levels of 25mW and 200mW.

Eachine TRASHCAN is powered by two 1S batteries via twin 2.0 JST power connector. It is made so due to huge popularity and avilability of the 1S 250-300mAh batteries. The TRASHCAN package includes 4 pieces of 1S 300mAh 40/80C batteries.

The weight is 33 grams, compared to BetaFPV 75X – 41g and Mobula7 – 26g.

The price is $99 for PNF version and $105 for BNF version.

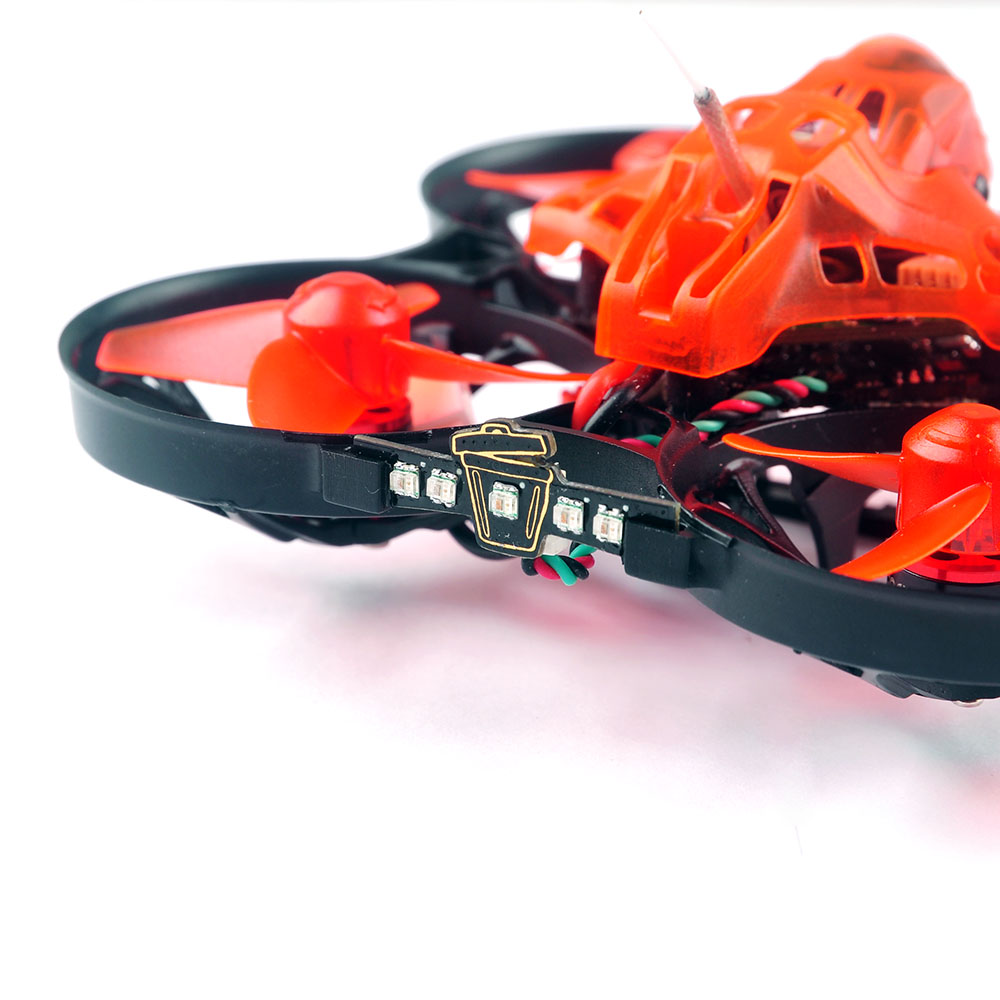

An a nice touch – Trashcan on the tail!

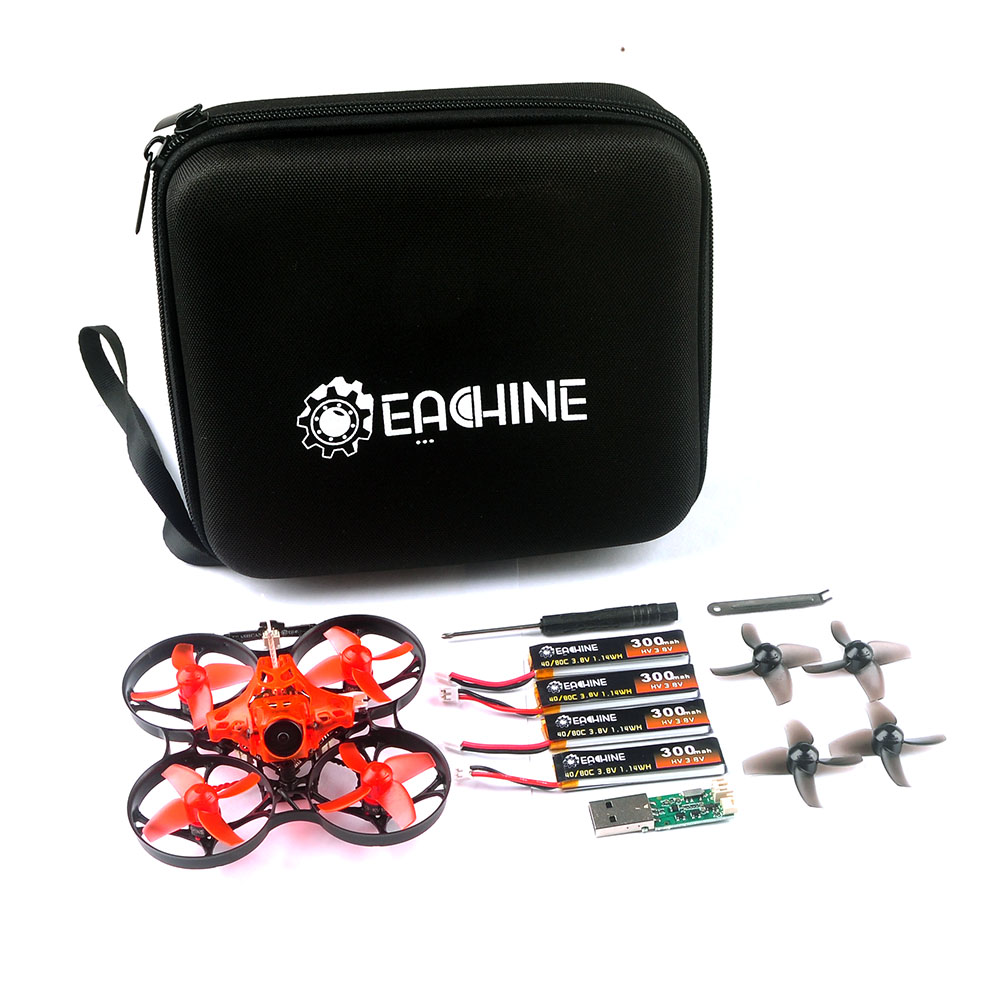

Package includes 4 pcs of 1S 300mAh batteries and a super simple charger. I hope Eachine will upgrade this charger to the one tha URAV65 whoop has. We need to charge at least 2 batteries at a time.

Available @

Banggood: https://www.banggood.com/Eachine-TRASHCAN-75mm-Crazybee-F4-PRO-OSD-2S-Whoop-FPV-Racing-Drone-Caddx-Eos2-Adjustable-Camera-p-1386071.html

Eachine website: https://www.eachine.com/Eachine-TRASHCAN-75mm-Crazybee-F4-PRO-OSD-2S-Whoop-FPV-Racing-Drone-0803-16000KV-1200TVL-Adjustable-Camera-25-or-200mW-VTX-Swtichable-p-1328.html

Specifications:
Item Name: Eachine TRASHCAN 2S 75mm Brushless Whoop racer drone BNF/PNP
Wheelbase: 75mm
Weight: 33g (without battery)
Weight: 48g (with Original 1s 300mah lipo battery x2)

Spare parts specifications:

Motor	Mode: TC0803 KV16000 Configu-ration:9N12P Stator Diamter:8mm Stator Length:3mm Shaft Diameter:Φ1mm Motor Dimension(Dia.Len):Φ10.5mm14.5mm Weight(g):2.2g No.of Cells(Lipo):1S-2S
Flight controller	(Frsky version) CRAZYBEEF4 PRO FR Firmware target: CrazybeeF4FR (Flysky version) CRAZYBEEF4 PRO FS Firmware target: CrazybeeF4FS (DSM2/DSMX version) CRAZYBEEF4 PRO Firmware target: CrazybeeF4DX (No RX version) CRAZYBEEF4 PRO FR Firmware target: CrazybeeF4FR MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000(SPI connection) Board size: 28.5 * 28.5MM Power supply: 1-2S battery input (DC 3.5-8.7V) Built-in 6A(each) Blheli_S 4in1 ESC Dshot600 ready Frsky version Built-in SPI Frsky receiver with telemetry(D8/D16 switchable) Flysky version Built-in SPI Flysky receiver with telemetry(AFHDS/AFHDS2A switchable) DSM2/X Version built-in Serial-based DSM2/DSMX compatible satellite receiver No RX version need to add external Receiver Built-in Betaflight OSD(SPI Control) Built-in Current meter Max 28A Current meter scale set to 1175 Built-in 5V 1A Buck / Boost with LC filter Built-in voltage detection BLHELI_S pass-through Ready Taillight LED Ready
Onboard 4in1 ESC	MCU upgraded to EFM8BB21 Power supply: 1-2S LiPo/LiPo HV (3.5v/8.7v) Current: 5A continuous peak 7A (3 seconds) Support BLHeliSuite programmable Factory firmware: S_H_50_REV16_7.Hex Default protocol: DSHOT600
Frsky NON-EU receiver Version	SPI BUS receiver Frsky D8/D16 switchable Compatible Non EU transmitter both D8 and D16 mode Channels: 8ch or 16ch Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): 300m
Flysky receiver Version	SPI BUS receiver Protocol: AFHDS and AFHDS-2A Switchable Channels: 8ch(AFHDS) or 14ch(AFHDS-2A) No ground interference ( Transmitter and receiver 1 m from the ground): 300m Failsafe support
DSM2/DSMX receiver version	Serial bus receiver Protocol: DSM2/DSMX compatible Channels:6-9 (Depend on your radio) No ground interference ( Transmitter and receiver 1 m from the ground): 300m
VTX	Output power: 25/200mw switchable Frequency: 40CH Input voltage: 3.3V 5.5V Current consumption: 300mA(type) Antenna: RG178 antenna Frequency: 5.8GHz 5bands 40 channels With Raceband Smart Audio ready Weight: 3g
CADDX EOS2 camera	1/3″ CMOS Sensor 1200 TVL 2.1mm lens 4:3 Image size NTSC Global WDR Internal Synchronization
Lipo Battery	Capacity:300mAh Voltage:3.8v Continuous Discharge Rate: 40C Instantaneous discharge rate: 80C Size: 55mmx12mmx6.5mm Weight: 7.8g Connector: PH2.0 *Notes: Need 2pcs batteries for Series circuit

Features:
New Crazybee F4 PRO Flight controller 1-2s Lipo Compatible
2S whoop more powerful and more flight time
Betaflight support , multi flight mode: ACRO/AIR/ANGLE
New 0803 Powerful and High efficiency Brushless motor and Smooth ESC
Betaflight OSD support ,easy to get RSSI, Voltage ,current from your goggles(DSMX version no RSSI output)
Caddx EOS2 camera ready , More comfortable FPV experience
Camera Angle adjustable (0-35°)
VTX power switchable 25mw~200mw
Smart Audio ready , change VTX bands, powers, channels via OSD
Adjust the settings and the PID of the flight controller via OSD
Frsky Non-EU version support NON-EU Frsky transmitter D8/D16 compatible
Flysky version support both AFHDS and AFHDS-2A protocol transmitter
DSM2/DSMX version support DSM2 and DSMX compatible Spektrum transmitter
No RX version support external serial-bus receiver like xm+, crossfire, S-FHSS etc..
Full telemetry function ready (Frsky Non-EU and Flysky version support)
Taillight ready
Real Bind and Fly version
Compatible both for 1s-2s

Package Included:

PNP/ NO Receiver Version
1 x 75mm Brushless whoop Frame
1 x Crazybee F4 PRO FC no RX verion
4 x TC0803 KV16000 Motor
1 x 40mm propeller(4cw+4ccw)
1 x Caddx EOS2 camera
1 x 5.8G 40ch 25mw-200mw VTX
4 x 3.8v 300mah 40C/80C battery
1 x USB Lipo/LIHV Charger
1 x Propeller disassemble tool
1 x LED board
1 x Screwdriver

BNF Version
1 x 75mm Brushless whoop Frame
1 x Option1: Crazybee F4 PRO FC built-in Frsky NON-EU receiver
Option2: Crazybee F4 PRO FC built-in Flysky AFHDS and AFHDS-2A Switchable receiver
Option3: Crazybee F4 PRO FC built-in DSM2/DSMX receiver
4 x TC0803 KV16000 Motor
1 x 40mm propeller(4cw+4ccw)
1 x Caddx EOS2 camera
1 x 5.8G 40ch 25mw-200mw VTX
4 x 3.8v 300mah 40C/80C battery
1 x USB Lipo/LIHV Charger
1 x Propeller disassemble tool
1 x LED board
1 x Screwdriver
