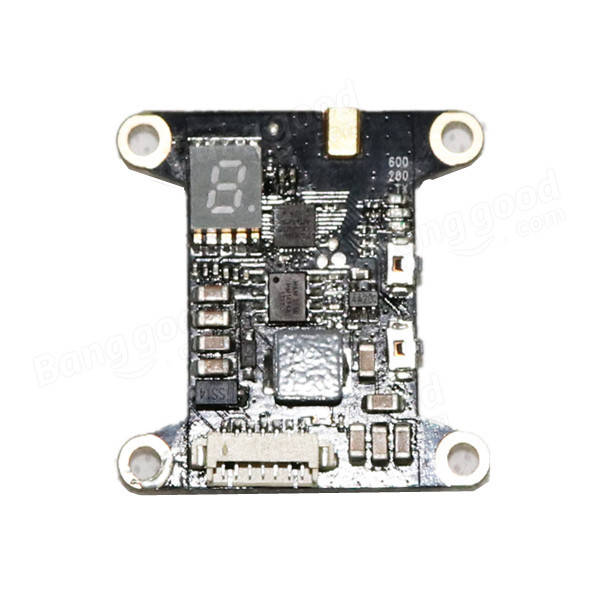

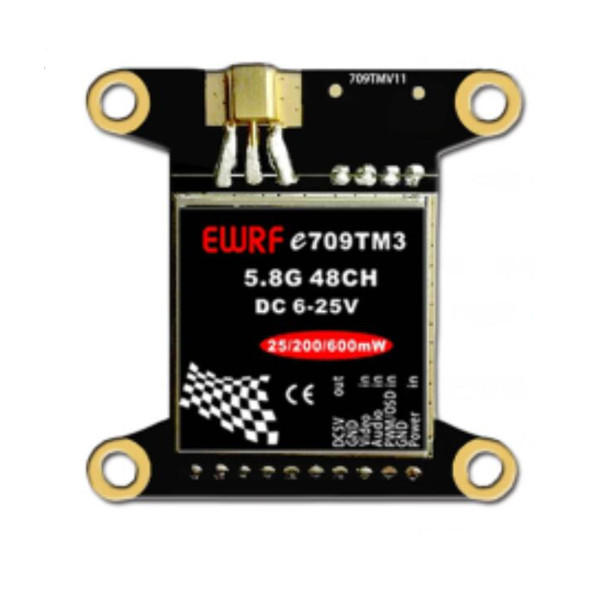

EWRF E709MT3 – Stackable VTX with Betaflight OSD control


        by montis   28/08/2017 | 5:04
                                    0
                                    Posted in New products






        A new?cheap?stackable VTX, supporting Betaflight OSD control was listed – EWRF E709MT3 . Betaflight control means you can configure and change?VTX?channel/power via?OSD. This VTX also supports PIT mode – when you need to power up the quad with VTX set to OFF. Another features are protection from powering without antenna, thermal protection from overheating, supporting 2S-6S power input and 5V 800mA output.


        Really cool feature set for such a price.










        Listed @ Banggood:?https://www.banggood.com/E709MT3-5_8G-40CH-25mW-200mW-600mW-Adjustable-AV-Transmitter-w-Mounting-Hole-for-Flight-Controller-p-1191064.html


        Specification:

Item Name: 5.8G 48CH 25/200/600mW Adjustable AV Transmitter

Model:?E709MT3


        Frequency: 5.8G 48CH


        Transmitting Power:?25mW/200mW/600mW/OFF


        Power supply: DC 6-25V (2-6S)


        Supply current12V:?140mA@25mW /250mA@200mW /300mA@600mW


        Power output: DC 5V (800mA max)


        Antenna impedance: 50 ohm


        Antenna connector:MMCX Female( RP-SMA Male Pigtail)


        Weight:?7.3 g


        Dimension:?36*36*7.65 mm

Mounting Hole: 30.5mmx30.5mmFeatures:

– 25mW/ 200mW/ 600mW Adjustable


        – Clean powerup and channel switching without interference to others


        – Beltflight/Cleanflight OSD setting of power,bands,channels and Pitmode


        – Overheating protection in case of premature damage.


        – Additional protection allows for powering up without antenna


        – Pitmode(power is set to OFF) – test and set your quad without interference to others


        – Channel changes and Pitmode setting through PWM


        – 2-6S input power supported


        – 5V BEC output for camera,RC receiver


        – 36×36 mm Standard size?;?30.5×30.5 mm mounting holes

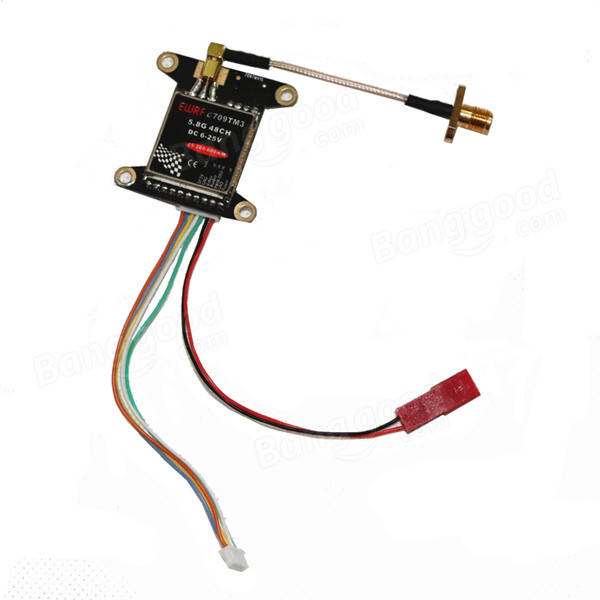

        Package Included:

1x E709MT3 48CH 25/200/600mW Transmitter

1x Antenna Connector

1x Cable
