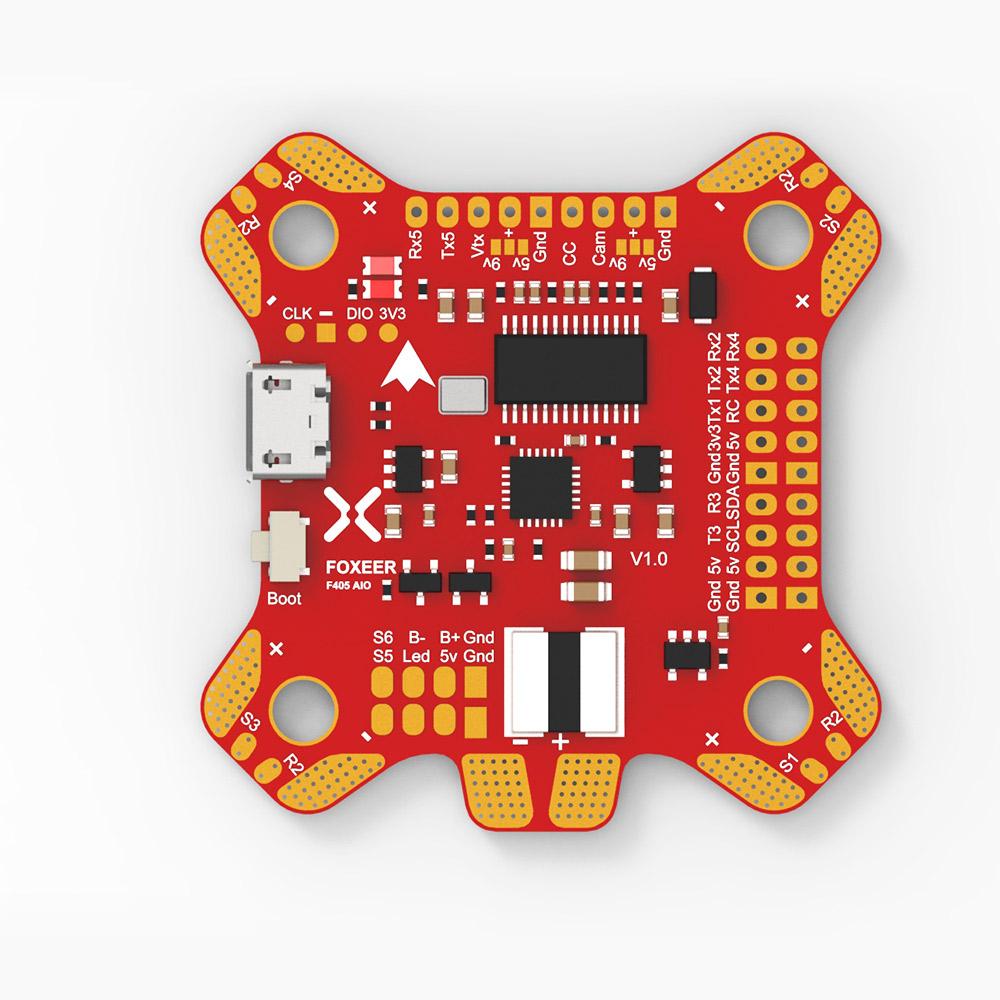

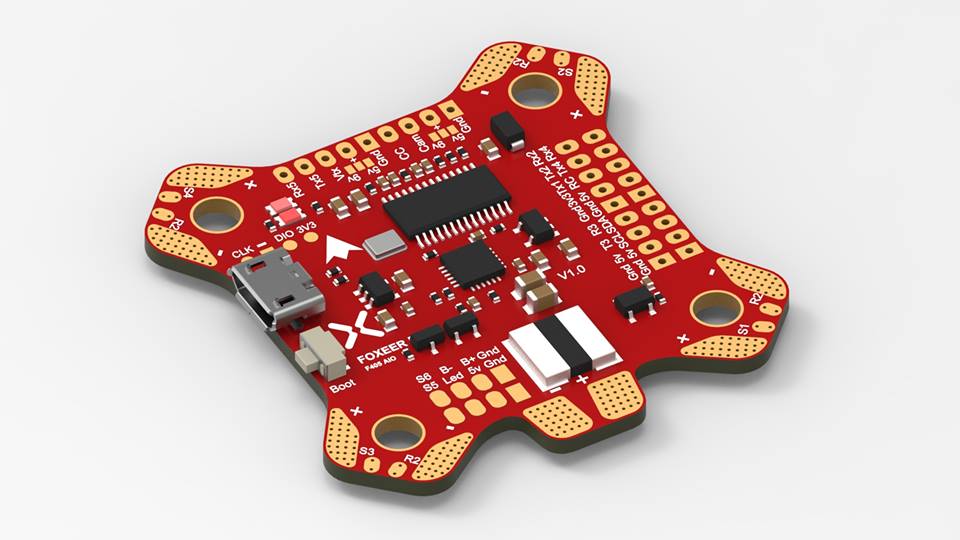

Foxeer F405 AIO FC
Foxeer released their first flight controller – Foxeer F405 AIO FC. This controller has PDB, current sensor, 5V and 9V BEC, OSD, 4xUARTS, I2C. Board has 6 layers of copper and ESC pads support up to 50A. FC can be used with up to 6S batteries. Each corner of the FC has also got telemetry tabs for telemetry capable ESC’s (BLHeli_32).

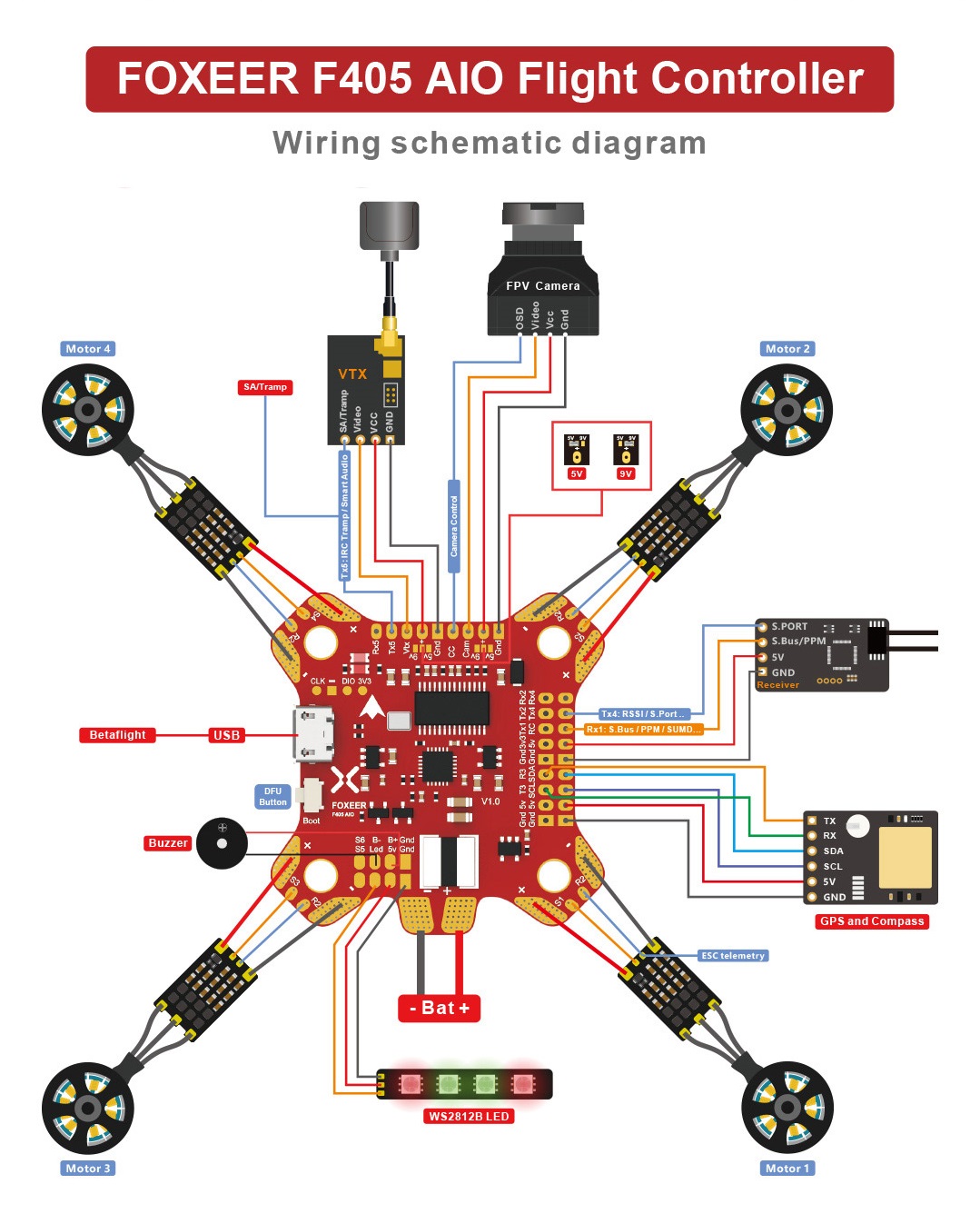

Foxeer F405 AIO FC wiring diagram

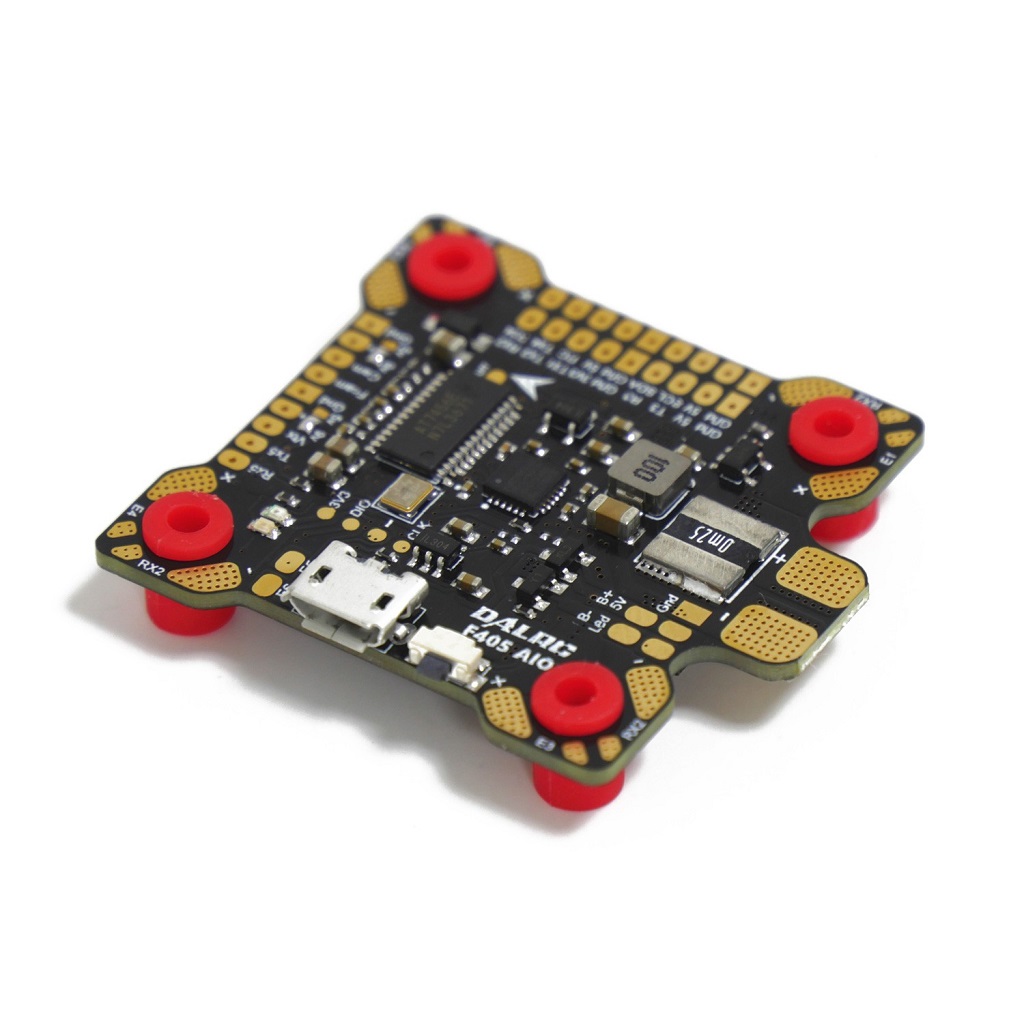

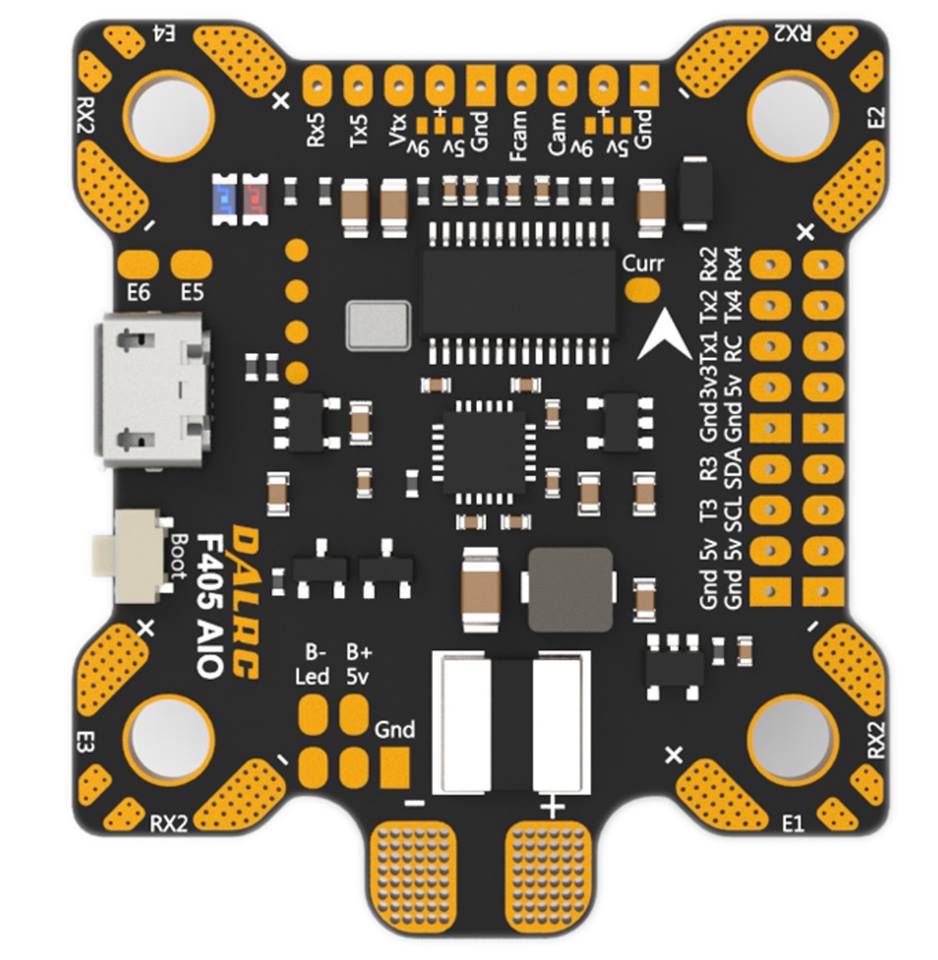

The similarity with the DALRC F405 AIO FC is striking. Look like the Foxeer F405 AIO FC is the successof of the DALRC F405 AIO…
Available @
Specifications:
Size：45*45mm
Hole to hole：30.5*30.5mm (Φ4mm holes)
Weight：10g
Input：10-28V (Supports 3-6S)
Maximum current：4*50A
PCB：6 layer 2.5OZ
BEC：5V/2A 9V/1.5A
Processor：STM32F405RGT6
GYRO：MPU6000 (SPI?)
Flash：16MB
OSD：MAX7456E
Firmware：Betaflight FOXEERF405
Camera remote control (DAC)
