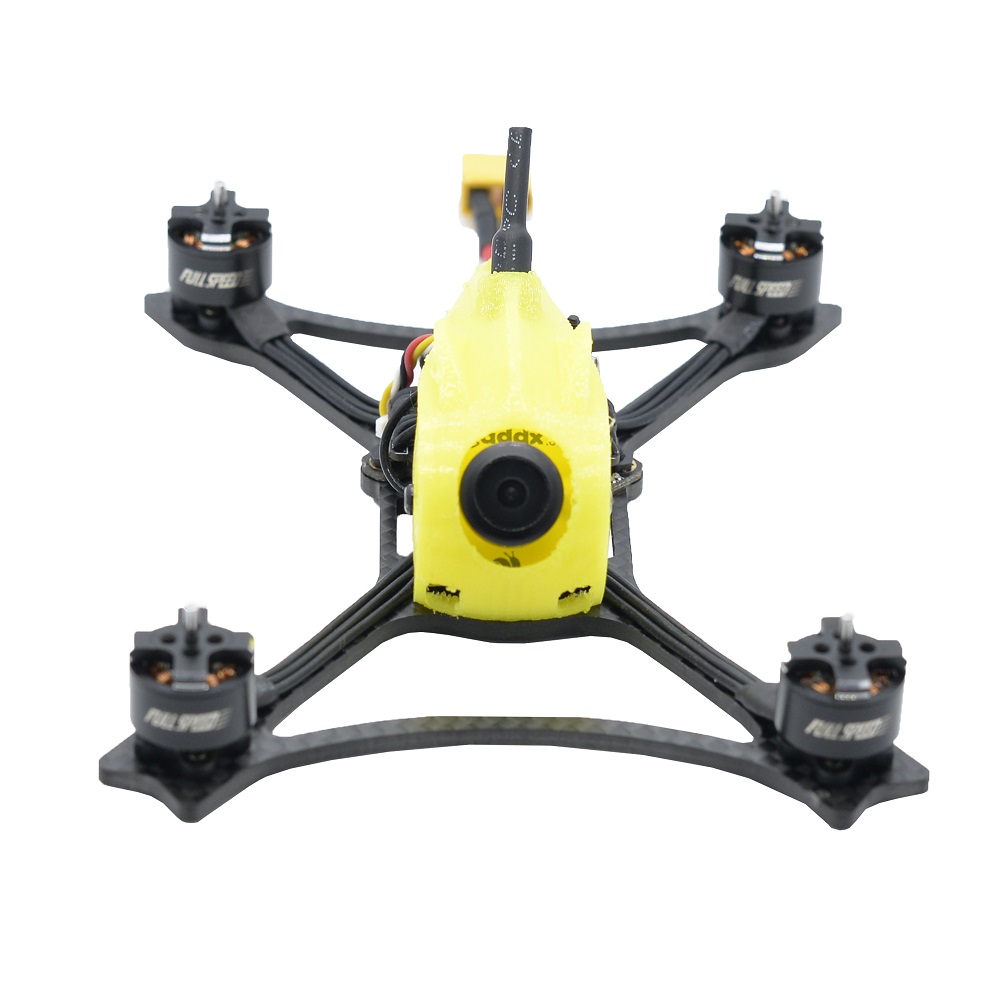

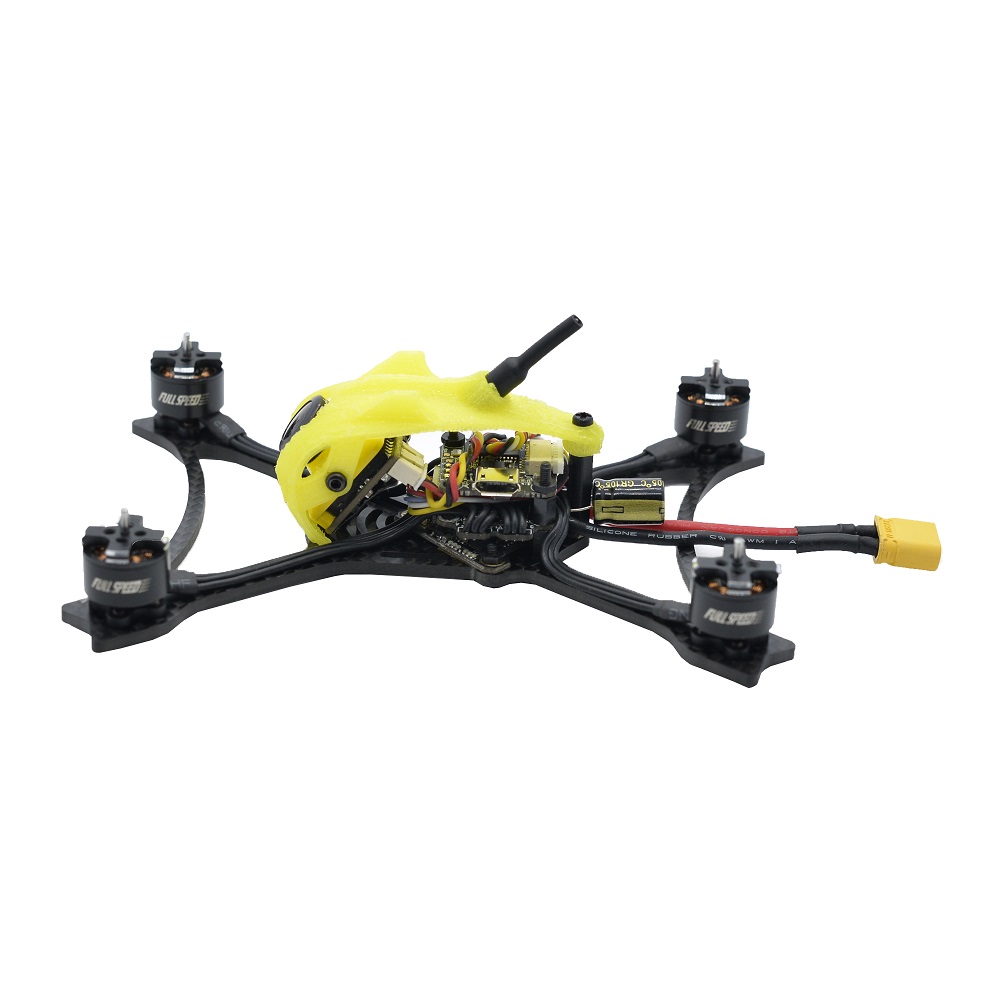

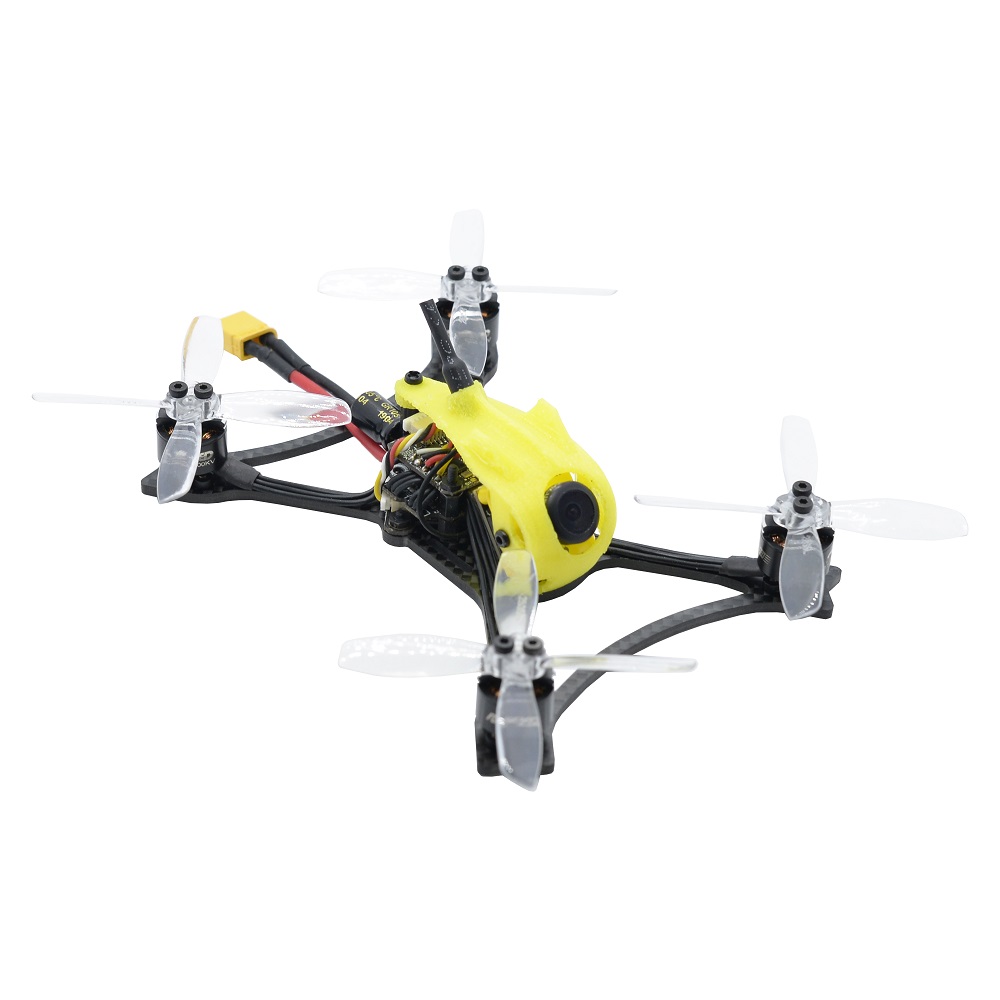

FullSpeed Toothpick PRO on steroids

        Toothpicks should be getting more power – let’s give them steroids. Thats what FullSpeedRC were thinking about and announced the 4S capable Toothpick PRO quad with FSD 1106 size 4500KV motors. The same motors as in Fullspeed Leader 3/3SE. They have enormous power compared to the other toothpick quad 110X size motors. Other specs are almost the same as previous Fullpeed Toothpick – FullSpeed FSD412 Flight Controller with  FSD412 4in1 12A ESC and the same FSD TX600 25mW-600mW Video Transmitter. Toothpick PRO frame is thicker – 2.5mm instead of the 1.5mm. Total weight increased from 41.5 to 65 grams. Toothpick PRO comes with 2535 4-bladed propellers.



        Available @

        FullspeedRC: http://www.fullspeedrc.com/fullspeed-toothpick-pro-fpv-racing-drone-2-4s-1106-25quot-prop-25-600mw-vtx_p0206.html

        Specification:
        Name: FullSpeed Toothpick PRO
        Weight:65g (without battery)
        Thickness of bottom plate: 2.5mm
        Flight controller: FSD412(F411 2-4S FC) 5V 2A BEC  built-in OSD
        ESC: FSD4121-4S ESC)  BLHELI_S 4in1 ESC Dshot600
        Motor: 1106 4500KV
        Propeller: 2535 4-blade propeller
        Camera: Caddx Micro F2 camera with angle adjustable(0°- 45°)
        VTX: FSD TX600 Pit/25/100/200/400/600 switchable VTX(support IRC Tramp)

        FullSpeed FSD412 (F411 FC) Flight controller
        Size: 20mm x 20mm x 5mm
        Mounting hole: 16mm x 16mm
        MCU: STM32 F411
        Gyroscope: MPU6000
        BEC: 5V/2A
        Input Voltage: 2-4S Lipo or 2- 4S HV Lipo
        Built-in Betaflight OSD

        FullSpeed FSD412 1-4S ESCBLHELI_S 4in1 ESC
        Size: 20mm x 25mm x 5mm
        Mounting hole: 16mm x 16mm
        Firmware: BLHELI_S
        Input Voltage: 1-4S Lipo or 1- 4S HV Lipo
        Continuous current: 12A
        BEC Ouput: NO

        FullSpeed FSD TX600 25mW-600mW VTX FPV Transmitter
        Output power: PIT/25mW/100mW/200mW/400mW/600mW switchable
        Control mode: BF OSD control (support IRC Tramp)/button
        Video system: NTSC/PAL
        Antenna: IPEX
        BAT: 5V Recommended
        Frequency: 5.8GHz 6 bands 48 channels, with Raceband: 5362-5945 MHZ
        Size: 26*26mm(L*W),Hole:20*20mm
        Weight: 2.3g
