Happymodel ExpressLRS EPW5 and EPW6 PWM receivers

Happymodel has released two receivers with PWM outputs for servos, designed to be used in the fixed wing aircrafts (and not only).?EPW5 and EPW6?receivers are?the 5CH and 6CH PWM receivers for 2.4GHz and 900MHz bands respectively. Both receivers can also be flashed with the firmware to output the CRSF protocol via RX/TX (PWM3/PWM2) pads.

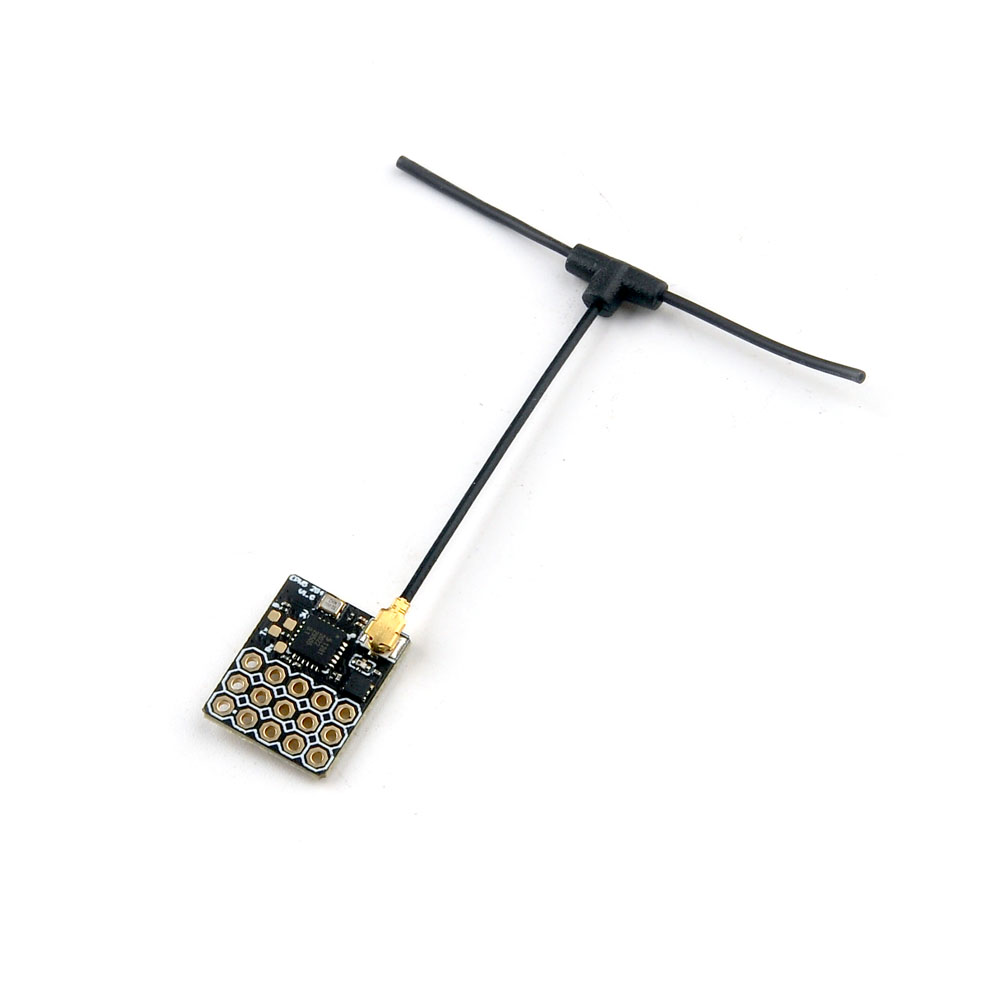

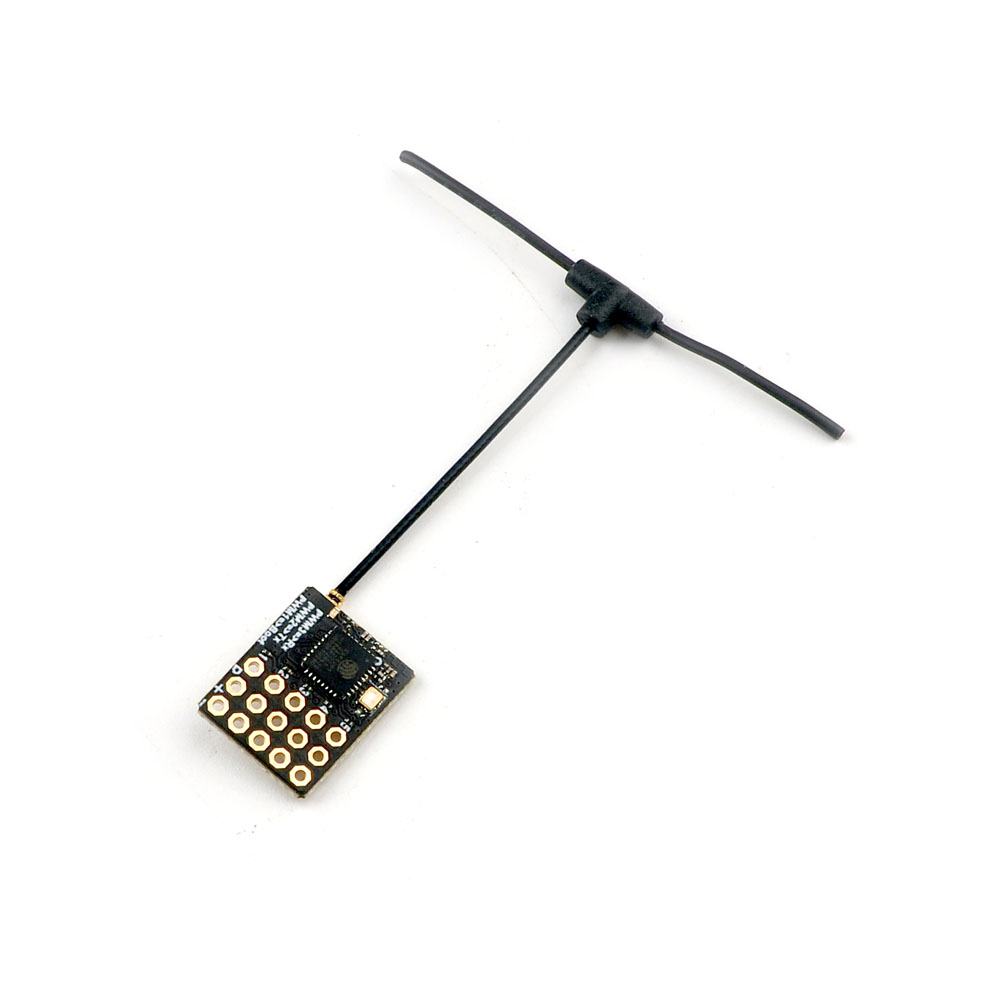

Happymodel EPW5

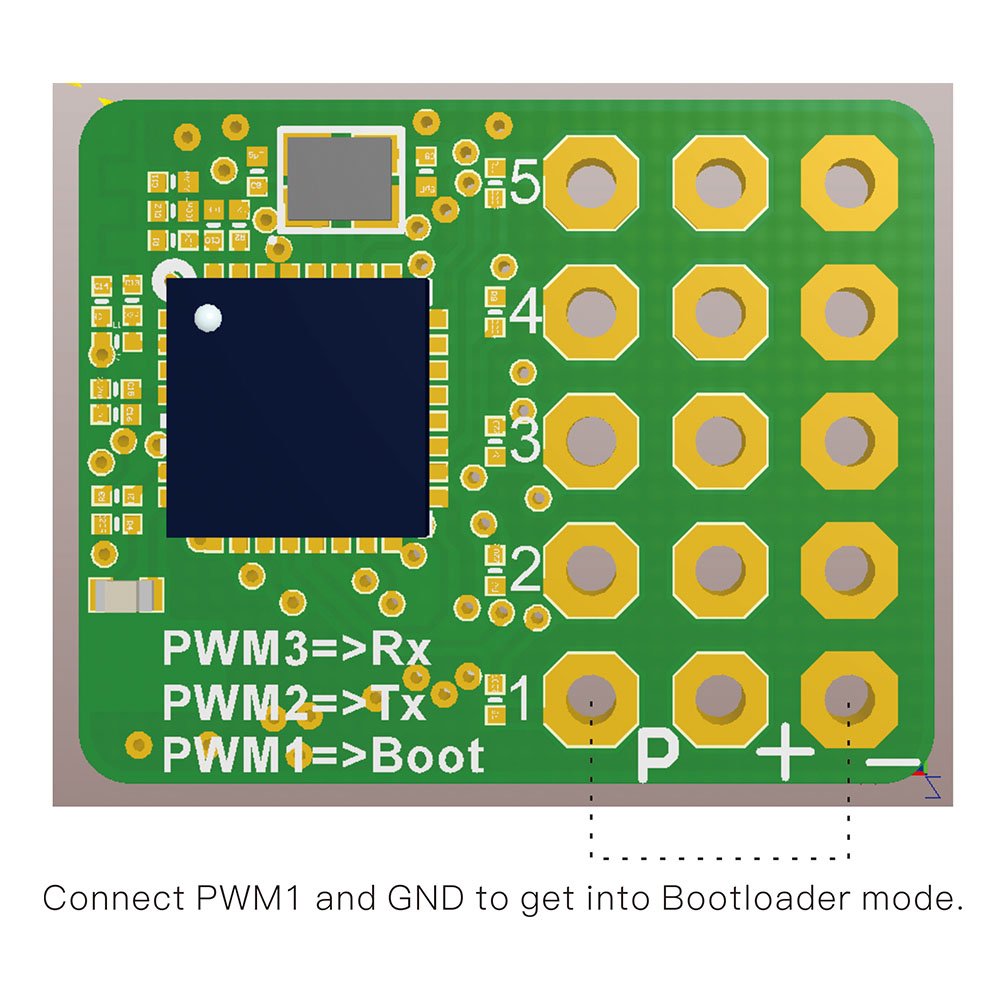

Short the PWM1 P and – pads for entering the bootloader mode on startup. Connect PWM2 to TX and PWM3 to RX for UART firmware upload.

Available @

Aliexpress:?https://www.aliexpress.com/item/1005003758095894.html

Specifications:
Item:?Happymodel EPW5 2.4GHz PWM receiver
ESP8285, SX1280/1281
Antenna connector: IPEX MHF 1/U.FL
5x PWM outputs
RF Frequency: 2.4GHz (2400~2480MHz)
Telemetry power: 12dbm
Receiver protocol: PWM or CRSF
Input voltage: +5V DC @ “+” pad
PCB size: 17mm x 14mm

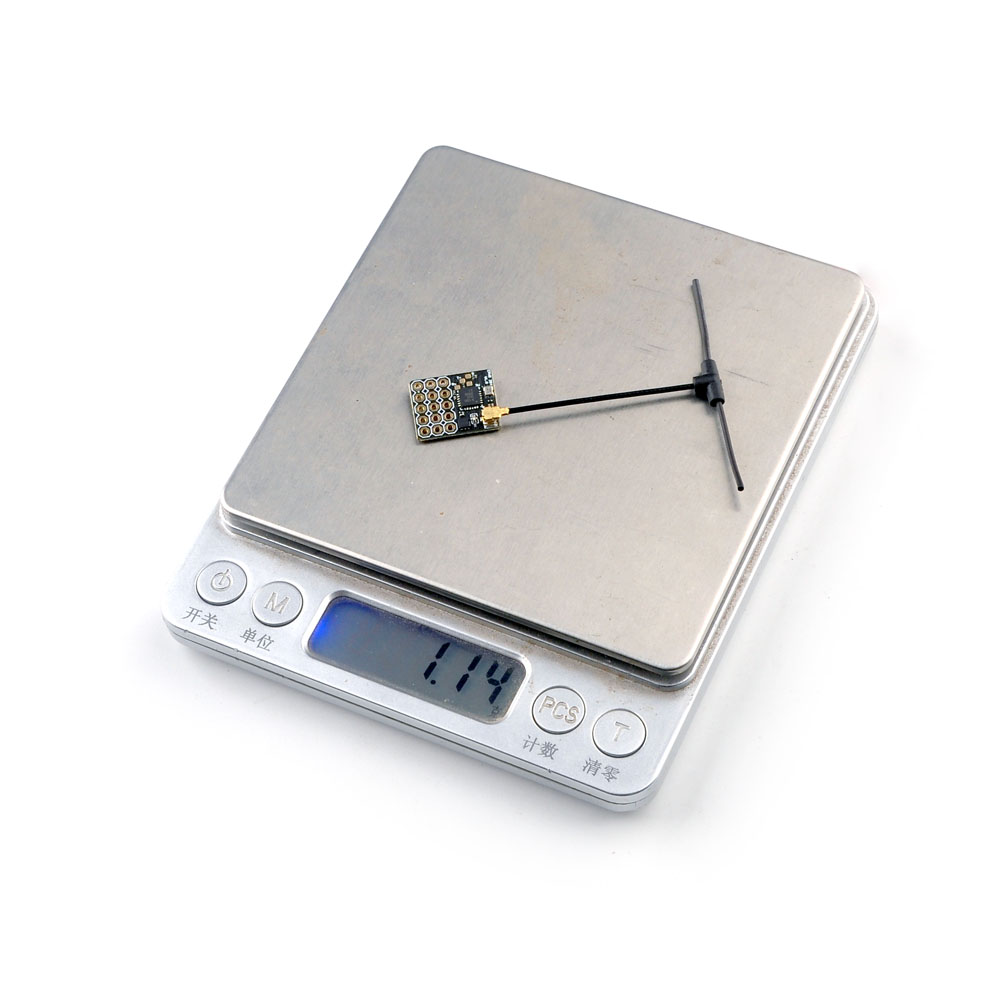

Weight: 1.1g with antenna
Default firmware version:?ExpressLRS v2.0

Firmware:
DIY_2400_RX_PWMP, ?PWM receiver via 1~5 PWM outputs
HappyModel_EP_2400_RX, ?CRSF Serial receiver via TX and RX
Firmware update via UART or WIFI

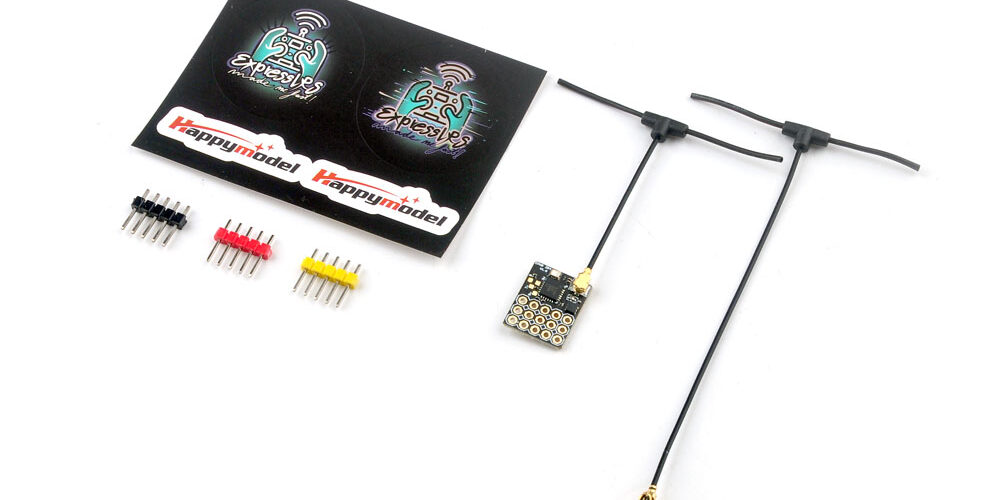

Package Included:
1 x Happymodel EPW5 2.4GHz pwm Receiver
2 x 2.4GHz antenna
3 pin 2.54mm

Bind Procedure:

1. Supply power to the EPW5 RX, wait until the Green LED on the RX is off, immediately turn off the power, and then repeat again the above steps. When the RX is powered on for the third time, the Green LED light will start to double-flash, which means that the RX enters the binding mode
2. Get into menu of ELRS.LUA V2.0 version from your radio transmitter and then press BIND, the Green LED on the RX module will getting to be solid if bind successfully.

Receiver LED status meanings:
LED solid means bind successful or Connection established; LED double-flash means in bind mode; LED flash slowly means no signal connection from the TX module; LED flash fast means in WIFI hotspot mode, you can connect the WIFI of the RX and upgrade firmware of the RX via visit 10.0.0.1 from the web browser(password: expresslrs)

Happymodel EPW6

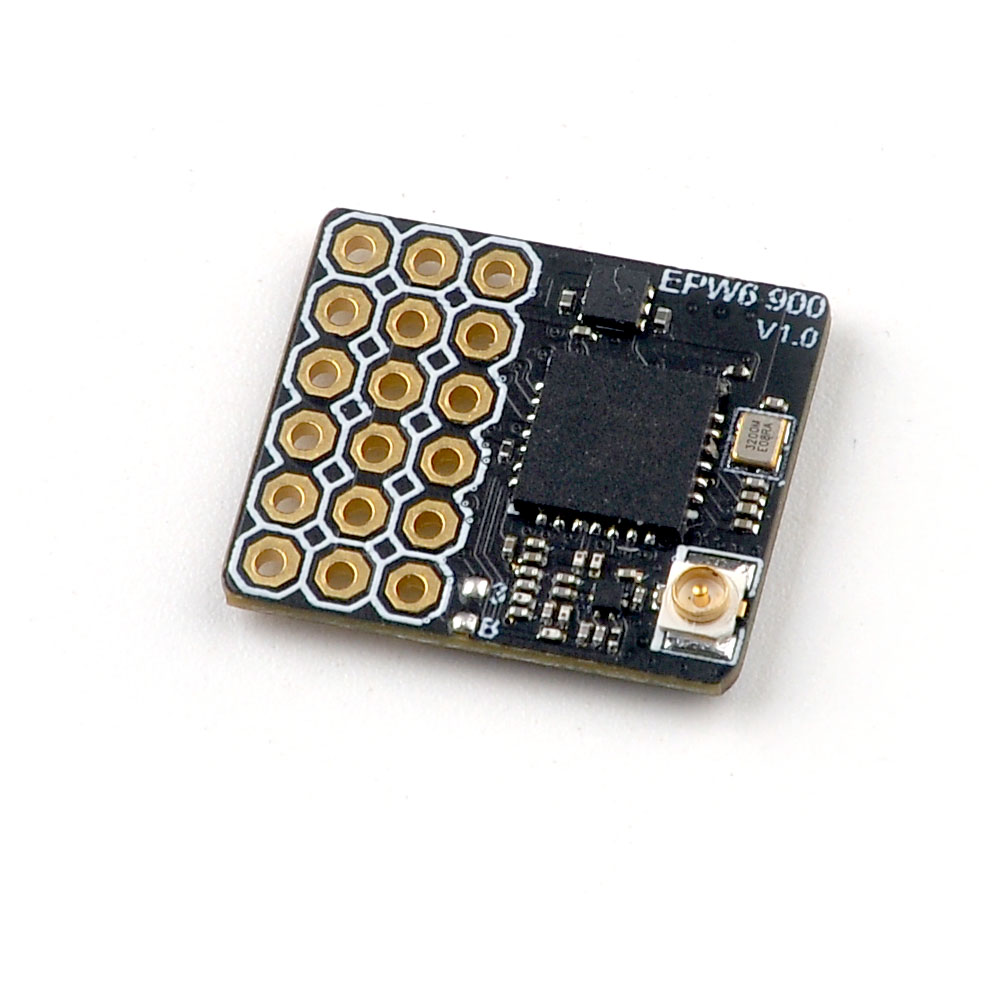

Happymodel EPW6 receiver comes with the?915MHz and?868MHz antennas included, so you are sure you’ll get the right antenna for your band.

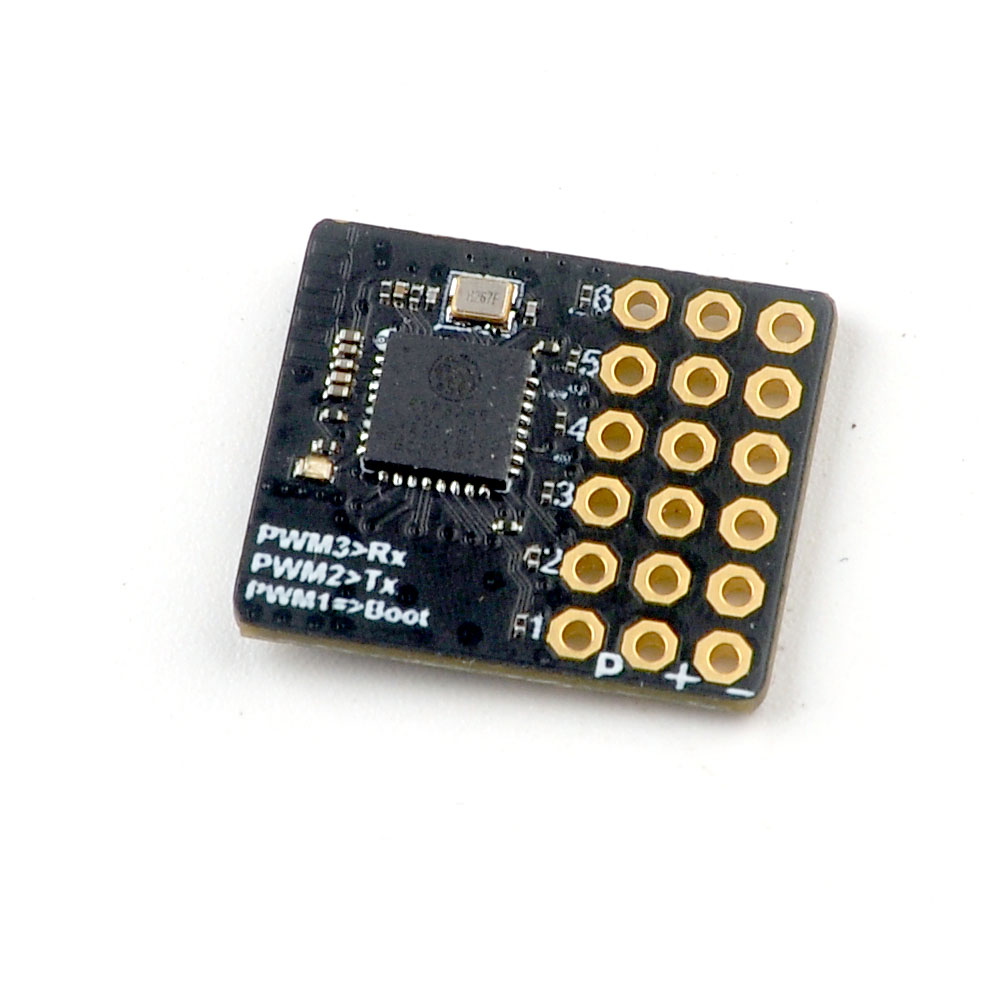

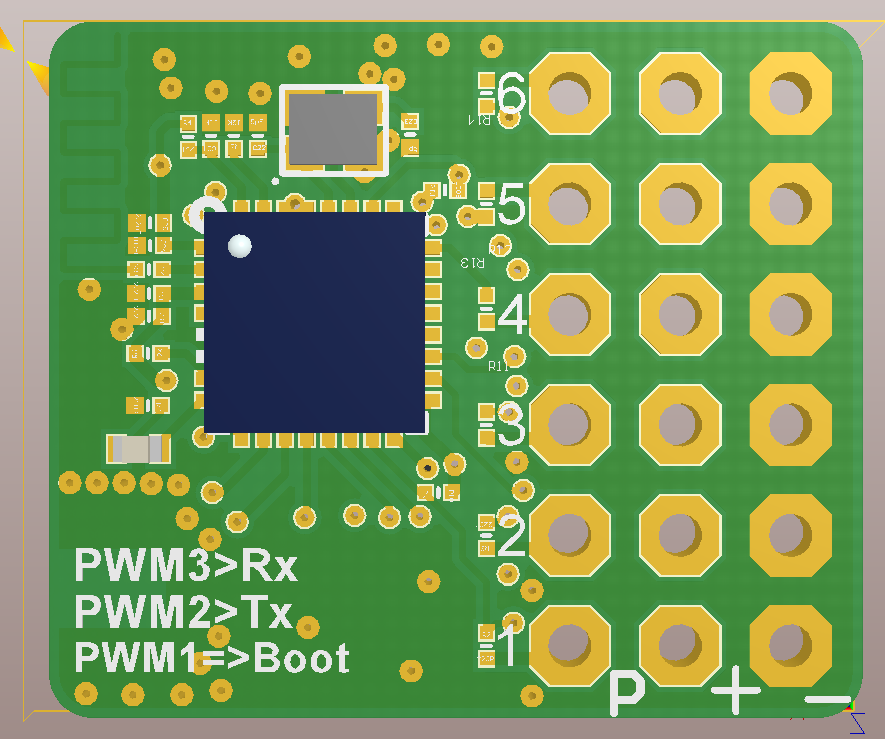

Short the PWM1 P and – pads for entering the bootloader mode on startup. Connect PWM2 to TX and PWM3 to RX for UART firmware upload.

Available @

Aliexpress:?https://www.aliexpress.com/item/1005003773094742.html

Specifications:
Item:?Happymodel EPW6 900MHz PWMreceiver
ESP8285, SX1276
Antenna connector: IPEX MHF 1/U.FL
6x PWM outputs
RF Frequency: 868MHz(EU), 915MHz(FCC)
Telemetry power: <17dbm
Receiver protocol: PWM or CRSF
Input voltage: +5V DC @ “+” pad
PCB size: 18.5mm x 16mm

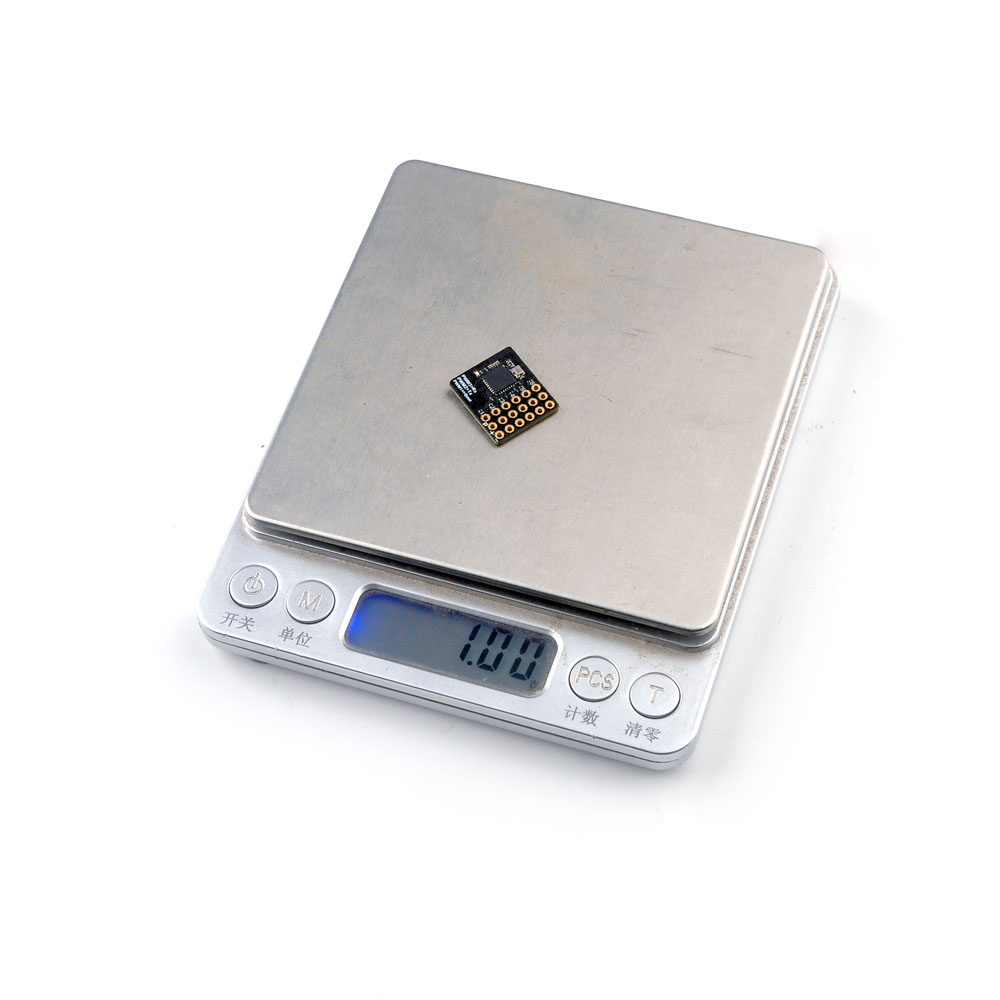

Weight: 1 g without antenna
Default firmware version: ExpressLRS v2.0

Firmware target:
DIY_900_RX_PWMP (Factory default firmware), ?PWM receiver via 1~6 PWM outputs
HappyModel_RX_ES900_RX, ?CRSF Serial receiver via TX and RX
Firmware update via UART or WIFI

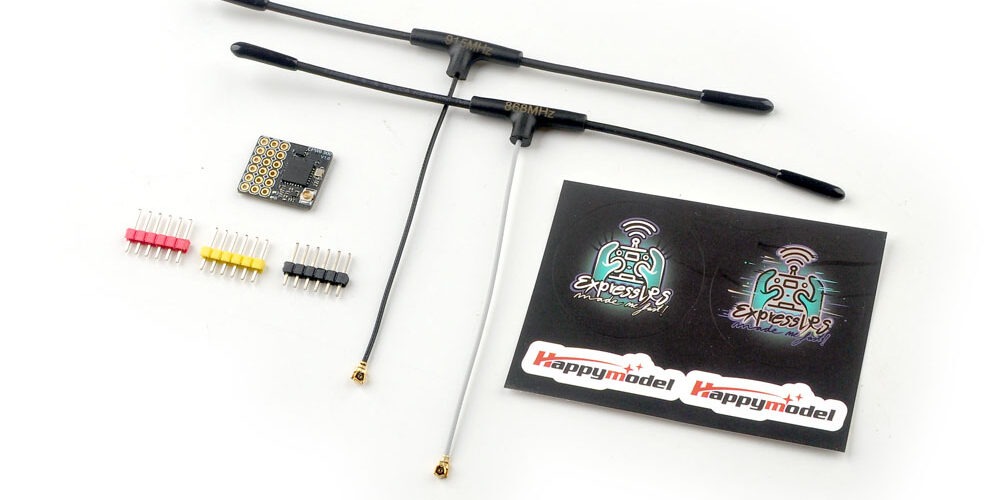

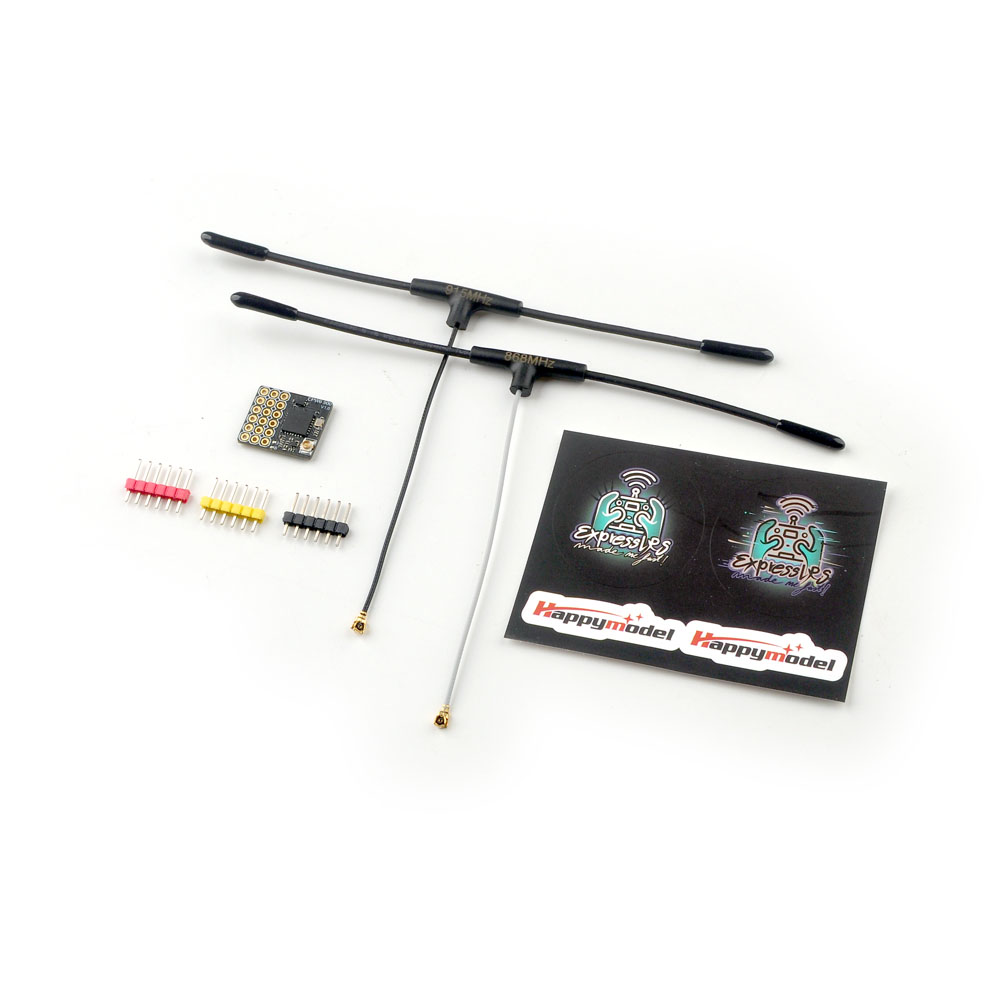

Package Included:
1 x Happymodel EPW6 900MHz pwm receiver
1 x 915MHz antenna
1 x 868MHz antenna
3 x 6pin 2.54mm

Bind Procedure:

1. Supply power to the EPW6 RX, wait until the Green LED on the RX is off, immediately turn off the power, and then repeat again the above steps. When the RX is powered on for the third time, the Green LED light will start to double-flash, which means that the RX enters the binding mode
2. Get into menu of ELRS.LUA V2.0 version from your radio transmitter and then press BIND, the Green LED on the RX module will getting to be solid if bind successfully.

Receiver LED status meanings:
LED solid means bind successful or Connection established; LED double-flash means in bind mode; LED flash slowly means no signal connection from the TX module; LED flash fast means in WIFI hotspot mode, you can connect the WIFI of the RX and upgrade firmware of the RX via visit 10.0.0.1 from the web browser(password: expresslrs)
