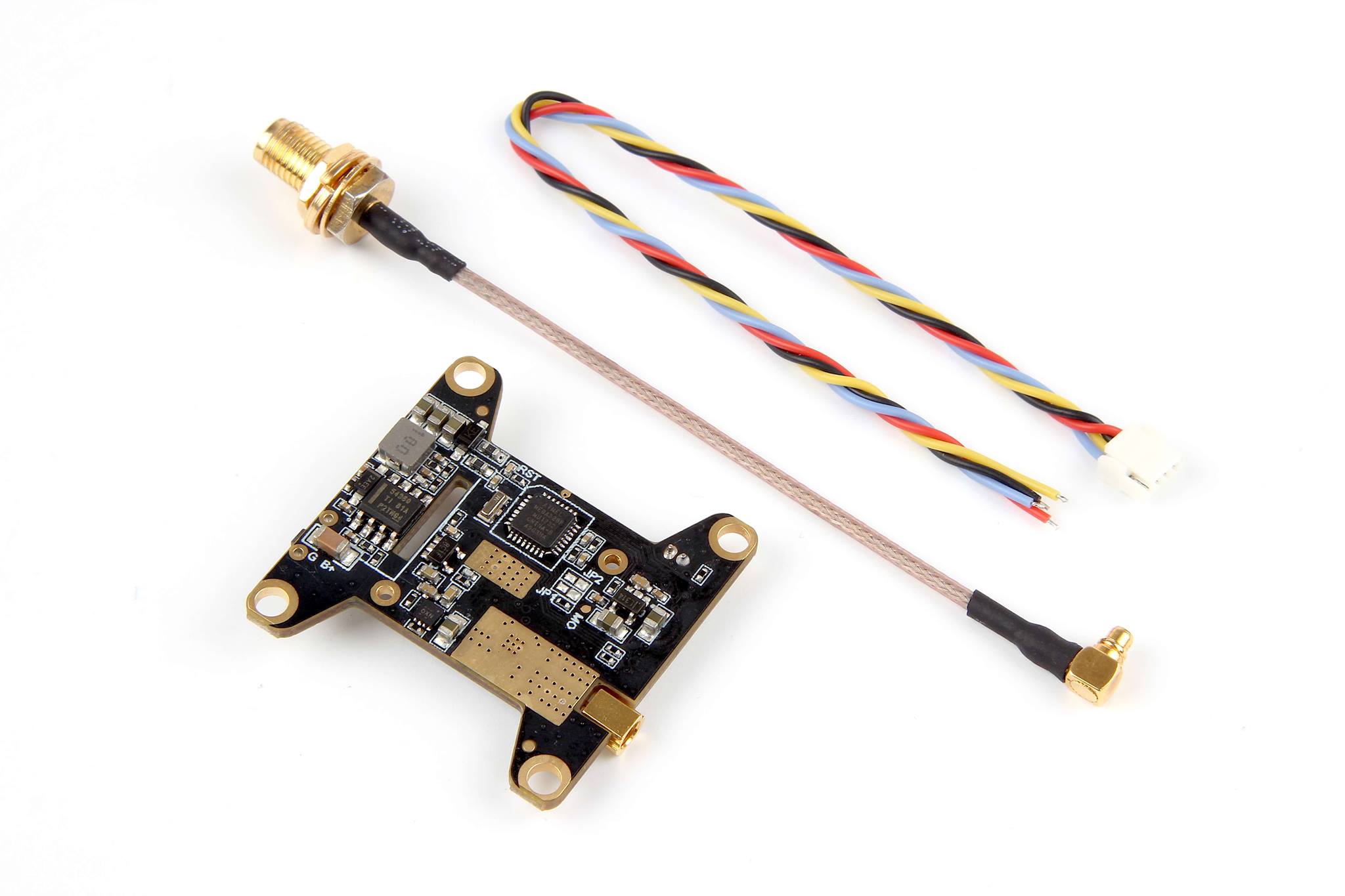

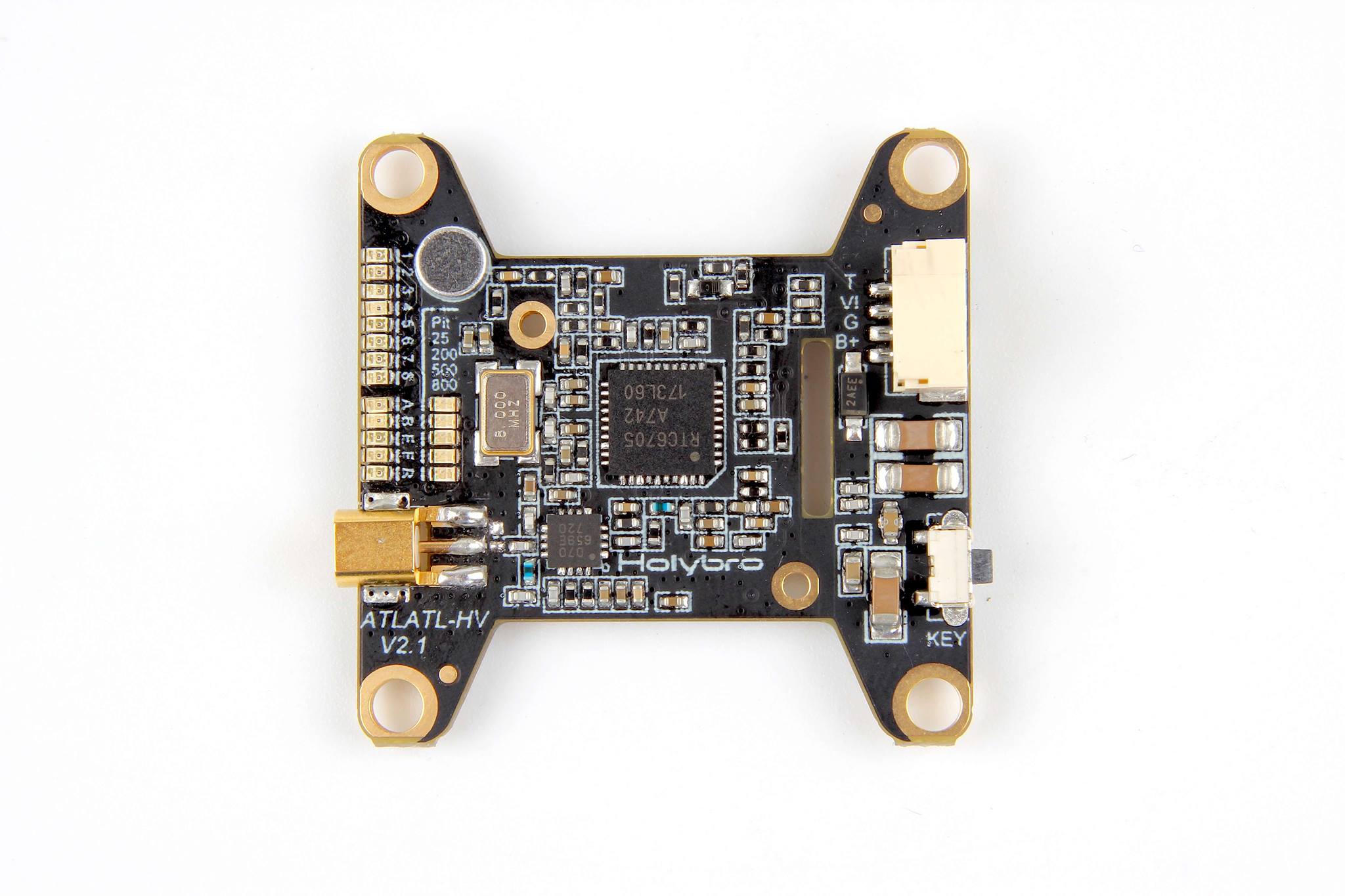

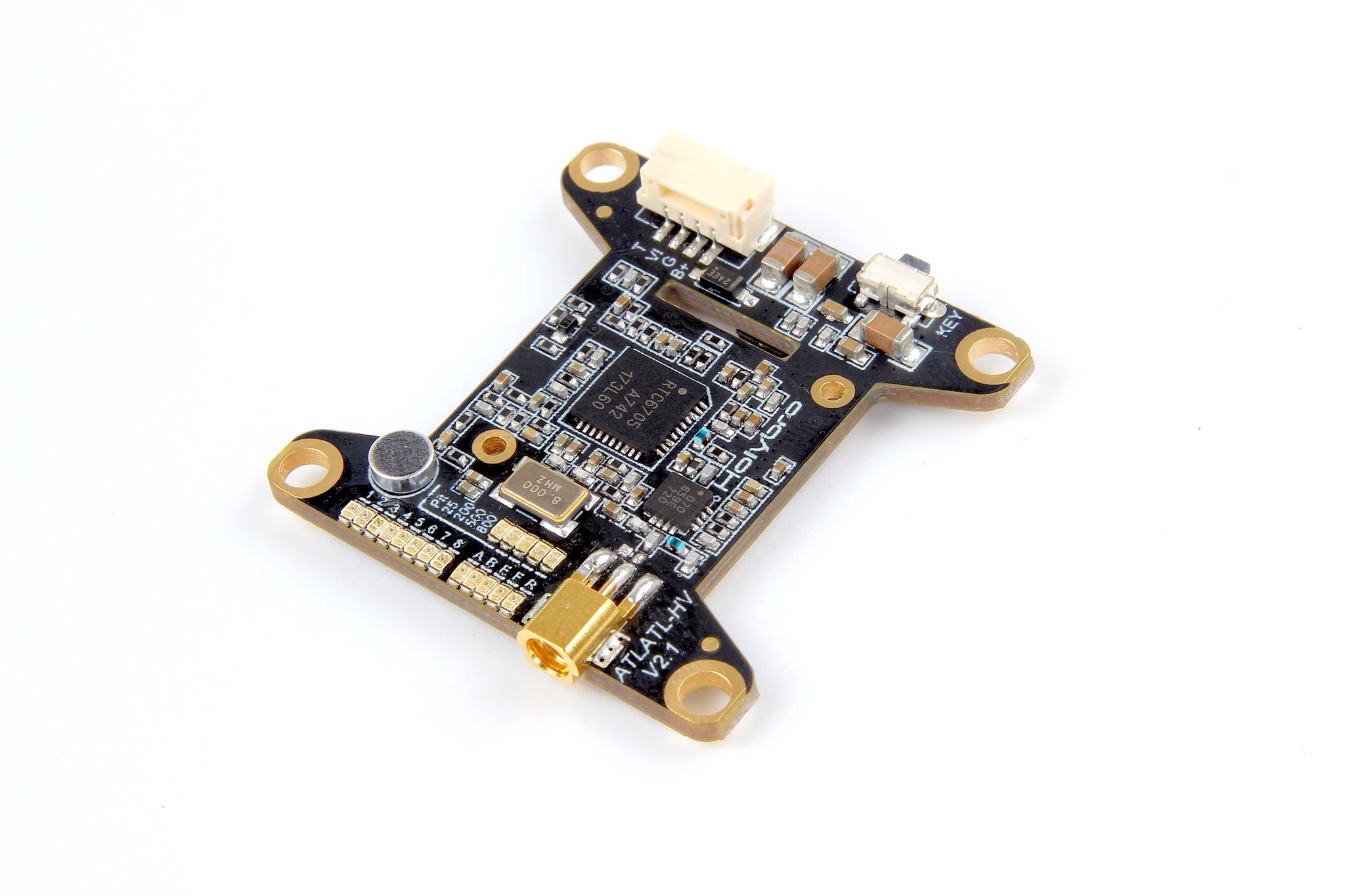

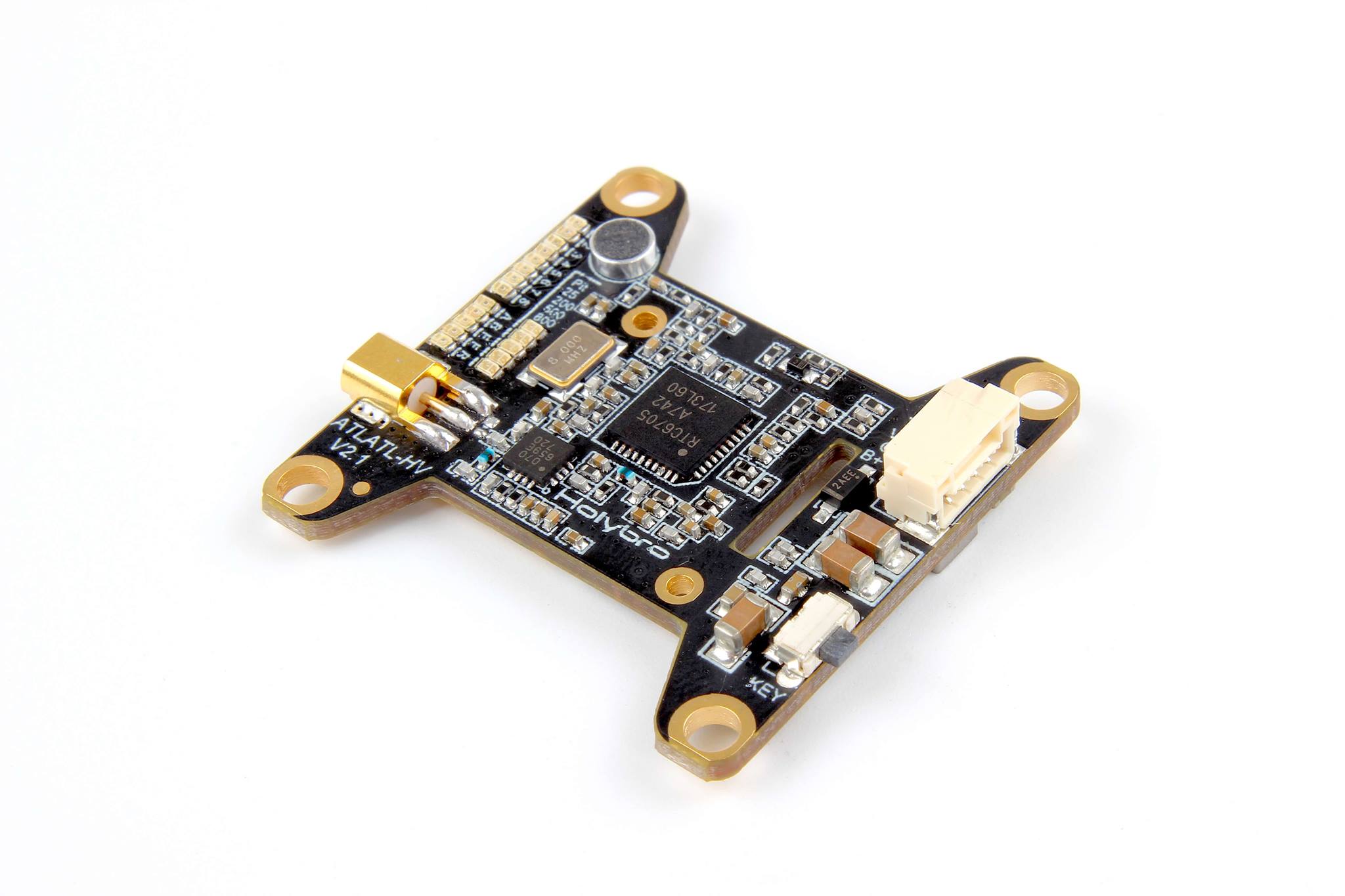

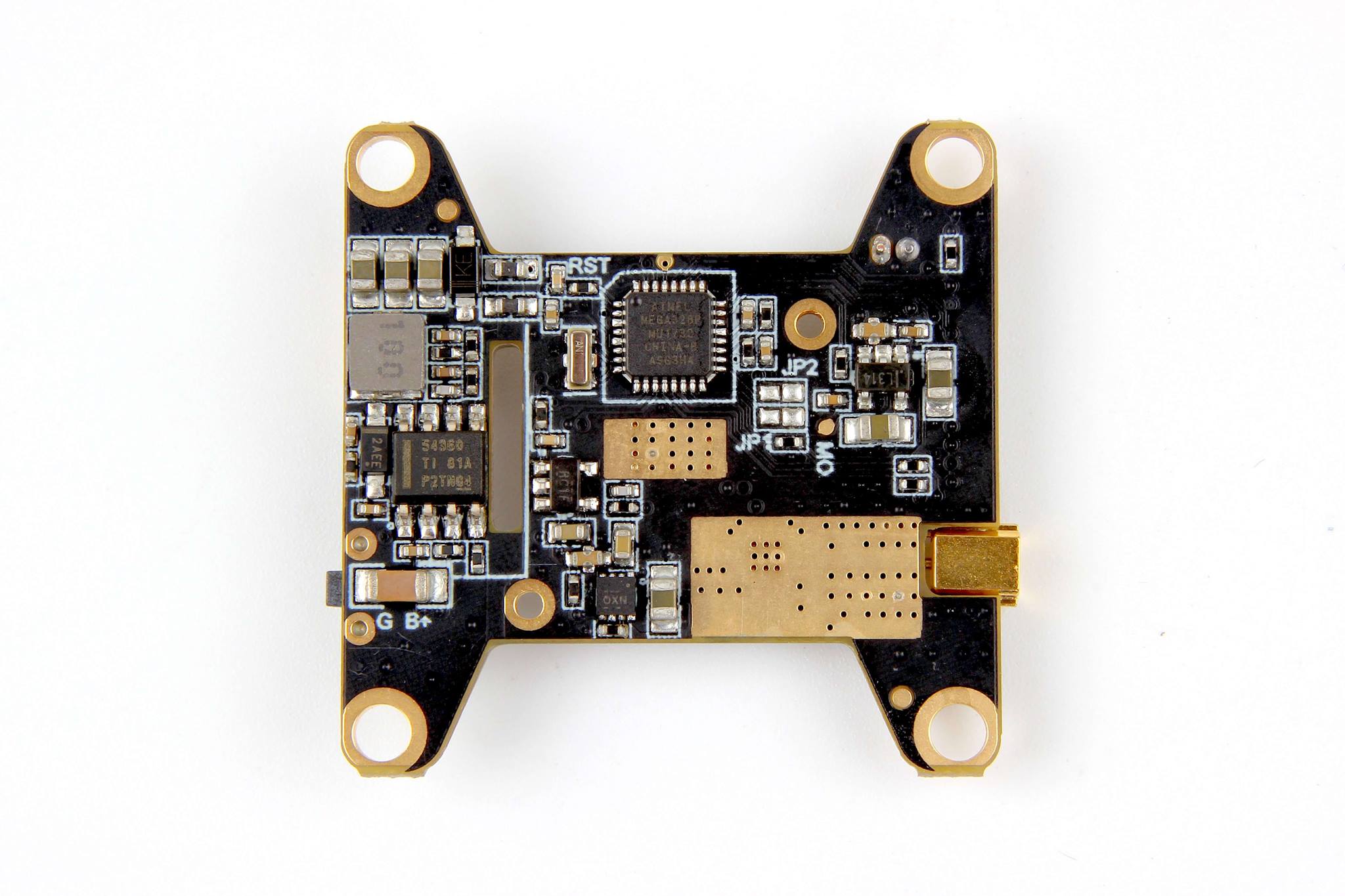

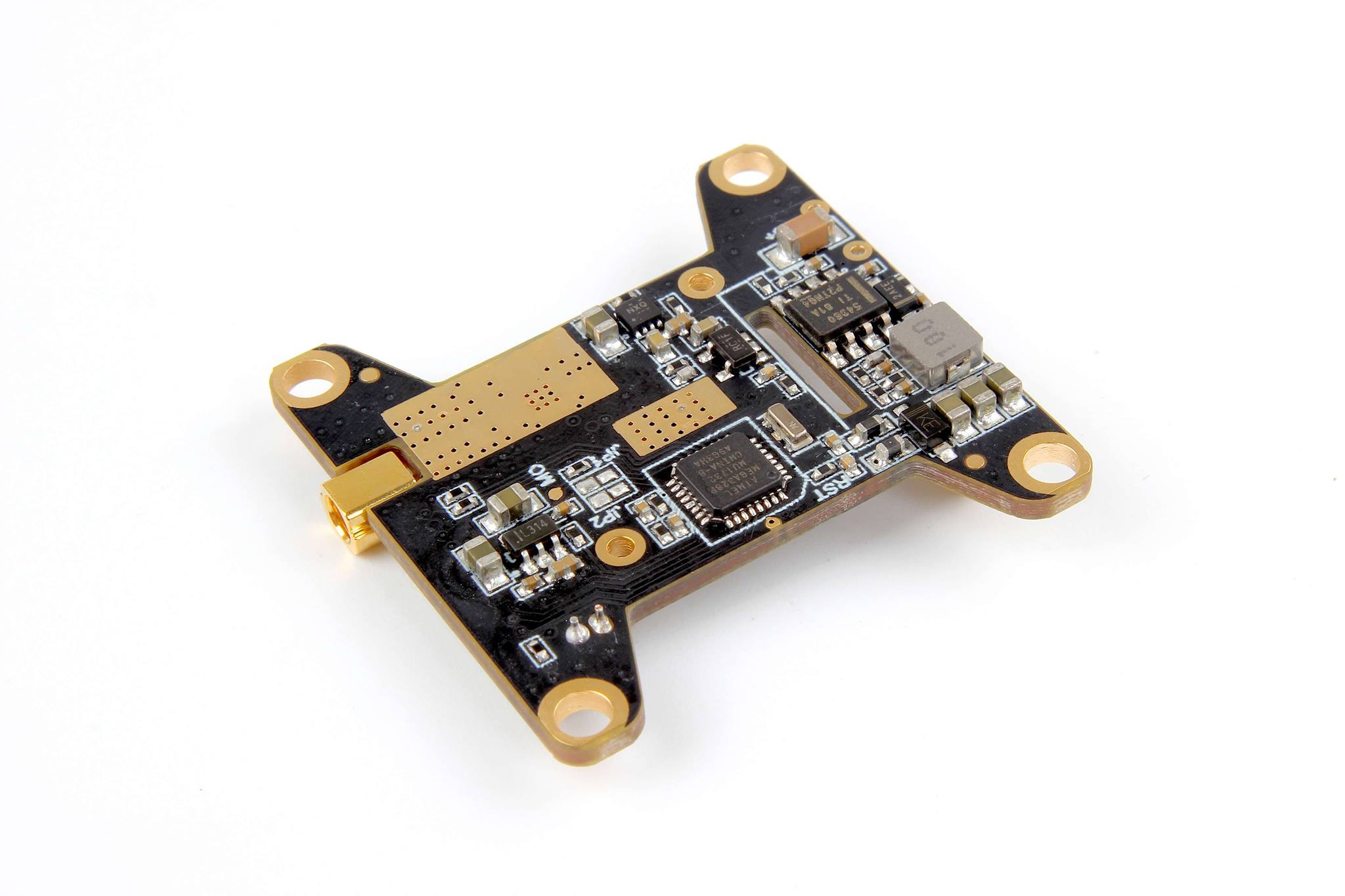

Holybro Atlatl HV V2 VTX

        Holybro announced Atlatl HV V2 VTX – new version of their well known Atlatl HV VTX.

        What’s new?

        • Holybro fixed the pseudo 15mW PIT mode with 0.5 mW True Pit Mode;
        • Now there is an on-board microphone on the VTX;
        • Transmitting power was increased up to 800mW;
        • There are series of LED indicators for channel, band and power instead of the single LED on the first version
        • Atlatl HV V2 became even lighter (9.3g) comparing to the first version (10.8g);

        Available @

        Holybro: https://shop.holybro.com/atlatl-hv-v2_p1090.html

        Banggood: https://www.banggood.com/Holybro-Atlatl-HV-5-8G-40CH-Raceband-1525100200400600mW-FPV-Transmitter-Support-Telemetry-MIC-I-p-1187408.html

        User manual: http://www.holybro.com/manual/Holybro-Atlatl-HV-v2-Manual.pdf

        Features
        ? Compatible with all major FPV receivers from vendors such as Fatshark, ImmersionRC, etc.
        ? Supports the standard 40-channel set: band A, B, E, Fatshark, and Raceband.
        ? SmartAudio input allows remote control by the flight controller. Change channel, transmit power, and more from Betaflight OSD, flight controller USB port, Taranis Lua Script, and more.
        ? All parameters are controllable via push-button on the side of the unit, for cases where SmartAudio is not used.

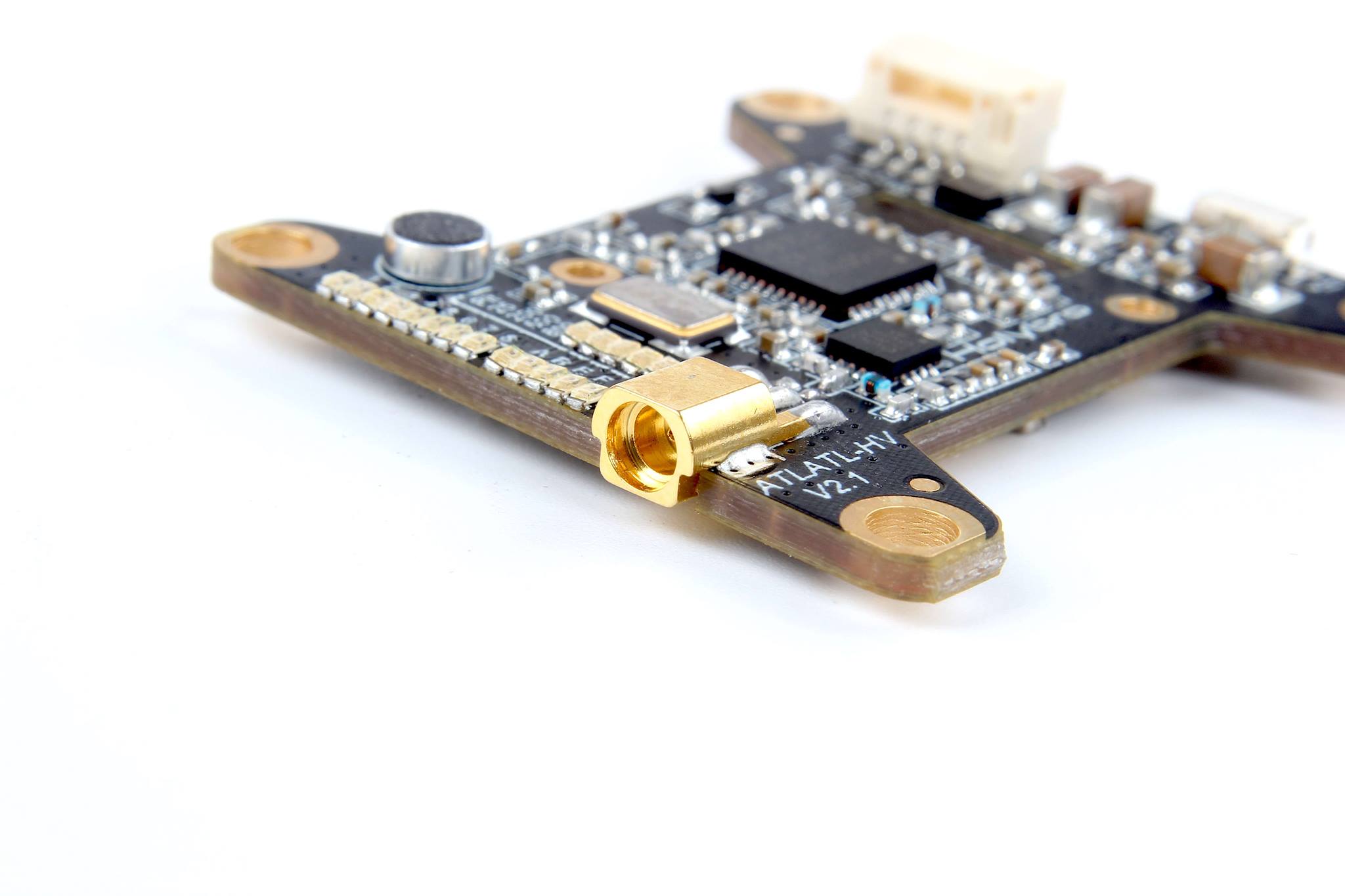

        ? MMCX connector is durable and easy to use. Rated for 100’s of mating cycles. Easy and quick antenna changes. No more ripped-off UFL connectors.
        ? LED indicators for channel, band, and power. Allows easy check of vTX parameters simply by glancing at the quad.
        ? Variable transmit power from 25 mW to 800 mW. Use 25 mW for a race and then easily switch to 800 mW for freestyle.
        ? 0.5 mW True Pit Mode allows you to power up safely without the risk of knocking other pilots out of the air.
        ? Built in microphone, so you can listen to your motors while you fly, no matter how far away you fly.
        ? Standard 36mm form factor allows you to mount the Atlatl directly on your flight controller stack.

        Specifications
        ? Output Power: 0.5 mW (pit mode), 25 mW, 200 mW, 500 mW, 800 mW
        ? Audio: 6.5 MHz Mono
        ? Antenna Connector: MMCX
        ? Input Voltage: 7 to 28 volts (2-6S LiPo) with absolute maximum 42 volts
        ? Dimensions: 35x25x7mm (Includes USB height)
        ? Mounting Holes: Standard 30.5mm square to center of holes ? Weight: 9.3g
