Matek F405-AIO – another all-in-one FC

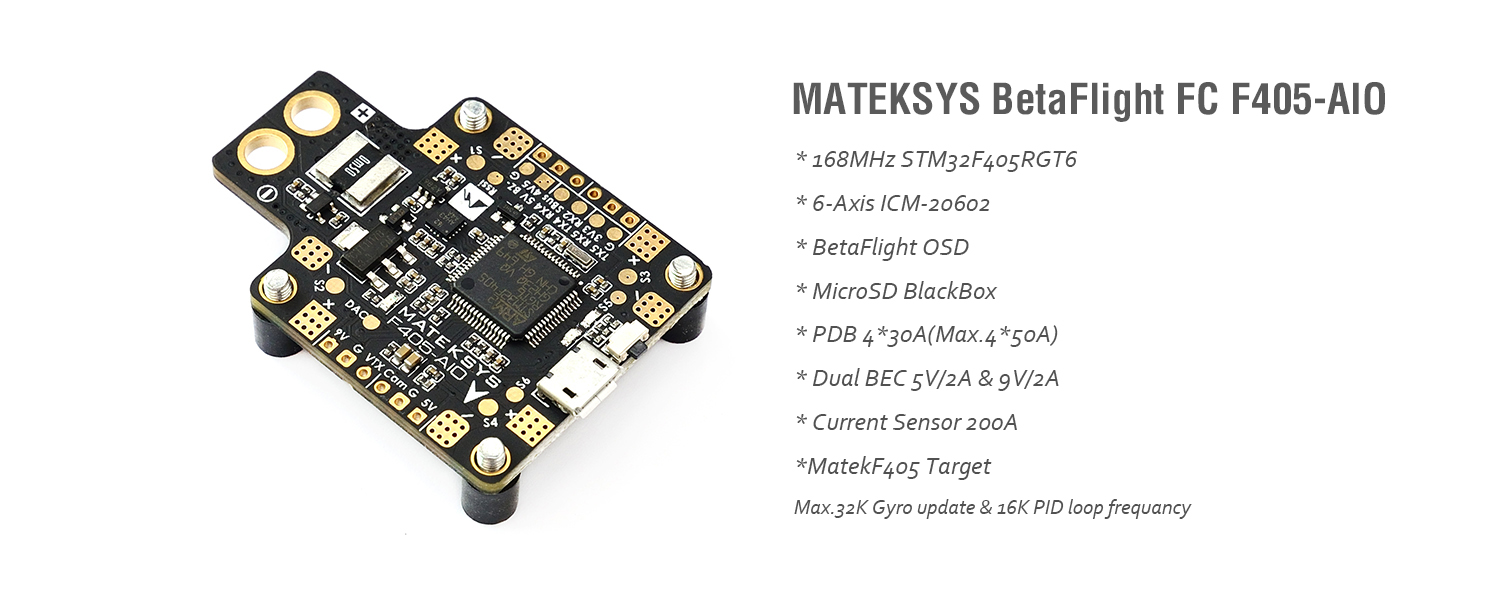

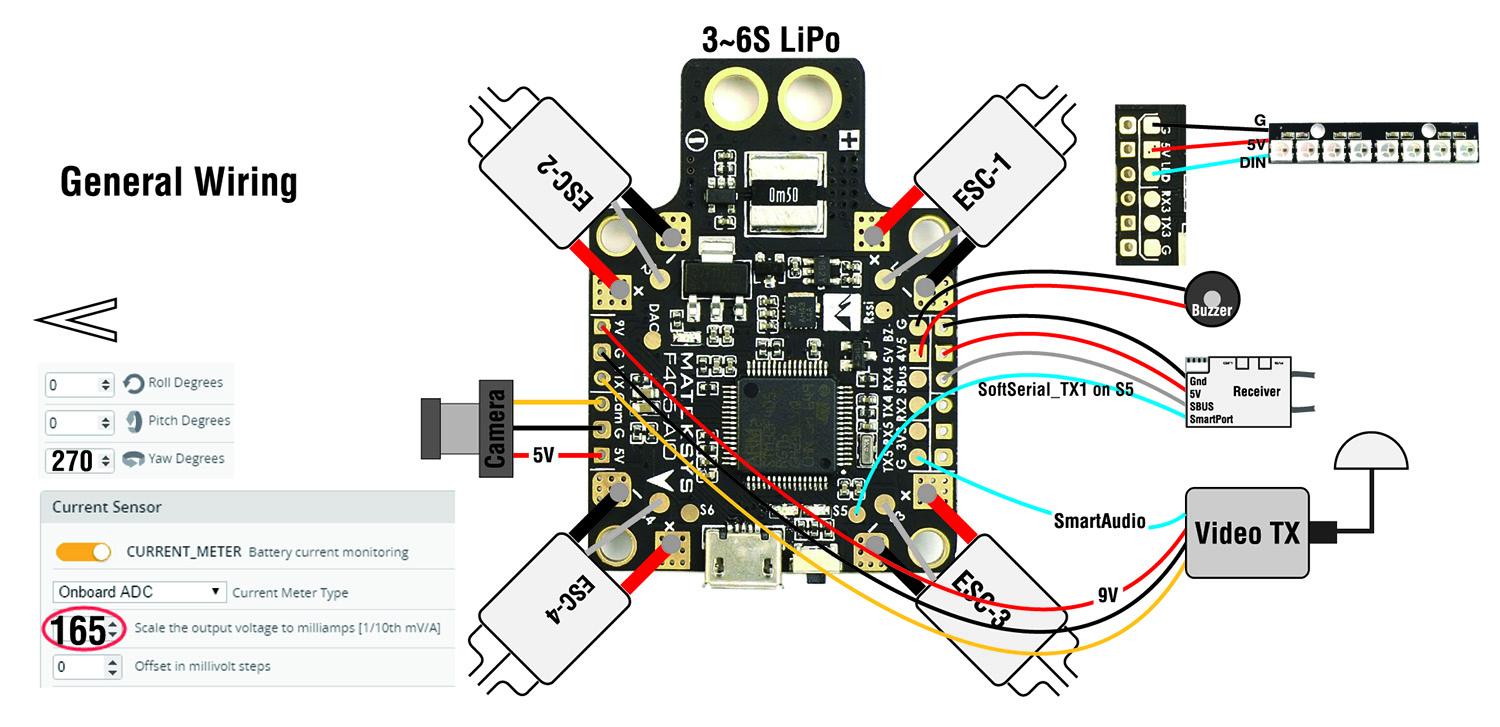

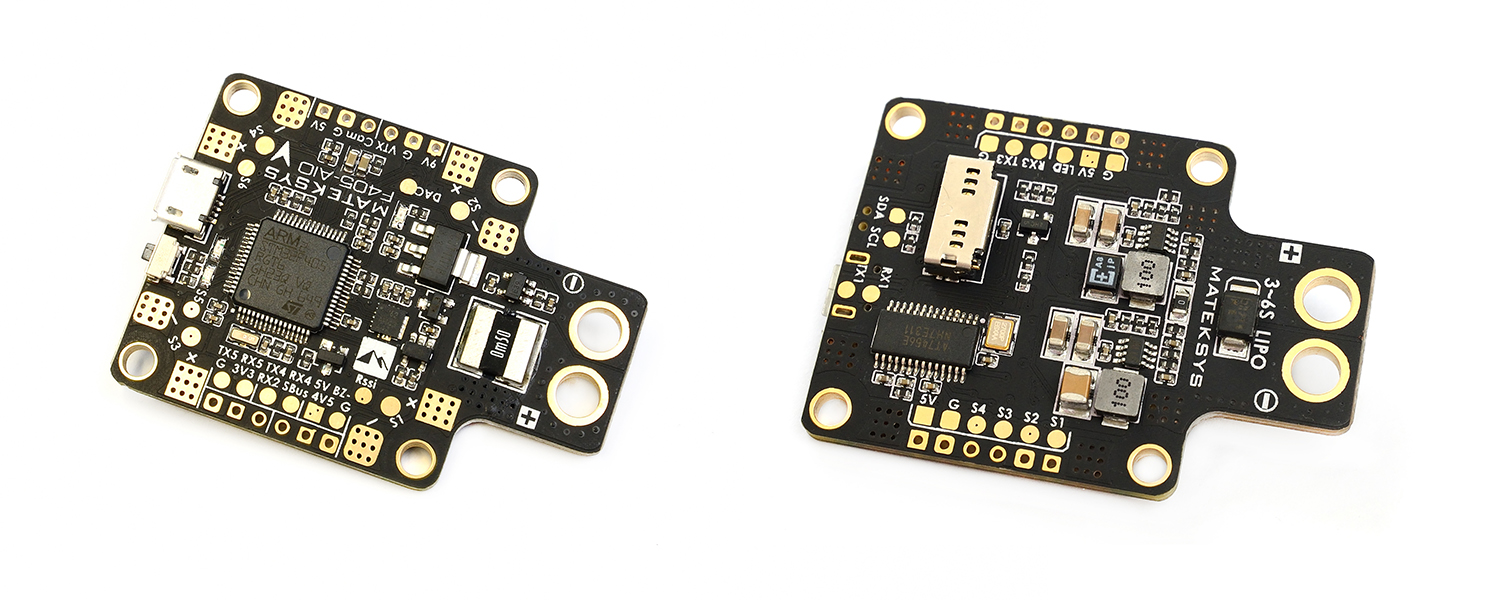

Matek is about to release new All-in-one flight controller solution – Matek F405-AIO. Matek?already has PDB and FC as separate boards, that are interconnected with flat ribbon cable. This time everything will be populated on one board. Welcome the AIO FC from Matek. The heart of the controller is F405 MCU and ICM20602 gyroscope, capable of the 32kHz update speed. The board will include everything a modern FC has: SD Card slot for blackbox logging, Betaflight OSD, Current sensor (200A), battery voltage sensor, 5V& 9V BEC, 5xUATRs, inverter for SBUS, Spectrum, LED, Buzzer ports. Matek F405-AIO can be powered from 3S-6S battery, and power can be distributed via 4x35A (max4x50A) onboard PDB. ESC’s can be connected via corner pads for separate speed controllers, also a group of pads is present for connecting of 4in1 ESC. Board will come with 4 anti-vibration softmount standofs and additional Rubycon?ZLH Series Capacitor?for equalizing voltage spikes.

Listed @ Banggood:?https://www.banggood.com/Matek-Systems-BetaFlight-F405-AIO-STM32F405-Flight-Controller-Built-in-PDB-5V2A-9V2A-Dual-BEC-p-1165338.html

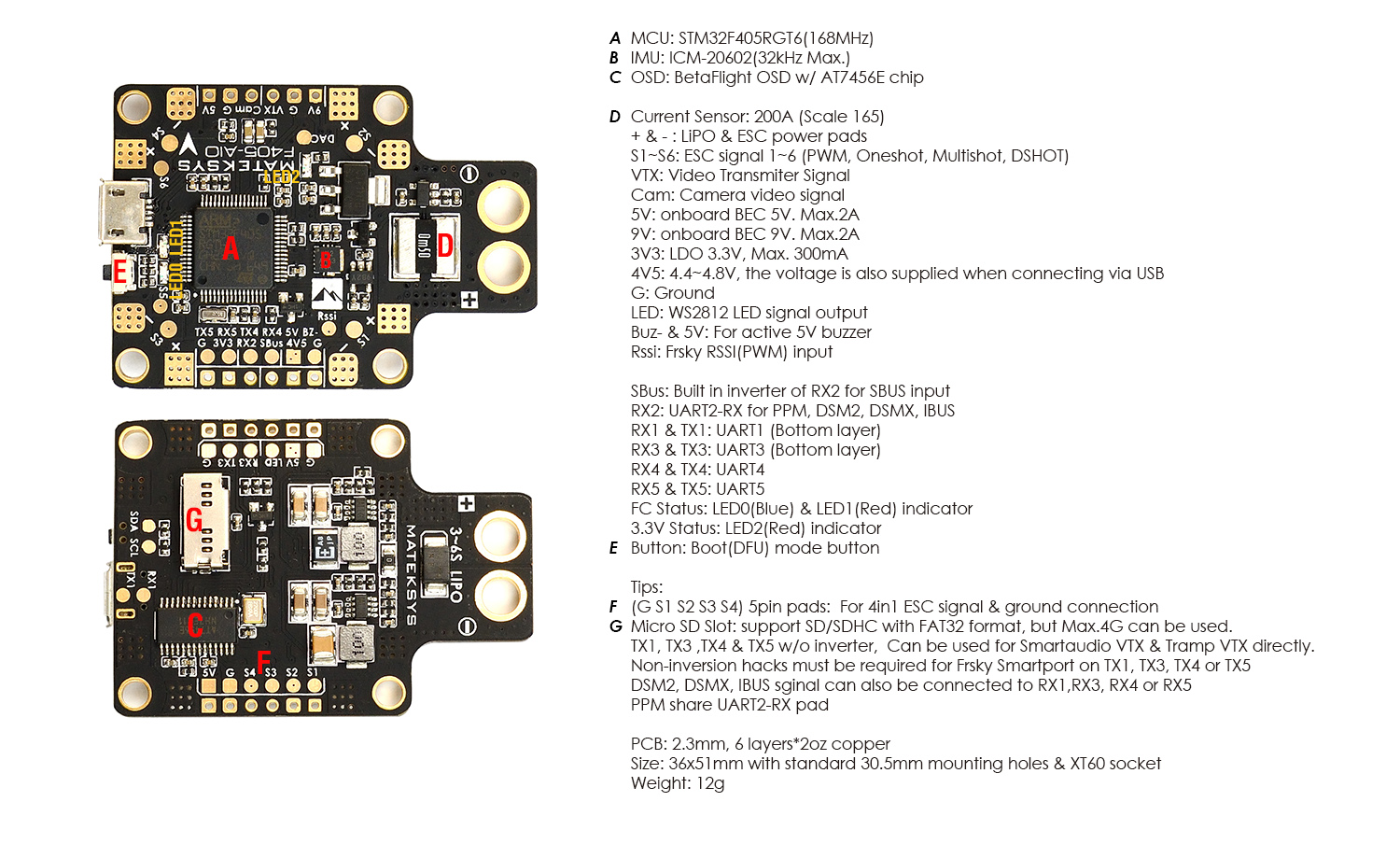

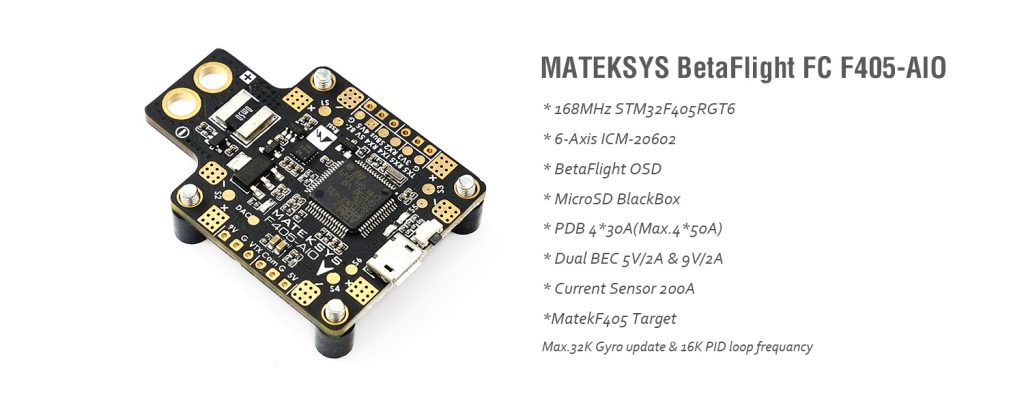

Specifications:

MCU: 168MHz STM32F405
IMU: 32K ICM20602 accelerometer/gyro (SPI)
Max. 32K Gyro update & 16K PID Loop
OSD: BetaFlight OSD w/ AT7456E chip
Blackbox: MicroSD card slot (SD/SDHC)
VCP, UART1, UART2, UART3, UART4, UART5
Built in inverter for SBUS input (UART2-RX)
PPM/UART Shared: UART2-RX
SoftSerial on S5 & S6 optional
Smartaudio & Tramp VTX protocol supported
Spektrum BIND_PIN: RX4
WS2812 Led Strip : Yes
Beeper : Yes
RSSI: Yes

PDB Specifications

Input: 9~27V (3~6S LiPo) w/TVS protection
PDB: 4x35A (Max.4x50A), 6 layers*2oz copper PCB
Dual BEC: 5V 2A & 9V 2A
LDO 3.3V: Max.300mA for Spektrum RX
Current Sensor 200A (Scale 165)
Battery Voltage Sensor: 1:10 (Scale 110)
2x LEDs for FC STATUS (Blue, Red)
6x PWM / DShot outputs without conflict
5x UARTs

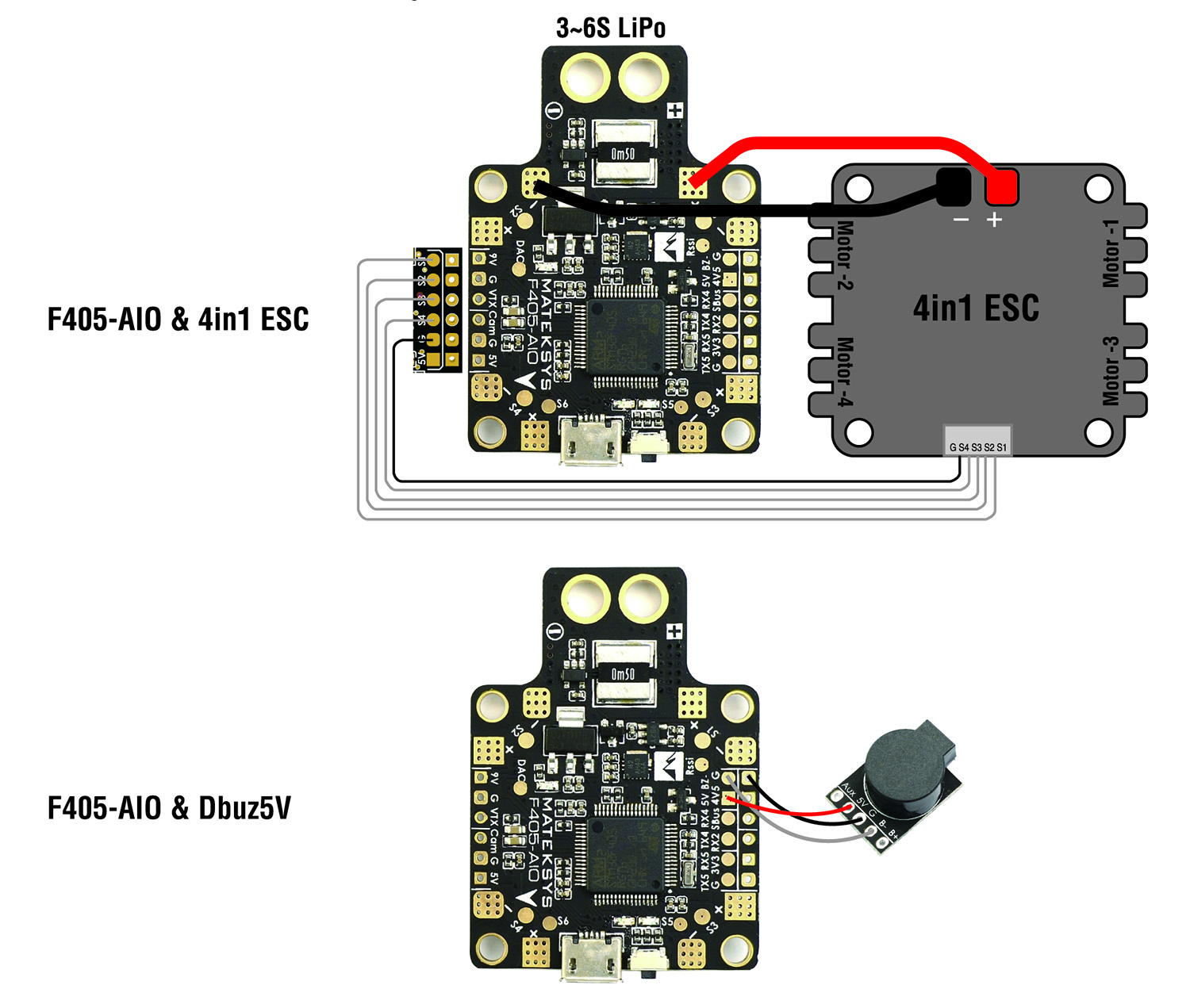

1x Group of 5V/G/S1/S2/S3/S4 pads for 4in1 ESC Sginal/GND
4x pairs of corner pads for ESC Signal/GND connections (DSHOT compatible)
1x pair I2C1 pads (for INAV firmware only)
1x Side-press button for BOOT(DFU) mode

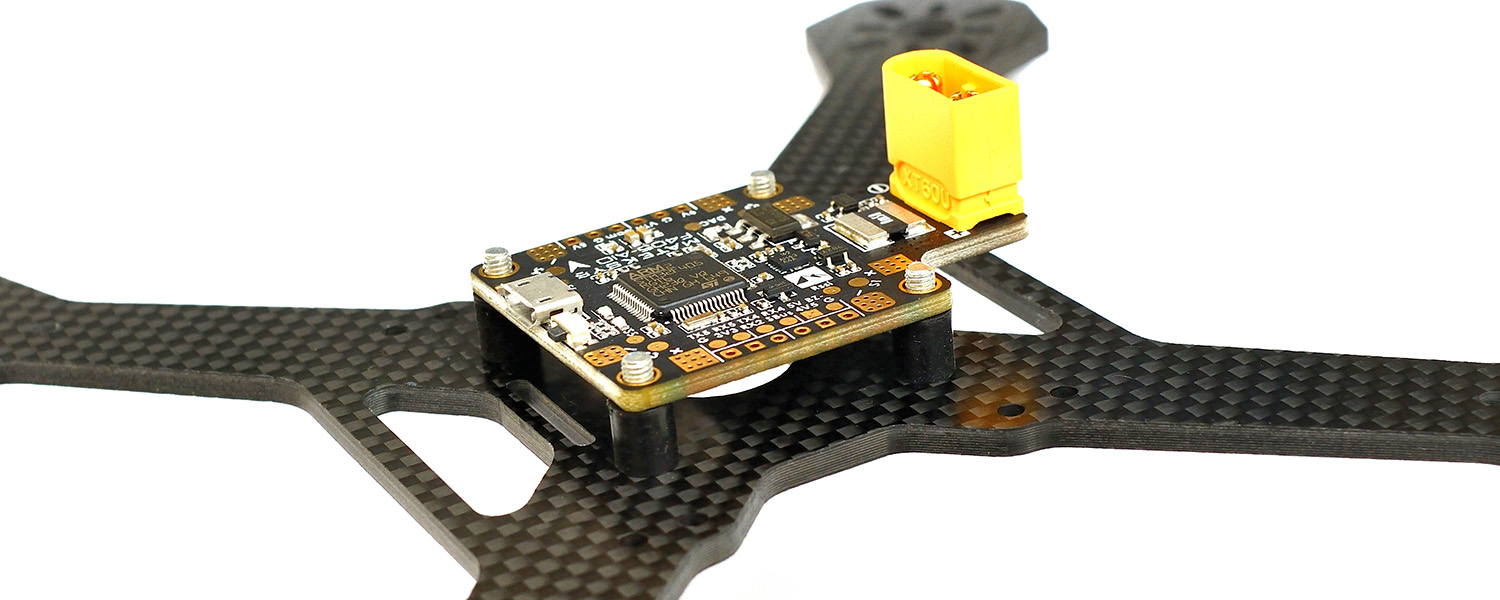

36×51mm PCB with 30.5mm mounting holes & XT60 socket

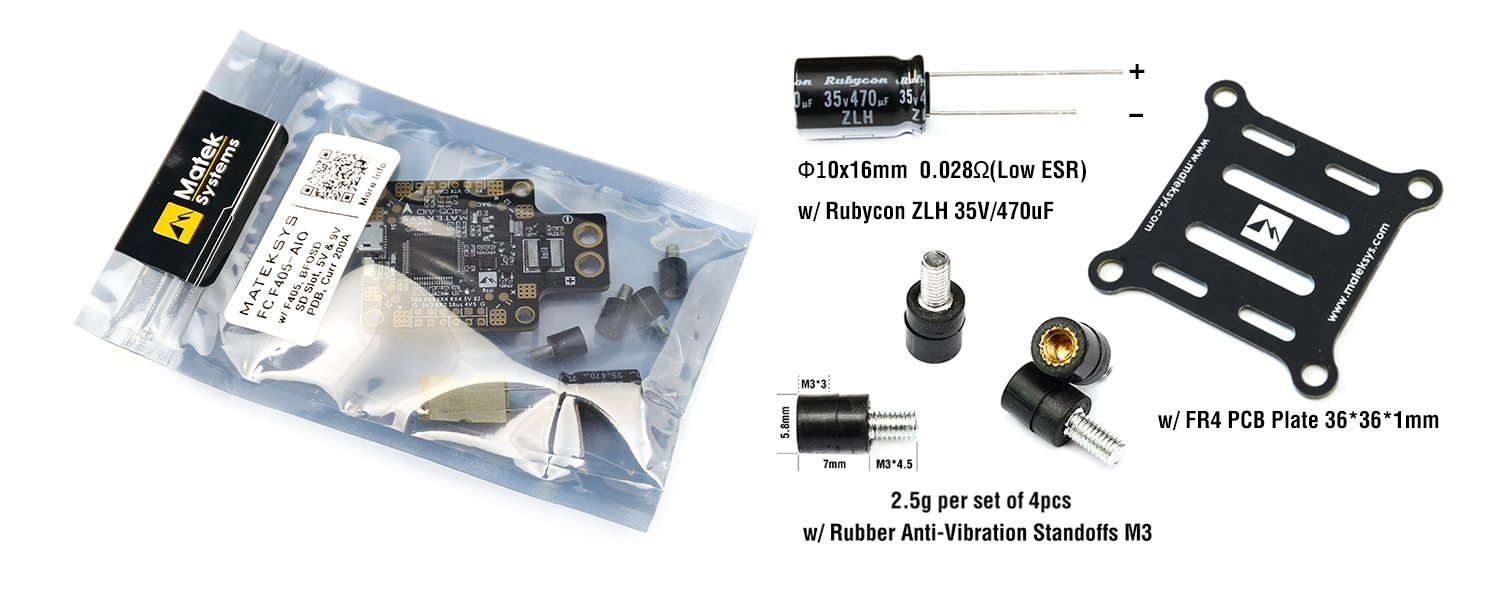

w/ 1x Rubycon ZLH 35V/470uF (Low ESR)

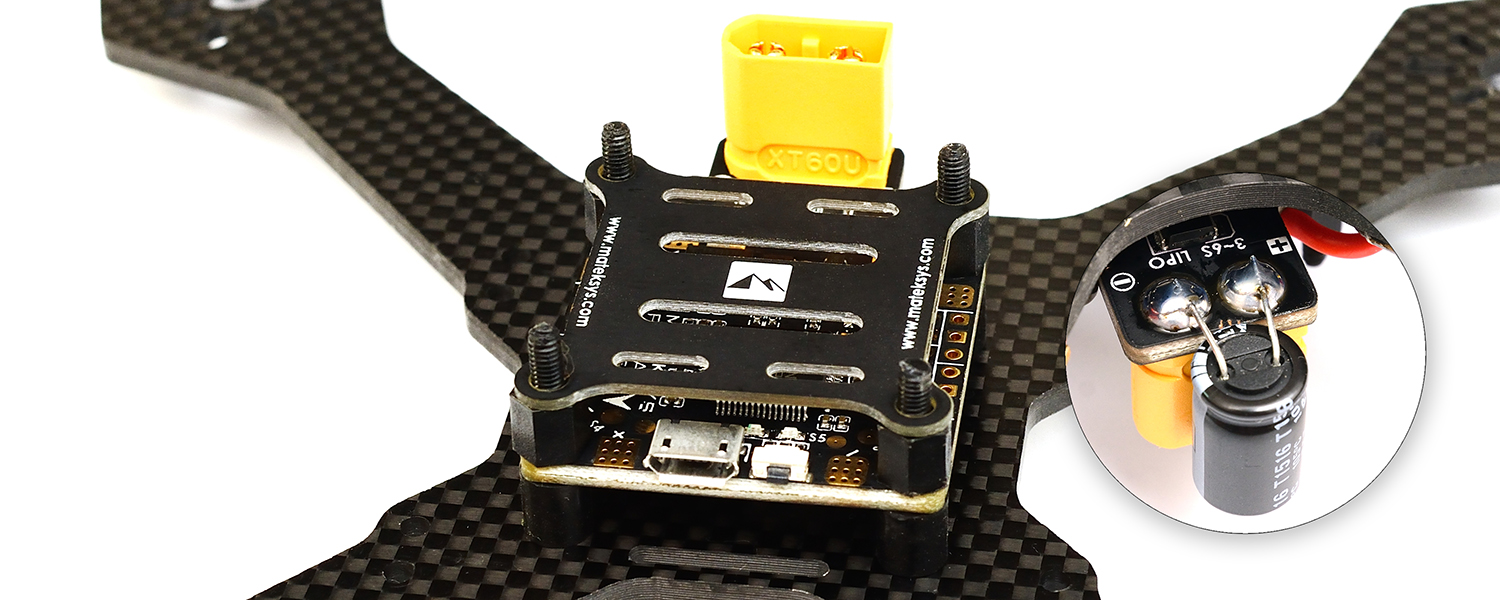

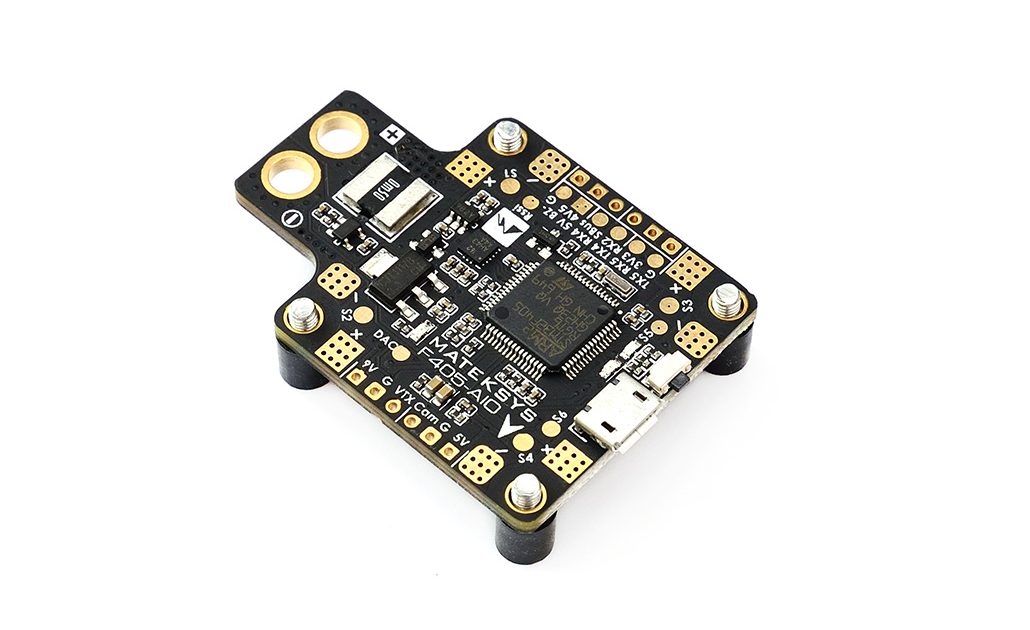

w/ 4x M3 Anti-vibration Standoffs
