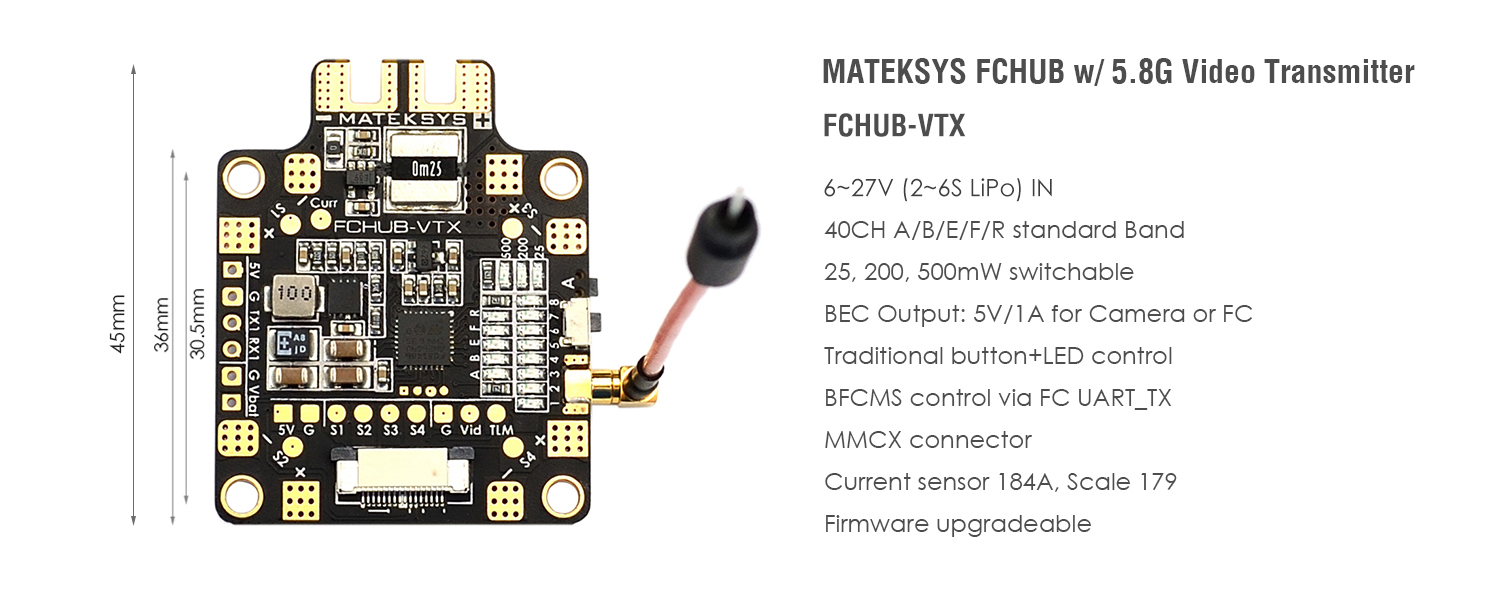

Matek FCHUB-VTX – PDB and VTX in one

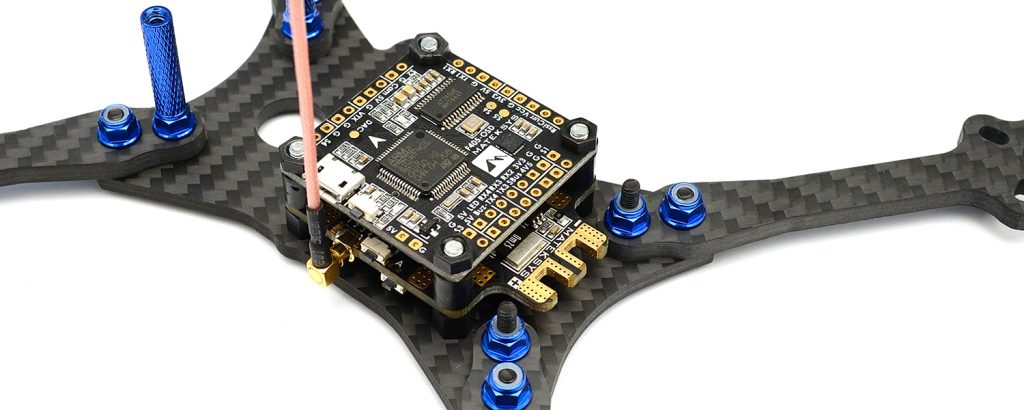

Matek has released their most advanced and most anticipated PDB – FCHUB-VTX. Now they have integrated PDB, Current sensor and video transmitter in one board! Matek FCHUB-VTX is perfect match and should be used together with Matek F405-OSD FC. FCHUB-VTX connects with F405-OSD flight controller by flat ribbon cable, thus allowing to make a very clean build. Matek FCHUB-VTX can be conrolled by Betaflight OSD or by means of Lua script directly from your transmitter. VTX has MMCX antenna connector, buttons for manual CH and Frequency control, LED’s and all other bells ant whistles you need.

Listed @ Banggood:?https://www.banggood.com/Matek-Systems-FCHUB-VTX-627V-PDB-5V1A-BEC-w-5_8G-40CH-25200500mW-Switchable-Video-Transmitter-p-1201392.html

Specifications:

• Input voltage: 6~27V(2~6S LiPo)
• PDB: 4*30A (4*46A, 5 seconds)
• Current Sensor: 184A (Scale 179)
• BEC Output: 5V/1A for Camera or FC

• VTX: 40 standard 5.8G channels, A/B/E/F/R Band
• VTX Output Power: 25, 200, 500mW switchable
• Traditional button+LED control of frequency and power

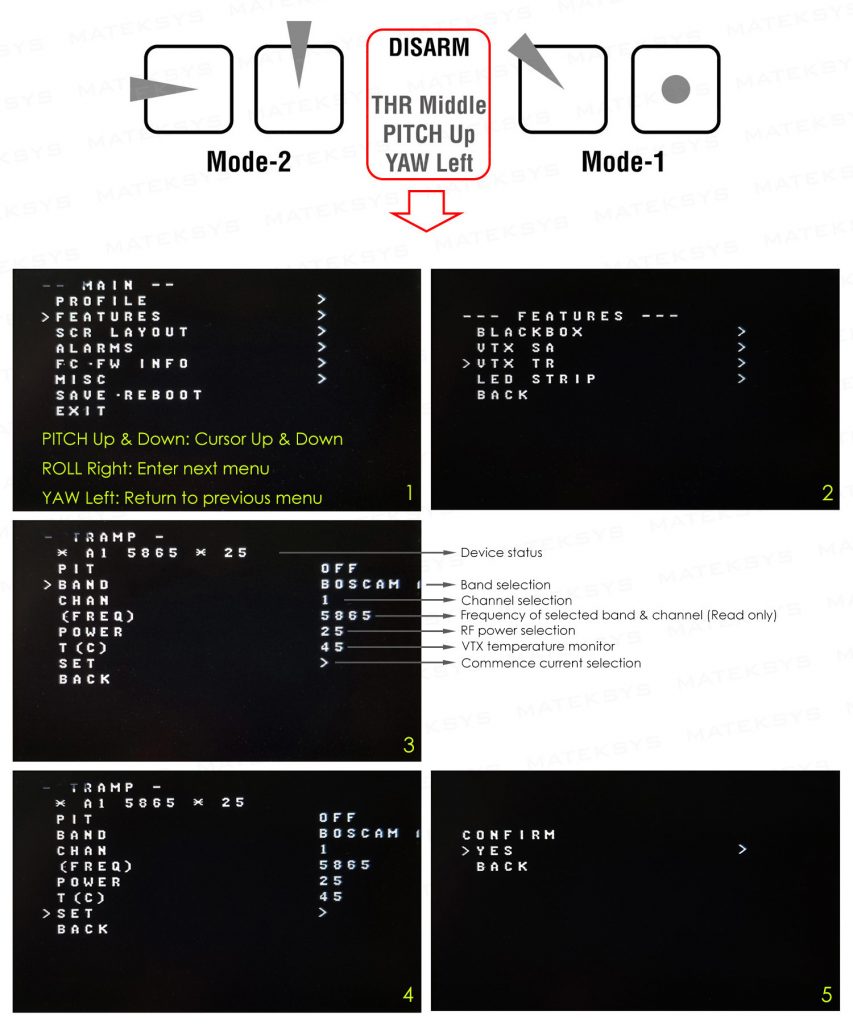

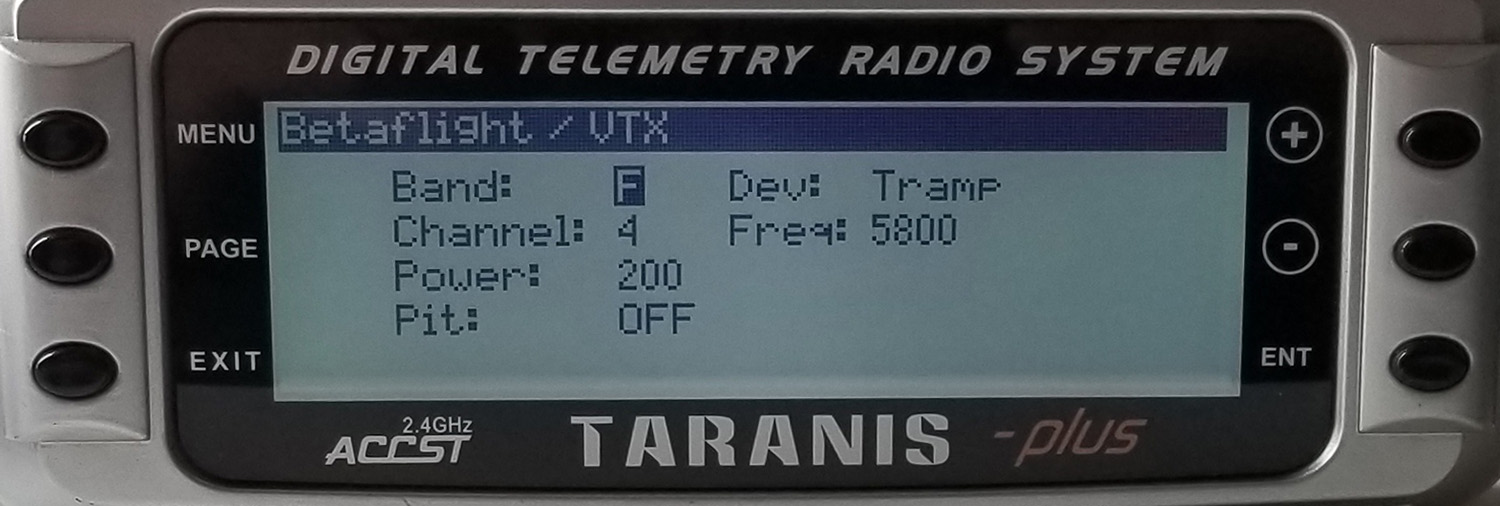

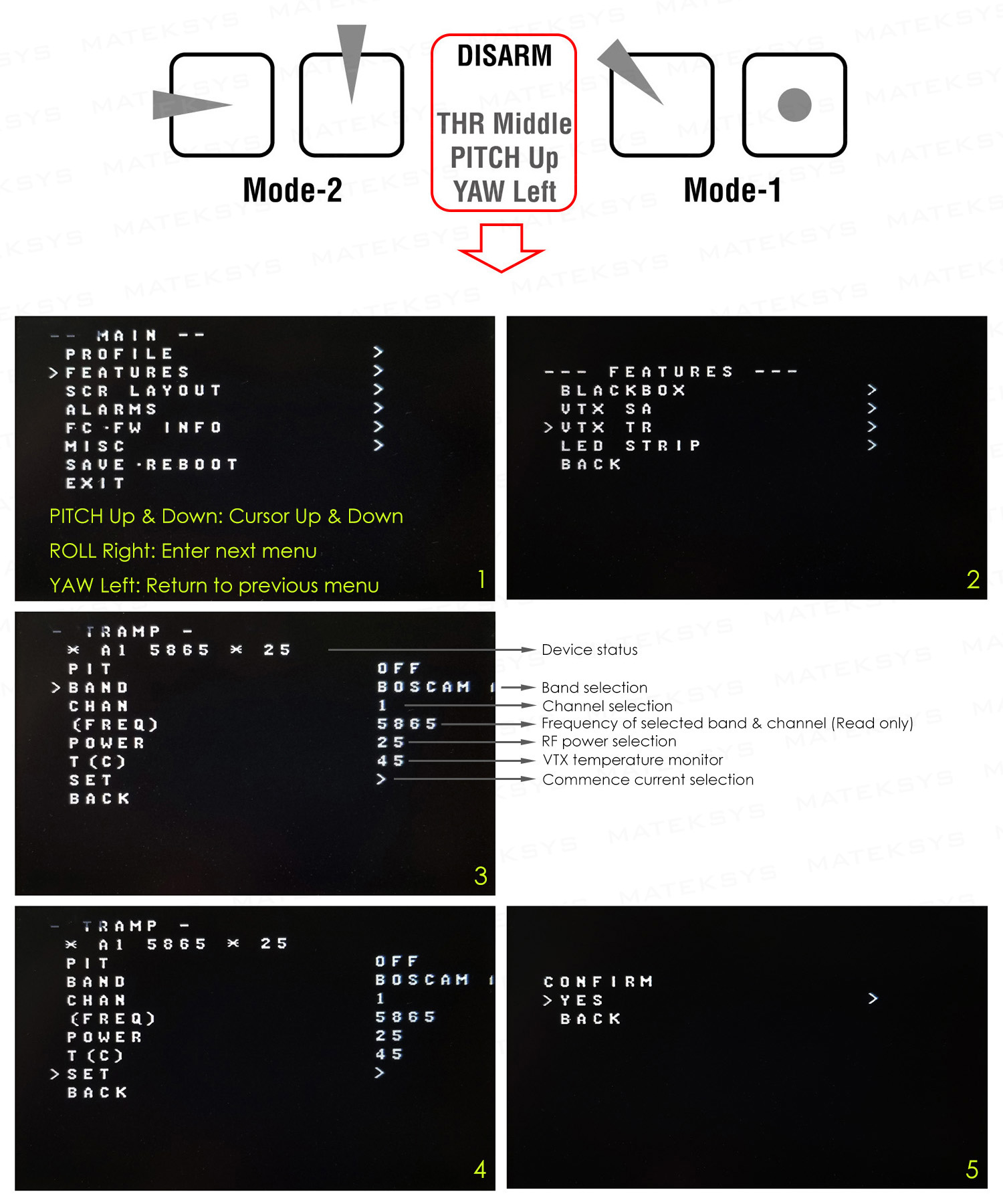

• BFCMS (BFOSD?& LUA Script)?control via FC UART _TX

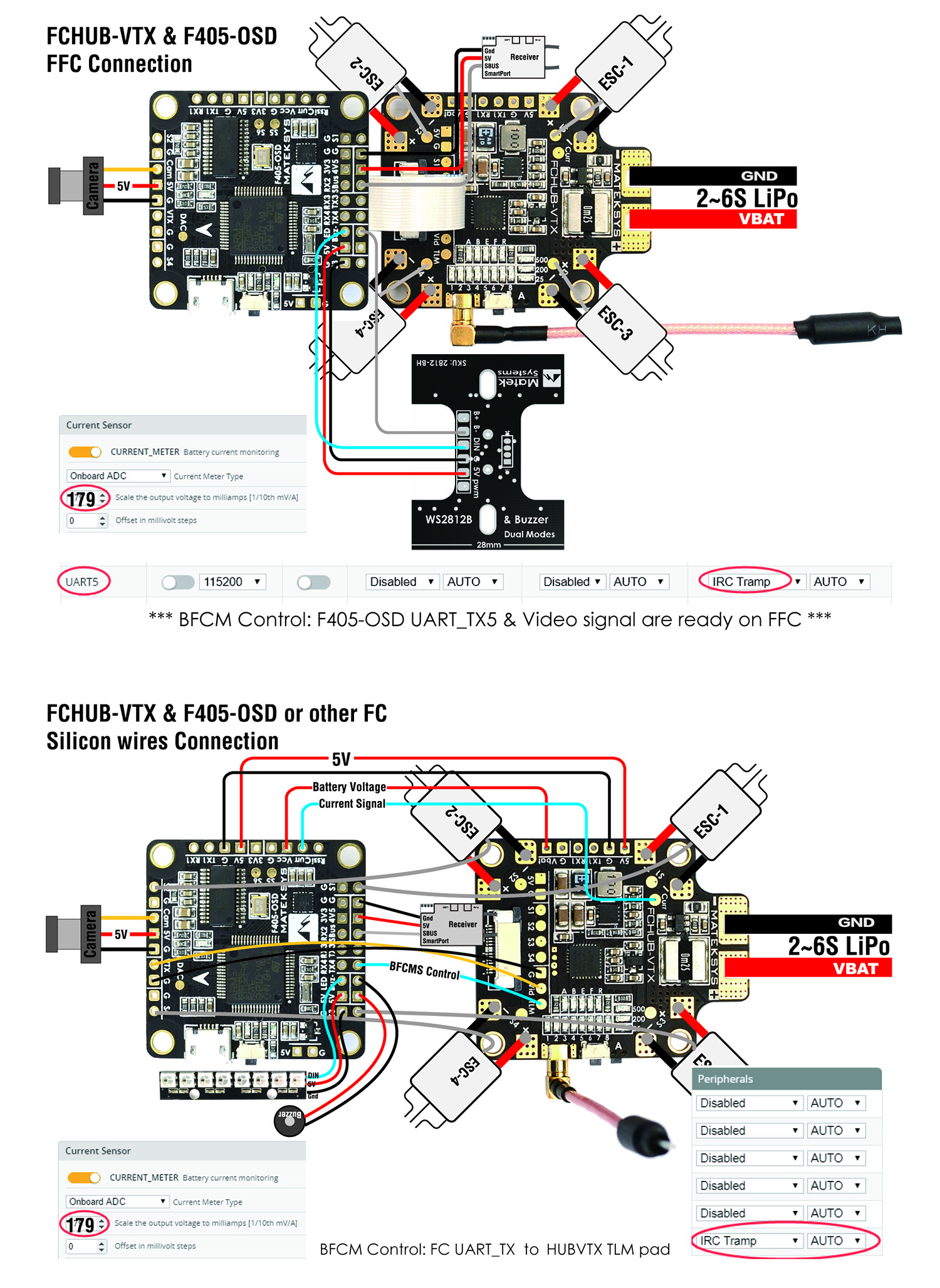

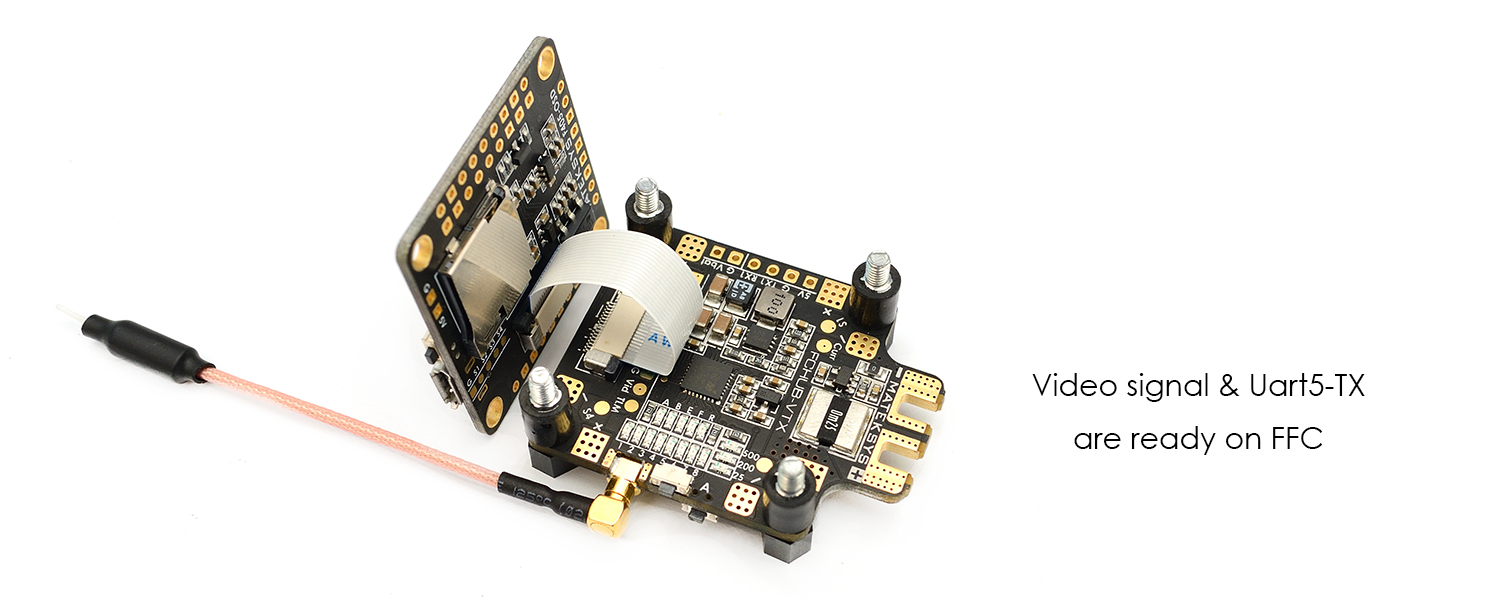

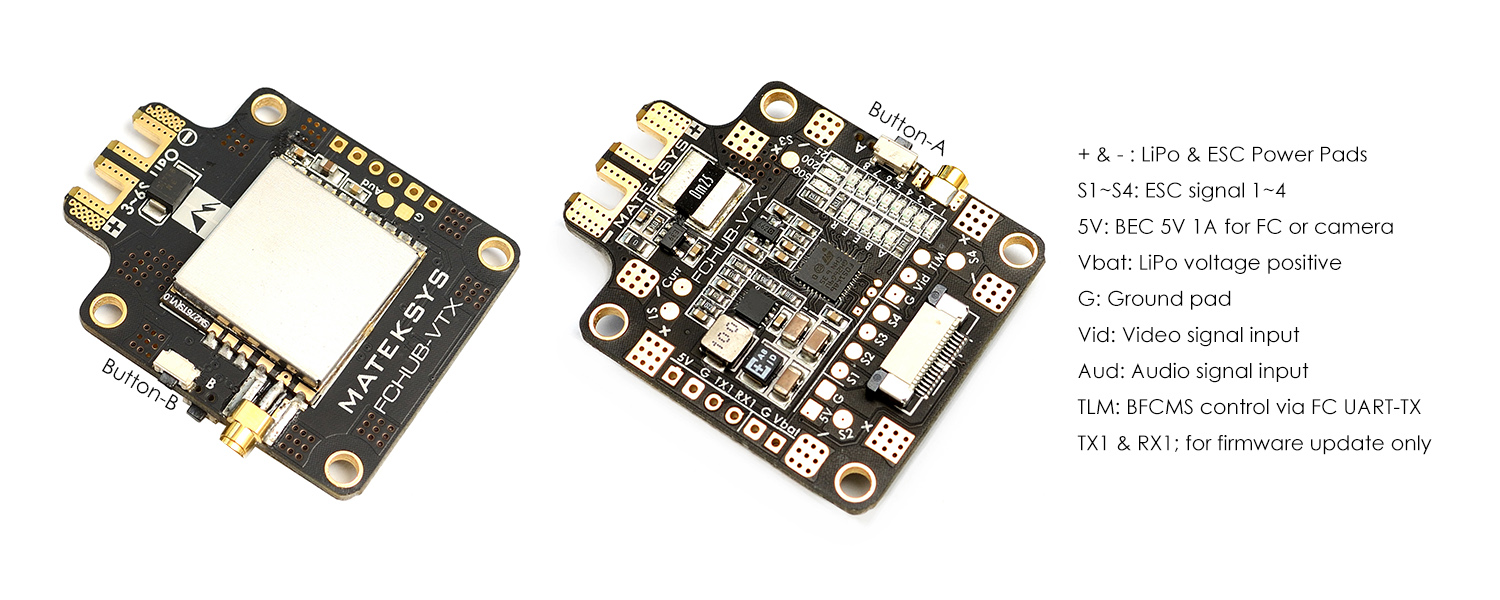

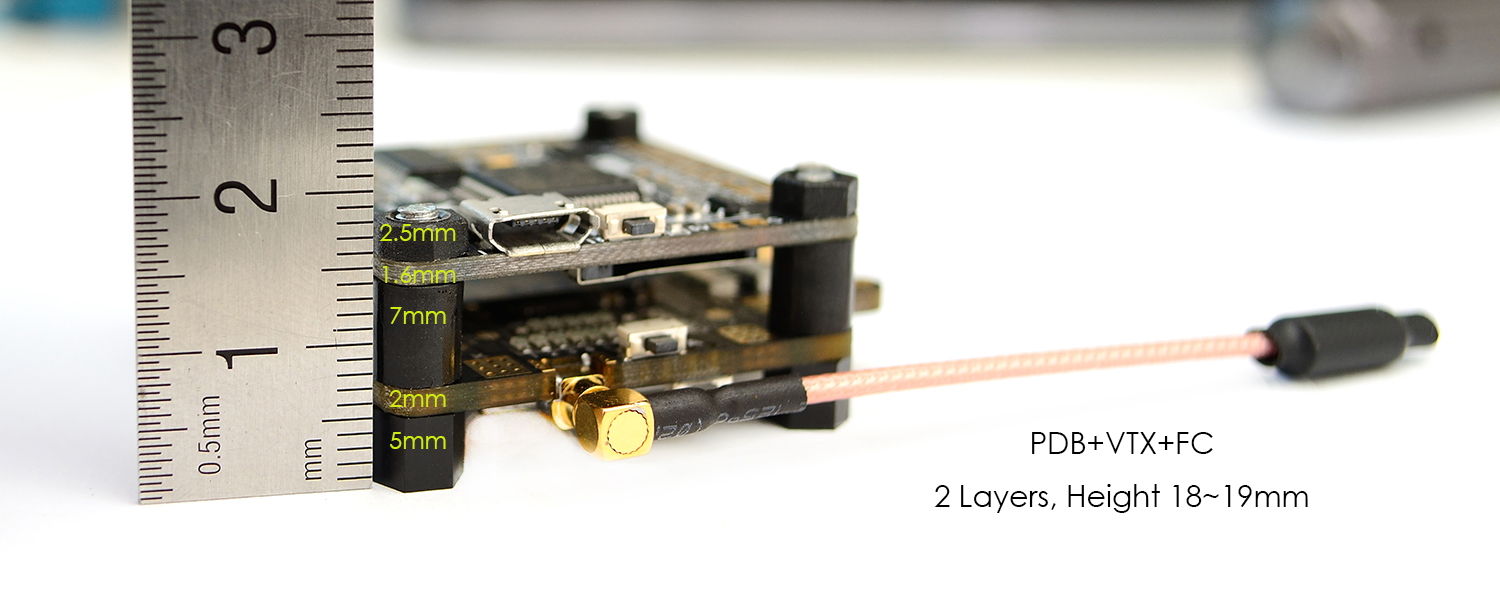

• Video signal & TX5 are ready on FFC?connected?with MATEK FC F405-OSD
• Silicon wires connection with other brands FC
• Firmware upgradeable

• VTX Power Consumption: 3.1W Max. @ 500mW
• Video Input Impedance: 75 Ohm
• Audio Subcarrier Frequency: 6.5 MHz
• RF Connector: MMCX
• Video Format: NTSC/PAL

• Weight: 14g (w/ MMCX?whip antenna)

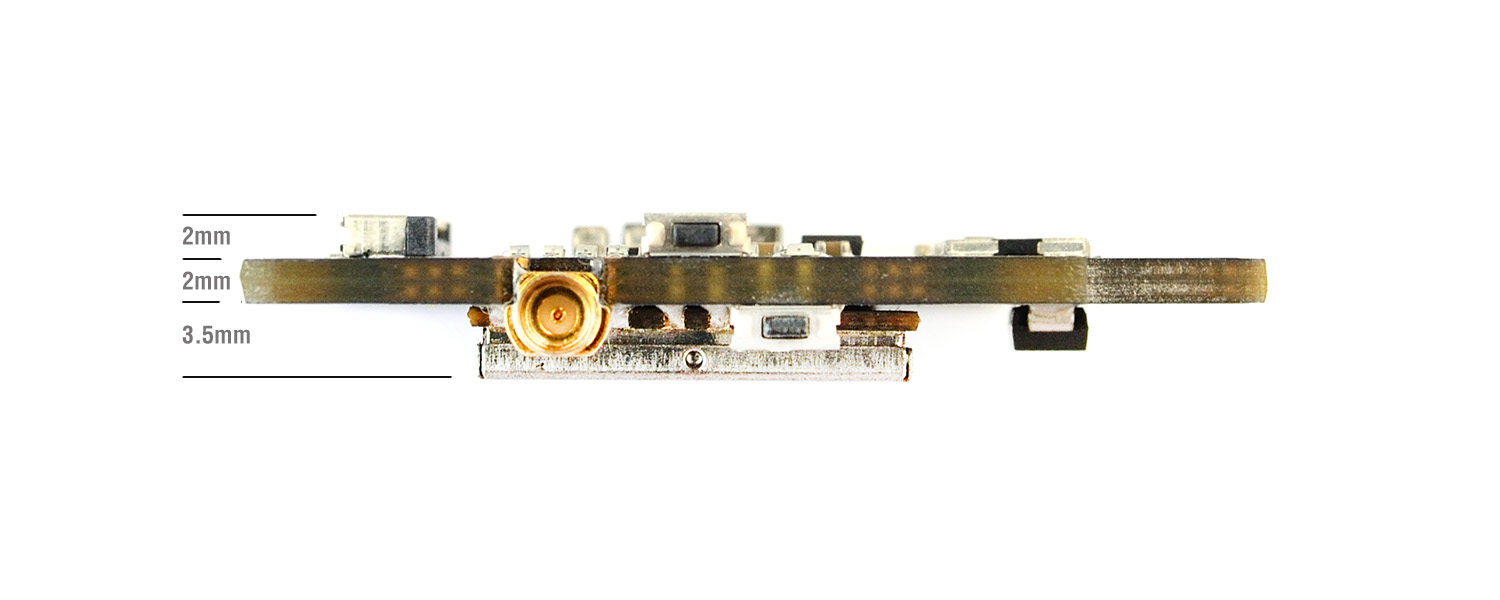

• Size: 36*45*7mm w/30.5mm mounting

Included

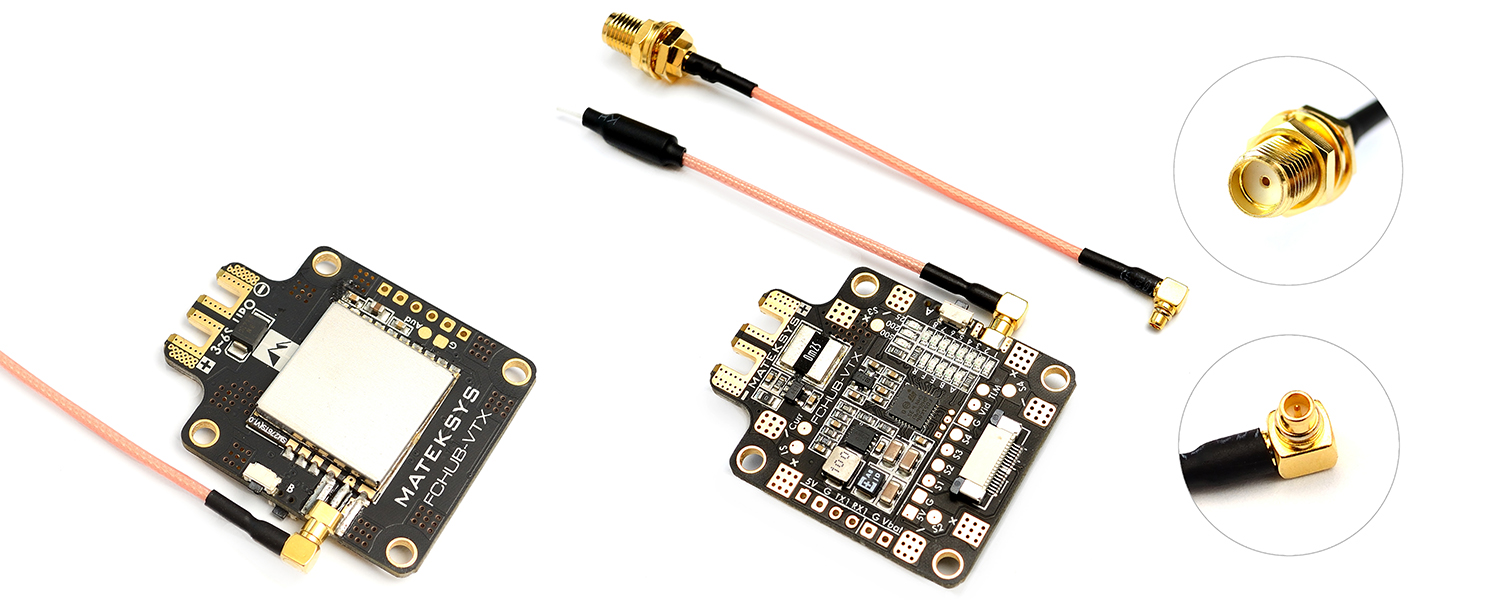

• FCHUB-VTX board
• MMCX?to SMA Female, RG178 cable 9cm
• MMCX 5.8G whip antenna, RG178 8cm
• Rubycon ZLH 35V/470uF Low ESR capacitor
