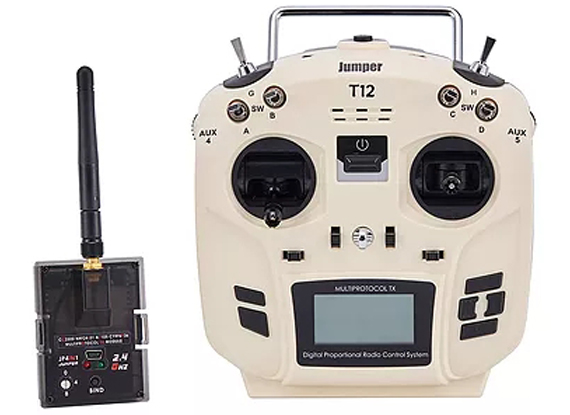

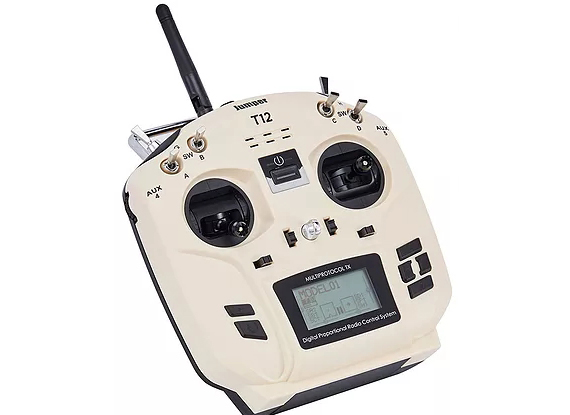

New Jumper T12 radio with OpenTX

        Jumper has released new transmitter T12 that comes with Jumper JP4-in-1 Multi protocol module.

        Read Jumper T12 review here

        Not only the smooth T8SG V2 gimbals were used, but it also has standard resolution LCD screen that allows to run most popular OpenTX firmware.

        The T12, when paired with the Jumper JP4-in-1 multiprotocol module offers seamless intergration between the OpenTX software and module
        meaning protocols can be accessed and selected directly from the software GUI. Jumper T12 supports the most protocols and receivers that exist currently on the market.
        Crossfire users can setup their equipment via the OpenTX LUA scripts.

        Can be powered with any LiPO or LiFE battery of a compatible size.
        ( Which means that users do not need to source their own uncommon sized Li-ion round cells or a round cell charger.)

        The T12 comes standard with a neck strap and AA battery tray

        Advantages:
        – Changeable JR module bay
        – Open source multi-protocol firmware, Based on OpenTX
        – Comes with JP4-in-1 Multi protocol module and JR/FrSKY compatible module
        – Crossfire CSRF Compatible: Yes
        – LUA Script support: Yes
        – Support Frsky, DSM, Crossfire, Flysky, Hubsan…compatible near 90% receiver in the market
        – Ultra-low power consumption, longer battery life and Support AA battery, LiPo, LiFe battery
        – Up to 12 channels of output (depending on the receiver),
        – Multilingual menu
        – Vibration reminder function

        – Voice support
        – Support telemetry (depending on the receiver)

        – Competitive price



        Available @


        Specification:
        Brand Name: Jumper
        Model: T12
        Item Name: OpenTX 16CH Radio Transmitter with JP4-in-1 Multi-protocol RF Module
        Radio Transmitter

        Radio MCU: STM32F205VET6 (512kb)
        Size: 158 * 150 * 58
        Weight: 342g (without battery)
        Working voltage: DC5-DC9V (factory with 4 * AA battery box, 2s Lipo recommended, batteries not included)
        Firmware: OpenTX
        Channels: up to 16 channel output
        Display: 1.7-inch LCD display, 128* 64 resolution
        Gimbal Type: Potentiometer

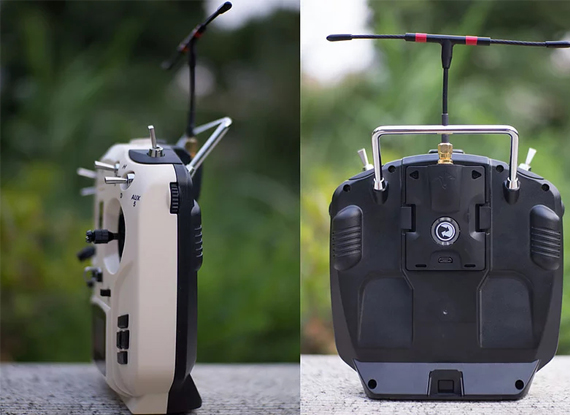

        JR/FrSKY compatible module bay on rear side
        Upgrade method: USB online upgrade
        Simulator mode: 3.5mm standard ppm output or USB HID

        Voice support: YES

        Radio Features:
        Open source multi-protocol firmware, Based on OpenTX
        JR/FrSKY compatible module bay on rear side (module not included)
        USB online firmware upgrade
        Ultra-low power consumption, longer battery life
        Channels: up to 16 channel output
        Wide voltage input (2s lipo recommended)
        Multilingual menu
        Vibration reminder function
        Support telemetry (depending on the receiver)
        Crossfire CSRF Compatible: Yes
        LUA Script support: Yes

        JP4-in-1 Multi-protocol RF Module

        Working voltage: 6-9v
        Working current: <=100ma
        Operating frequency: 2.4G ISM band
        RF power: +22DBM
        Main control chip: STM32F103CBT6 (128K ROM, 20K RAM)
        Module bay compatibility: FRSky, Jr and other dimensions: 64*49*33 (without antenna)
        Net Weight: 42g (including antenna)
        Software Compatibility: Suitable for radios using OpenTX or er9x/ersky9x
        Firmware updatable: Yes, via USB.
