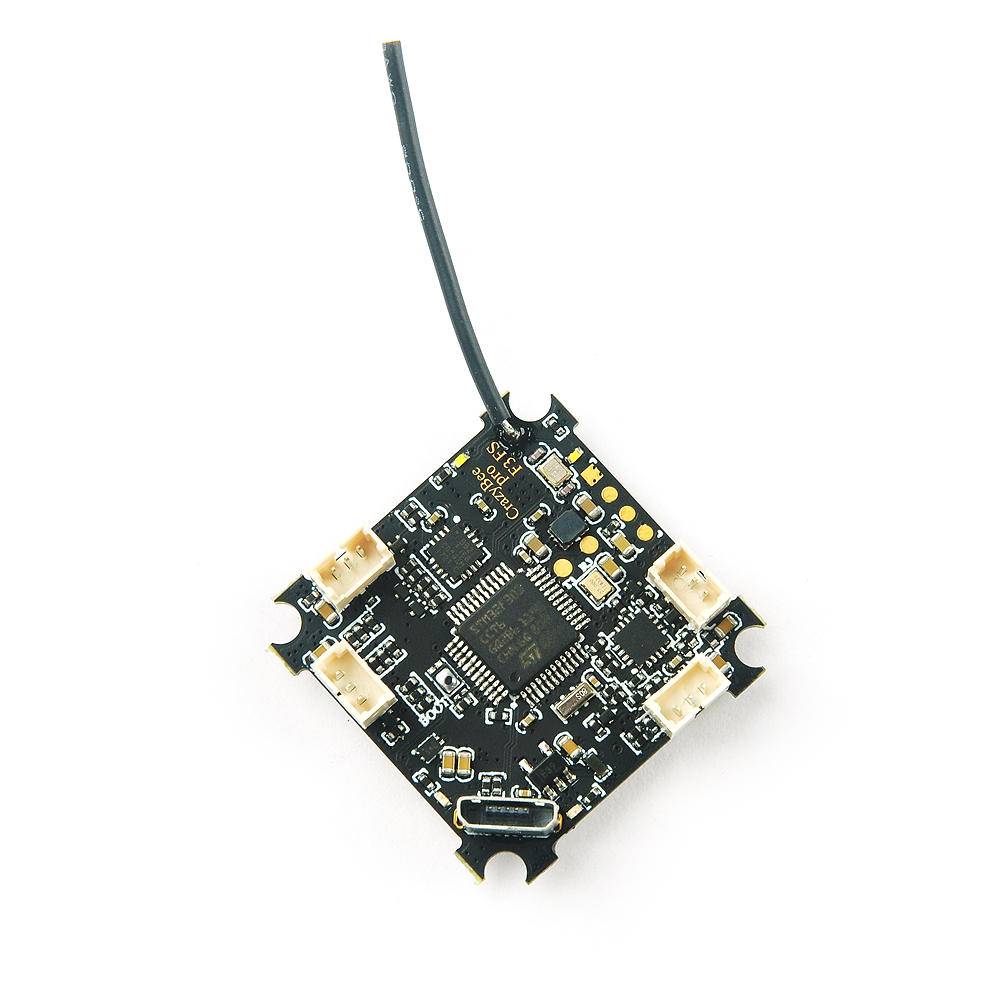

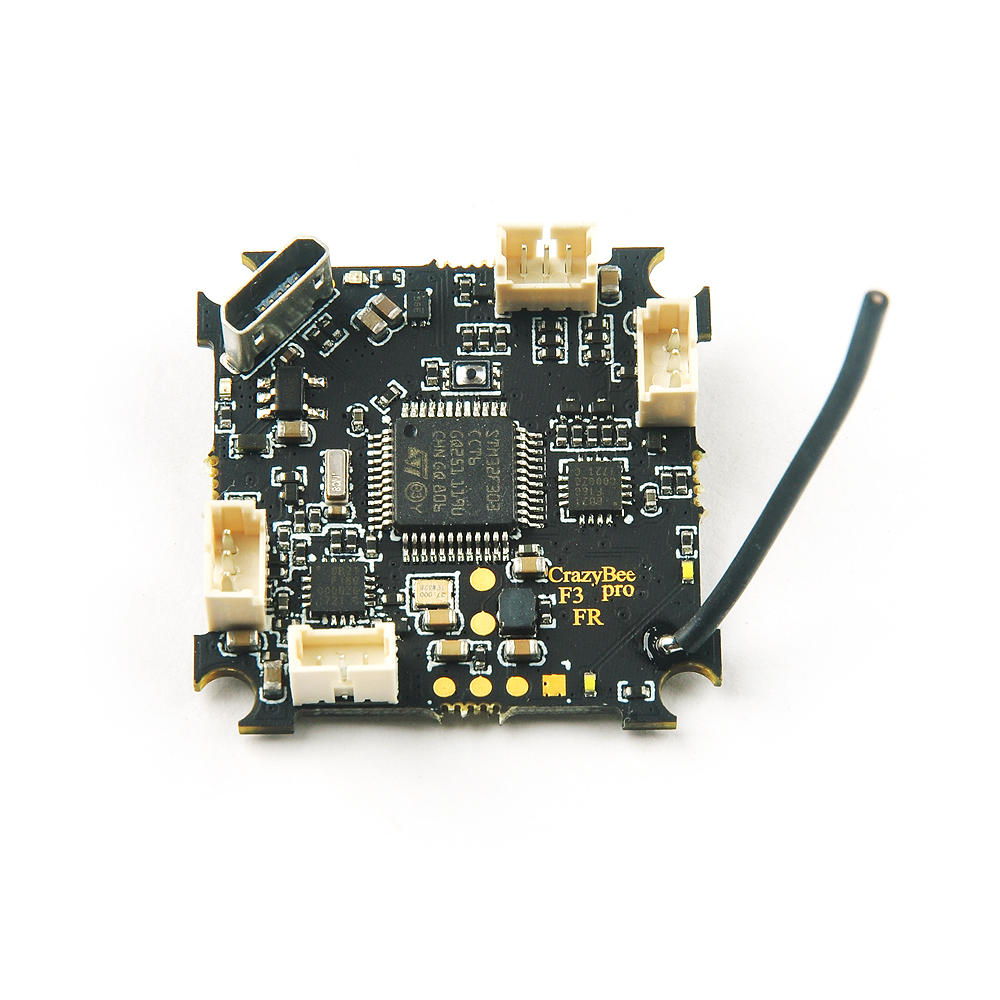

Racerstar Crazybee F3 Pro 2S Tiny Whoop Flight Controller

Racerstar has announced one of the most interesting FC this year – CrazyBee F3 Pro Flight Controller. It is 1S and 2S compatible brushless Tiny Whoop flight controller with all the bells and whistles on one board.

This flight controller is based on the F3 microprocessor, it has with a built-in 5A 4-in-1 ESC with BLheli_S and DShot600. It also has the OSD, current sensor  and the pads for connecting the programmable LEDs. It also supports SmartAudio for controlling the video transmitter from the radio control. Comes with a wide selection of receiver protocols: FrSky D8 / D16 (Non-EU) with telemetry, Flysky AFHDS / AFHDS-2A  or DSM2 / DSMX.

The trend for 2S brushless whoops started more than year ago from the Rakonheli 2S whoops then lately BetaFPV came with their versions of 2S whoops (Beta65x and Beta75x). Most probably we will soon see the 2S capable UR65/US65/UK65 brushless whoop.

The Racerstar Crazybee F3 Pro is the first 2S capable FC for thiny whoop with integrated 4-in-1 ESC and receiver on one board!

Available @ https://www.banggood.com/Racerstar-Crazybee-F3-Pro-Flight-Controller-5A-1-2S-ESC-Compatible-Flysky-or-Frsky-or-DSMX-Receiver-p-1361634.html

Flight controller
CRAZYBEEF3 PRO FS Firmware target: CrazybeeF3FS
MCU: STM32F303CCT6 (72MHZ, 256K FLASH)
Sensor: MPU-6000 (SPI connection)
Board size: 28.5 * 28.5MM

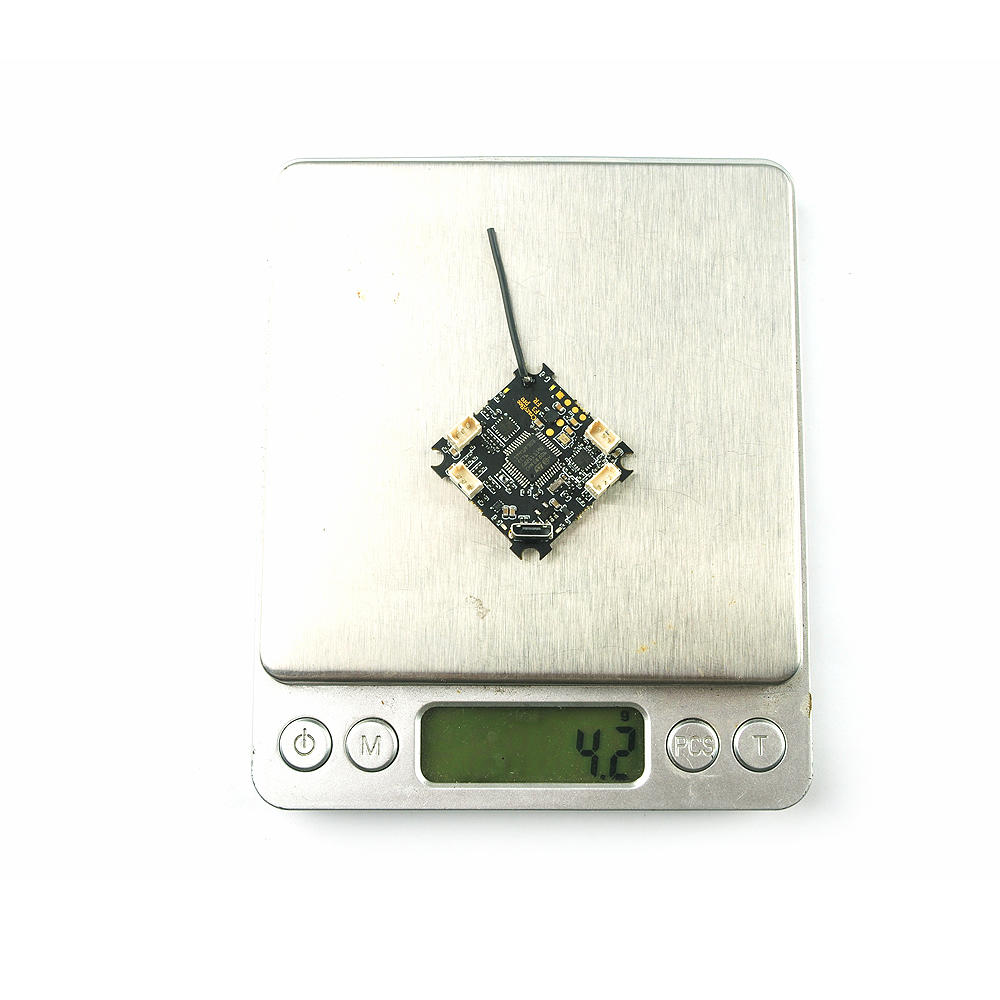

Weight: 4.2g
Power supply: 1-2S battery input (DC 3.5-8.7V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in SPI Flysky receiver with telemetry(D8/D16 switchable)
Built-in Betaflight OSD (SPI Control)
Built-in Current meter Max 28A
Current meter scale set to 1175
Built-in 5V 1A Buck / Boost with LC filter
Built-in voltage detection
BLHELI_S pass-through Ready
Heading LED Ready

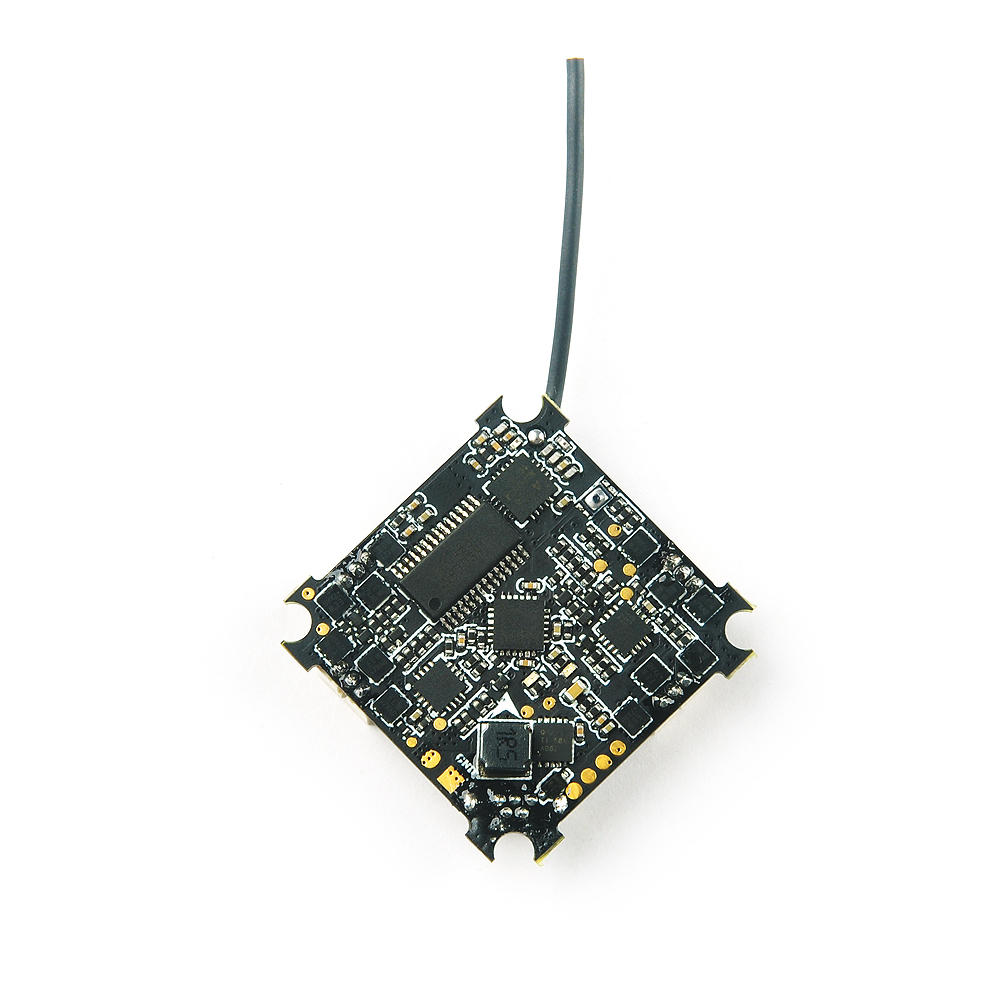

Onboard 4in1 ESC
MCU upgraded to EFM8BB21
Power supply: 1-2S LiPo/LiPo HV (3.5v/8.7v)
Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: S_H_50_REV16_7.Hex
Default protocol: DSHOT600

Built-in  Flysky receiver SPI BUS receiver
Protocol: AFHDS and AFHDS-2A Switchable
Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
No ground interference ( Transmitter and receiver 1 m from the ground): 300m
Failsafe support

Built-in Frsky NON-EU receiver SPI BUS receiver
Frsky D8/D16 switchable
Compatible Non EU transmitter both D8 and D16 mode
Channels: 8ch or 16ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 300m
