Rumors: Foxeer is preparing to release Legend 3 and GoPro Session type cameras

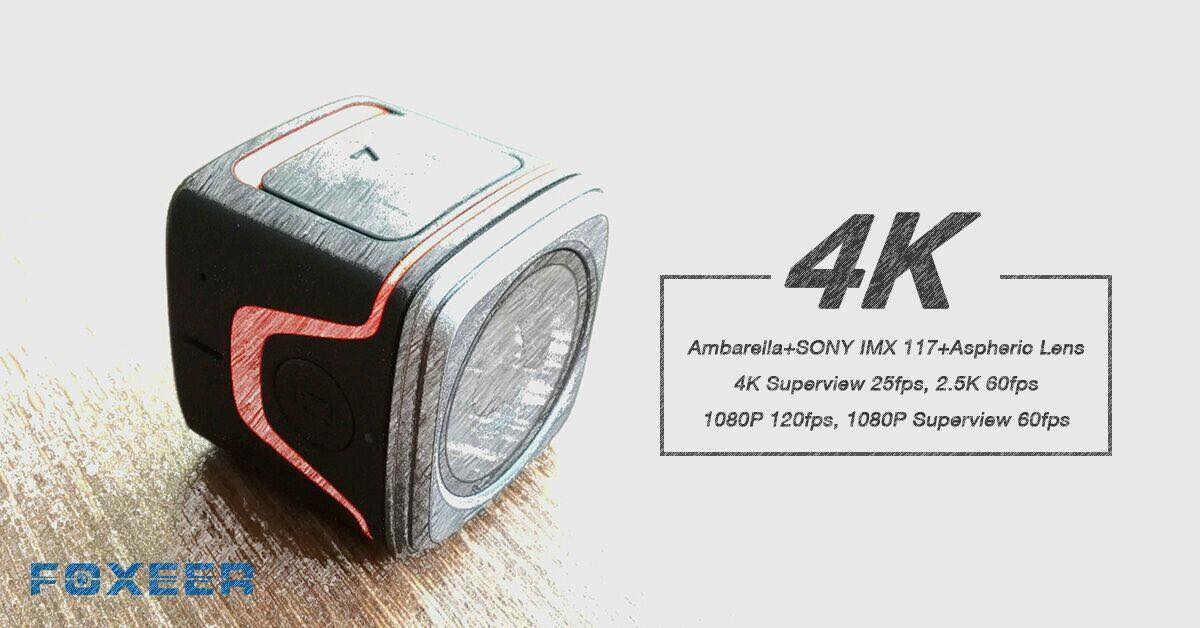

Foxeer is going to release their variant of Session cubic type camera. No official release date nor any official details. We have only a sketch picture of the outlook of this camera:

We see, that cubic camera will be based on Ambarella A12 chip + SonyIMX 117 sensor + Aspheric lens. No information on FOV size. But it is going to be a real 4K camera (Runcam 3 action camera will be 1080x60fps only). Also will have?a SuperView capability. ?Looks like we have a real GoPro competitor.

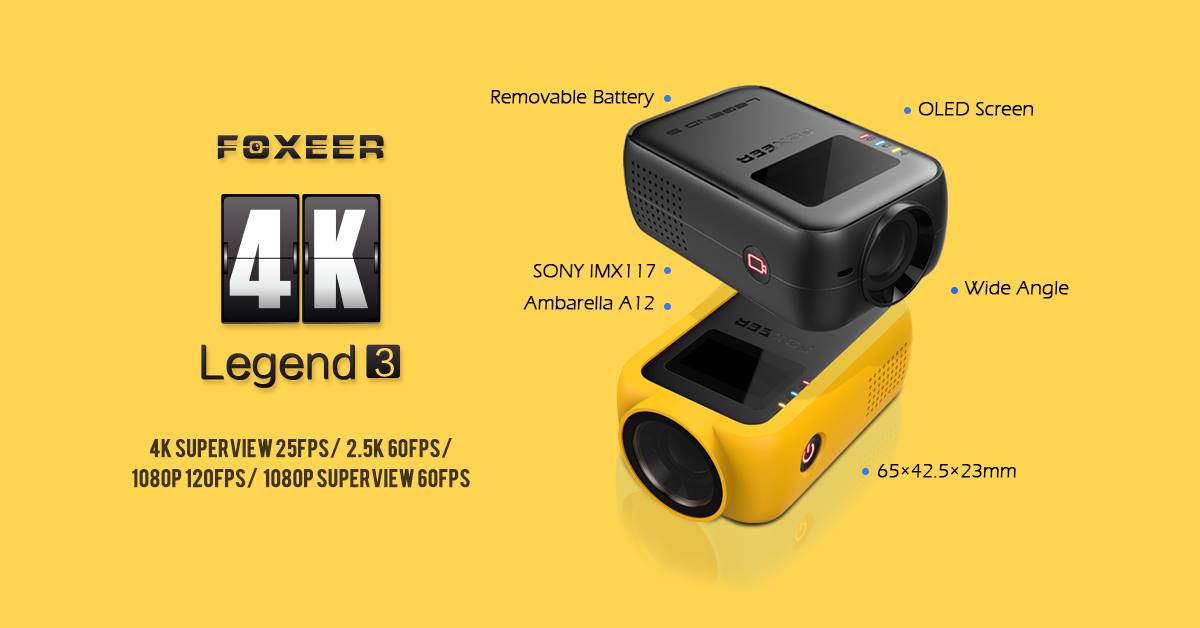

And the?new Foxeer Legend 3 is not far away. It will have the same Legend form factor, but this time it is going to be 4K camera. Here is picture of Legend 3:

EDIT(2017-02-21): There is some footage on official Foxeer Youtube channel, that turns out to be filmed with Foxeer Legend 3

(video was deleted)

Also we have got more details about new Foxeer (goPro Session type) action camera:

Ambrella A12
Sony IMX117
7G?155° F2.8
OLED
Wifi+Bluetooth
microUSB HDMI
stereo Mic
1100mAh unremovable battery
EIS (electronic image stabilization)
40*40*40mm
2.5K/60fps, superview 4K/25fps, 1080P/120fps, 180P/60fps superview
IP64 waterproof
Lens protection glass
ISO: 100 200 400 800 1600
Shutter speed for pic: 1/30~60
EV comp: -2.0~2.0

Price estimated around 150$ and april 2017 for release date. Camera preliminary name – Foxeer Box .

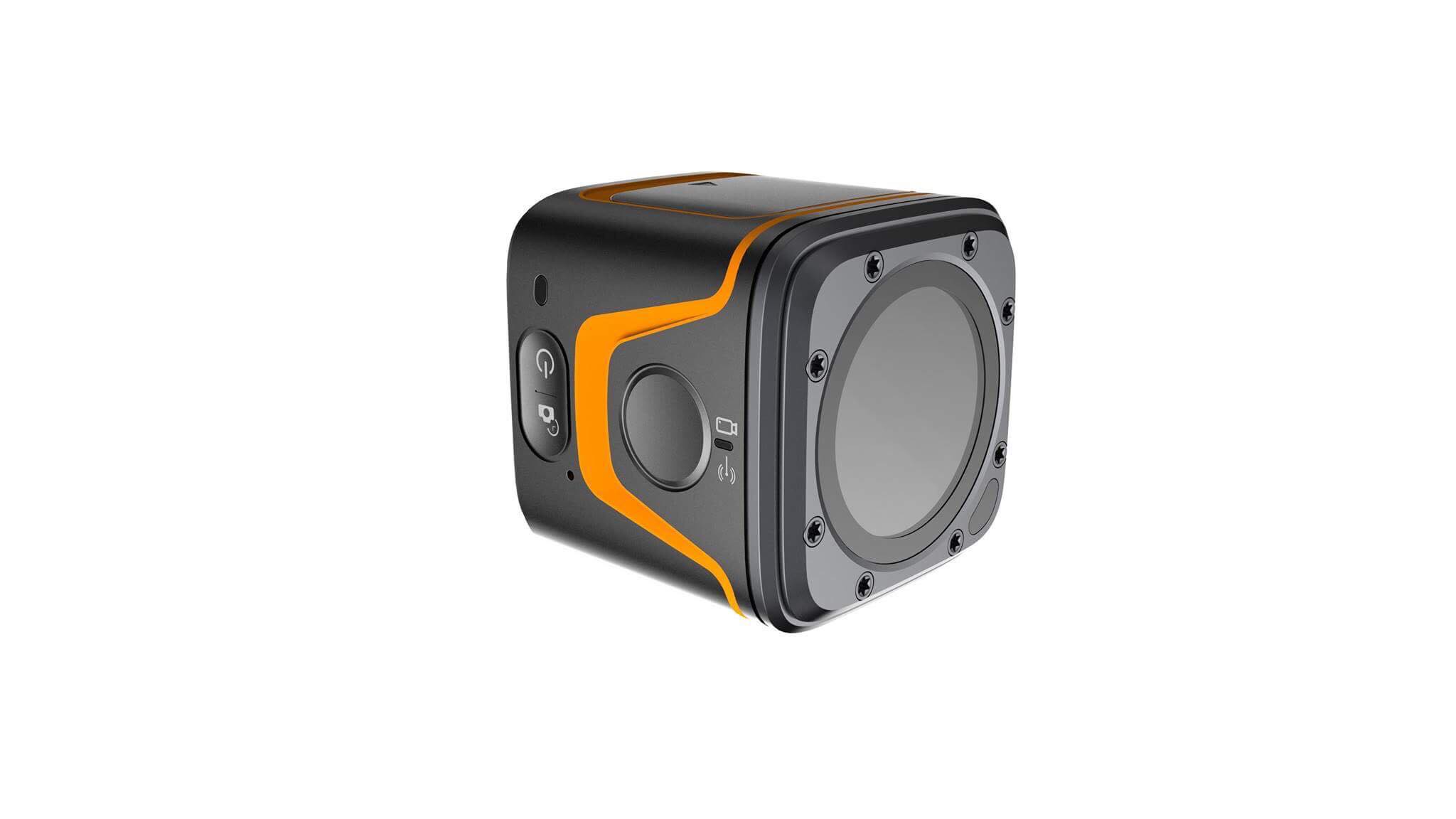

Newest rendered picture:

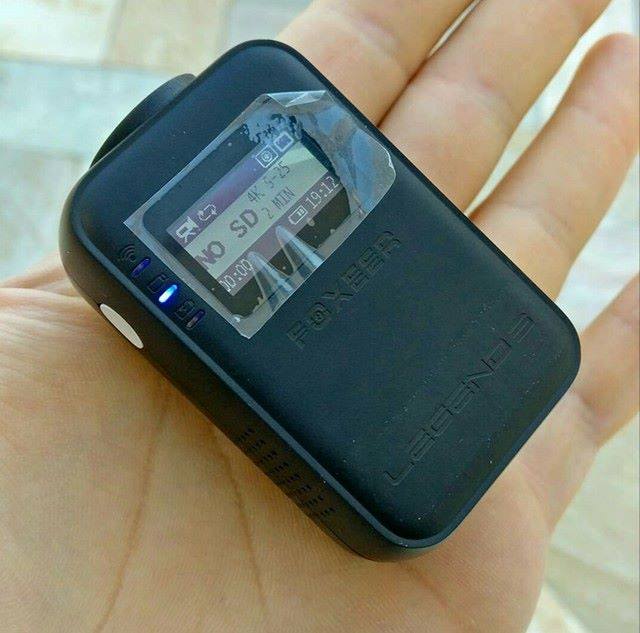

EDIT (2017-02-22): New picture of Foxeer Legend 3:

EDIT (2017-03-15): Foxeer Box 4K camera was listed for only $100 @ Gearbest. Check the availability here:?http://www.gearbest.com/camera/pp_617166.html

EDIT (2017-03-17): Foxeer Box 4K camera estimated price changed to?$159.99?@ Gearbest. More info available:

Specifications

• Ambrella A12 imaging processor;
• Sony IMX117 CMOS image sensor;
• Electronic image stabilization (EIS);
• 7G 155° F2.8?wide angle lens;
• 4K/25fps, 4K/25fps and 1080P/120fps video resolutions;
• Super view mode;
• Stereo microphone;
• Integrated 1100mAh battery;
• Wi-Fi and Bluetooth wireless connections;
• Micro USB and micro HDMI ports;
• Lens protection glass;
• ISO speed: 100 – 1600;
• Shutter speed for pic: 1/30~60;
• IP64 waterproof;
• size of 40x40x40mm.

So the size is different than?GoPro Session size (33 x 33 x 31.3 mm) and GoPro type camera accessories will be incompatible . That is a bit dissapointing.?The Foxeer Box 4k is IP64?rated, so it can not worry about flying in the tropical rain ??

Look at the 1080p 120fps slow motion video:

And some flight footage:

Flight ?footage in 4K

EDIT (2017-03-22): Foxeer BOX 4K was listed on?Banggood:

http://www.banggood.com/FOXEER-Box-4K-CMOS-FOV-155-Degree-Micro-Bluetooth-WiFi-Camera-Mini-FPV-Sport-Action-Cam-p-1136301.html

Supports up to 4K 30fps also 1080P resolution with 120fps. Has Electronic image stabilisation and SuperVision mode (some kind of WDR)

Description :

Brand Name : Foxeer
Item Name : Box 4K Camera
Sensor: IMX117 CMOS
Lens: 155 degree FOV
Connectivity: WiFi + Bluetooth
Interface: micro USB HDMI
Lens protection glass: yes
Stereo microphone: yes
Display: OLED
Waterproof level: IP64
Image stabilization: EIS
Video format: H.264 codec,mp4
Resolution:4K30fps/2.5K60fps/1080P120fps/720P240fps/4K25fps SuperVision/2.7K30fps SuperVision/1080P60fps SuperVision/720P120fps
ISO range: Auto,100, 200, 400, 800, 1600
Shutter speed: 1/30 – 1/60
EV compensation: -2.0 to 2.0
Size : 4 x 4 x 4cm
Battery: 1100Mah (non-removable)
Weight : 70g

Package Included :
1 x Foxeer Box 4K Camera

Also Foxeer Legend 3 was listed on Banggood:

http://www.banggood.com/Foxeer-Legend-3-UHD-4K-FOV-155-Degree-Wide-Angle-WIFI-FPV-Camera-with-OLED-Sport-Action-Cam-p-1136300.html

Also on the Surveilzone:

http://www.surveilzone.com/-Foxeer-Legend-3-4K-SuperVision-OLED-WIFI-Action-Camera-g-1679



Description :?

General

Brand: Foxeer Item Name: Legend 3 WIFI FPV Camera Camera Size:?67 X 42.5 X 23mm Weight: 67g (with Battery) Main Chip: Ambarella?A12S75 Image Sensor: Sony IMX117 1/2.3 Inch 12MP ISO : AUTO,100, 200, 400, 800, 1600 Lens:?F2.8 ((includes 1 x?aspherical glass lens)) Angle of Field:?FOV 155 degree TV Output: NTSC/PAL Resolution: 4K30fps/2.5K60fps/1080P120fps/720P240fps/4K25fps SuperVision/2.7K30fps SuperVision/1080P60fps SuperVision/720P120fps SuperVision Focal Length: 2.6+/-0.2mm Color: Black / Yellow

Video

Video Mode: Normal/Time-lapse/Loop record Resolution:4K (16:9)2160(4:3)2.7K(4:3)2.7K(16:9)2.5K(16:9)1440(4:3)1080(16:9)960 (4:3)720(4:3) Frame rate: 3025 Time interval: 1,2,5,10,30,60s

Loop Record:
Record continuous loop video recording self-coverage
Video loop length: can be set to 2min / 3min / 5min
Video Format: H.264 codec,mp4PhotoPhoto resolution:
16M: 4608×3456 4:3
14M: 4254×3264 4:3
12M: 4000×3000 4:3
8.3M: 3840×2160 16:9
5M: 2560×1920 4:3
3M: 2048×1536 4:3

Photo Mode: Normal/Timer/Auto/Continuous
Timer: Countdown timer 2/3/5/10/30/60s
Auto: Press the shutter to set the time interval (3s/5s/10s/30s/60s)
Continuous: Keep pressing shutter, photograph at 3s/5s/10s/ speed
Time exposure: apply only to single photo
Shutter setting: 1/30s,1s,2s,5s,10,30s,60sEISBuilt-in 3 axis gyroscope and 3 axis accelerometer. Uses a cross-border compensation algorithm to compensate the motion change to produce stable video quality
Resolutions supported:1080p
Fps:60503025AudioBuilt in HiFi microphone,4800Hz sampling rate,AAC compressionInterfacesMicroUSB,MicroHDMIStorage CardSupport 16-128GB microSD card (not included)Battery5V/1A 1000mAh lithium batteryOthersOperate Temperature: -20 – 55 degree centigrade
Operate Humidity: 15-85%RH
Storage Temperatur:-20 – 70 degree centigrade
Waterproof: Up to 40 meters with the waterproof case.
Bluetooth: Support Bluetooth 4.0,compatible with Bluetooth 2.0
G-Sensor: Built-in 6-axis gyroscopic, provides precise acceleration and angular rate measurement.
Indicator Light: Bicolor power indicator(blue,green),a red status indicator.
Focal length: 2.6+/-0.2mm
Max code rate: 60Mbps

Features:
Ambarella A12S75
Sony IMX117 1/2.3 Inch sensor
155 degrees Ultra Wide Angle Lens
Built-in 3 axis gyroscope and 3 axis accelerometer
1000mAh battery provides longer service life

Package Included:
1 X Legend 3 Camera
1 X Battery
1 X MicroUSB to USB Cable
1 X TV-Out Cable
1 X Engligh Manual
