Runcam Split Mini HD FPV camera

by montis 6/01/2018 | 1:58 0 Posted in New products

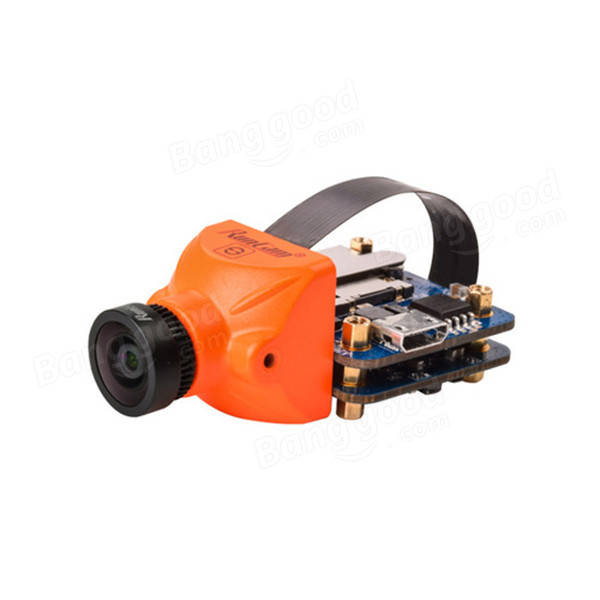

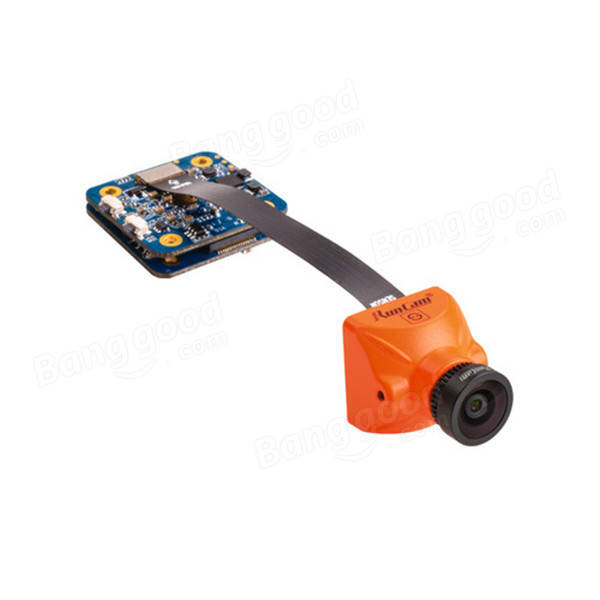

Runcam has released new version of Runcam Split – Mini. It is HD FPV camera with lens and sensor module and 20×20 mm mount pattern main board for small aircrafts and quads. In order to squeeze the components into small form factor Runcam had to make two boards one on another, so the total height of the camera stack is about 11.5 mm. There is microphone on camera board, but audio was removed form FPV feed in order to eliminate some of the components (dedicated audio encoder chip) from the PCB. Runcam Split Mini has solder pads instead of the JST connector. There is a connection for camera functions control from the FC.

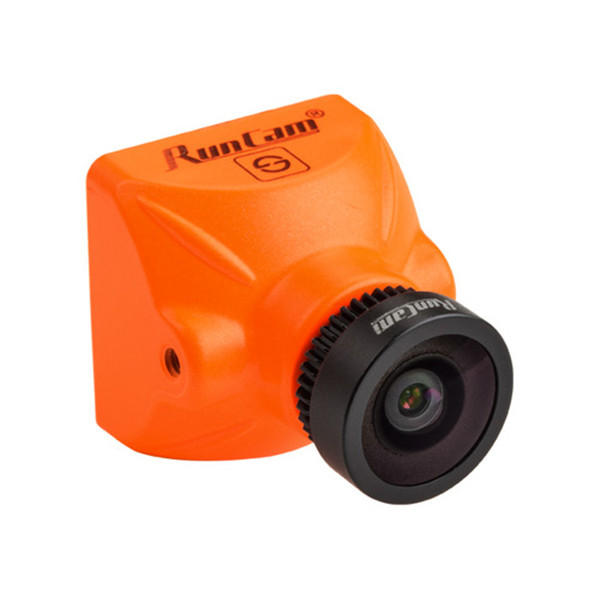

The Split Mini camera lens are 130 degrees FOV, camera dimension are 19×19 mm. The total weight is only 15 grams.

Latency of the FPV feed is declared very low. It is interesting what the actual latency is.

Listed @ Banggood: https://www.banggood.com/RunCam-Split-Mini-FOV-130-…-1248767.html

Specification:

FOV Angle of Field: FPV FOV 130° / Recording FOV 165°

Video Resolution: 1080@60fps / 1080@30fps / 720@60fps

Video Files: MOV

Image Resolution: 2 MP

TV Output: NTSC (720*480) / PAL (720*576) Switchable

Interface: Micro USB / UART

Max Micro SD Card Supported: 64G(need Class 6 or above, recommend Class 10/UHS-I/UHS-II)

Hole Distance of Installation: 20*20mm

Dimensions: PCB 27*29mm / Lens Module 19*19mm

Power Input: DC 5-17V/DC 5V(USB)

Working Current: 650mA @5V / 270mA @12V

Weight: 15g

Features:

1080P/60fps HD recording & WDR FPV camera

Power-off protection for video files

Ultra light weight (15g)

Low latency TV-OUT

Wide voltage (5-17V)

Anti-drop SD card

Package included:
1x RunCam Split Mini FPV Camera
1x Metal Cover
1x SD card protector
1x Bracket
1x TV-out and power cable
1x 3pin FPV Silicone Cable(male)
1x 3pin FPV Silicone Cable(female)
1x Set of screws
