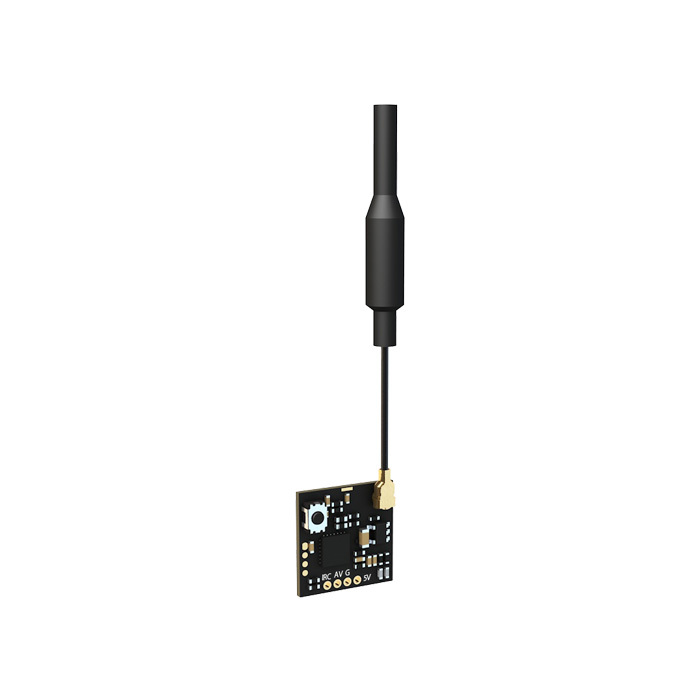

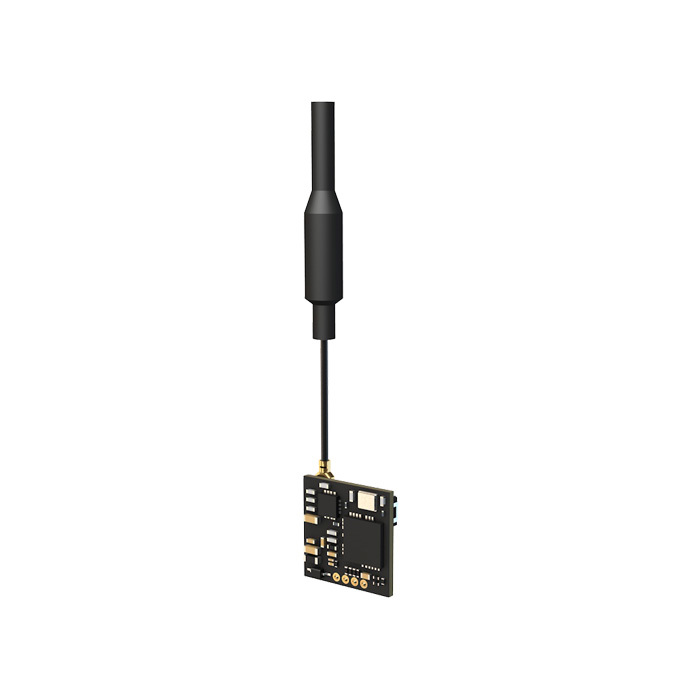

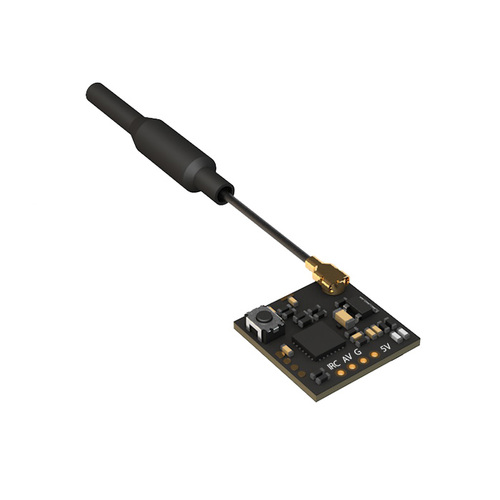

RunCam TX100 nano sized VTX

by montis 25/10/2019 | 11:30 0 Posted in New products

Nano trend continues. Runcam has released nano sized VTX called TX100. This VTX is ultra small, light and capable of transmitting in 25mW and 100mW power levels.

Read the review of the RunCam TX100 Nano here: Review: RunCam TX100 Nano VTX

It supports up to 37 channels and comes with 100mW and some of the channels locked. If you need to get 100mW & all 37 channels unlocked, please long press the button on the VTX for 10 seconds till both Blue & Red LED are constantly on.

BAND & CHANNEL Table. Red channels are locked by default.

Channel	CH1	CH2	CH3	CH4	CH5	CH6	CH7	CH8
A(1)	5865	5845	5825	5805	5785	5765	5745	5725
B(2)	5733	5752	5771	5790	5809	5828	5847	5866
E(3)	5705	5685	5665		5885	5905
Airwave(4)	5740	5760	5780	5800	5820	5840	5860	5880
Race Band(5)	5658	5695	5732	5769	5806	5843	5880	5917

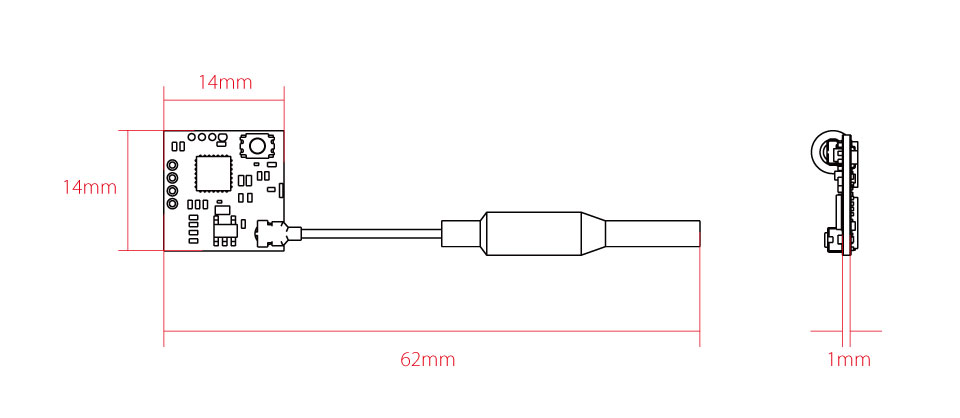

The size of the TX100 VTX is 14x14mm.

An it weights only 1.5 grams with antenna!

Available @ RunCam: https://shop.runcam.com/runcam-tx100-nano/

RunCam TX100 VTX User Manual: https://www.runcam.com/download/RUNCAM-TX100_manual.pdf

Specifications

Model: RunCam TX100 Nano
Frequency Channel: 5.8G 37CH
Output Power: 25mW / 100mW
Working Current: 5V@ 150~300mA
Voltage in: 4.5-5.5V
Video Input Impedance: 75 Ohm
Antenna: U.FL 5.8G 2dB Omni antenna
Weight: 1.5g (with antenna)
PCB Size: 14mm*14mm
