SPCMaker K1 & K2 quadcopters

by montis 27/09/2018 | 9:54 0 Posted in New products

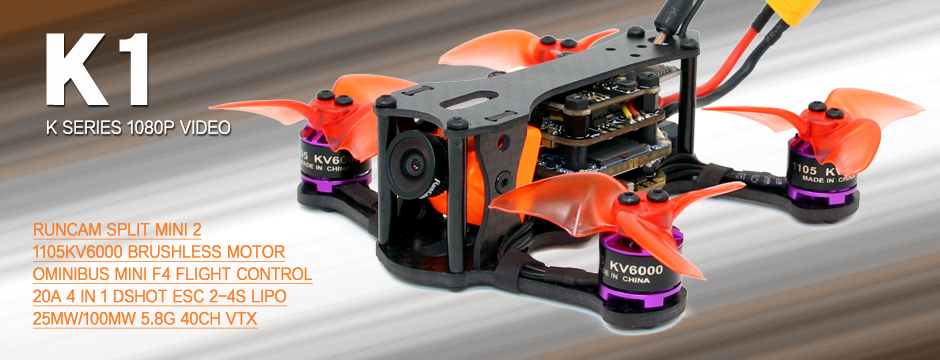

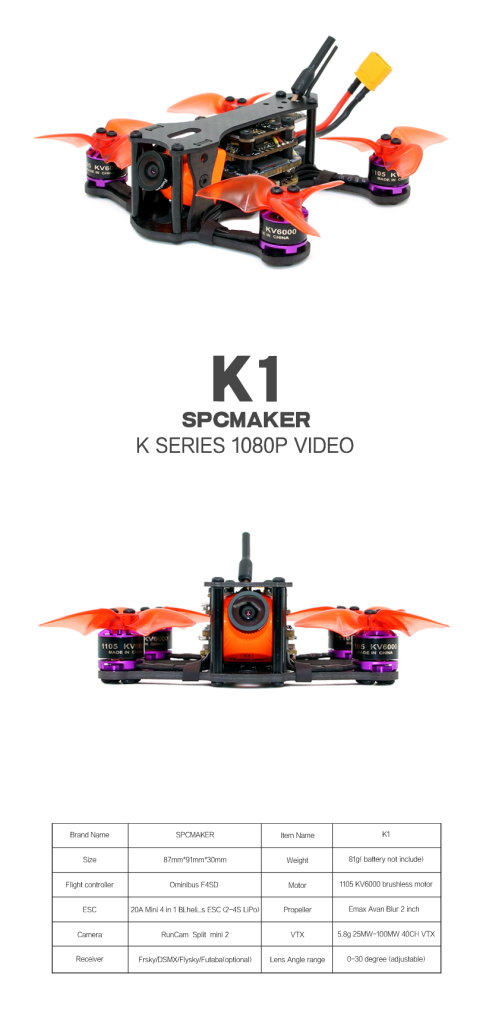

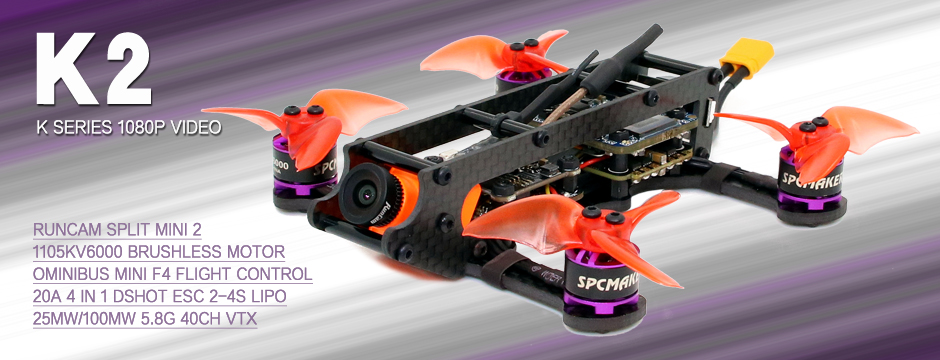

SPCMaker has released two new quadcopters K1 and K2. They both are equiped with Runcam Split Mini 2 for 1080p/60fps video recording. K1 is 95mm base size an K2 is 115mm base size. Both fit 2inch EMAX Avan Blur 2 propellers. Both quadcopters have Omnibus F4 Flight Controller with MPU6000 SPI gyro, 20A Mini 4 in 1 BLheli_S ESC. (2-4S LiPo), 1105 6000KV Brushless Motor and 5.8G 40CH 25mW/100mW VTX.

Quadcopters are offered in 5 versions: without receiver, with DSM2/X, Frsky, Flysky or Futaba receivers.

K1 and K2 quadcopters weights only 91grams (without receiver). Pretty small weight for a quadcopter with Full HD camera on board.

K1 available @ https://www.banggood.com/SPCMaker-SPC-K1-95mm-Omnibus-F4-20A-BL_S-FPV-Racing-Drone-PNP-BNF-w-RunCam-Split-Mini-2-Camera-p-1357411.html

K2 available @ https://www.banggood.com/SPC-Maker-K2-110mm-FPV-Racing-RC-Drone-PNP-BNF-Omnibus-F4-20A-BLHeli_S-ESC-RunCam-Split-Mini-2-p-1357342.html

Specifications of K1 & K2:

Omnibus F4 Flight Controller	Item Name: Omnibus F4 Flight Controller Integrated with OSD PDB BEC Firmware: OmnibusF4SD Main Chip: STM32F405 MPU6000 6 aixs SPI Gyro & Acc BEC: 5.1V@1.2A Size: 27x27mm Mounting Hole: 20x20mm Weight: 3.5g – DShot1200 Support – SBUS/PPM and Speketrum DSM Ports 5.5V BEC Support
Brushless Motor	1105 6000KV Brushless Motor
20A BL_S 4in1 ESC	Item Name:20A BL_S 4in1 ESC Con. Current: 20A Input Voltage: 2-4S Lipo Support BEC: NO Firmware: BLheli_S Dimension: 29x31mm Mounting Hole: 20x20mm Weight: 4.9g – Support DShot150, DShot300 and DShot600 Don’t Recommend PWM
Emax Avan Blur 2 Inch Propeller	Item Name: Emax Avan Blur 2 Inch 3-Blade Propeller Diameter: 2 inch Pitch: 1.9 inch Weight: 1.1g
FPV Transmitter	Item Name: 5.8G 40CH 25mW 100mW VTX Input Voltage: 5-6V Operation Current (5.5V) : 310mA@25mW 350mA@100mW Frequency: 5.8G 40CH 5645-5945MHz
FPV Camera	Item Name: Runcam Split Mini 2 Camera Field of View(FOV): FPV FOV 130° / Recording FOV 165° Video Resolution: 1080@60fps / 1080@30fps / 720@60fps Video File Format: MOV Image Resolution: 2 MP TV Mode: NTSC (720480) / PAL (720576) Switchable Interface : JST 1.0mm / UART Max Micro SD Card Supported: 64G(need Class 6 or above, recommend Class 10 / UHS-I / UHS-II / UHS-III) Hole Distance of Installation: 2020mm Dimensions: PCB 2929mm / Lens Module 19*19mm Power Input: DC 5-20V Working Current: 650mA @5V / 270mA @12V Weight: 12.5g
