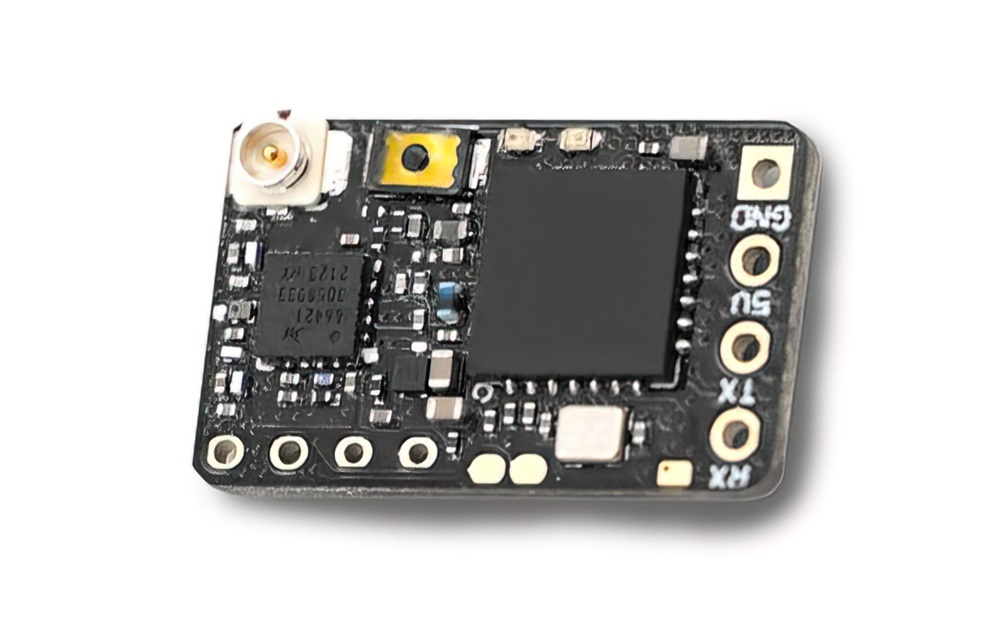

TBS Crossfire Nano RX Pro

Probably one of the most popular receiver?Crossfire Nano RX got the more powerful brother –?Crossfire Nano RX Pro.?The TBS Crossfire Nano RX Pro is a higher telemetry output power option for the most widely used Crossfire receiver. Nano RX Pro provides up to 500mW of output power for sending back the telemetry to the radio. This should?ensure that your 50km flights occur without ever losing telemetry.?RF Power amplifier part is made with?SKY66421?by Skyworks.? Standard TBS Crossfire Nano RX telemetry output power is up to 25mW.? You will need the Crossfire Firmware version V6.14?or newer for this receiver to work. The power output of this receiver can be adjusted in three steps low – mid – high.

Available @

GetFPV:?https://www.getfpv.com/tbs-crossfire-nano-rx-pro.html

Team BlackSheep: https://www.team-blacksheep.com/products/prod:crossfire_nano_pro

Specifications
Output Power: Up to 500mW
Size: 11mm x 18mm
Weight: 0.5g (receiver only)
Requires: Firmware V6.14
Input Power: +3.3V to 8.4V

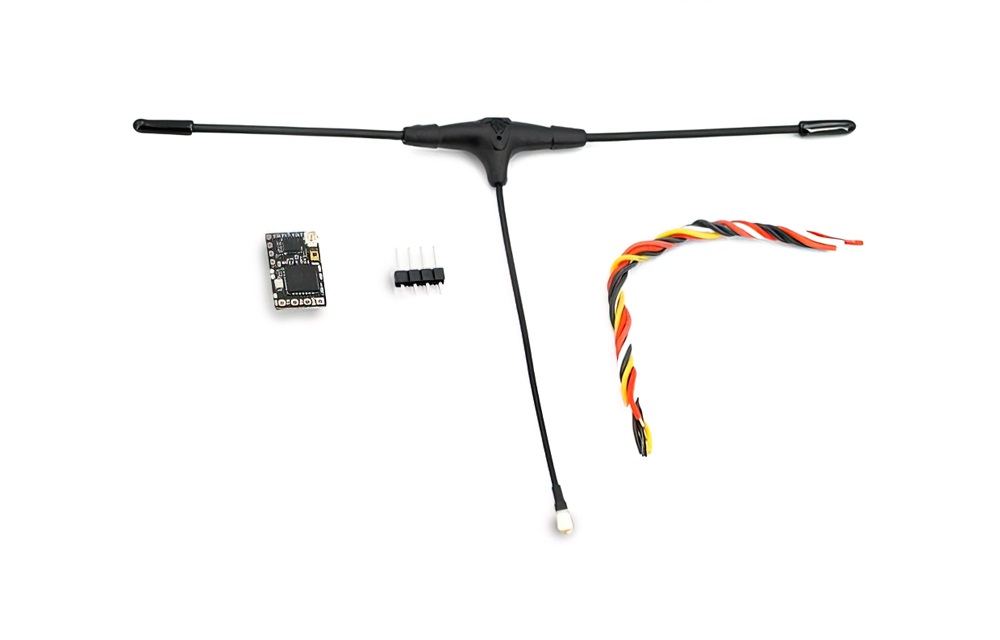

Includes
1x TBS Crossfire Nano Receiver Pro
1x TBS Crossfire Immortal T Antenna
1x Spare shrink tube
6x 30awg silicon connection wires (2 black, 2 red, 1 white, 1 yellow)
1 x pin header 1×4
