TransTEC F7 Flight controller

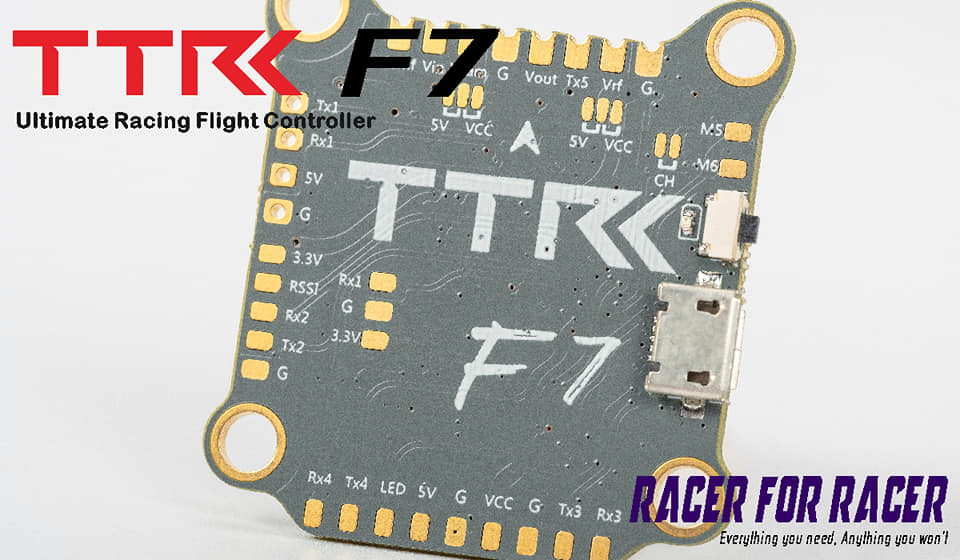

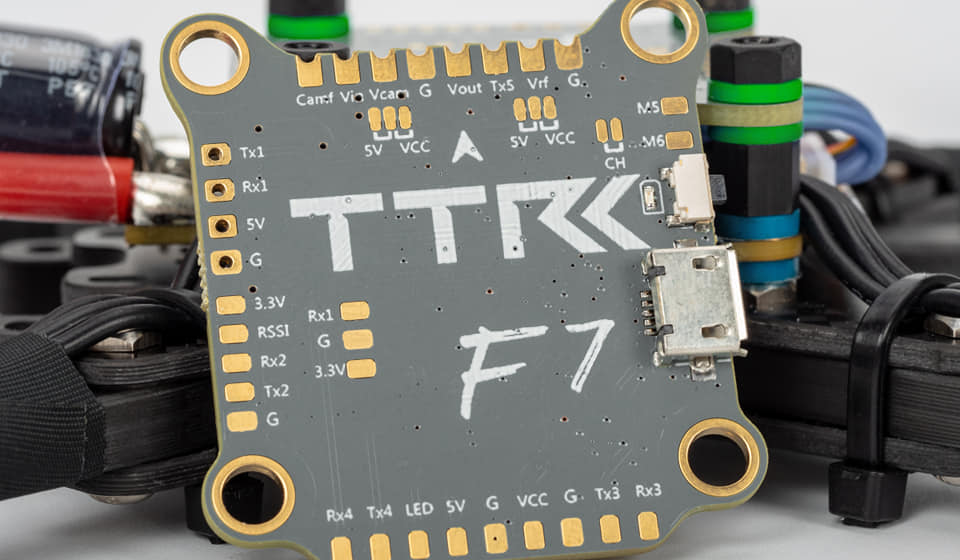

TransTEC has announced their first flight controller with simple naming – TransTEC F7. This FC is 30x30mm sized board, based on F722 MCU, has MPU6000 gyro, accepts 3-6S battery input. One of the most interesting features is flat top PCB design, with pads for major RX types. You can even direct solder the FrSky XM+ or Crossfire Nano receiver to this FC. Another interesting feature is reversed, inwards facing ESC ribbon socket.

     Read the review of TransTEC F7 here

Available @

TransTEC: https://www.transtechobby.com/list/59/460.htm

Banggood: https://www.banggood.com/TransTEC-F7-F722-3-6S-Betaflight-Flight-Controller-OSD-MPU6000-Uarts-5-5V3A-BEC-30x30mm-p-1521644.html

Specifications:

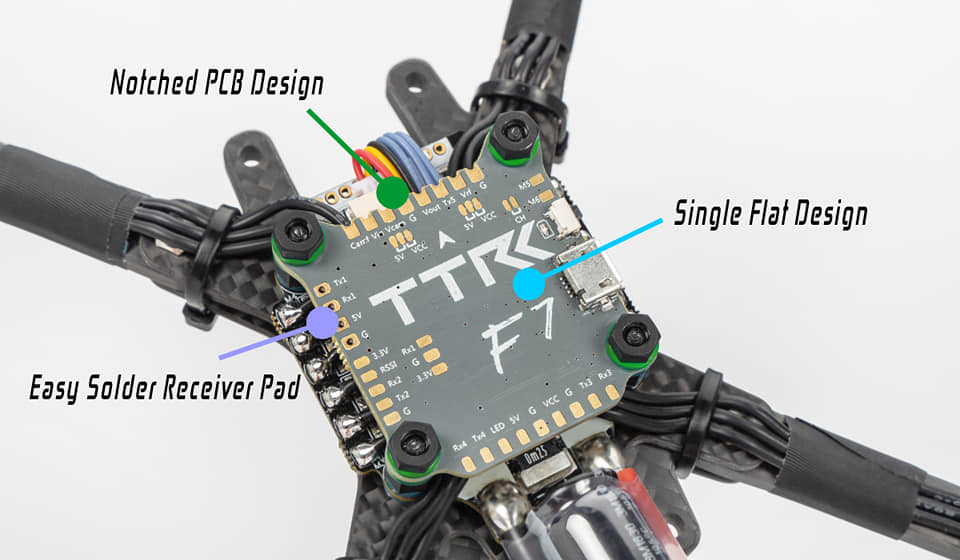

Flat top plate PCB design

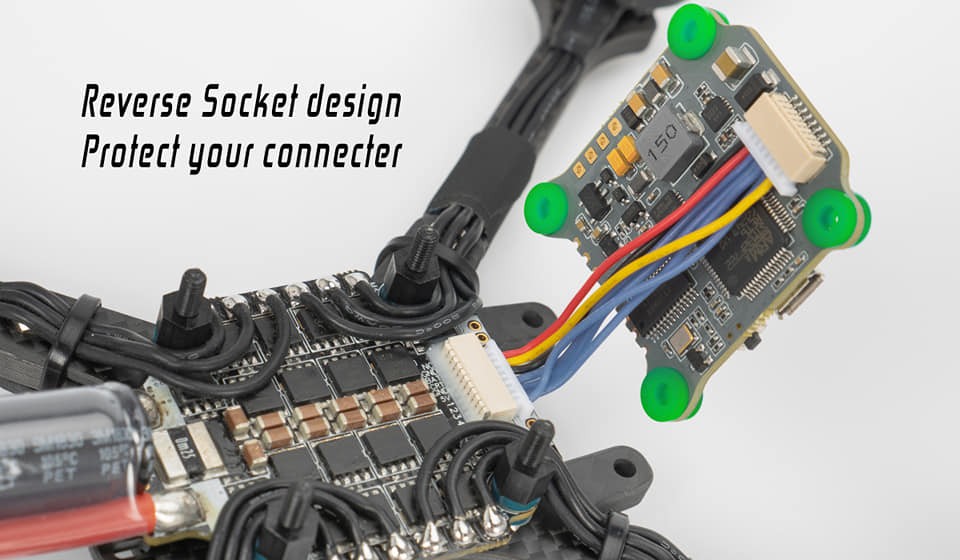

Reversed ESC connector (facing inwards)
Low noise MPU6000 GYRO
Battery power filter

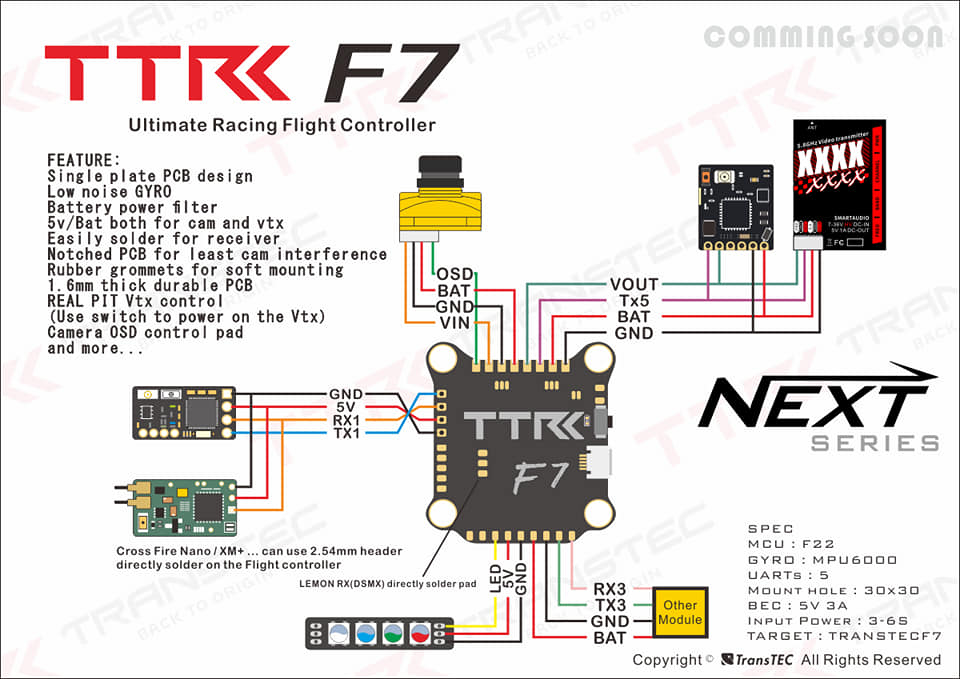

Selectable 5v/Bat for VTX and CAMERA
Direct solder the Frsky XM+ / Crossfire Nano RX
Rubber grommets for soft mounting
1.6mm thick PCB
REAL PIT VTX control
5 UARTS
Input power: 3-6S
BEC: 5V 3A
