Triple feed patch 2 in 1 antenna – RHCP and LHCP


        by montis   8/09/2017 | 4:53
                                    0
                                    Posted in New products

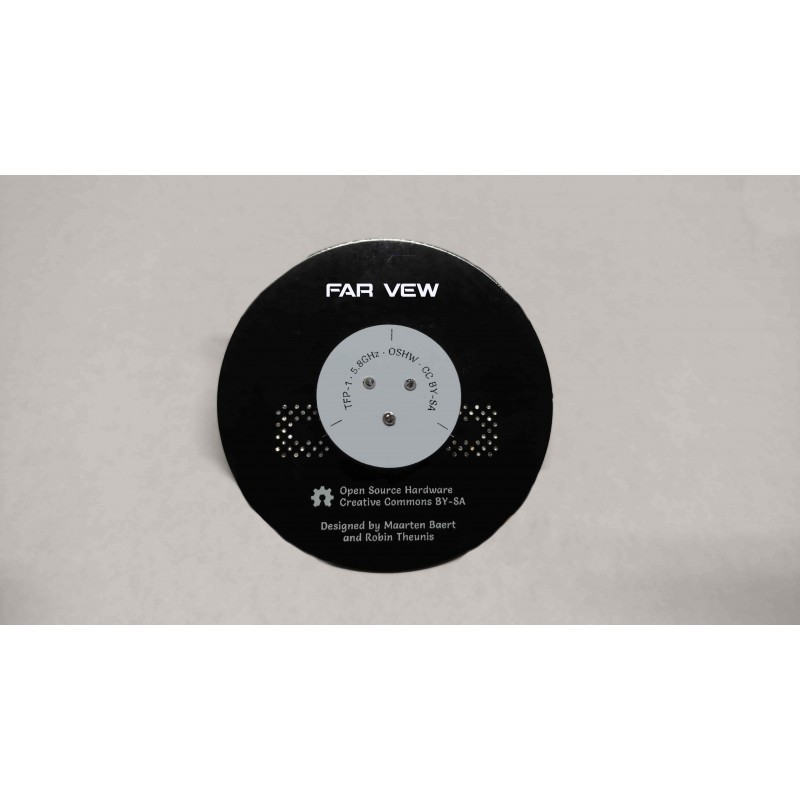

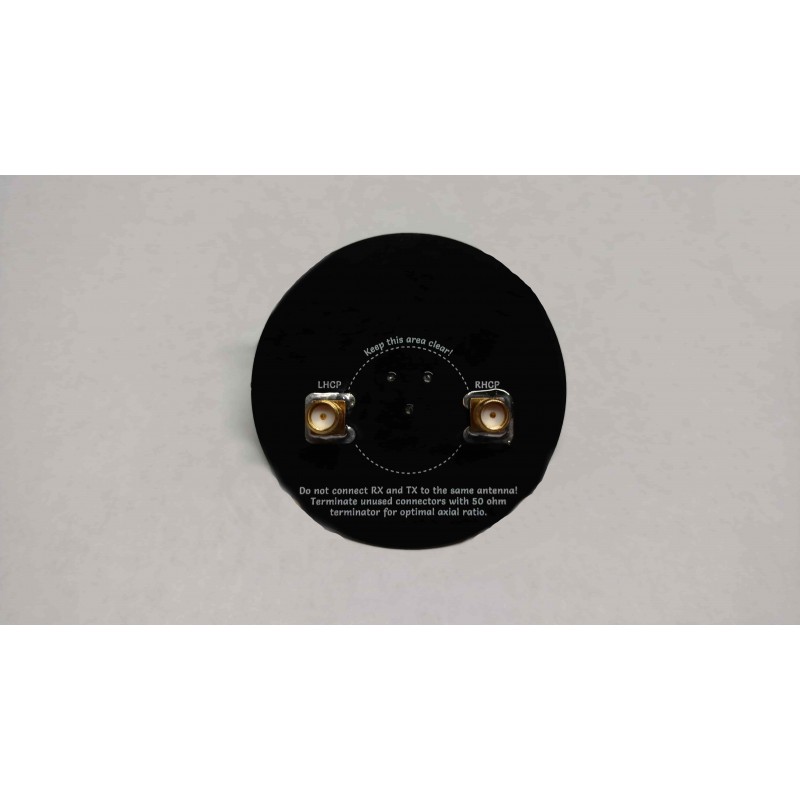

        Wheel was reinvented again! Maarten Beart (famous creator of Pagoda antenna) has designed new antenna – triple feed patch antenna. The newest design has some unique features: This patch antenna is circulary polarized and can have Right anf Left polarization in one antenna for your choice! You can use this antenna with any RHCP or LHCP antennas! Other feature is much greater axial ratio at many different angles, that outperforms many other patch antennas currently available on the market.

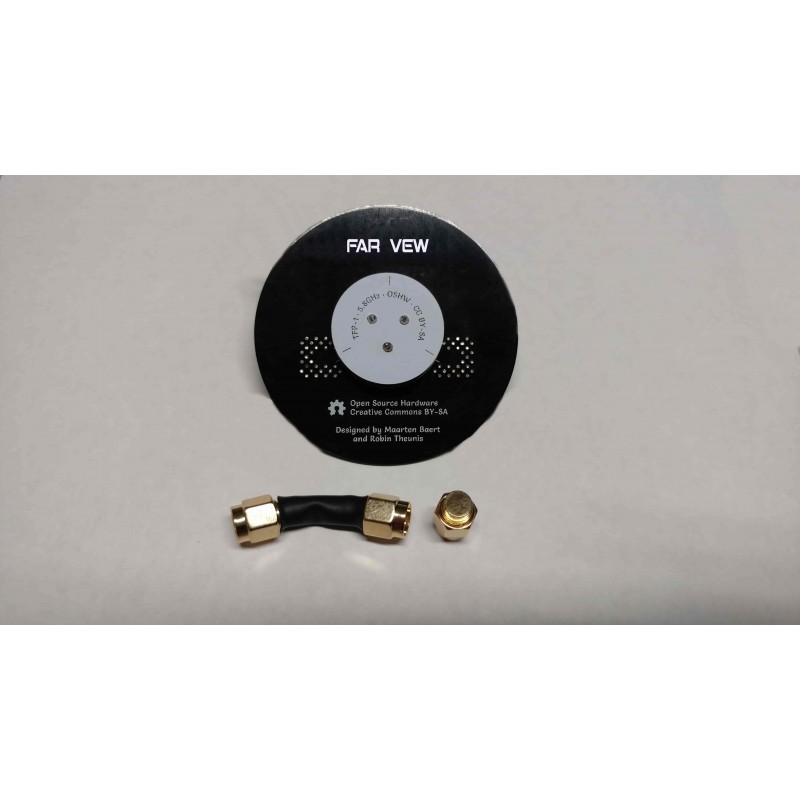

        Can be purchased @ FarVew:?https://farvew.com/home/69-triple-feed-patch-lhcp-and-rhcp.html

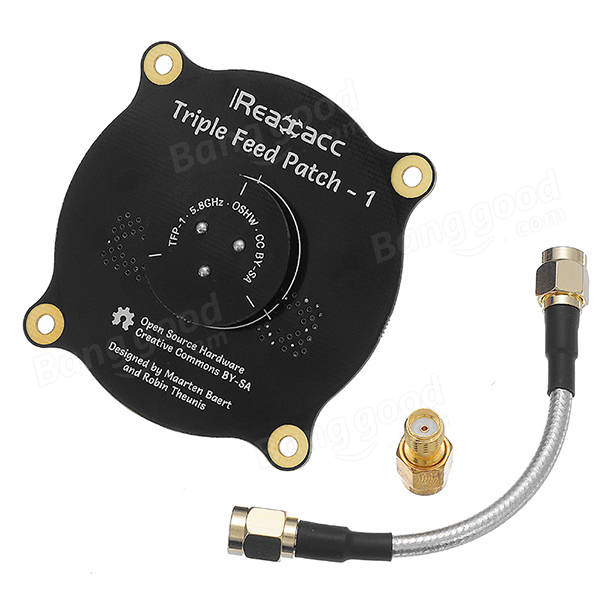

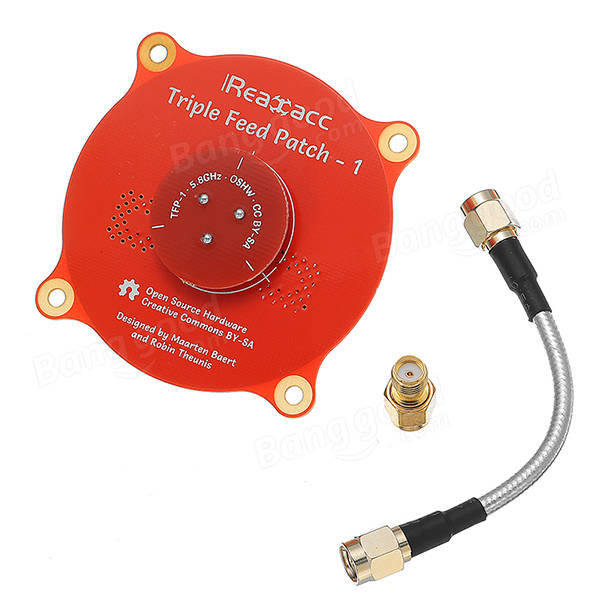

        And Realacc @ Banggood:?https://www.banggood.com/Realacc-Triple-Feed-Patch-1-5_8GHz-9_4dBi-Directional-Circular-Polarized-FPV-Pagoda-Antenna-p-1195261.html


        Specifications:


        Center frequency: 5.8 GHz


        Bandwidth: 660 MHz (5.47 – 6.13 GHz)


        Matching: S11 < -20 dB, VSWR < 1.22 (at center frequency)


        Axial ratio: < 1.3


        Antenna gain: 9.4 dBi


        Half power beam width: 55° (horizontal and vertical)




        Radiation efficiency: 83.5%


        Features:


        Good radiation efficiency. Most FR4-based patches have terrible efficiency because FR4 is very lossy at 5.8 GHz


        Good axial ratio, not just directly perpendicular to the patch but also off-center
