Updated Runcam Split 2S

RunCam Split 2 has been upgraded to Split 2S. Upgrades include:

• Bigger Field Of View- FPV 4:3@140°, 16:9@170°,  HD recording 170° (was FPV FOV 130°/ Recording FOV 165°)
• Camera module dimensions reduced from 22x20mm to 19x19mm (from Mini size to Micro size)
• Reduced weight from 21g to 19g

Not much of upgrades, but still an improvement.

Links:

RunCam: https://shop.runcam.com/runcam-split-2s/

Banggood: https://www.banggood.com/RunCam-Split-2S-FOV-170-Degree-Super-WDR-Mini-FPV-Camera-1080P-60fps-DVR-HD-Recording-OSD-for-RC-Drone-p-1365856.html

RunCam Split 2S User Manual: https://www.runcam.com/download/split2s/RunCam_Split2s_manual_EN.pdf

RunCam Split 2S Firmware Updates: http://www.runcam.com/download/runcamsplit2s

Specifications:
Field of View(FOV): FPV FOV 4:3@140°, 16:9@170°/HD Recording 170°
Lens Thread Size: M12*0.5
Video Resolution: 1080@60fps/1080@50fps /1080@30fps/720@60fps
Video File Format: MOV
Image Resolution: 2 Megapixels
TV Mode: NTSC (720*480)/PAL (720*576) Switchable
Interface: Micro USB / UART
Max Micro SD Card Supported: 64G(need Class 6 or above, recommend Class 10/UHS-I/UHS-II/UHS-III)

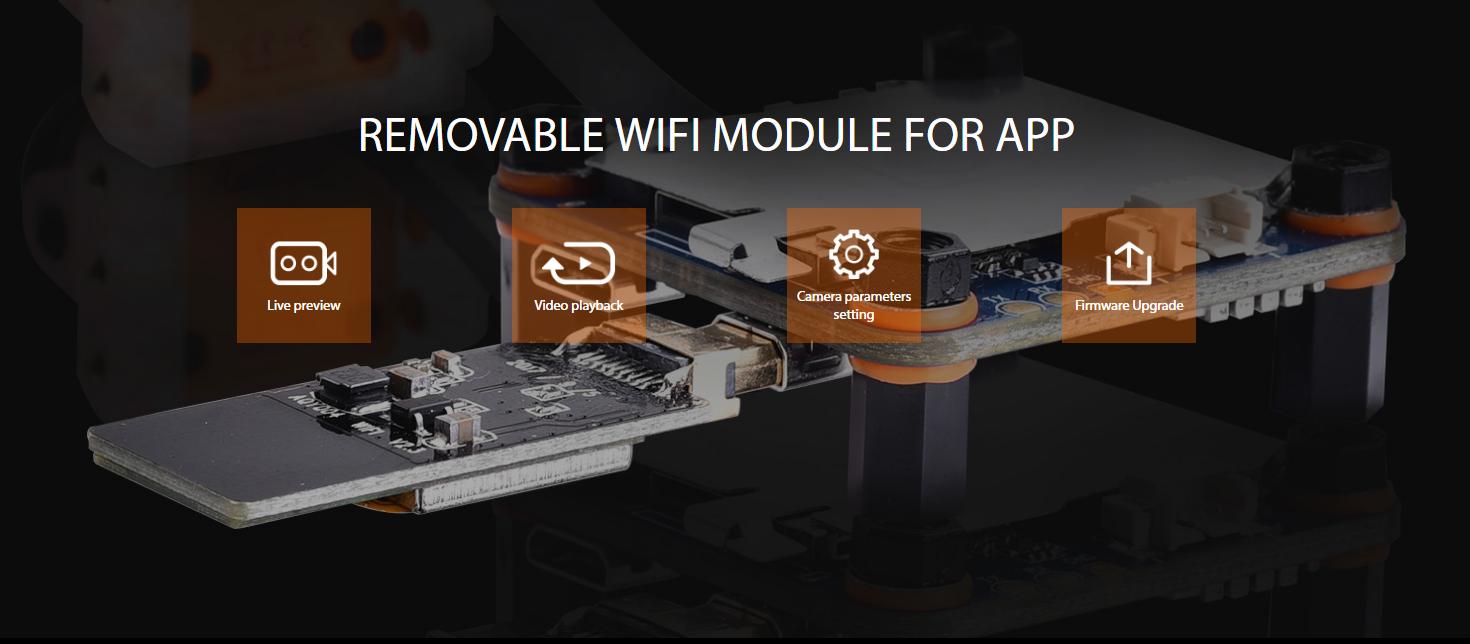

WiFi Module Support (Removable)

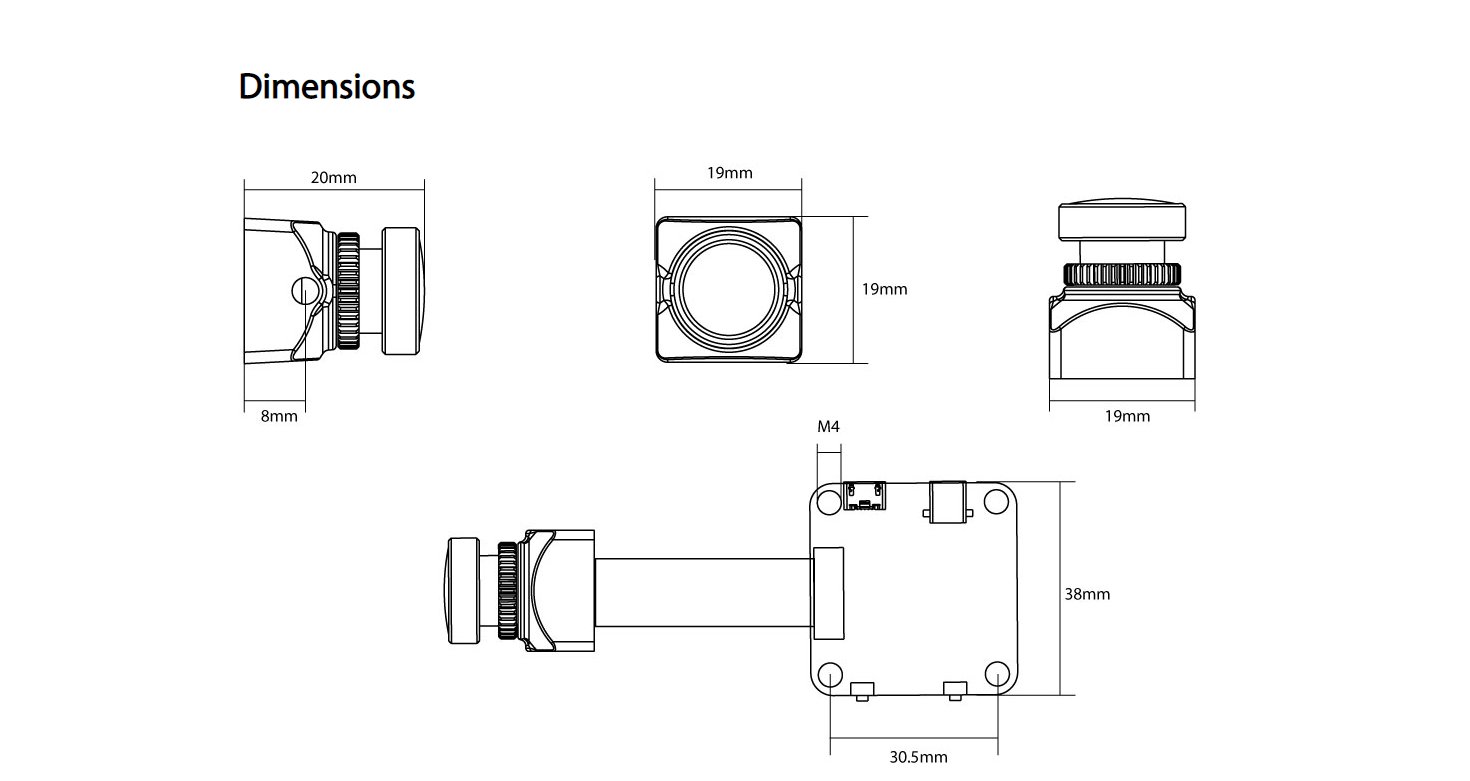

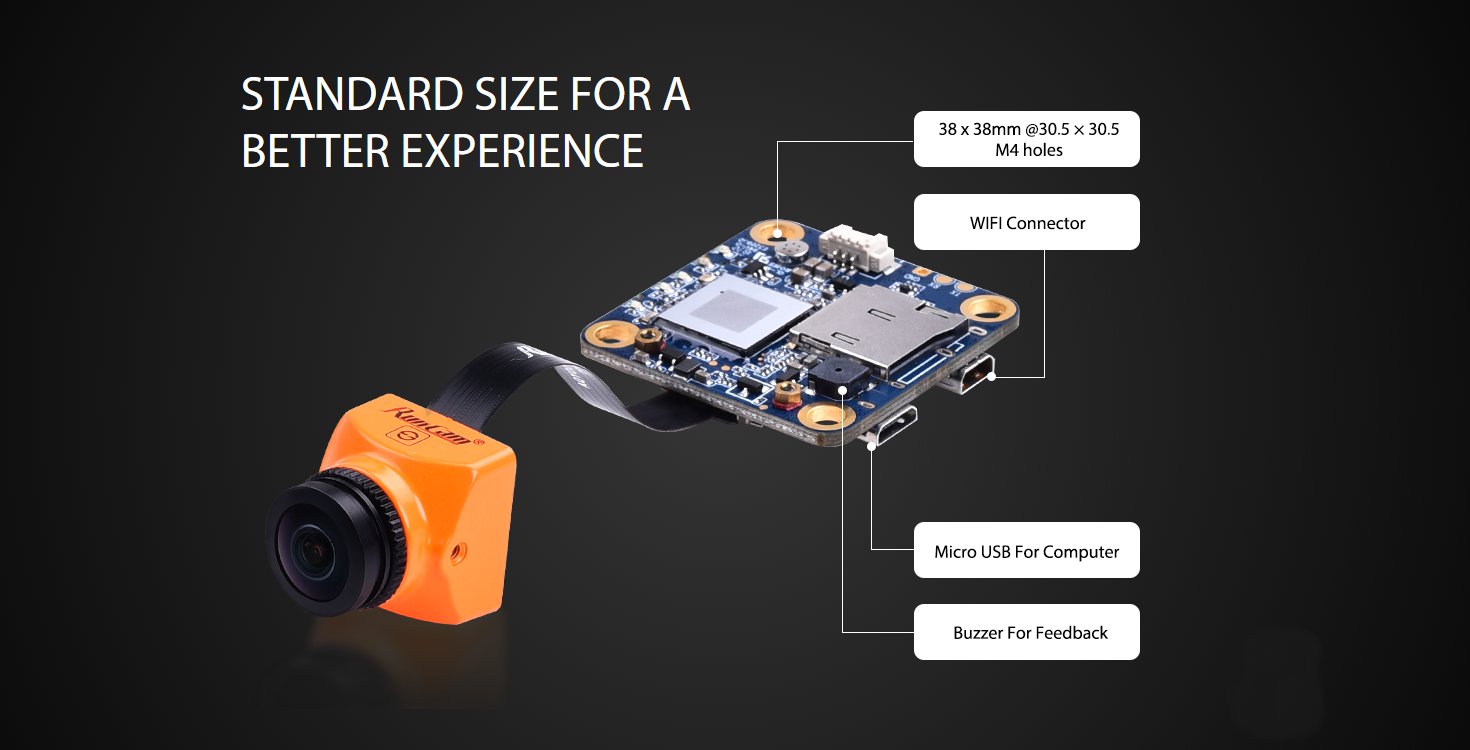

Dimensions: PCB 38*38mm/Lens Module 19*19mm
Power Input: DC 5-15V / DC 5V(USB)
Working Current: 650mA @5V / 270mA @12V
Net Weight: 19g
