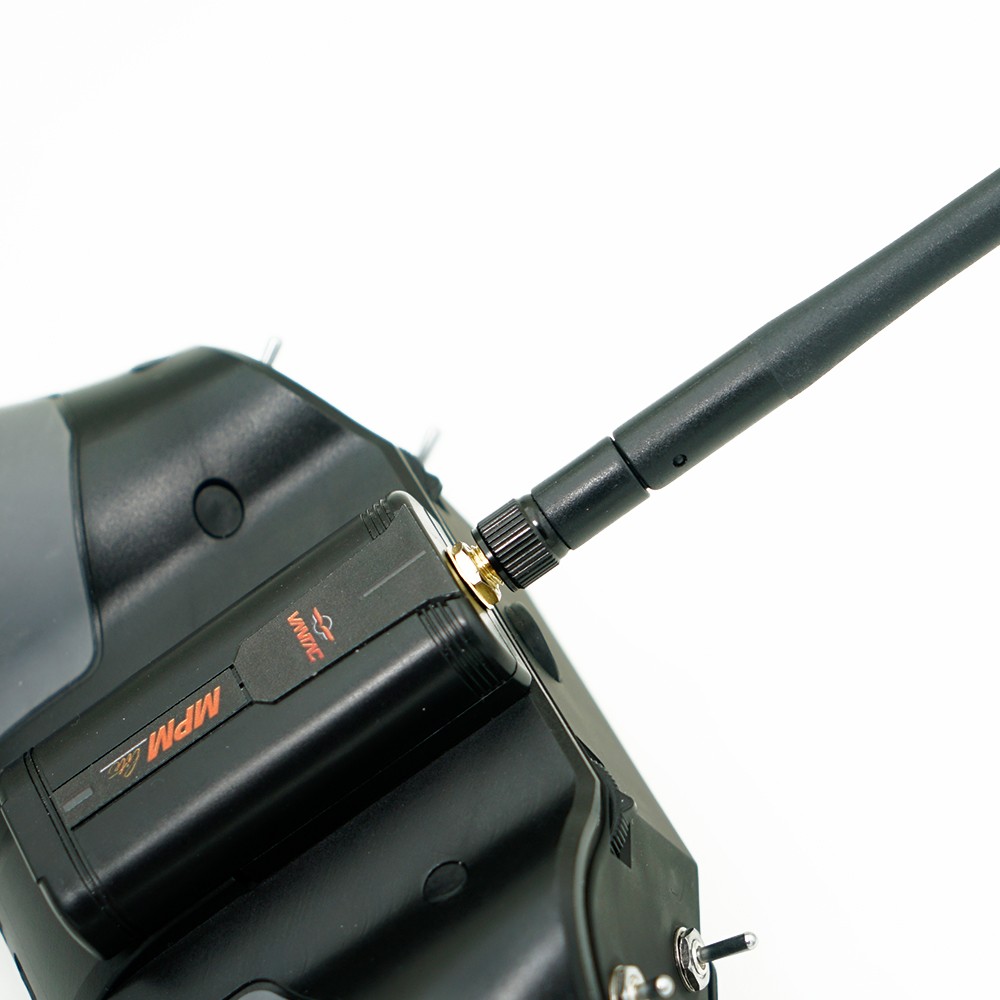

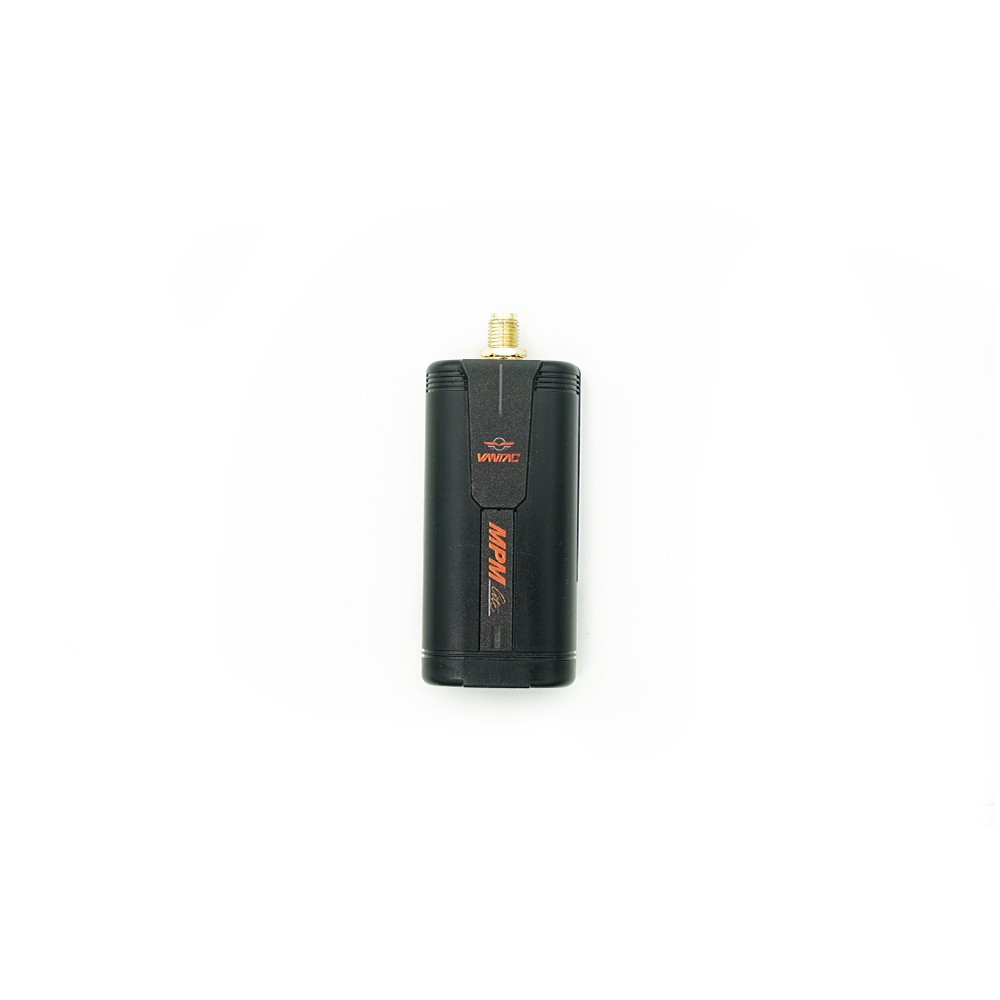

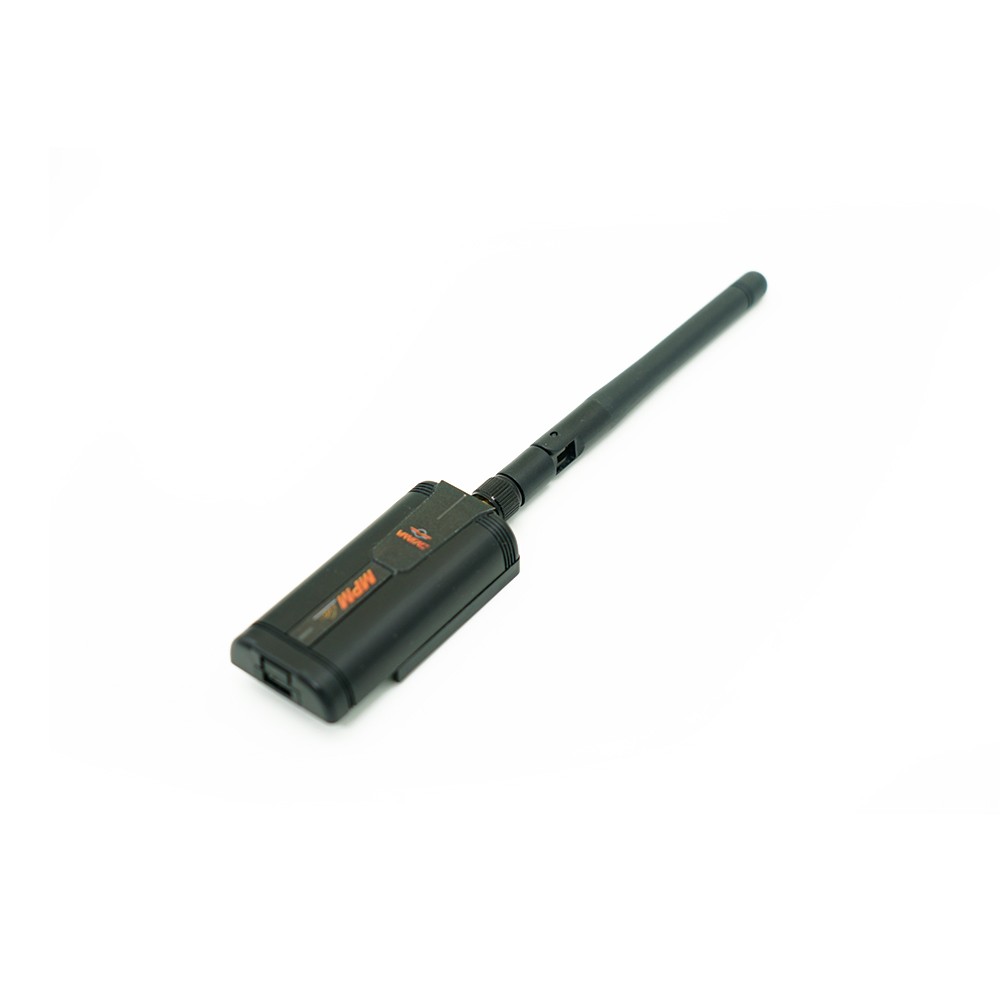

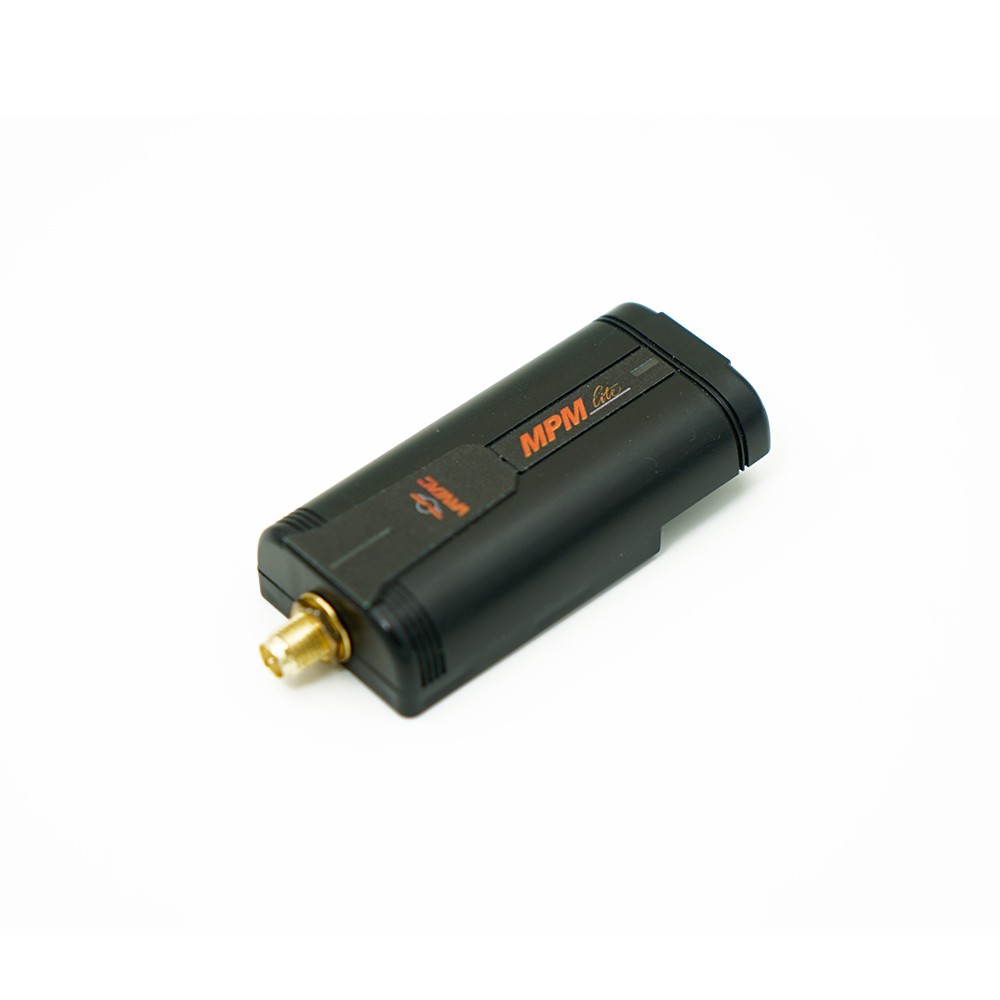

Vantac MPM Lite – multiprotocol module for Frsky X-Lite

        FrSky is preparing to release the multiprotocol module for Taranis X-Lite transmitter – Vantac MPM Lite. This multiprotocol module is based on Open Source Multiprotocol project. There are 4 transmitters (CYRF6936/CC2500/A7105/NRF24L01) inside this module that enables to control aircrafts with Spectrum, FrSky, Flysky, Futaba, Hubsan, Syma, Bayang and many more other types of receivers. Protocol selection is made right from the OpenTX menu.
        With this multiprotocol module you can bind and control almost any aircraft in your fleet!



        Supporting protocol list:

        Manufacturer RF Chip Example Protocols
        Cyprus Semiconductor CYRF6936 DSM/DSMX
            Walkera Devo
            J6Pro
        Texas Instruments CC2500 FrSky
            Futaba SFHSS
        Amiccom A7105 FlySky
            FlySky AFHDS2A
            Hubsan
        Nordic Semiconductor NRF24L01 HiSky
            Syma
            ASSAN
            and most other Chinese models



        Listed

        @ HorusRC: https://www.horusrc.com/en/vantac-mpm-lite-2-4g-transmitter-module-for-x-lite.html

        SPECIFICATIONS

        •  Dimension: 62.4*30*14.5mm (L×W×H)
        •  Weight: 22g (without antenna)
        •  Operating Current: 180mA@3.3V
        •  Upgrade Interface: Micro USB Port

        FEATURES

        •  Four 2.4GHz RF chips (CYRF6936/CC2500/A7105/NRF24L01)
        •  Multiple protocol supported

        Source: Facebook
