Rumors: Jumper T8SG Plus

by montis 4/01/2018 | 12:45 0 Posted in Rumors

Jumper T8SG V2 (Plus) – a new version of T8SG multiprotocol radio transmitter will be available soon. What will be changed? New transmitter will have changeable transmitter module bay, the joysticks will be upgraded to Hall effect models, the screen will be OLED, and there will be 4 new switches! Hopefully, the USB connector is more accessible than the original version. There is no date or price for the T8SG Plus available yet…

Update 2018-01-23:

There will be two versions of the Jumper T8SG V2.0 – standart and Plus. Plus version will have Hall Effect gimbals and bigger 2.42″ black background OLED display. Both versions will have hard case The expected price – $99 for standart V2 version and $129 for V2 Plus.

Modules intalled and protocols supported:

Differencies between T8SG V2 and T8SG V2 Plus models (actually two: Hall effect gimbals and bigger OLED display):

Listed @ Banggood: https://www.banggood.com/Jumper-T8SG-Plus-V2_0-Multi-…-1257102.html

Features
Built in 4-in-1 RF Module (CC2500 CYRF6936 A7105 NRF2401)
Open source multi-protocol firmware, compatible with most mainstream remote controls (DeviationTX)
Non-contact 3D space vector Hall Effect Gimbals (T8SG Plus Only)
T8SG 1.7” LCD Display / T8SG Plus 2.42 inch OLED display, Bright display works even in direct sunlight (128 * 64 resolution)

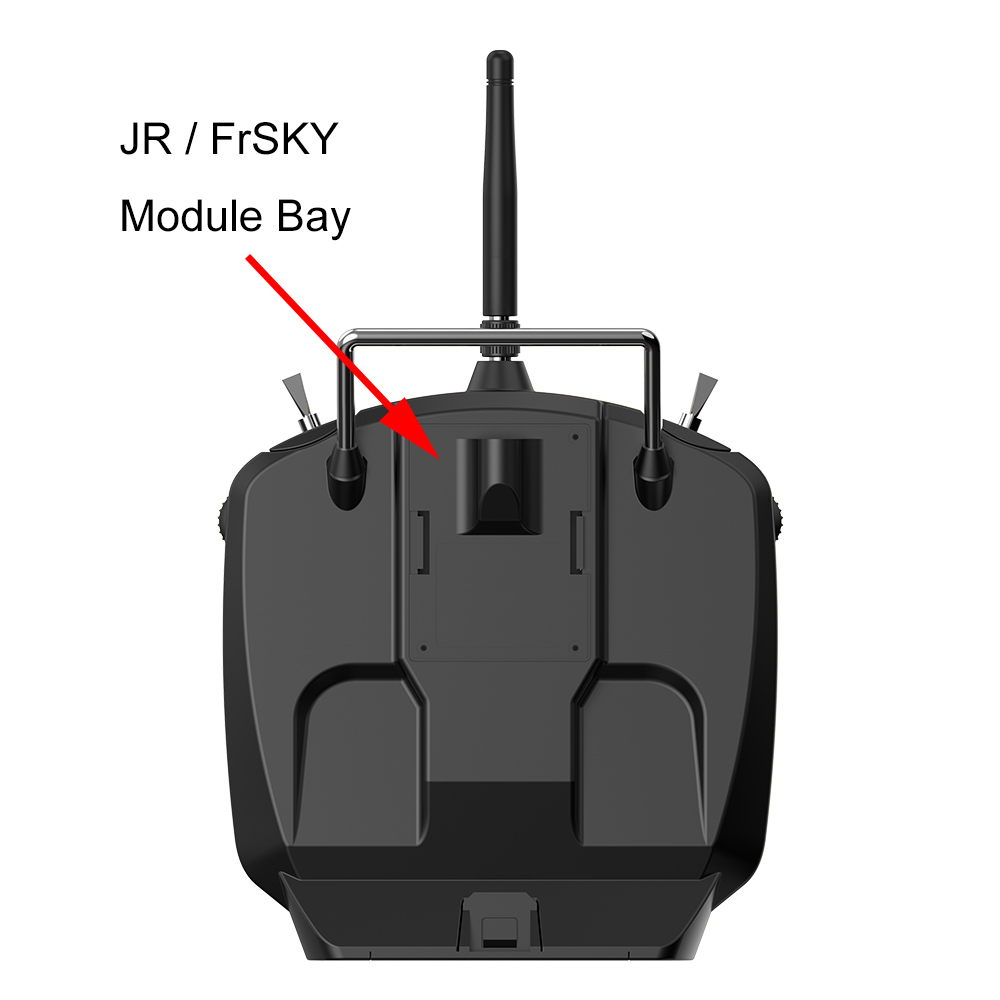

JR/FrSKY compatible module bay on rear side.
USB online firmware upgrade
Transmission power adjustable to adapt to different location requirements (0 ~ 150 mW).
Detachable antenna, easy to change
Ultra-low power consumption, longer battery life
Up to 12 channels of output (depending on the receiver), Open Source Firmware, all channels are fully programmable
Wide voltage input (2s lipo recommended) (from 4.5V to 18V)
Multilingual menu
Vibration reminder function
Support telemetry (depending on the receiver)
