Inside the Firefly X Lite camera there are the same electronics as in the full sized Firefly X camera –? SONY IMX377 12 Mega WDR CMOS sensor with Ambarella H22S85 chipset. So the recordings quality should be similar to the?Firefly X camera. You can find a lot of examples on the YouTube.

Camera is capable of recording in 4K resolution in 60 frames per second. It also records in 2.7K/60fps, 2.5K/60fps and

Firefly X Lite camera comes with a standard GoPro style mount.

Camera can be powered on by supplied battery to USB-C type adapter or by separate 5V cable.

1. POWER BOTTON；
2. Type CUSB port；
3. Video indicator (flash when recording)；
4. record button；
5. WiFi indicator (light on when WiFi is on);
6. Lens；
7. 2p power port (5V IN)；
8. Cooling hole；
9. Microphone hole；
10. TF card slot；

Key Features：

• 4K 60FPS
• Only 34g weight
• Ambarella H22S85 chipset
• Gyro 4.0 Image Stabilization
• WiFi + BT4.1 Remote control
• SONY IMX377 12 Mega WDR CMOS

Button functions:

Operating instructions:

Use the 5V power supply on the drone to supply power to the camera, and then press the power button to turn on the camera, and the buzzer will ring three times quickly. When the camera is turned on, the default resolution of the camera is 4k 60 frames. If you want to switch the resolution, you can press and hold the Record Button for 3 seconds to switch. The switching?array??is: 4k 60 frame (two beeps of the buzzer) / 2.7k 60 frame ultra wide angle (three beeps of the buzzer) / 2.5k 60 frame on anti shake (four beeps of the buzzer). If the camera needs to flip 180 degrees to install, press the power button for 3 seconds after the camera is turned on, the camera will turn on the image flip function. After the camera is turned on, press the power button briefly to turn on the WiFi function, and then use the mobile phone to connect with the FIREFLY app. You can set camera time and parameters, preview and download videos.

Hawkeye Firefly X Lite Firmware update

Hawkeye Firefly X Lite?Firmware V2.0 update.

Hawkeye Firefly X Lite Firmware V2.0 upgrade instructions
https://cdn.shopify.com/s/files/1/30…tions_V2.0.pdf

Hawkeye Firefly X Lite Firmware V2.0 Download:
https://www.jianguoyun.com/p/DeLIOtUQ4rDjBxidmpQE

The updated functions in Firmware V2.0 (2021-10-12):
1， WDR enhancement function is added and opened by default;
The whole image quality has been greatly improved!
2， The synchronous output of gyro data in CSV format is added,
which can be used for computer post stabilization processing;
3， The resolution of 2.7k60/30fps 4:3 and 1920 * 1440p60/30fps
4:3 are added.
4， The four resolutions switched by pressing the key are 2.5k60fps
EIS on; 1440P 4:3; 4K30FPS Ultra; 2.7K30FPS 4:3; The last three sets
of resolutions will automatically output gyroscope data;
5， Put the Lite_ config file in the root directory
of the card to facilitate setting camera parameters with the TF card
6， If the card is inserted and there is no video recording, it will
beep twice every 6 seconds to prompt the user to start the video
recording before taking off!
7， Add the function of USB port external parameter adjustment AV
board; Subsequently, firefly cam will launch a parameter
adjustment AV board, which can connect FPV glasses for intuitive
viewfinder and parameter adjustment.
8， By default, the dual file function is enabled. When recording,
two videos with the same content will be generated, A and B. the B
video file is very small, which is used to watch on the Firefly app to
increase the video playback fluency.

Hawkeye Firefly X Lite Firmware V3.0 update

Hawkeye Firefly X Lite Firmware V3.0 Download:

https://www.jianguoyun.com/p/DYUZ1IEQ4rDjBxj5ipgE

Available @

Makerfire:?https://bit.ly/Makerfire-Firefly-X-Lite-4K-Camera
XT-Xinte:?https://bit.ly/XT-Xinte-Firefly-X-Lite-4K-Camera
Aliexpress:?https://bit.ly/Aliexpress-Firefly-X-Lite-4K-Camera

Specifications:
Resolution: 4K 60 fps;?2.7K 60 fps;?2.5K 60fps;?2.7k60/30fps with 4:3 and 1920*1440p60/30fps?4:3 (Default 4k60FPS, can be switched )
Lens Diameter: 17.5MM (Compatible with GoPro ND filters)
Image flipping function: Yes
RC and AV OUT: YES
Kind of MicroSD card supported: U3(Note: Low speed sd card will cause unstable)
Maximum size of MicroSD card supported: 512G
Camera size: 61×38×26 MM
Weight: 34g
Compressed format: H.264
Video format : MP4
Diaphragm: F=2.8,7G1IR LENS
Angle: Diagonal 150 degrees
Working Voltage: 5V
Power supply: 1A
WiFi distance: 10M
Waterproof: No
Six axis Gyro video stabilization: Yes

Frame specifications

Frame kit contents: Bottom and top plates, EVA duct protectors, 3D printer ducts, 3D printed parts, GoPro mount, antenna protection tubes, USB angle extender, battery rubber pad, aluminium standoffs, a set of screws and two battery straps.

Bottom plate is 2mm thick with a holes for 9x9mm and 12x12mm motor mounting pattern.

Frame has holes for 20×20 and 16×16 stacks.

HGLRC Zeus35 AIO FC fits into this frame perfectly.

Frame has TPU camera holder for 20mm-19mm camera width.

HGLRC Veyron 3 frame kit should have 8 shorter and 6 longer aluminium standoffs. Shorter standoffs for the ducts and longer are for the frame.

Mine frame set came with 2 long standoffs instead of the short ones.

I had to cut them with the dremel tool to fit into the ducts.

3D printed parts act as landing pads.

There are 3D printer crossfire antenna and analog FPV or DJI digital FPV antenna holders in the kit. Antenna holders are flexible, printed out of TPU plastic.

If you don’t use Crossfire you can remove unneeded holder.

There is also GoPro Hero HD camera holder, that can be fixed to the top of the frame with supplied screws. I wish there was also GoPro Session type holder in the kit.

GoPro Hero camera holder weights additional 9.6 grams.

Total weight of the frame is 110 grams.

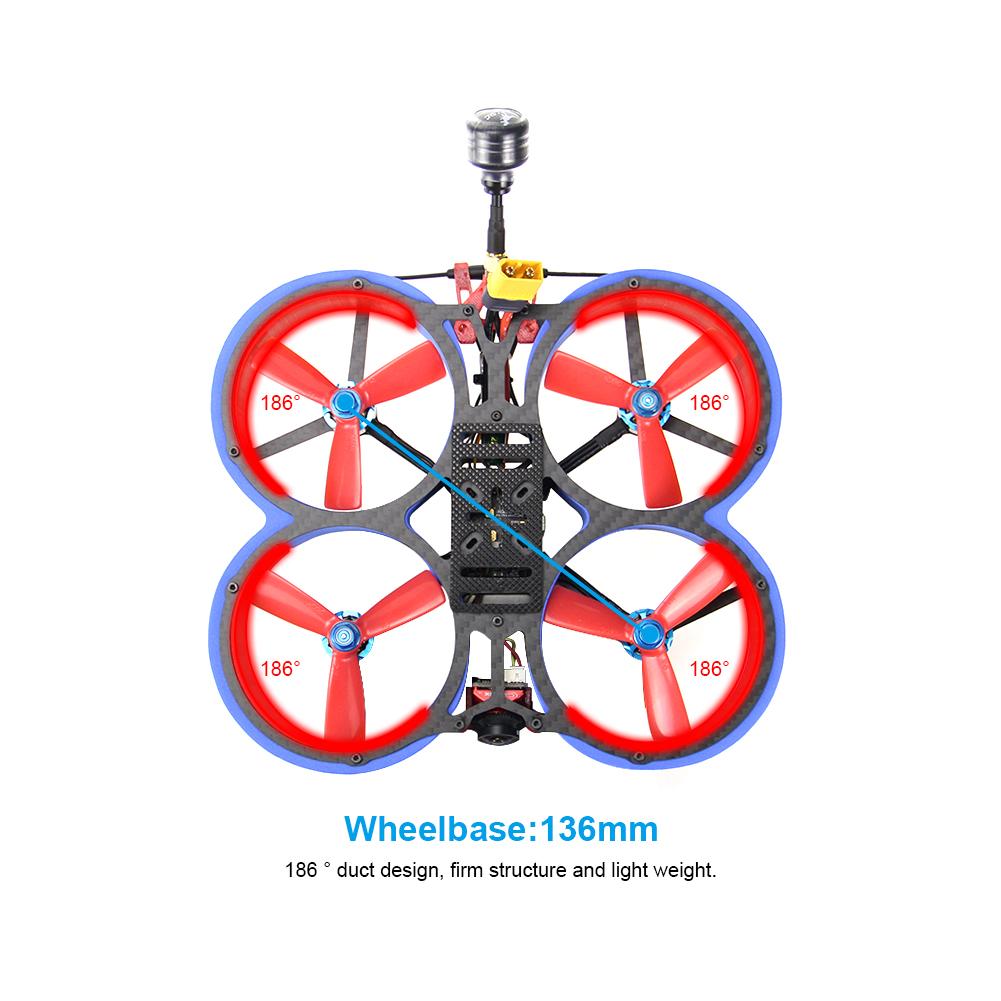

HGLRC Veyron 3 frame kit has interesting ducts design. Only the half of the duct (186°, actually) is 3D printed plastic and the other half of the duct is EVA protective foam. This helps to reduce the total weight of the frame. No surprise, the HGLRC  Veyron 3 is the lightest 3 inch cinewhoop frame with the uni body top/bottom plate design (Veyron 3 – only 110 grams, iFlight BumbleBee – 134.1 grams, Diatone Taycan – 175 grams).

HGLRC Veyron 3 frame kit can be purchased @

HGLRC: https://www.hglrc.com/collections/new-arrivals/products/hglrc-veyron-3-cinewhoop-frame-kit

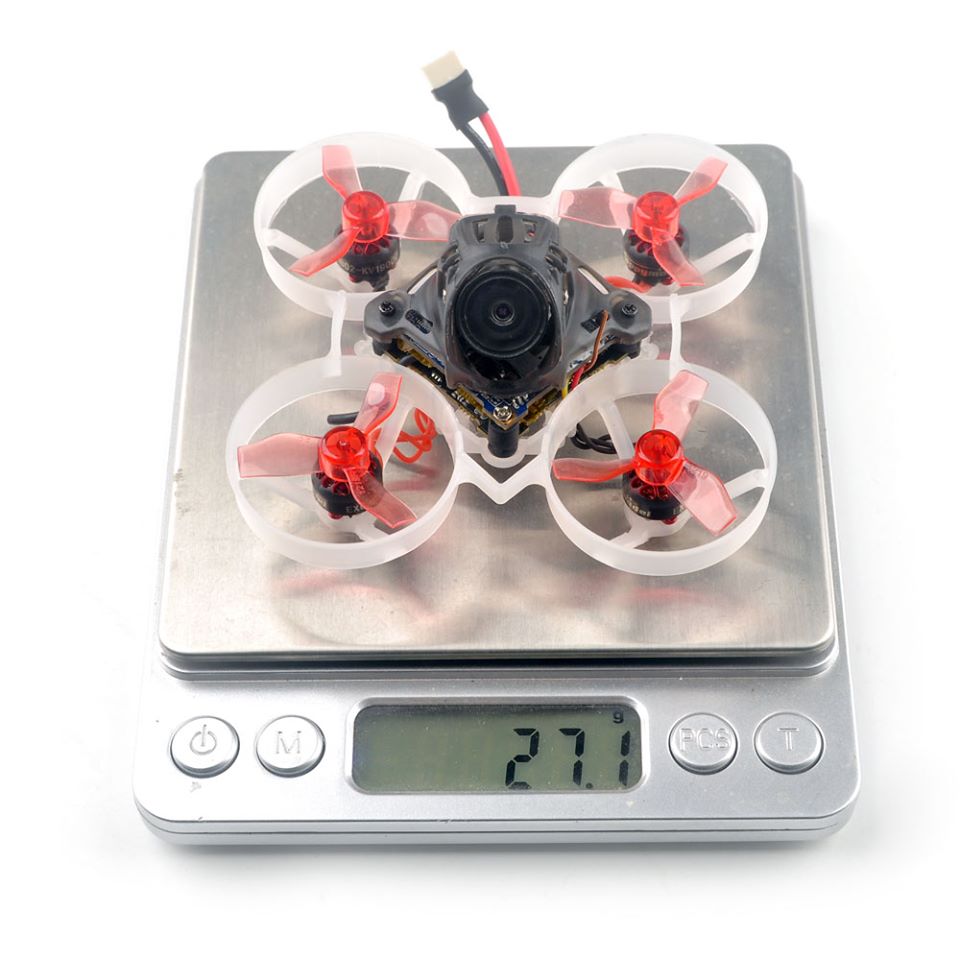

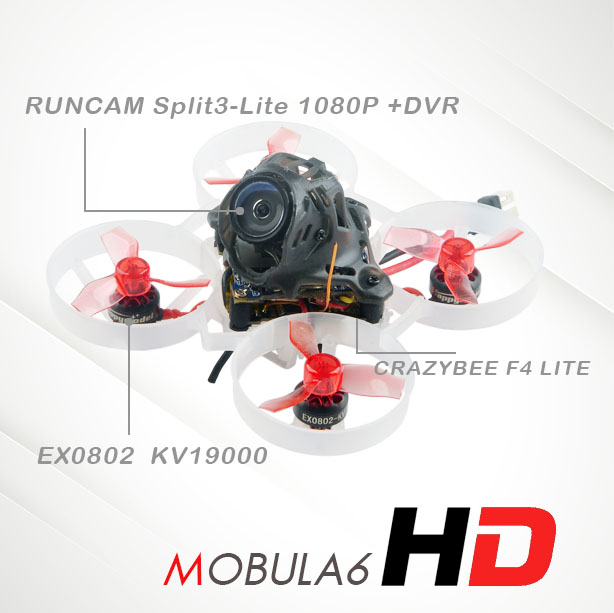

Rumored weight of the Mobula 6 HD is ~27 grams.

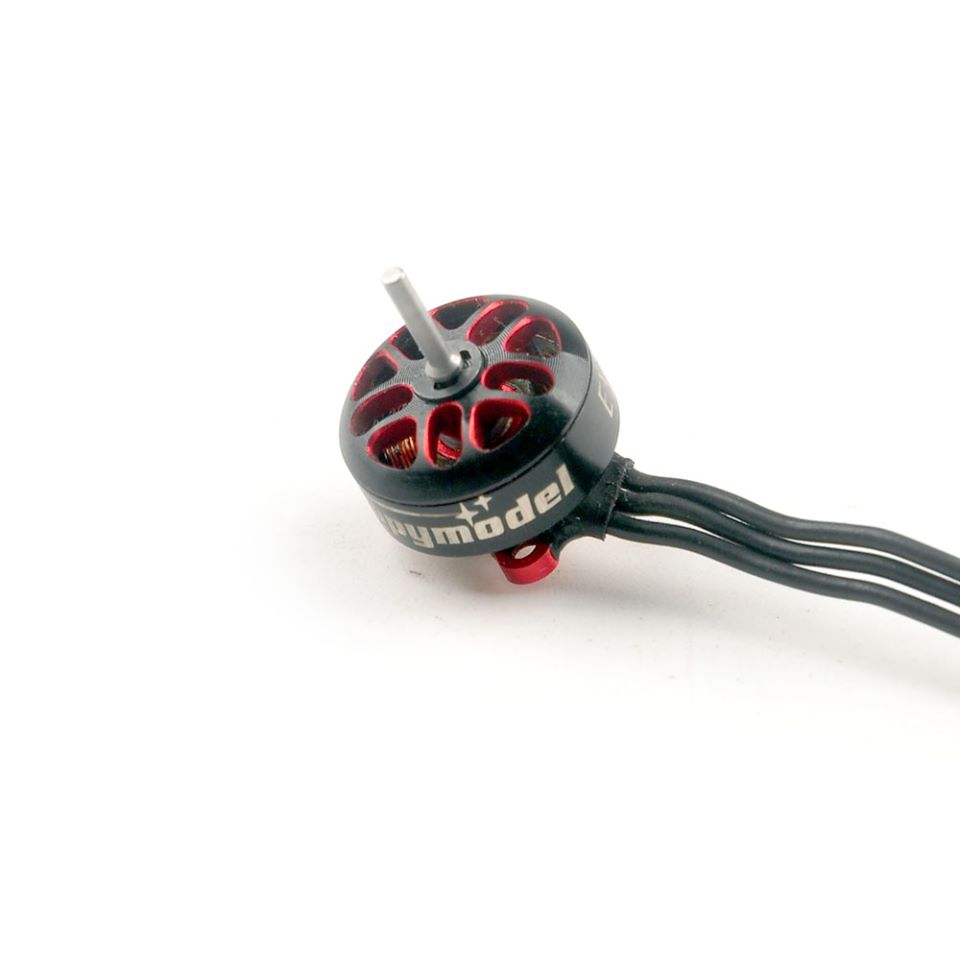

New Happymodel 0802 motor.

Some flight video recording examples.

Estimated release date is 2020-06-20.

Available @

Banggood: https://www.banggood.com/Only-27g-Happymodel-Mobula6-HD-65mm-Crazybee-F4-Lite-1S-Whoop-…-1674256.html

DCL The Game Simulator

DCL oficially released their drone simulator that previously was available in the beta only. Now available on PC, PlayStation?4, and Xbox One platforms.

Available on Steam: https://store.steampowered.com/app/964570/DCL__The_Game

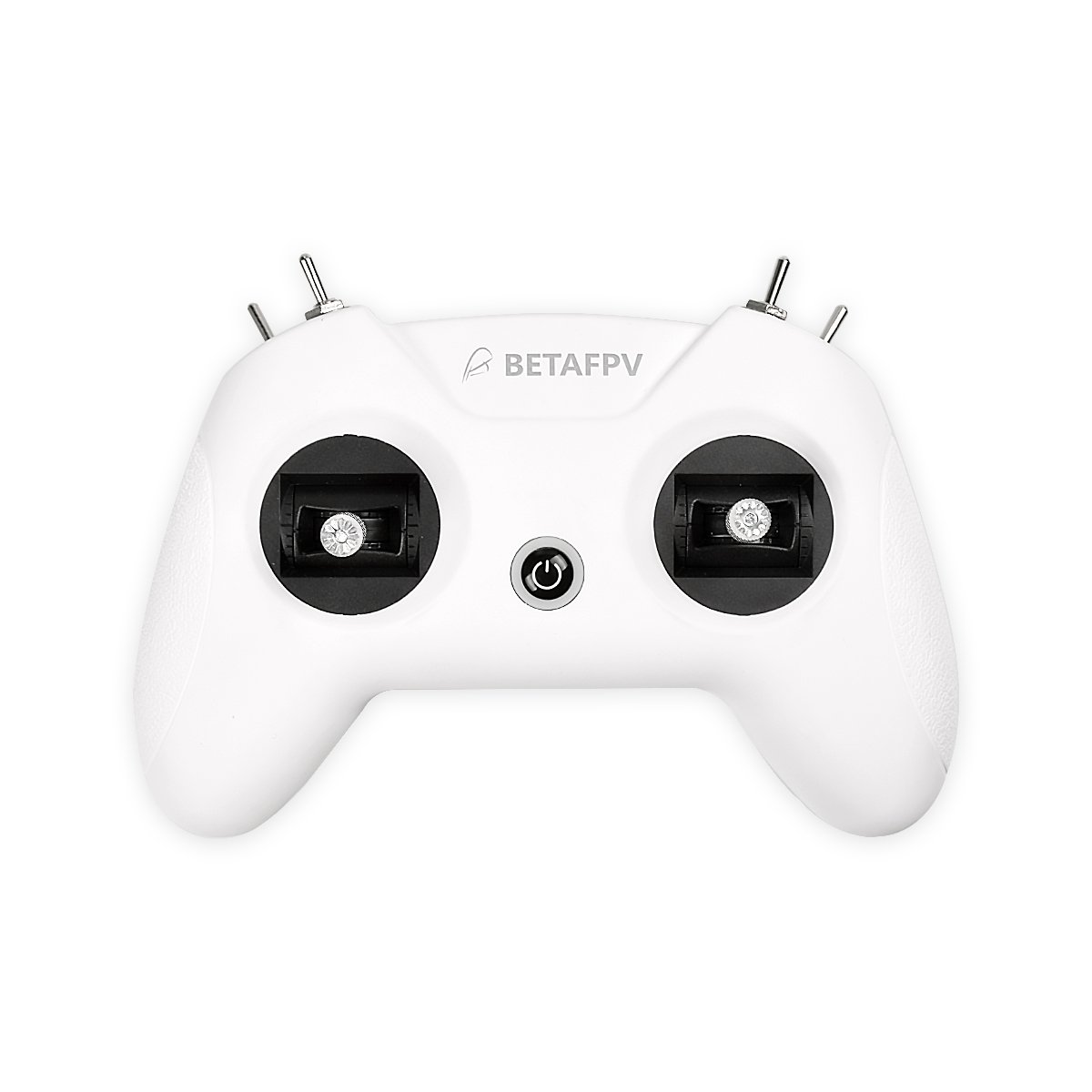

BetaFPV LiteRadio 2

BetaFPV has released gamepad style radio controller. LiteRadio 2 has real gimbals, supports OpenTX firmware and works with Bayang, Frsky D8 and D16 protocols.

https://betafpv.com/products/literadio-2-radio-transmitter

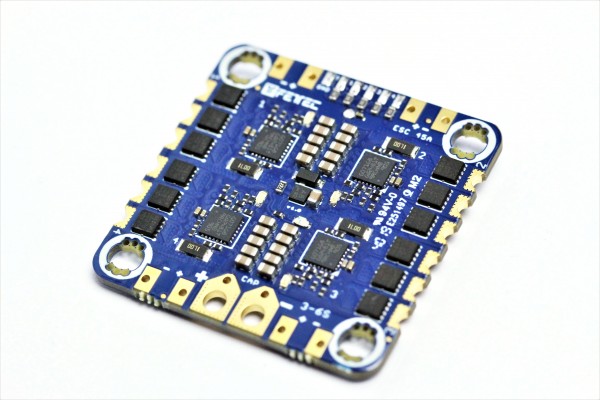

FETtec 4in1 ESC 45A

Active current limiting @ 45A , Input voltage: 3S-6S, High quality 40V MOSFETs, STM32G071 @ 64MHz, Dshot 300-2400, OneWire BUS with up to 8kHz looptime (one cable for all motor signals and telemetry)

Available @ https://fettec.net/shop/fettec-4in1-esc-45a

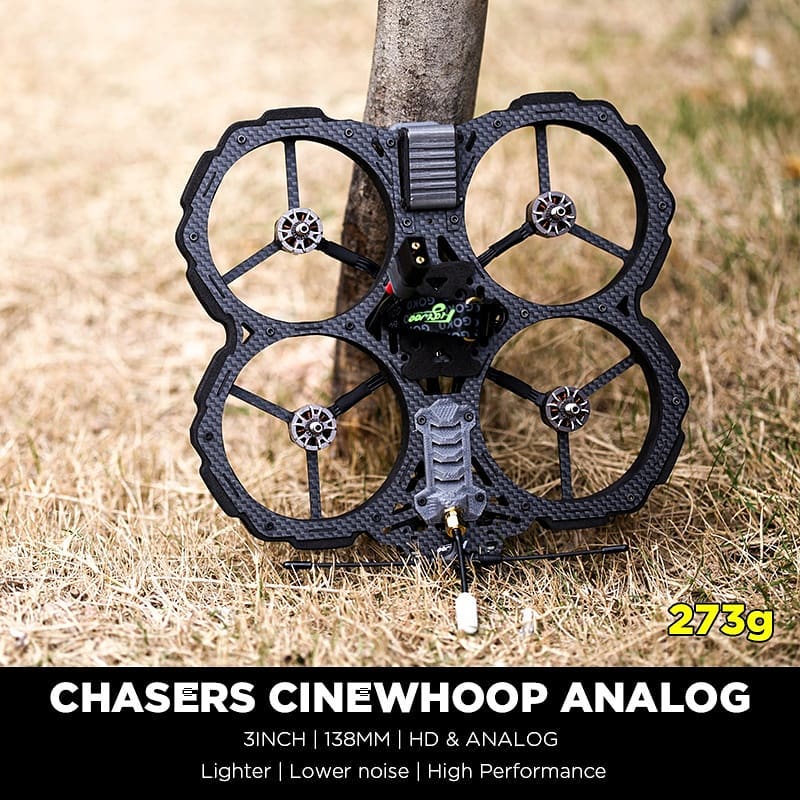

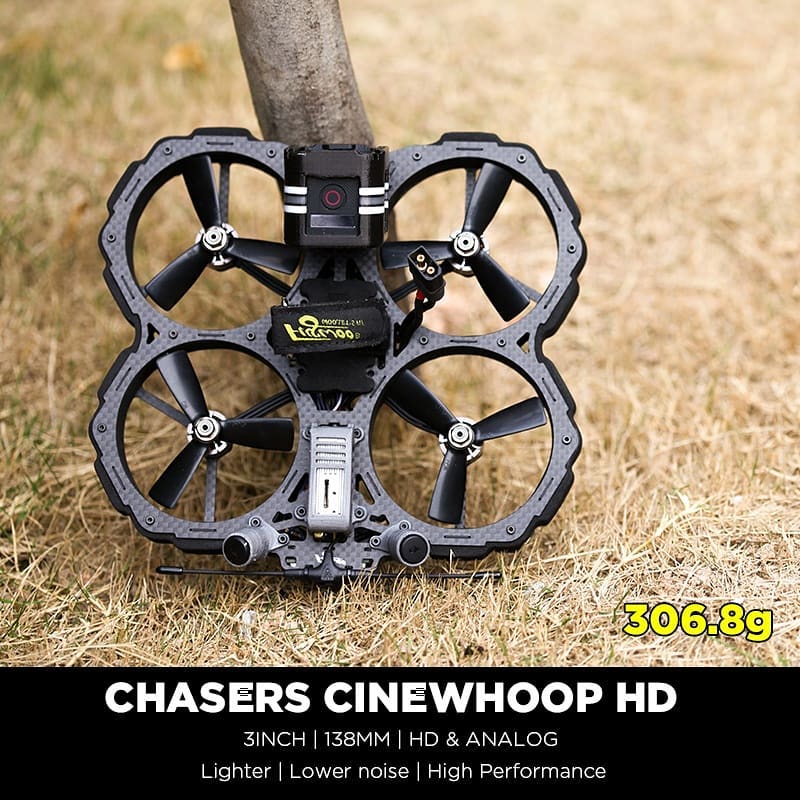

Flywoo Chasers-138 Cinewhoop

Analog and HD Chasers-138 cinewhoop from Flywoo. Frame weights 128 grams, HD cinewhoop weight without battery – 307g, analog – 273g.

Available @ Flywoo: https://flywoo.net/products/chasers-138mm-hd , https://flywoo.net/products/chasers-138-analog

Bangggood: https://www.banggood.com/Flywoo-CHASERS-HD-138mm-…-DJI-FPV-Air-Unit-Goggles-p-1632669.html , https://www.banggood.com/FLYWOO-CHASERS-138mm-…-1632668.html

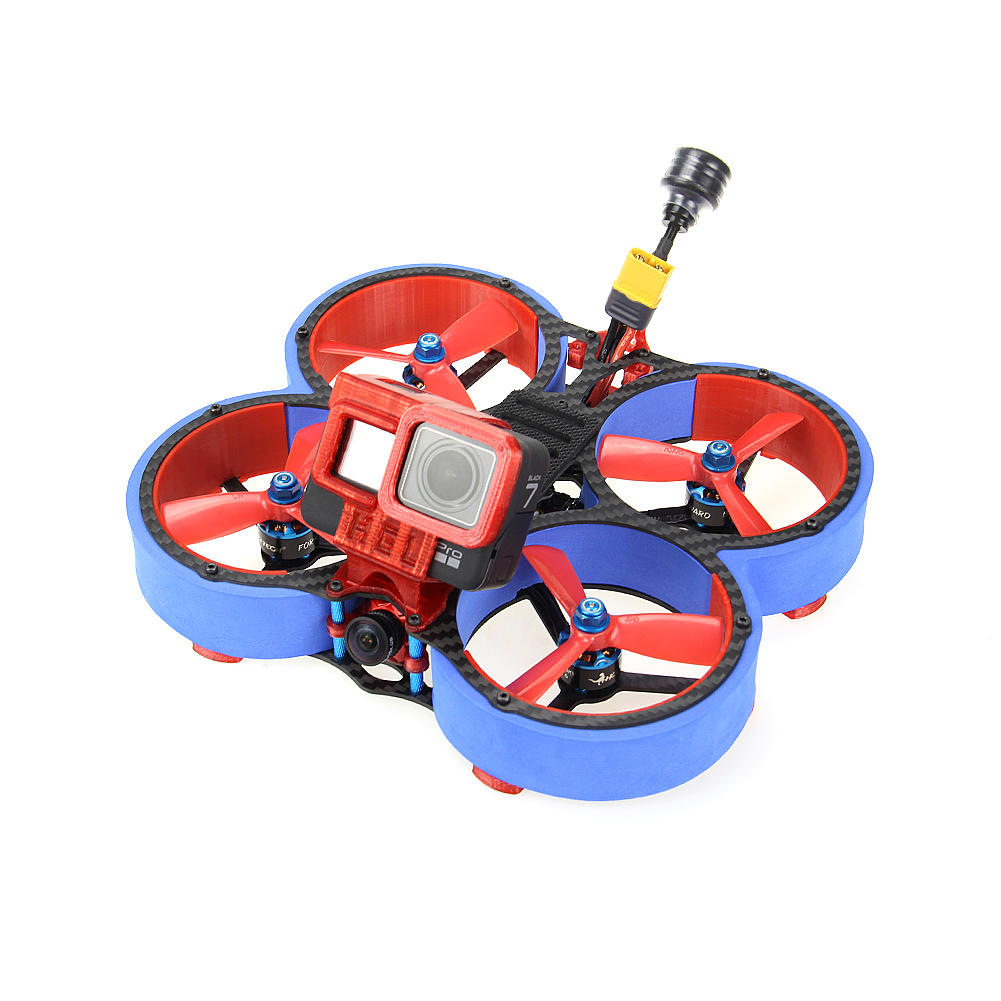

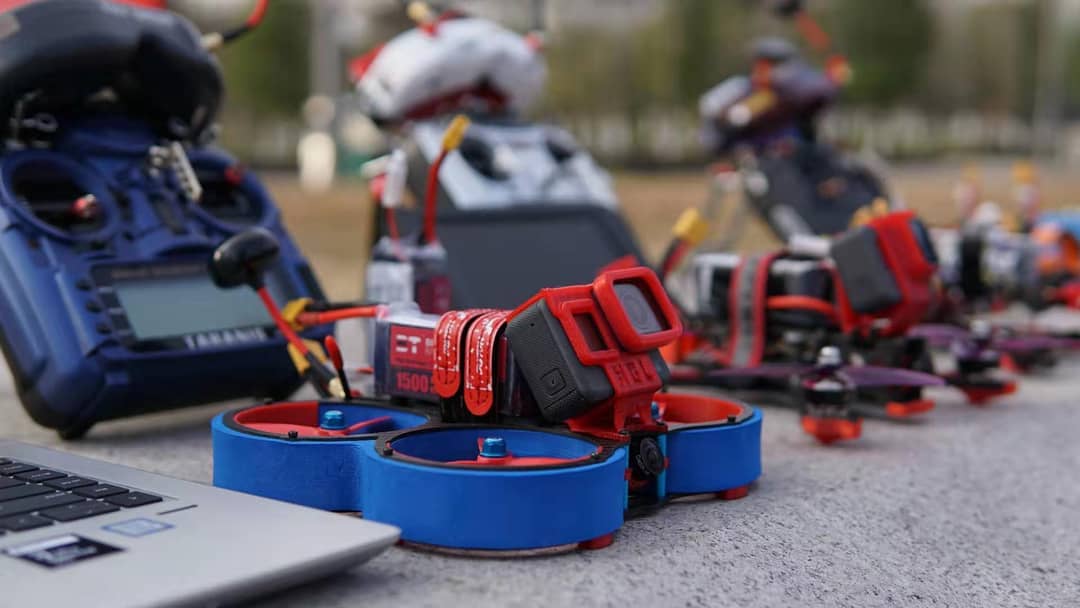

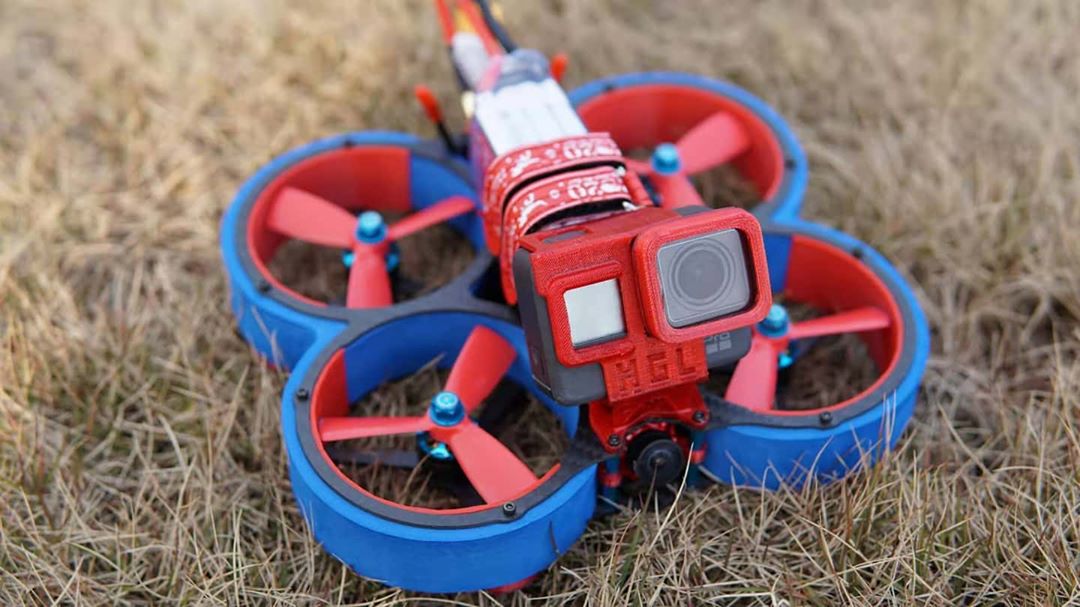

HGLRC Veyron 3 Cinewhoop

Veyron 3 is 3″ inch cinewhoop from HGLRC. Available in 4S and 6S options. Only analog version is available. I guess Caddx Vista system can be installed in this cinewhoop as HD mod.

Available @ HGLRC: https://www.hglrc.com/collections/new-arrivals/products/hglrc-veyron-3-cinewhoop-fpv-racing-drone

Banggood: 4S https://www.banggood.com/HGLRC-Veyron-3-Cinewhoop-4S-…-1639396.html & 6S https://www.banggood.com/HGLRC-Veyron-3-6S-…-1639395.html

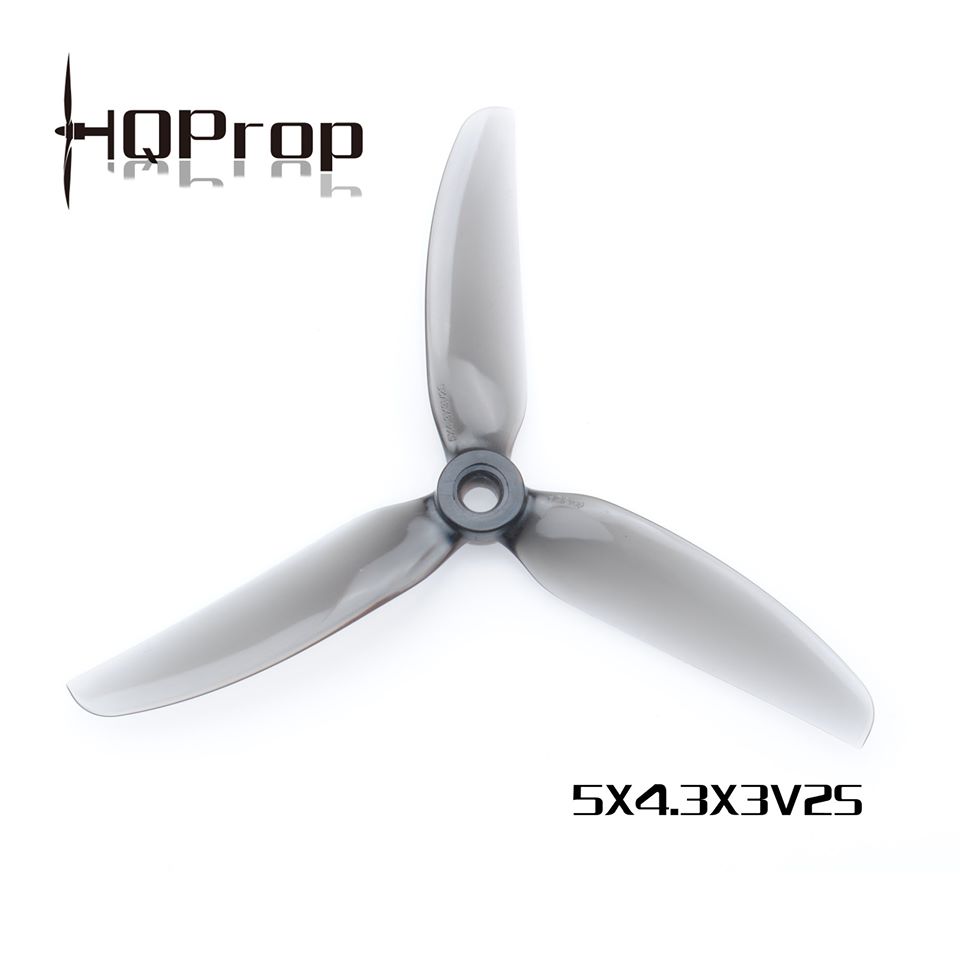

HQProp 5X4.3X3V2S

A little stiffer and a little more power than V1S, but keep the same weight and same efficient! Weight 3.8 g.

https://www.hqprop.com/hq-freestyle-prop-5x43x3v2s-2cw2ccw-poly-carbonate-p0233.html

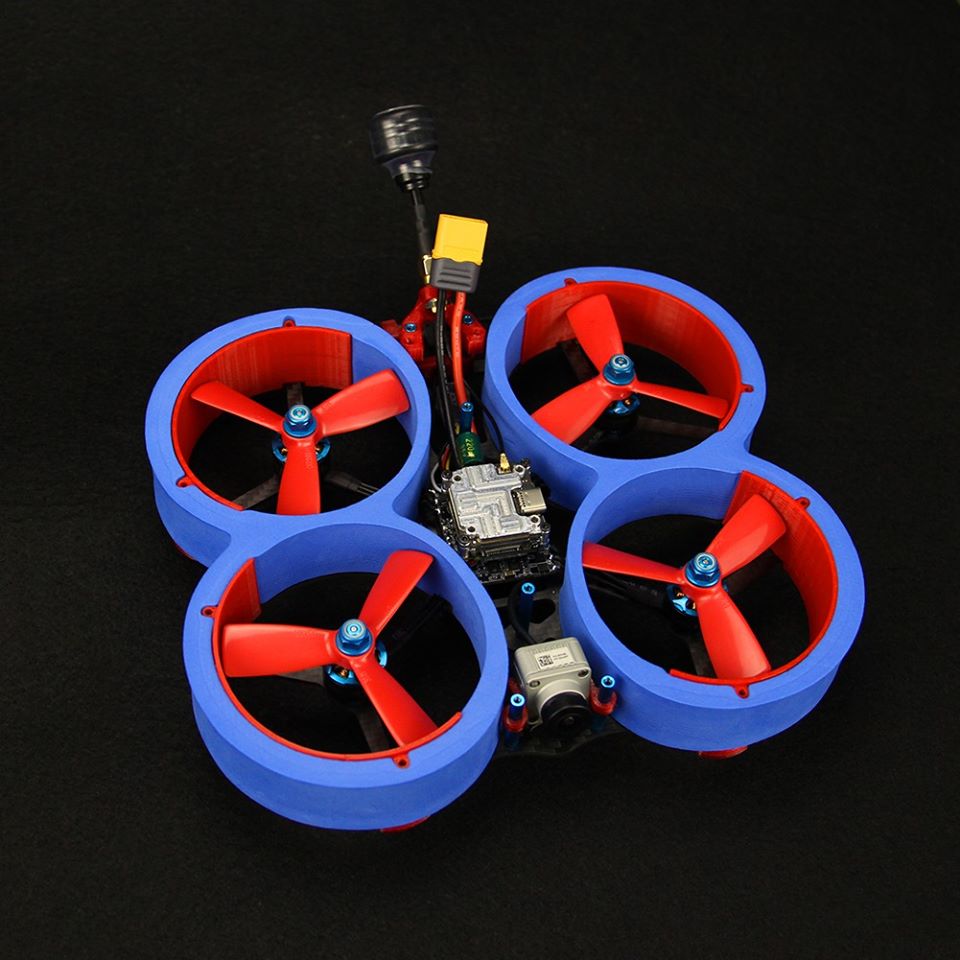

Veyron Cinewhoop has 136mm size frame with soft EVA duct protectors.

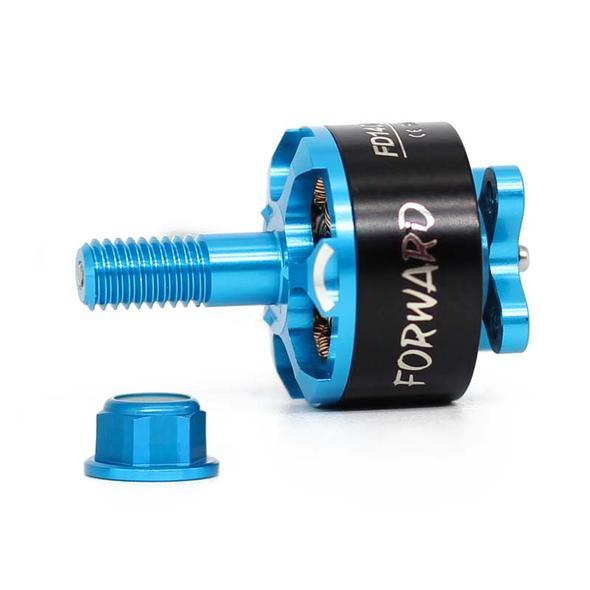

Veyron 3 motors are HGLRC Forward 1408 3600KV for 4S battery and 2900KV for 6S battery.

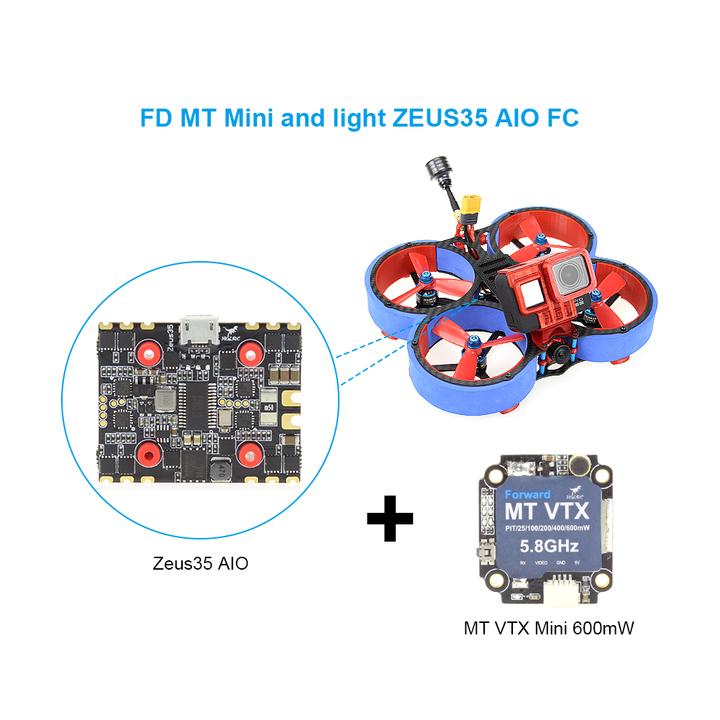

Inside Veyron 3 there is HGLRC Zeus35 AIO FC + HGLRC VTX MINI.

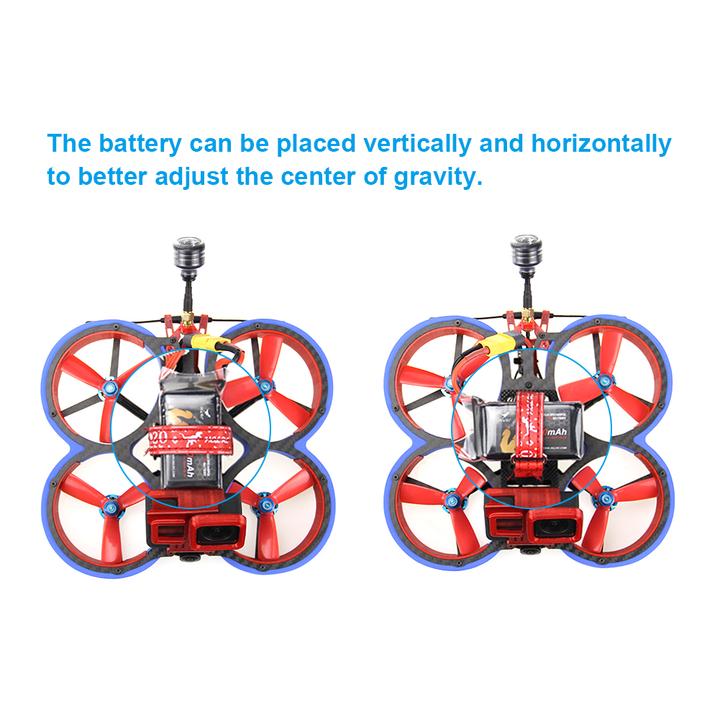

The battery can be placed lengthwise or perpendicular to the main body. Though I don’t like the idea of the perpendicular battery orientation…

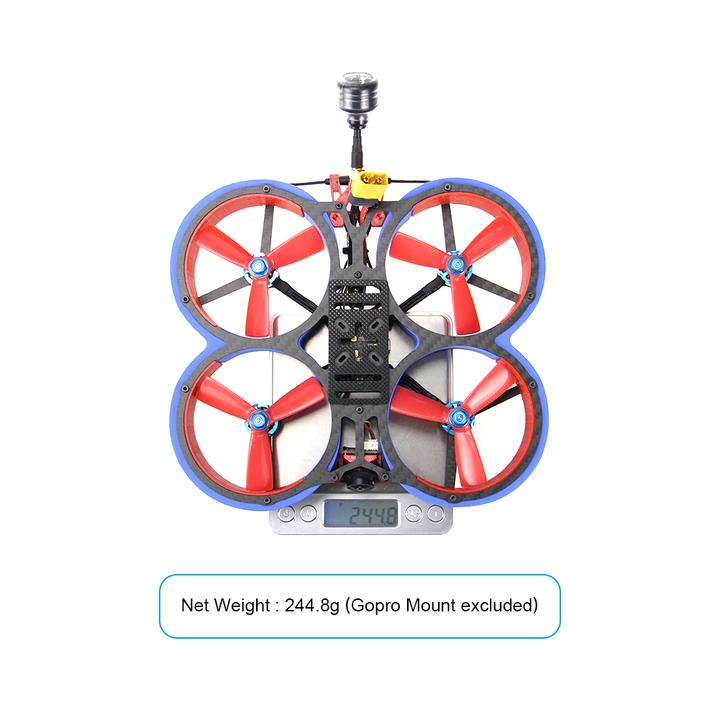

Total weight of the Veyron 3 cinewhoop is 245 grams.

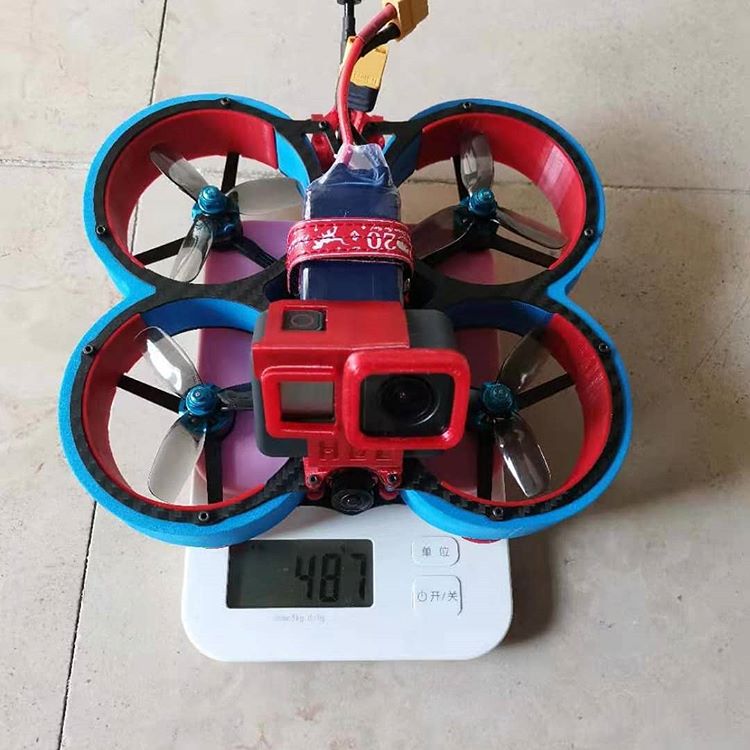

Fully equipped Veyron 3 weights about 490 grams.

Prototype with DJI Digital FPV system that didn’t make into life (maybe yet):

HGLRC Veyron 3 available @

HGLRC: https://www.hglrc.com/collections/new-arrivals/products/hglrc-veyron-3-cinewhoop-fpv-racing-drone

There is also the Veyron 3 frame kit available @

https://www.hglrc.com/collections/new-arrivals/products/hglrc-veyron-3-cinewhoop-frame-kit
