DYS are out, welcome FlashHobby!

montis — Fri, 14 Aug 2020 12:47:25 +0000

Farewell, DYS

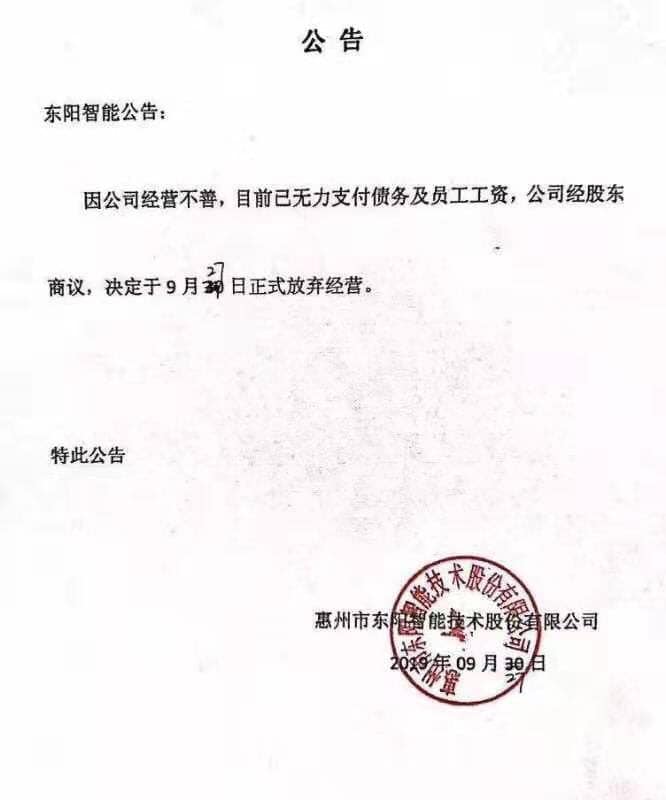

As you may already know (or not), DYS, the manufacturer of the brushless motors, electronics and other RC parts, has closed their business. It seems that DYS was struggling with the finances and had to go into bankrupt on the September 2019. There was a letter from DYS, circulating on the net, stating that “Announcement: Due to poor management of the company, it is unable to pay debts and employee salaries. The company decided to abandon the business in September due to the shareholder’s deliberation.”

Welcome, FlashHobby

A new company called FlashHobby took over the manufacturing equipment from DYS company. In fact they are located in the same manufacturing building. They are continuing to produce the iconic G (D) series D2836 D2822, D2830, D2812, D2225, D3530, D3536, D3543, D3548 brushless motors for fixed-wing airplanes.

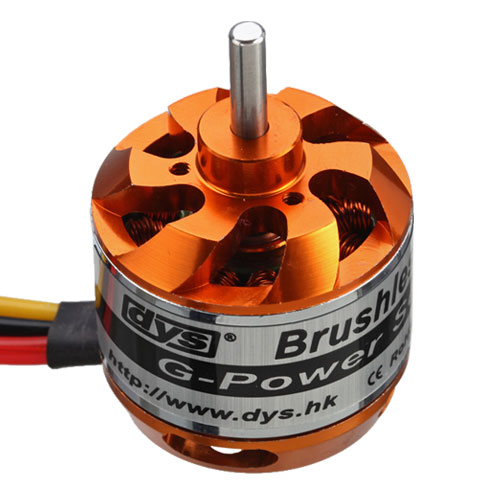

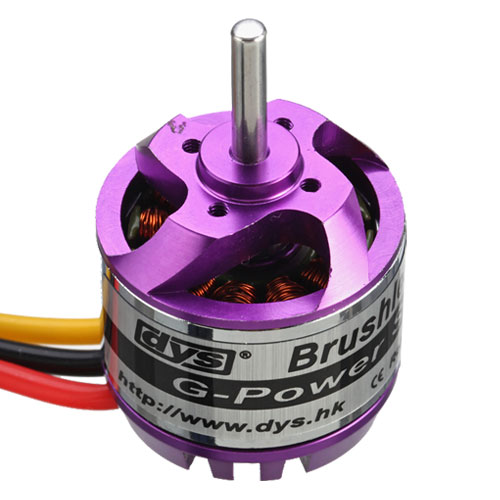

DYS D2830, D2826 motors

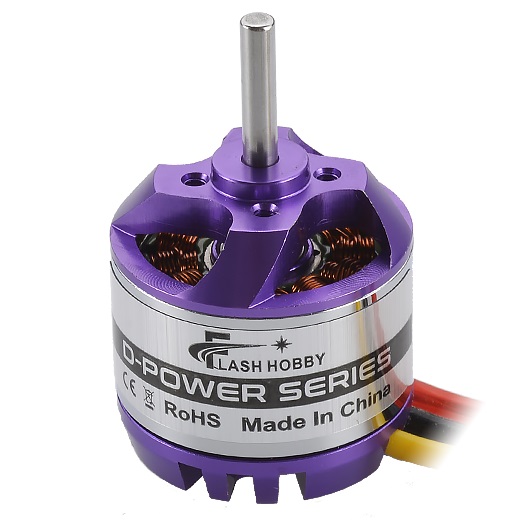

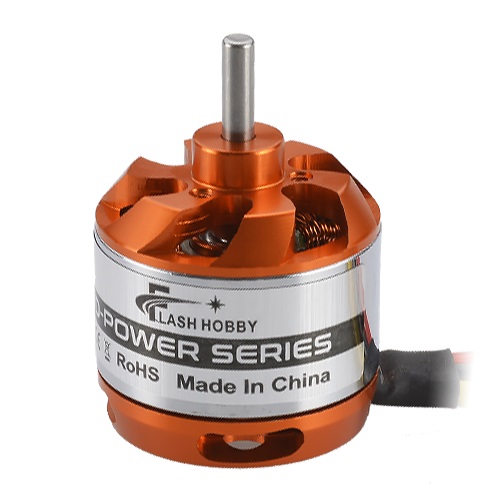

Flashhobby D2830, D2826 motors

Unfortunately we probably will not see the old DYS motors for quadcopters anymore sold soon. Samguk, Fire, Storm, Thor, SUN-FUN are discontinued. You may see some stock leftovers on sale somewhere, but they are not produced anymore.

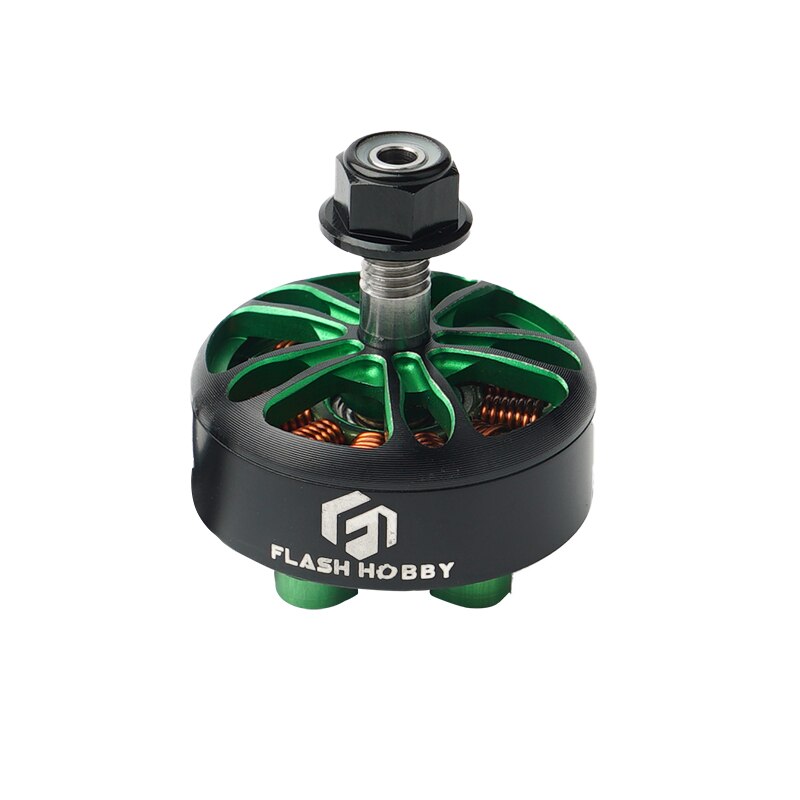

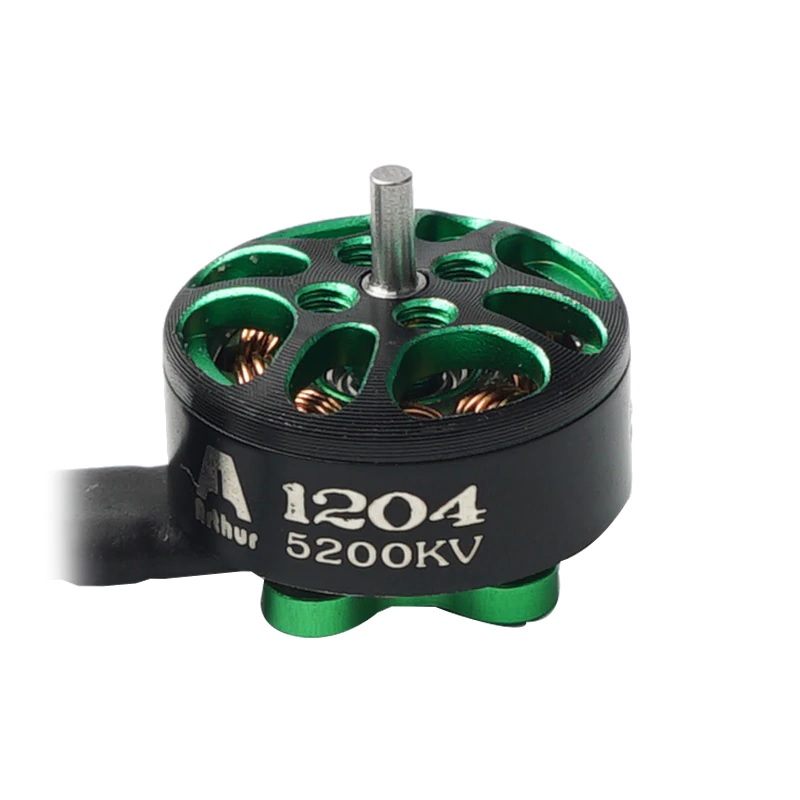

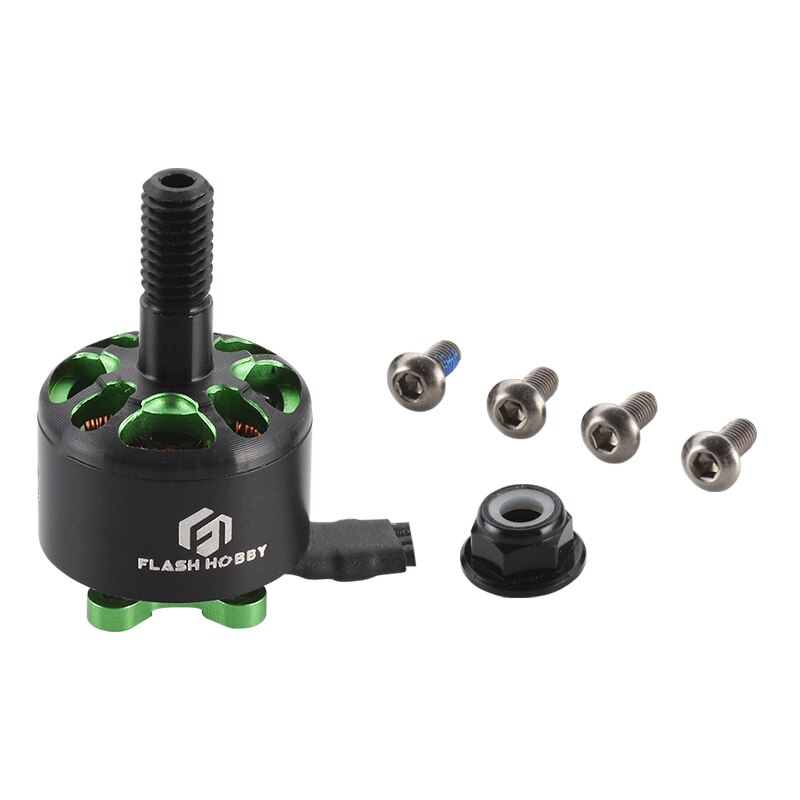

But don’t be upset, FlashHobby released the new Arthur brushless motor series for quadcopters.

FlashHobby are going to develop and produce more brushless motors, flight controllers and other RC electronics in the future. Let’s with them good luck and I’m happy to know that DYS legacy continues.

FlashHobby Arthur brushless motors are available @

Banggood: https://www.banggood.com/search/arthur.html

DYS Aria F45A 4in1 and Aria 40A ESCs

montis — Fri, 15 Jun 2018 18:40:20 +0000

DYS has prepared to release two new ESCs: Aria F45A 4in1 ESC and Aria 40A slim ESC.

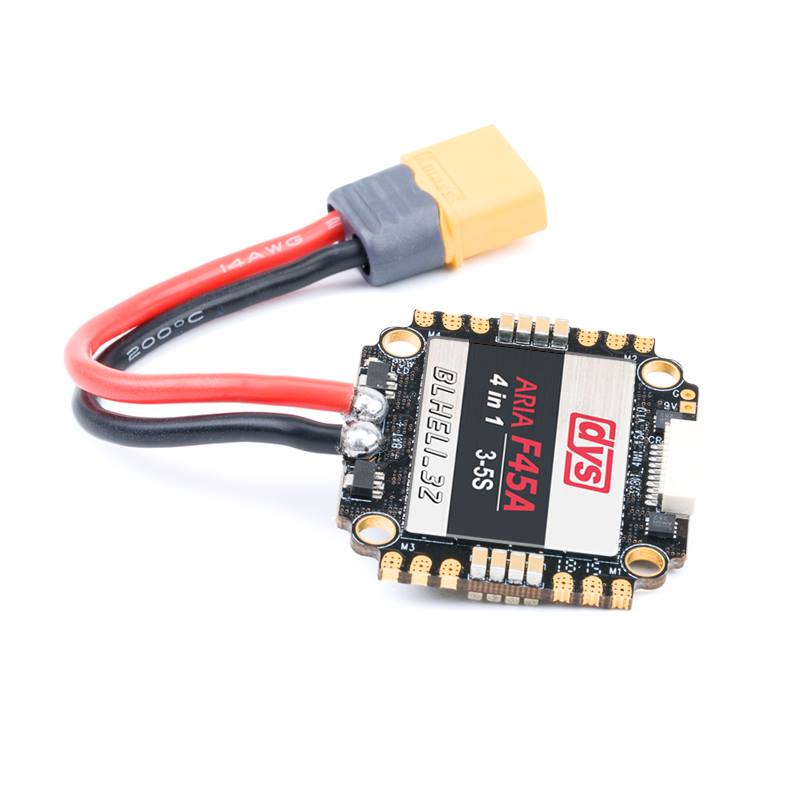

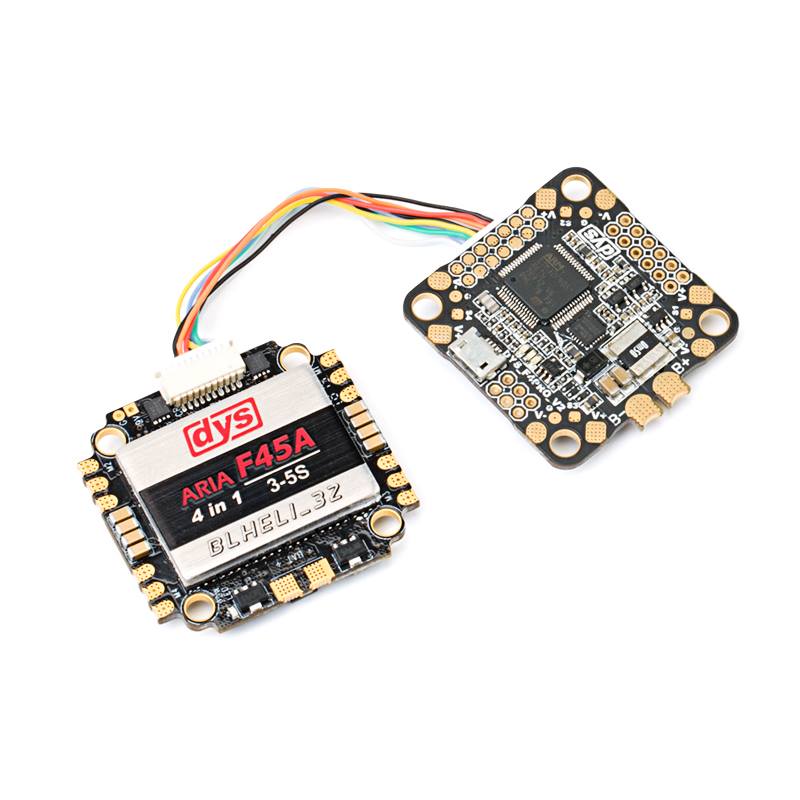

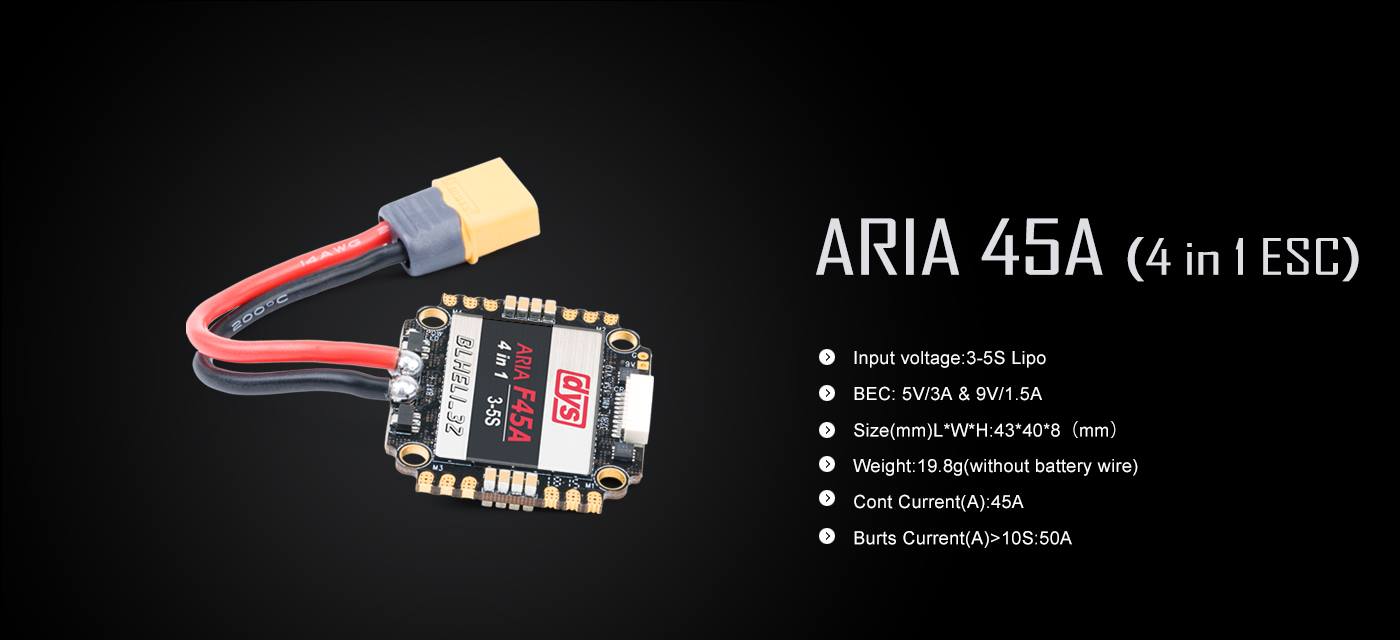

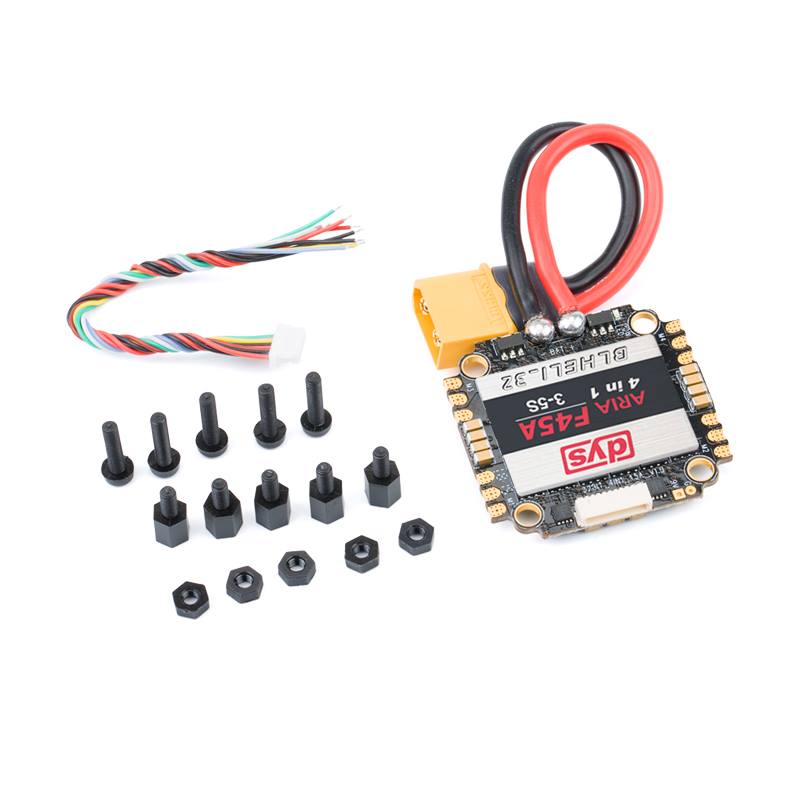

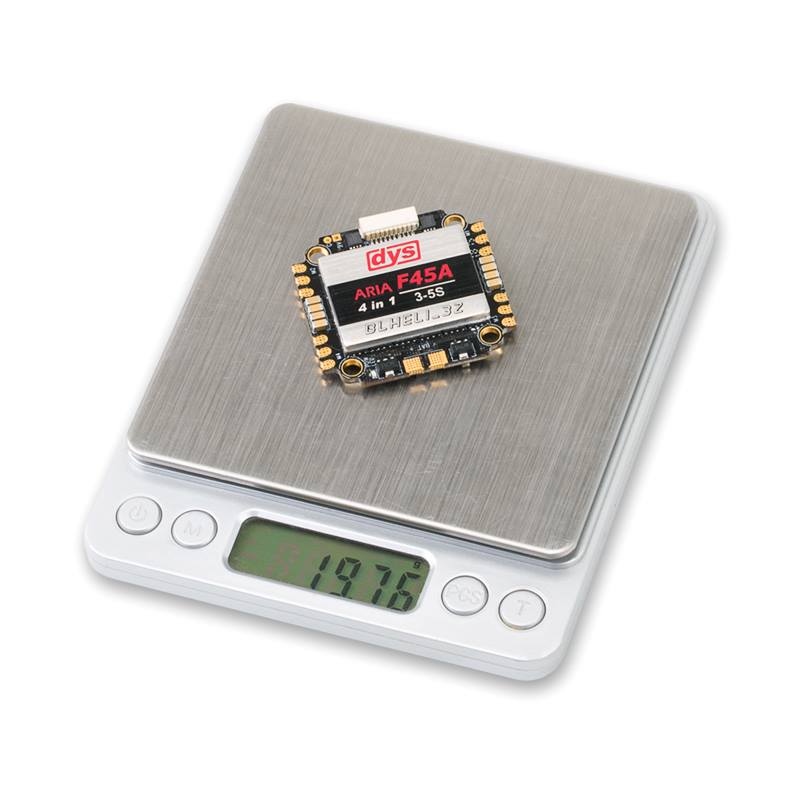

DYS Aria F45A 4in1 ESC

This ESC is running on BLHeli_32 firmware. Is rated for continuous current at 45A and bursts up to 50A. Has onboard BEC for 5V/A and 9V/1.5A. Unfortunately it has conservative voltage support from 3S up to only 5S. Everybody is expecting 6S nowadays.

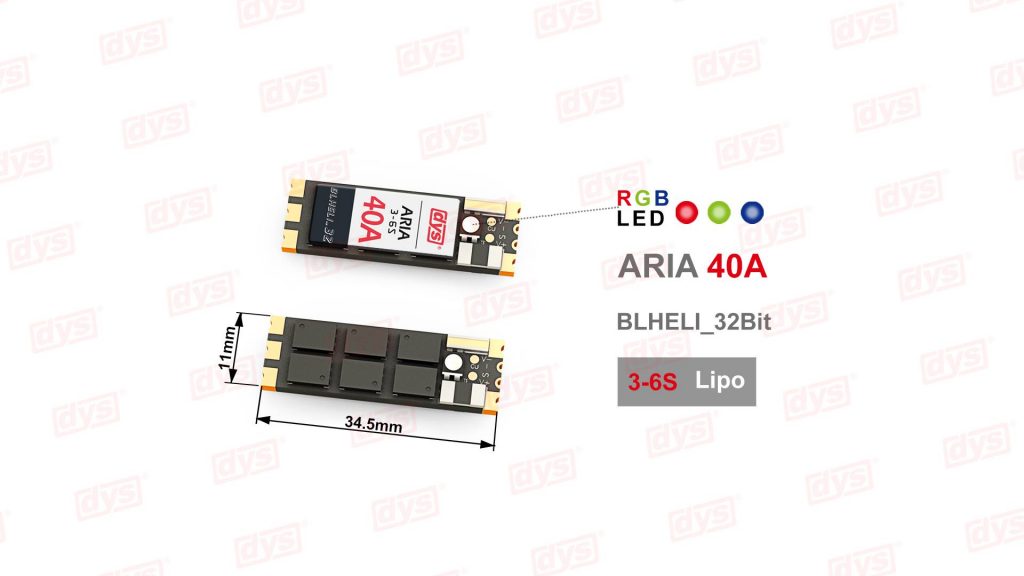

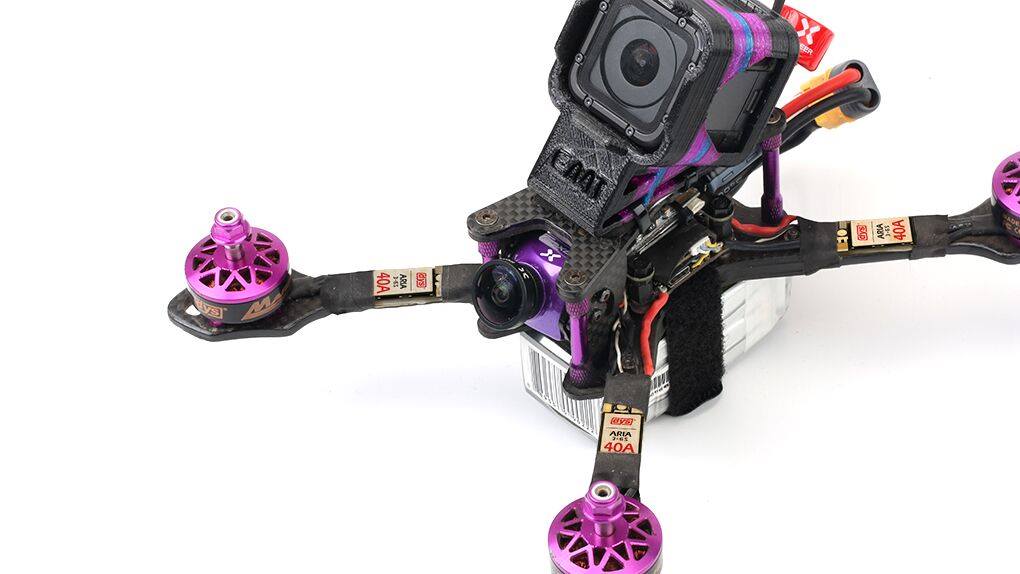

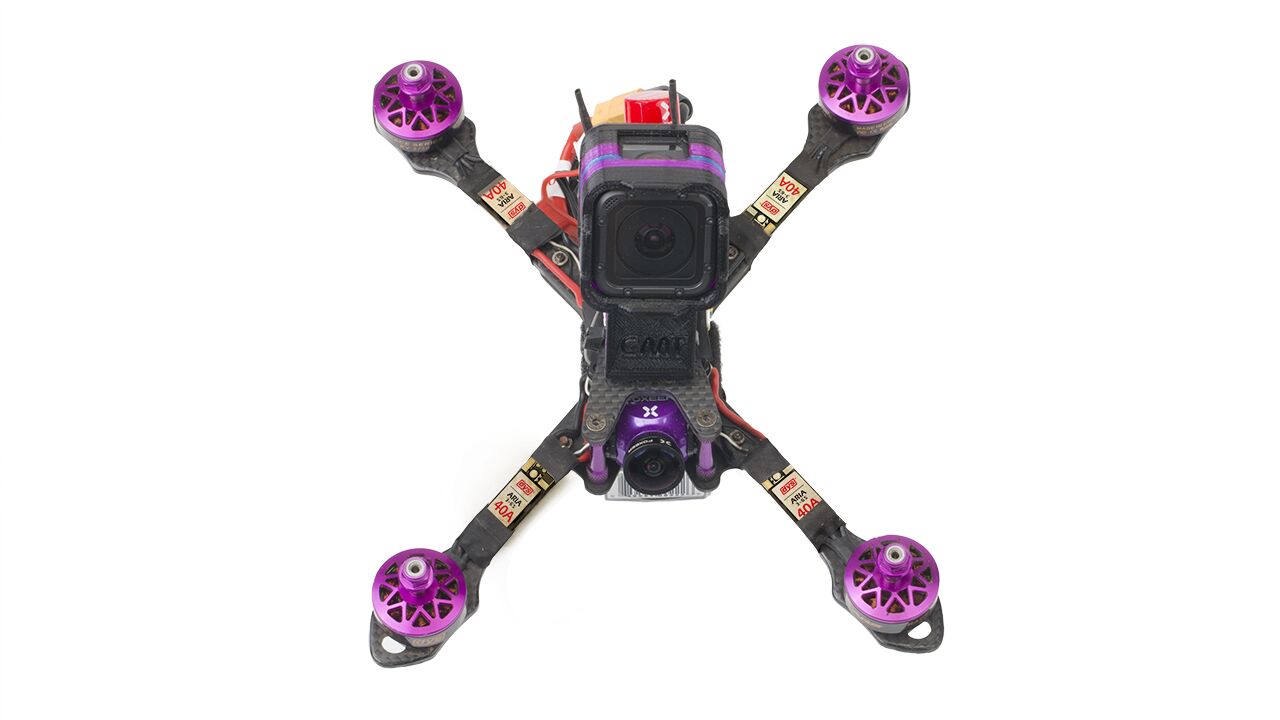

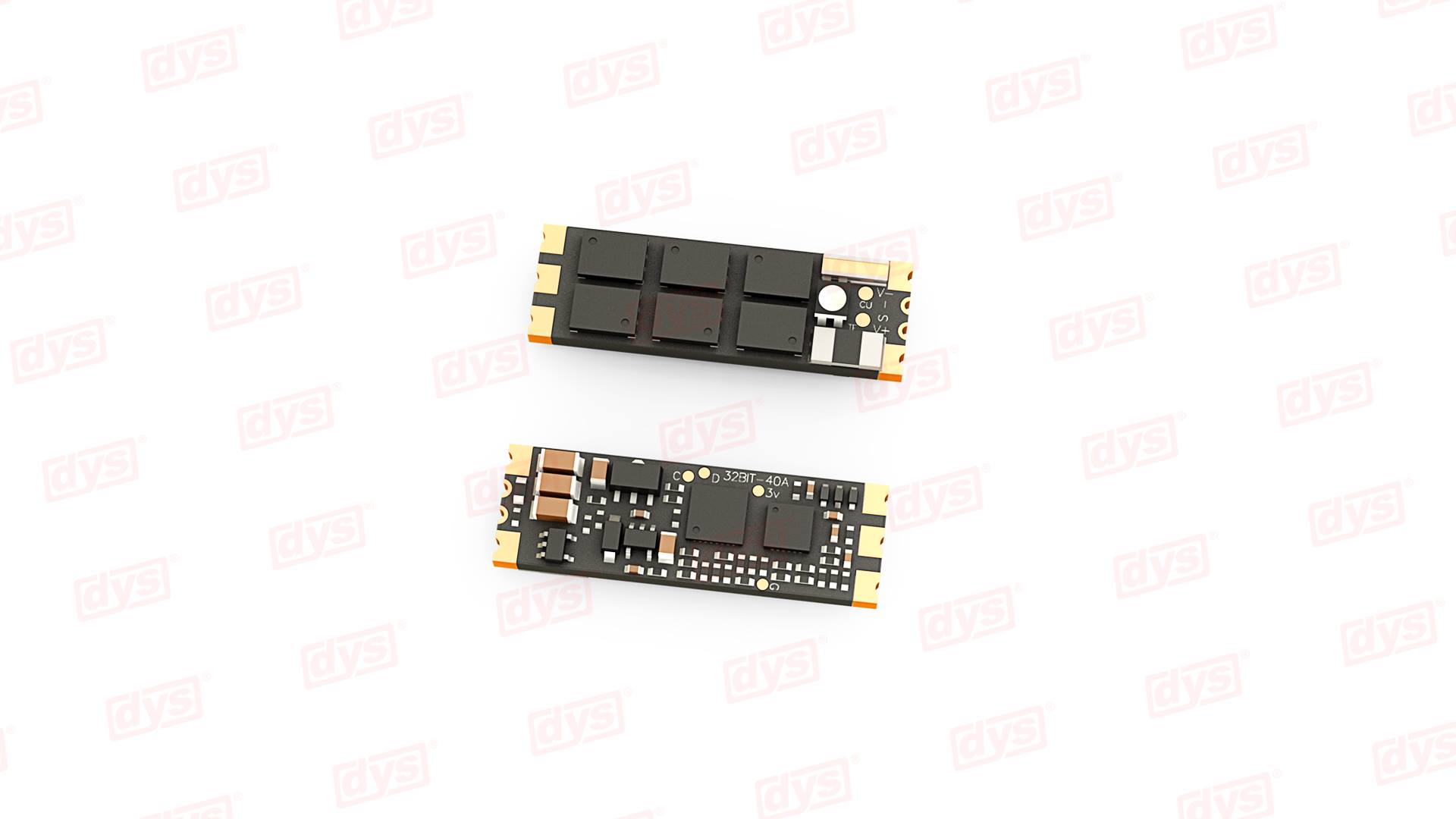

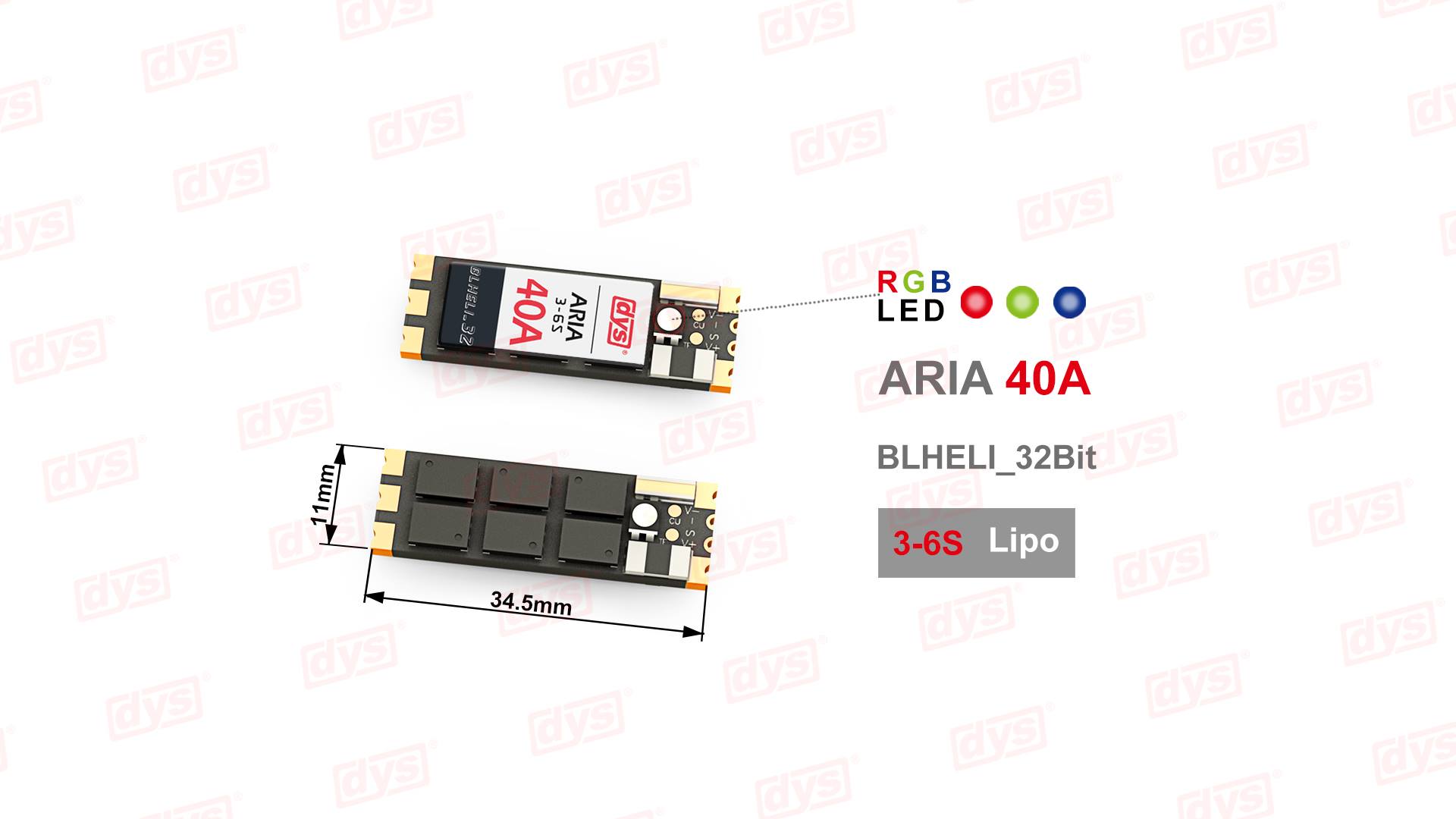

DYS Aria 40A ESC

Just as DIATONE has released their slim series Mamba 40A ESCs, DYS now has their own slim ESC – Aria 40A. DYS Aria is super slim – width is only 11mm. Aria ESC is rated at 40A continues current and supports from 3S up to 6S. Of course Aria 40A is running on the most modern BLHeli_32 firmware. ESC has RGB LED on board.

More details will be available later.

Source: Facebook, dys.hk

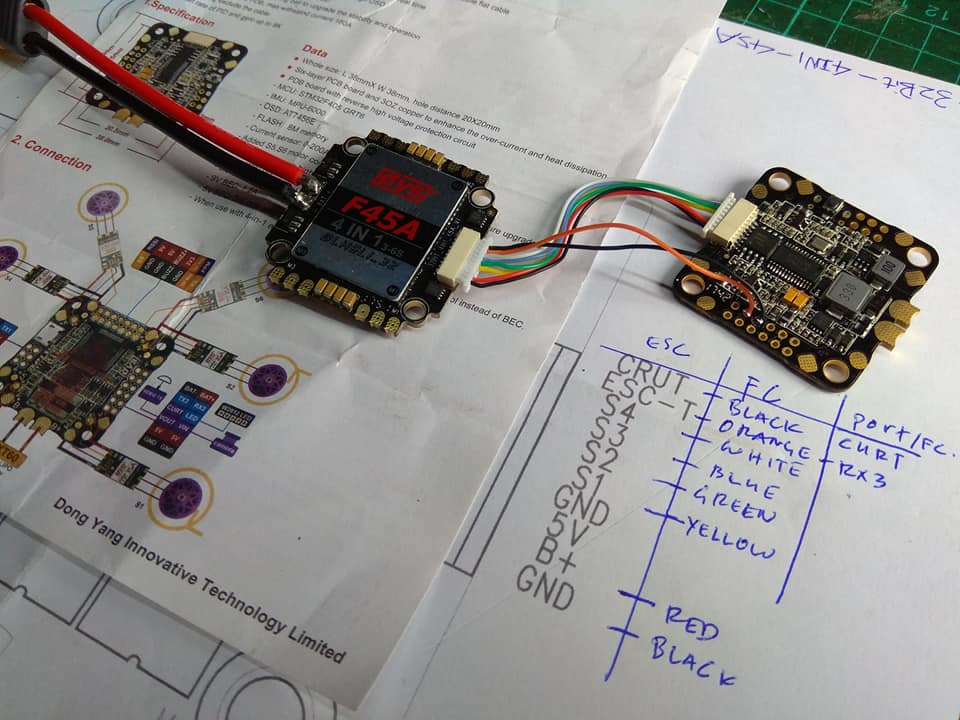

Rumors: DYS F45A BLHeli_32 4in1 ESC

montis — Thu, 08 Feb 2018 09:59:22 +0000

A few photos of the upcomming DYS F45A BLHeli_32 4in1 ESC appeared on the FB. ESC will support 3-6S battery input and wil deliver 45Amps of curent. This ESC will have Current Sensor, Telemetry. With telemetry you will be able to read motor Rpm’s, ESC temperature and it will show up on your OSD.

Source: Facebook

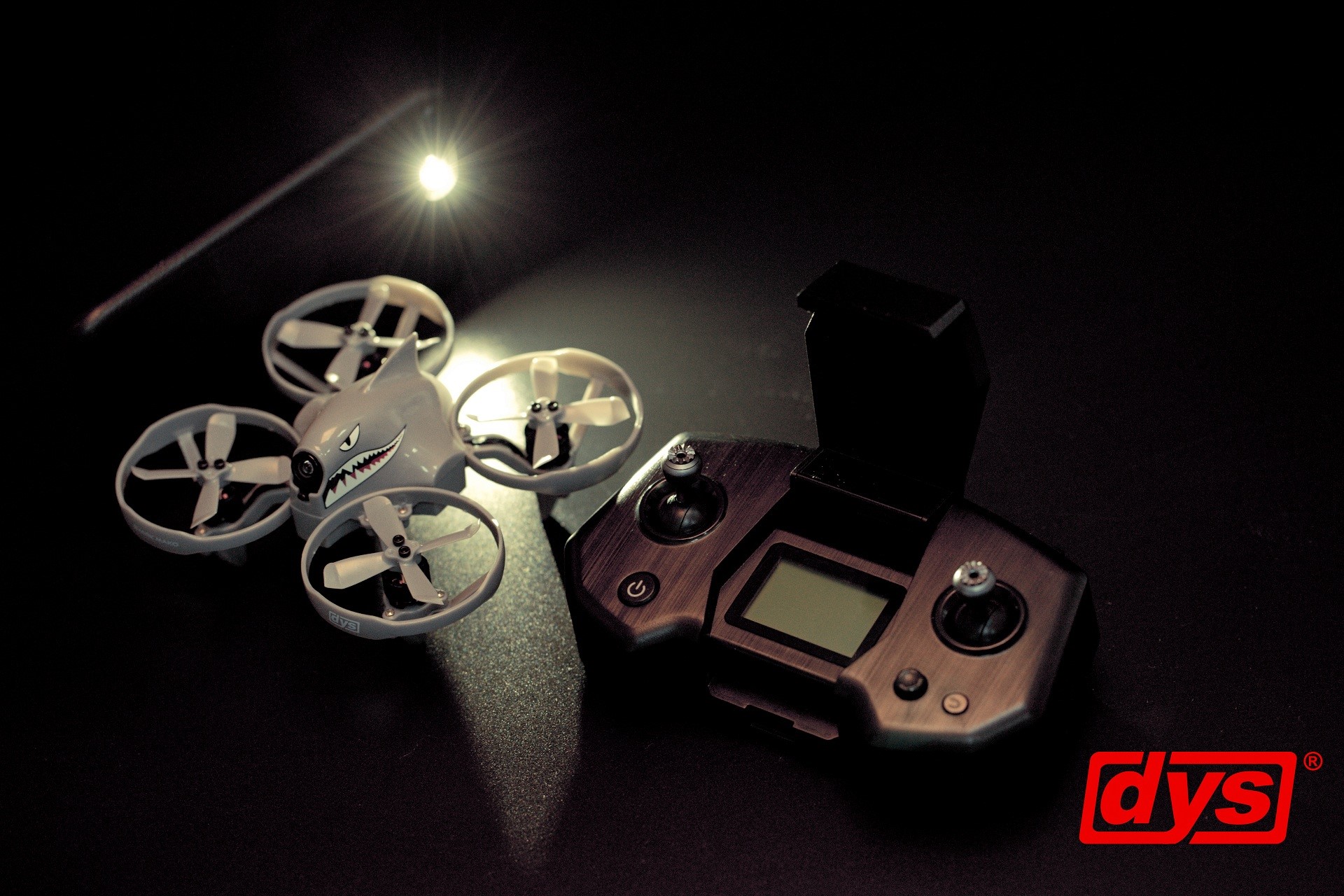

DYS Shark Mako – Big Whoop that bites?

montis — Mon, 15 Jan 2018 10:04:04 +0000

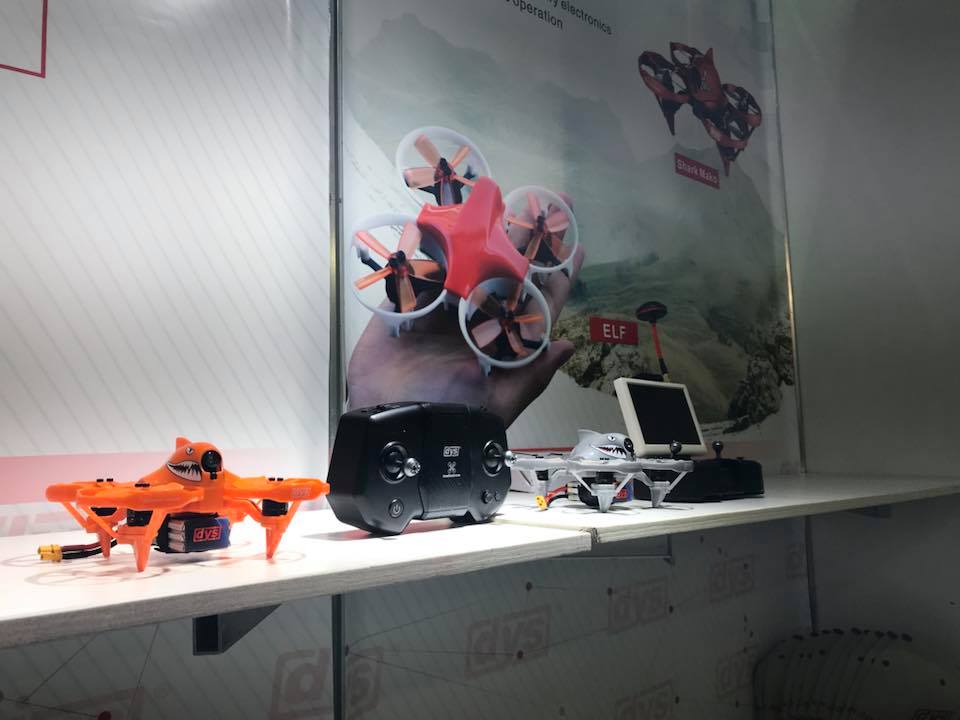

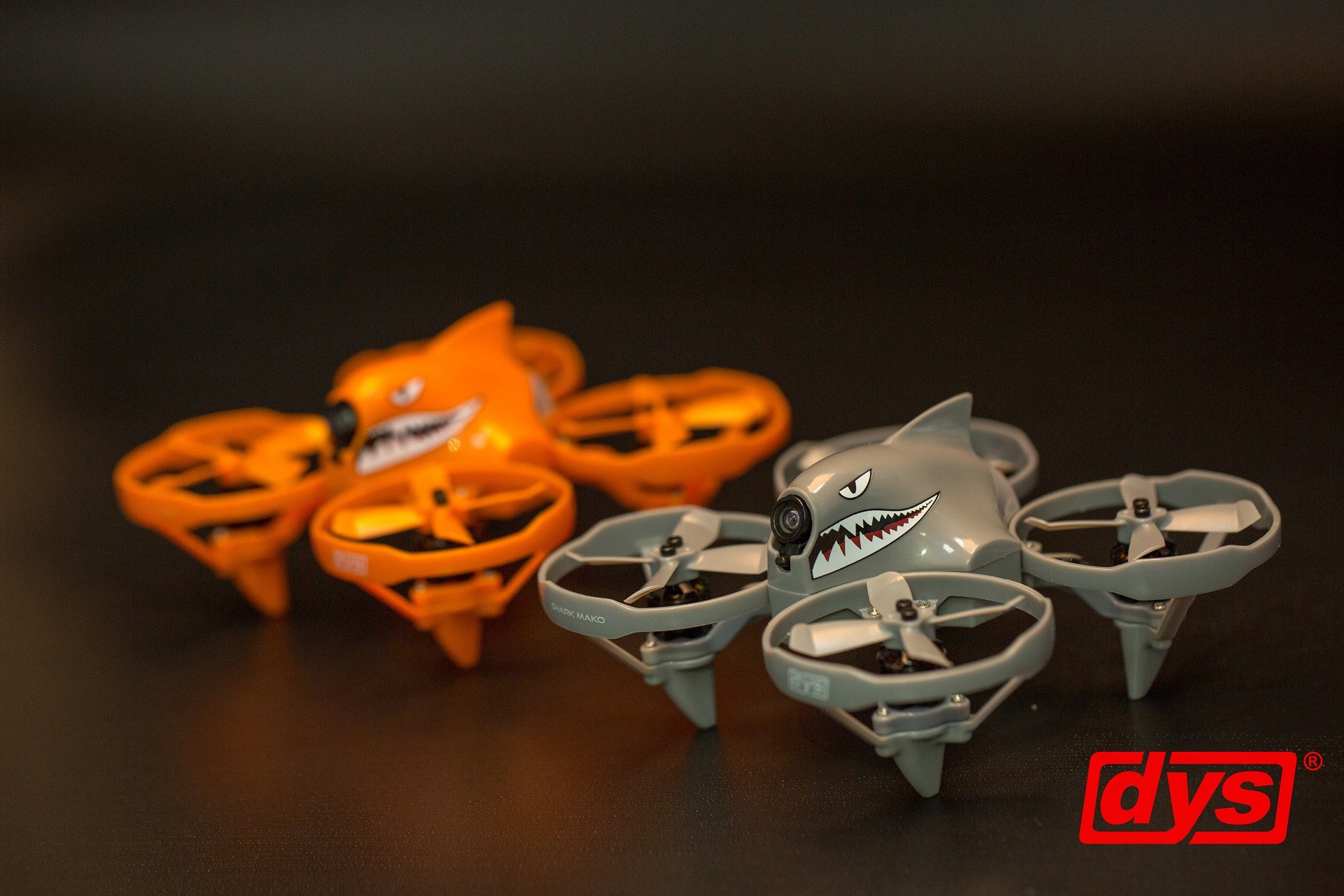

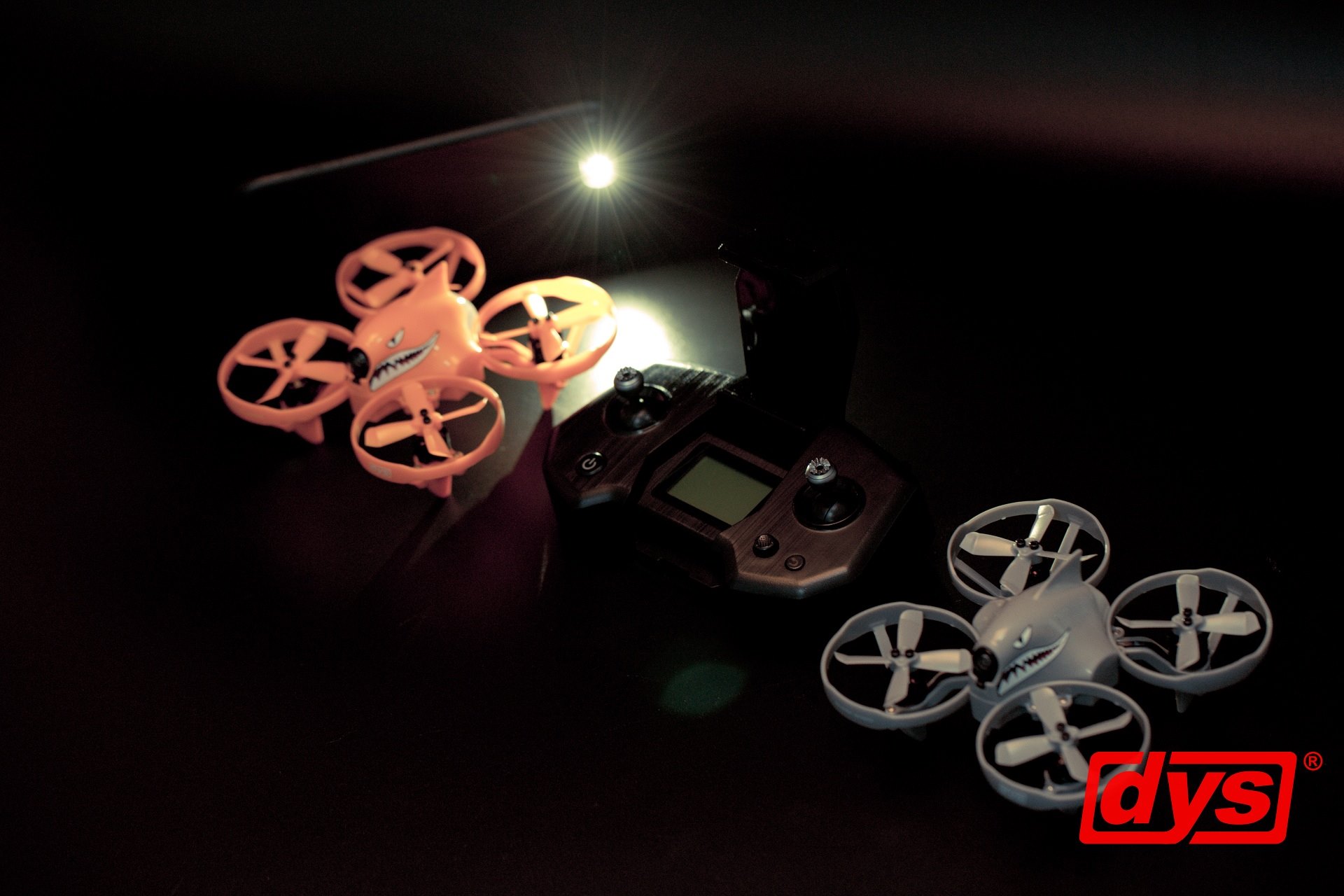

DYS has unvealed their upcoming new quadcopter – DYS Shark Mako. It is 100mm size Tiny Whoop style brushless quadcopter. It has unibody plastic frame, BE1104-5400KV motors. It is rated as working with 3S battery, but can support even 4S. The weight is 135g (with battery)
The options for buing will be RTF and BNF. The released date will be around the beginning of Feb 2018

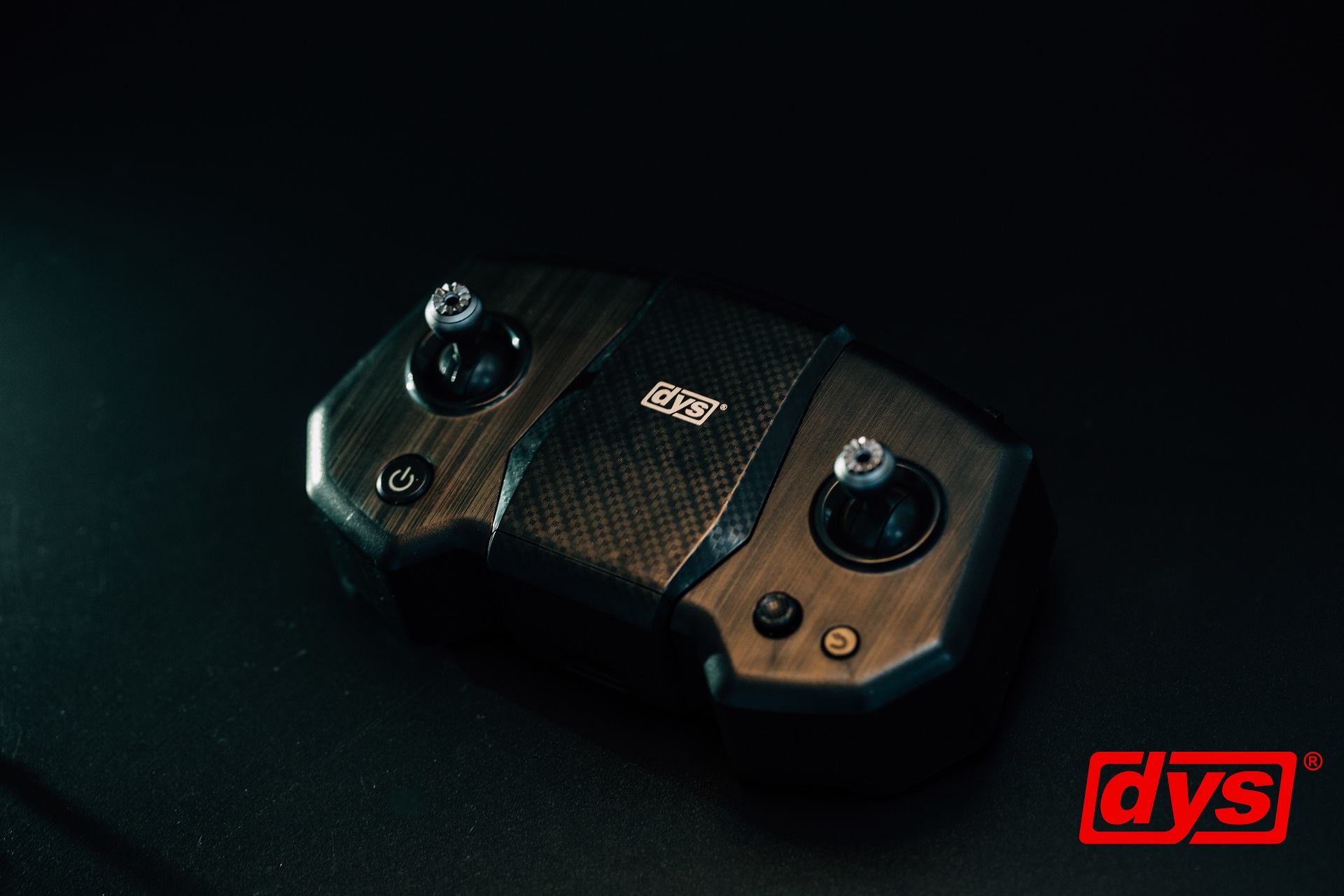

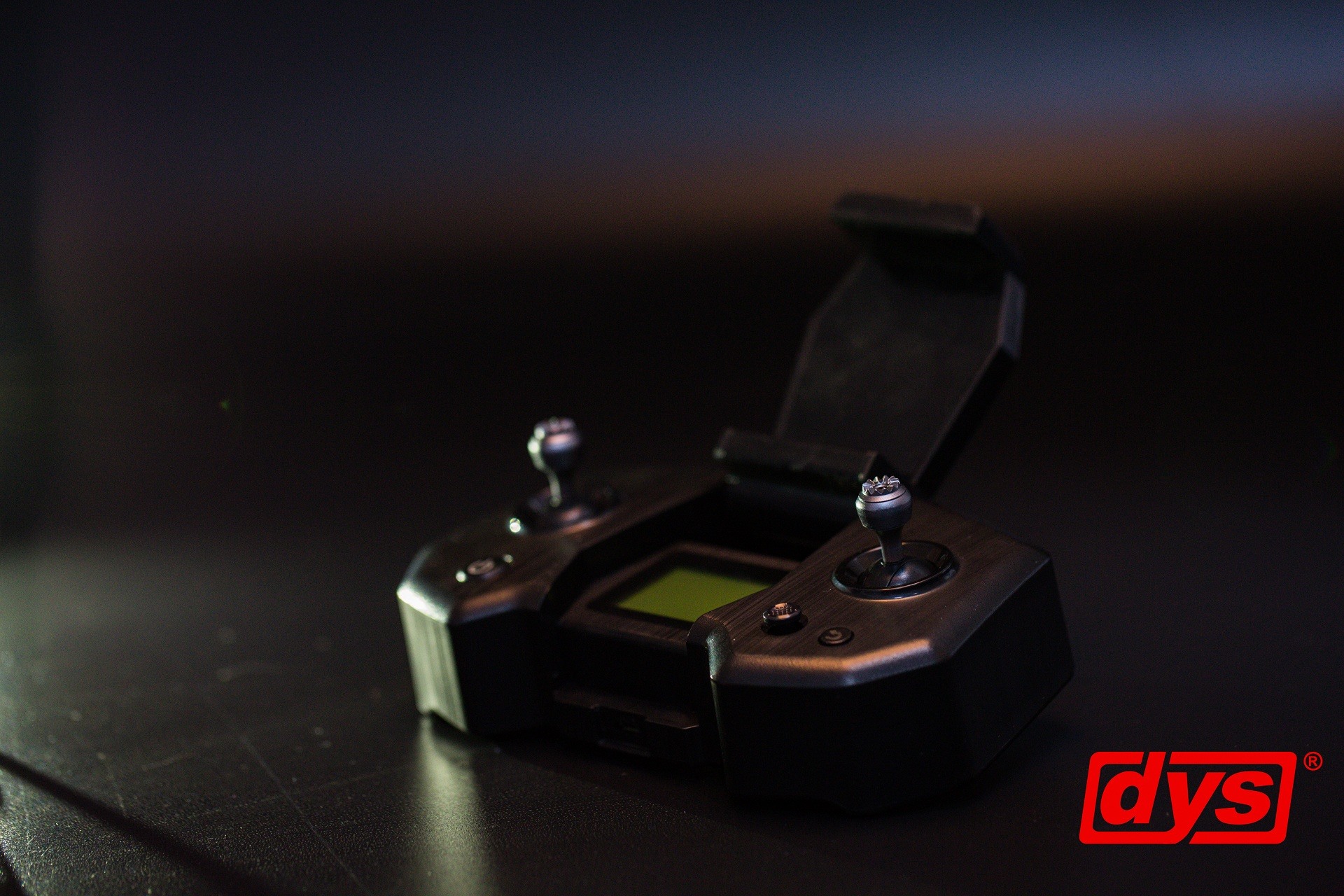

Another interesting item – we can see new DYS remote controller on the photo. DYS has named it Mr.Q. It is 2.4G and D8 mode. It can hold the mobile phone for some WiFi FPV experience. The controller, that came with the DYS Elf quadcopter was not good – bad gimbals, a lot of deadzone. Lets hope DYS has fixed theese issues in the new controller.

Advertisement video:

Source: Facebook

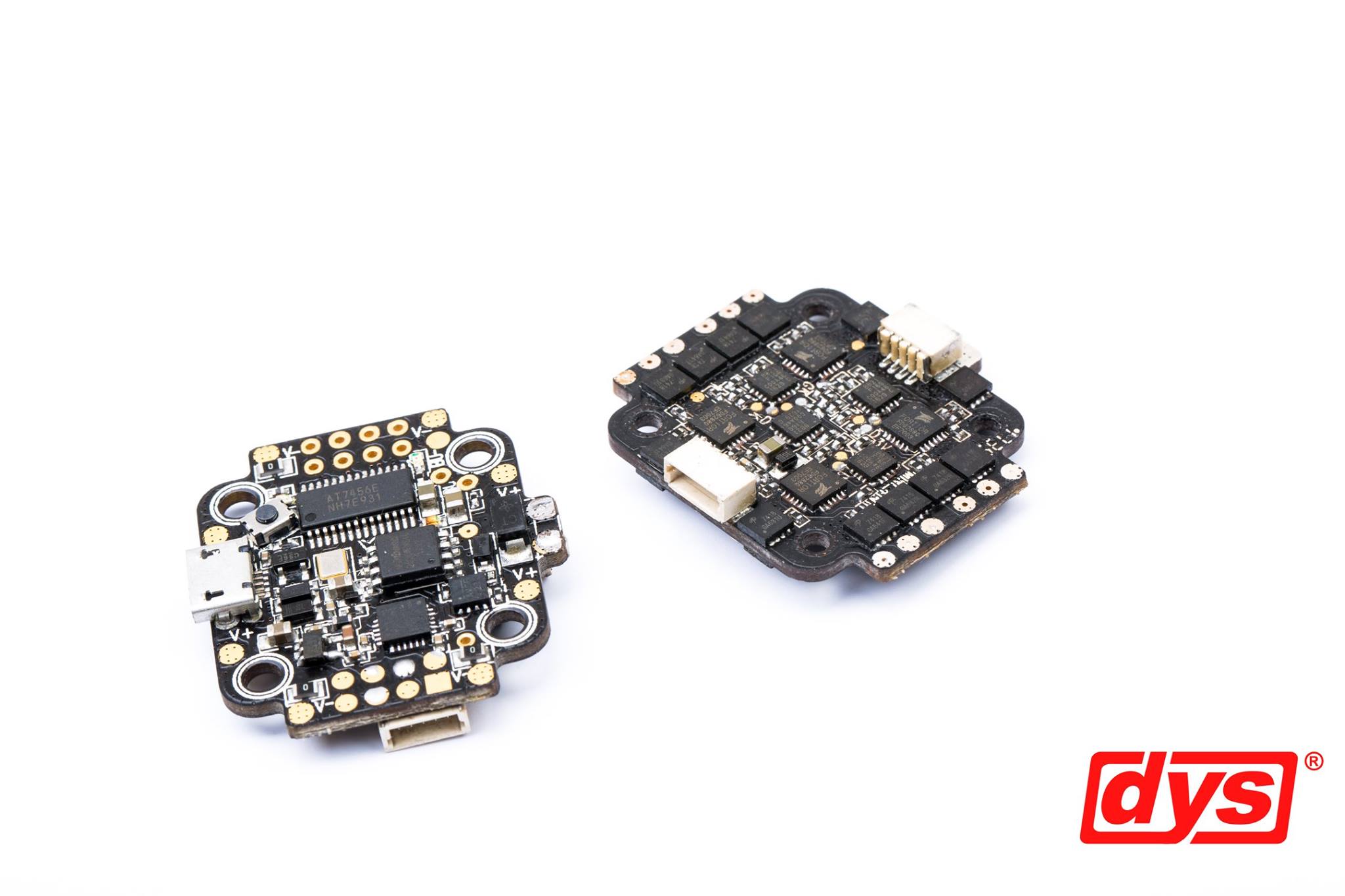

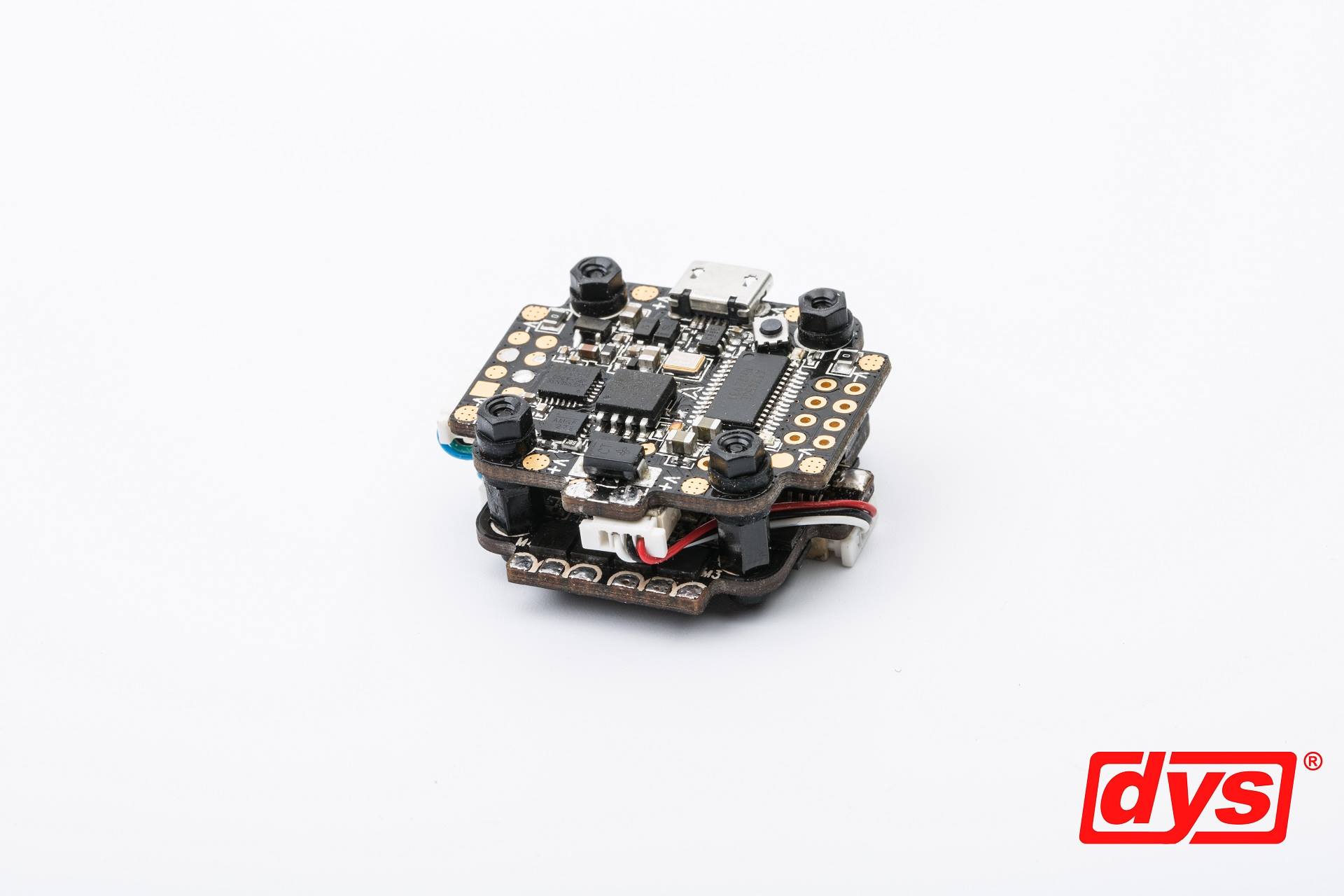

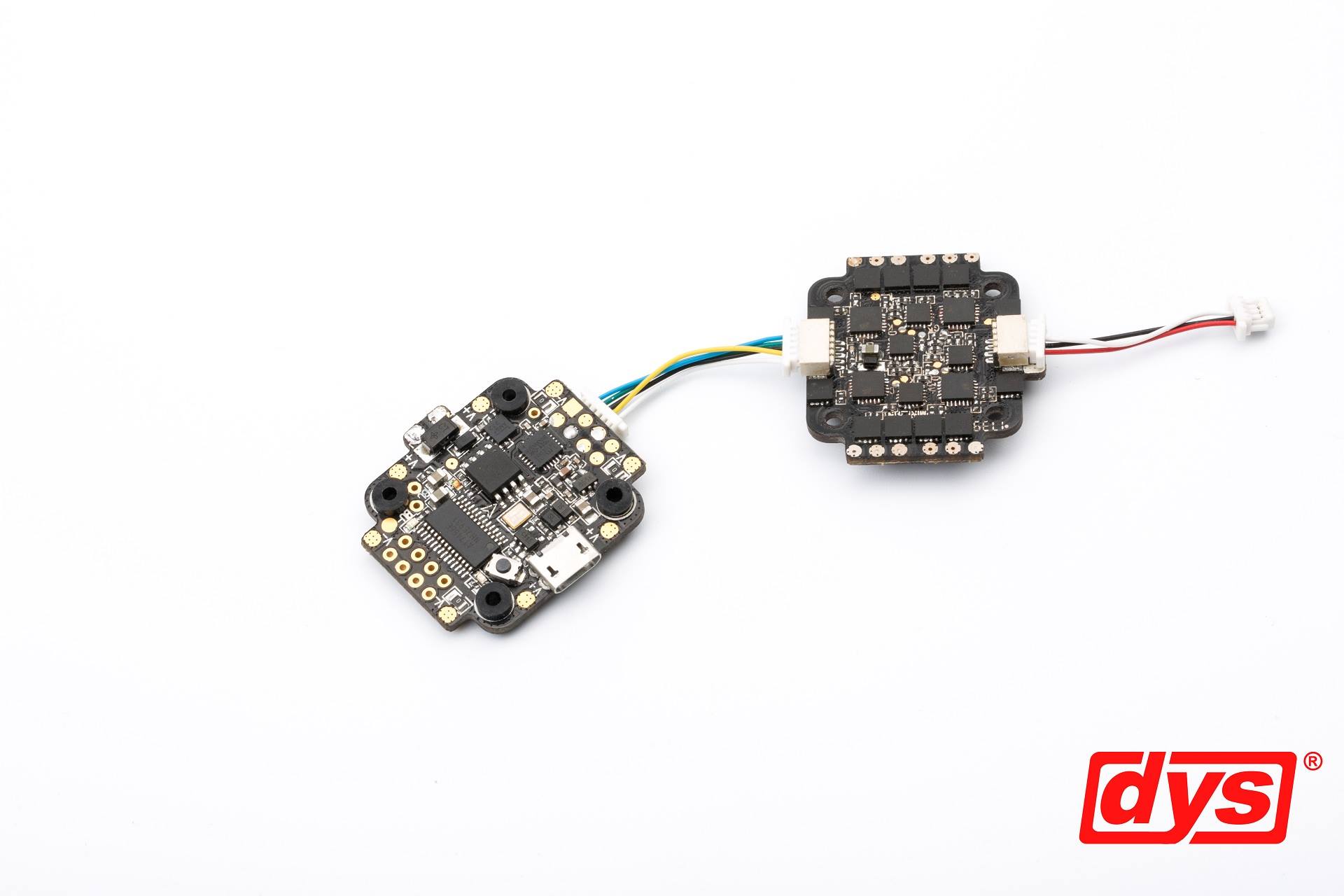

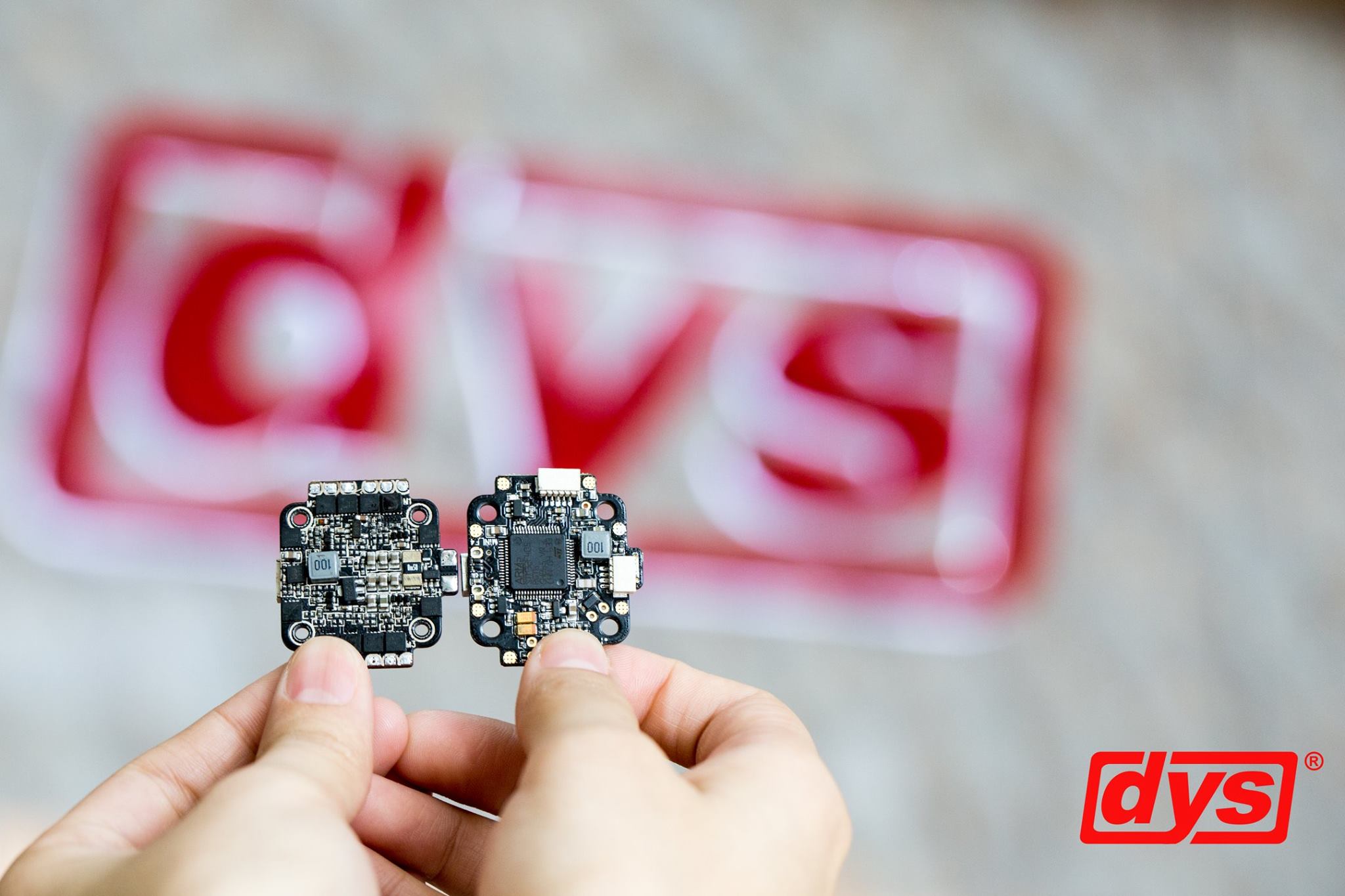

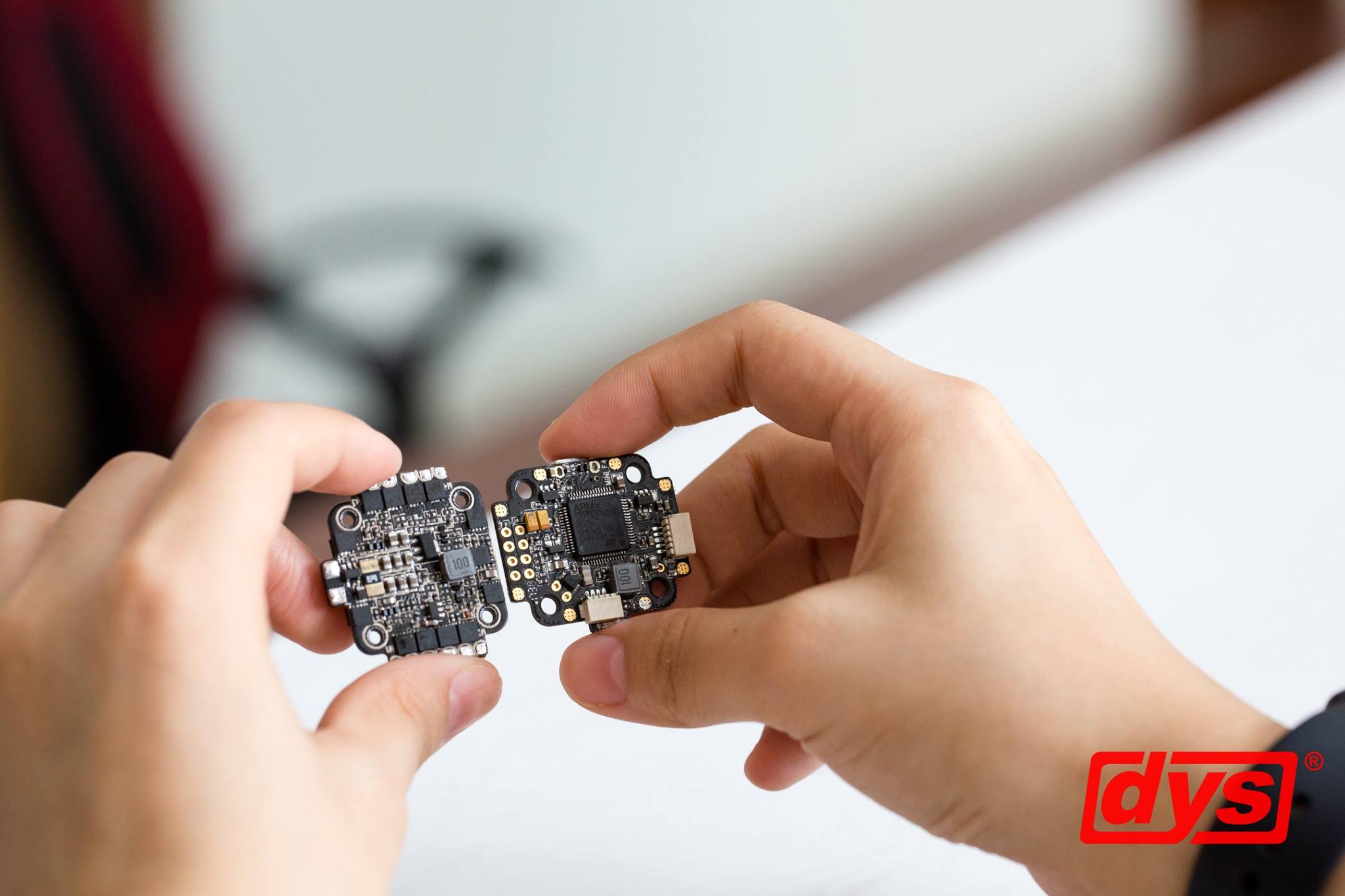

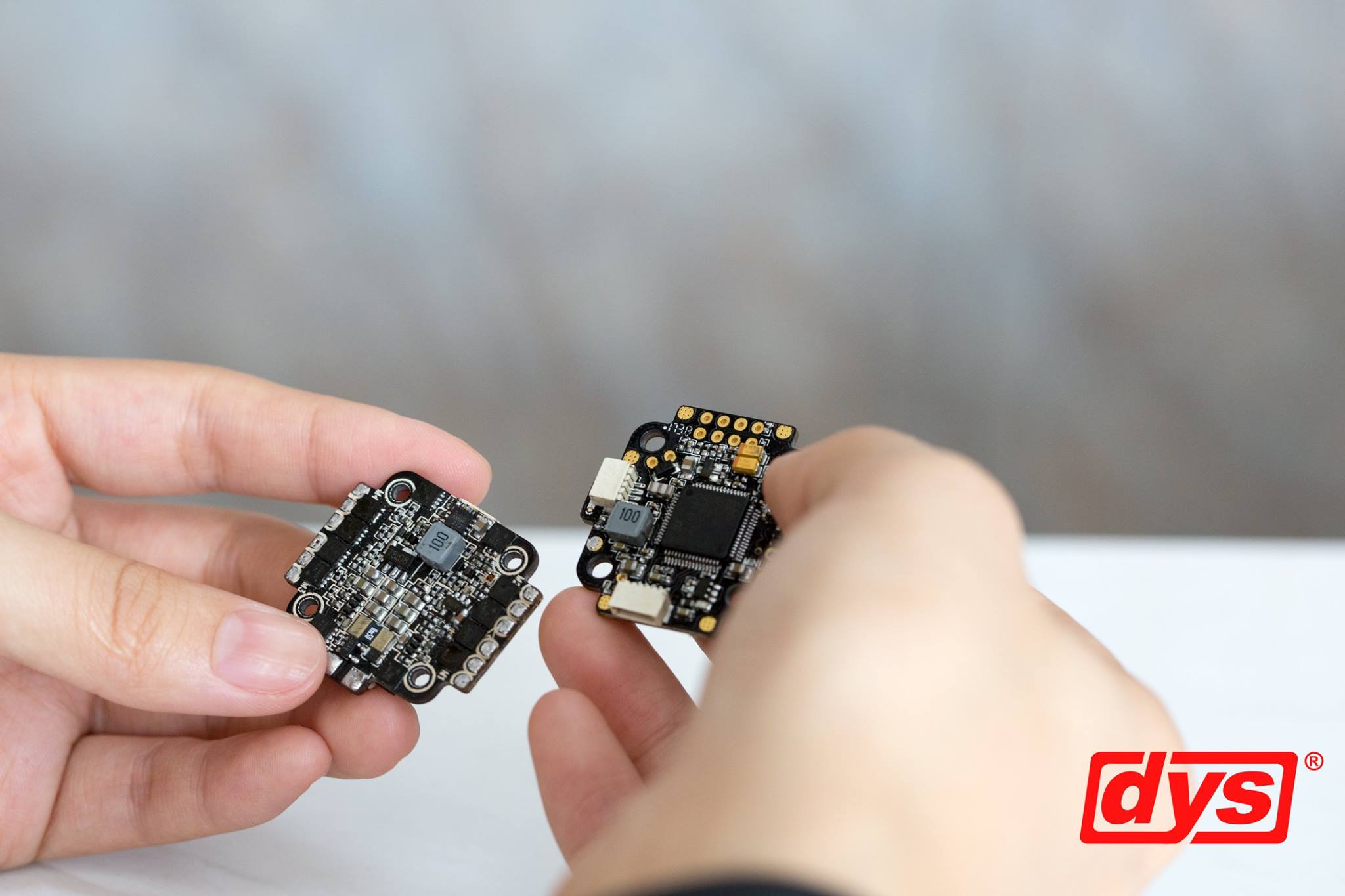

DYS Mini F4 FC and F18A 4in1 ESC

montis — Fri, 06 Oct 2017 17:36:11 +0000

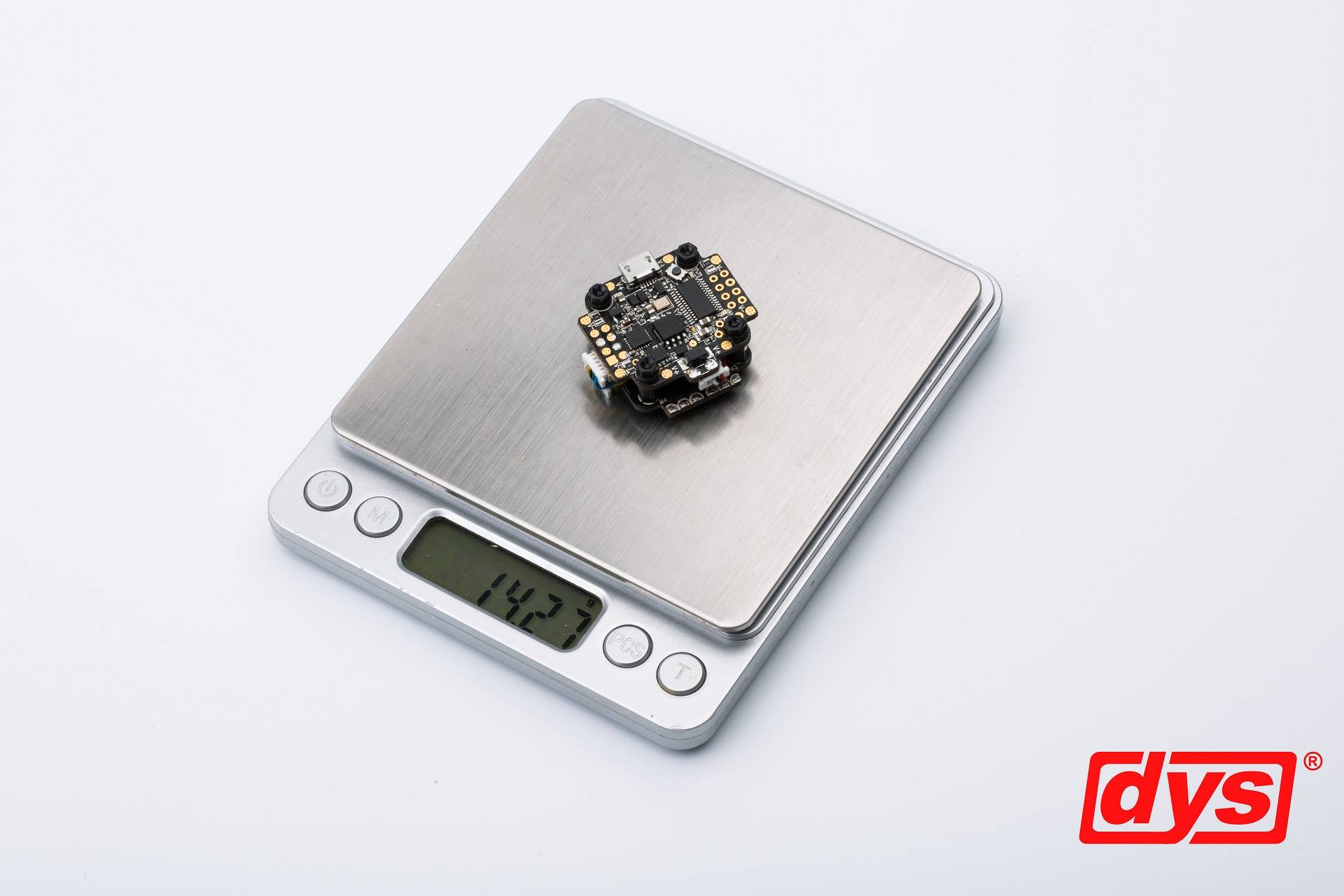

DYS is releasing their new?mini F4 FC and F18A 4in 1 ESC.? FC has F4 MCU and OSD, while ESC has current sensor on board. Both, FC and ESC?support 2-4S lipos. ESC (or both) have 5V 2A BEC. Board mounting size is 20x20mm. Boards are connected via 2 silicon wire ribbon with JST-SH connectors. The weight of the FC is?6g. Total weight of the stack is 14 g.

Source: Facebook

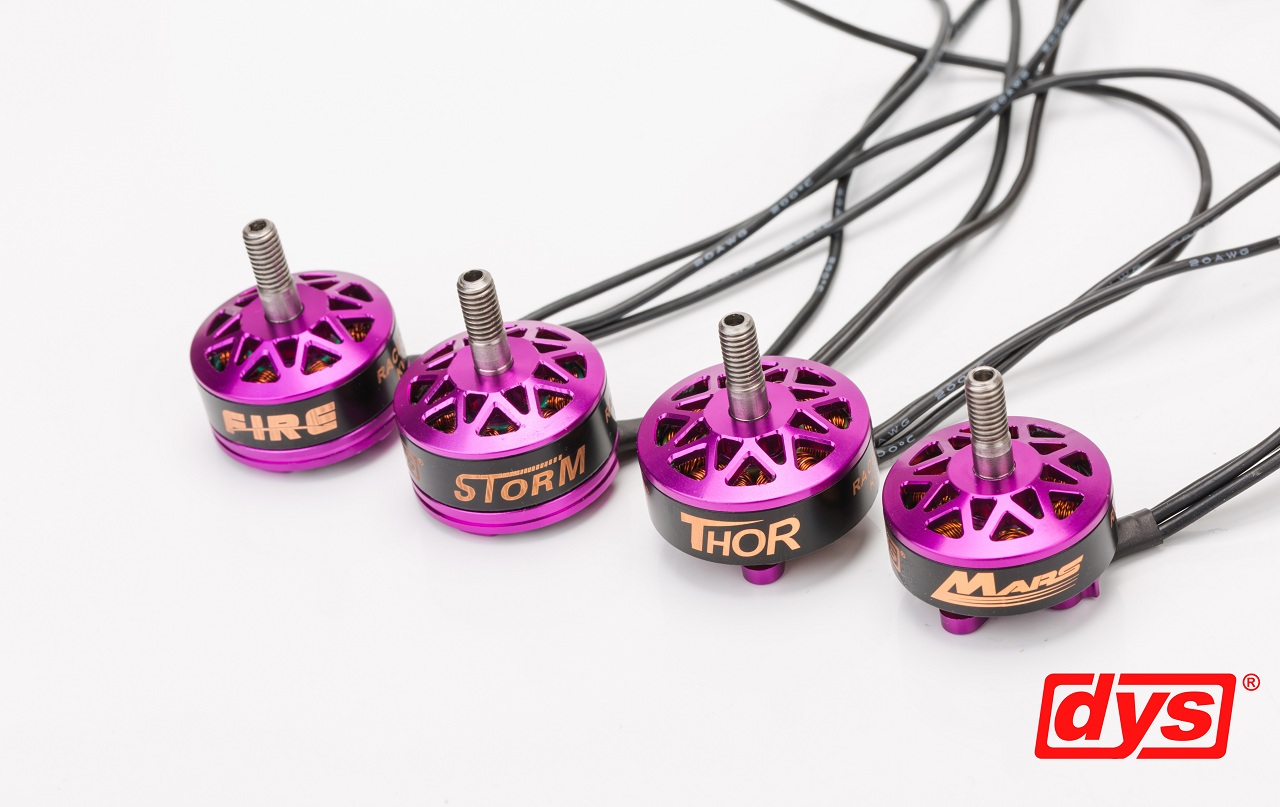

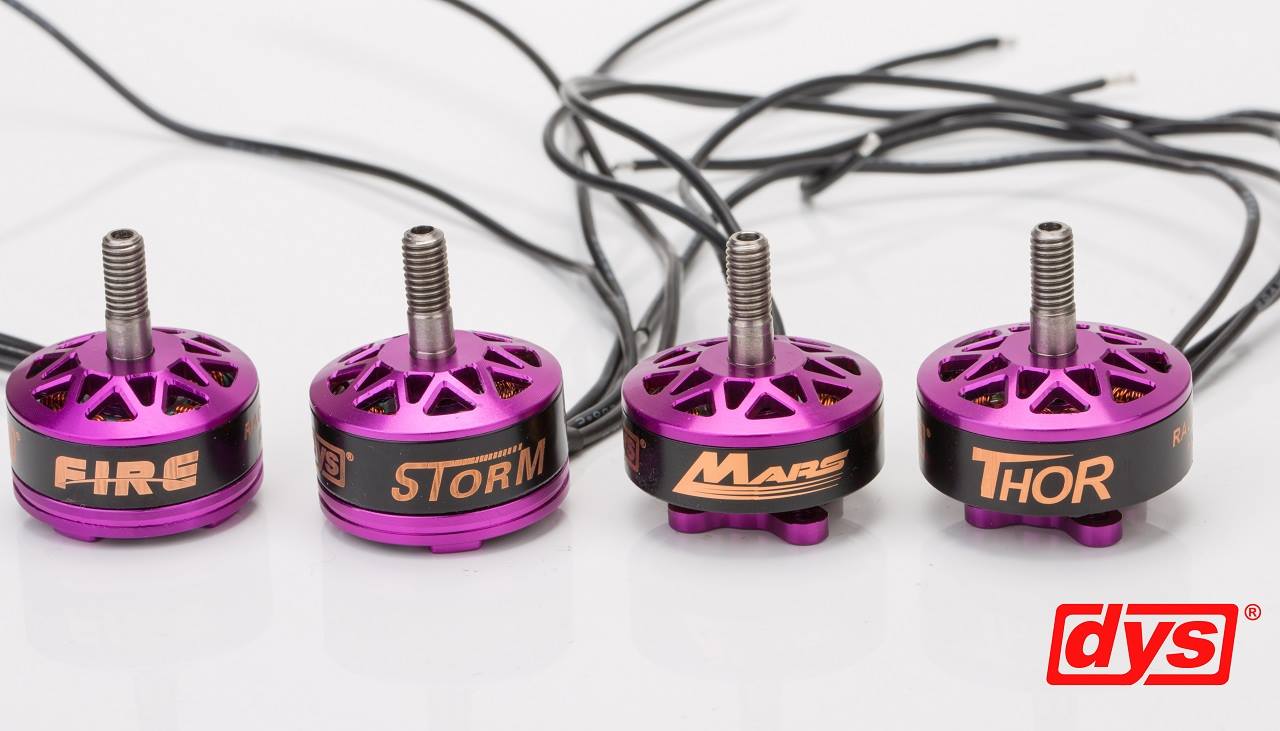

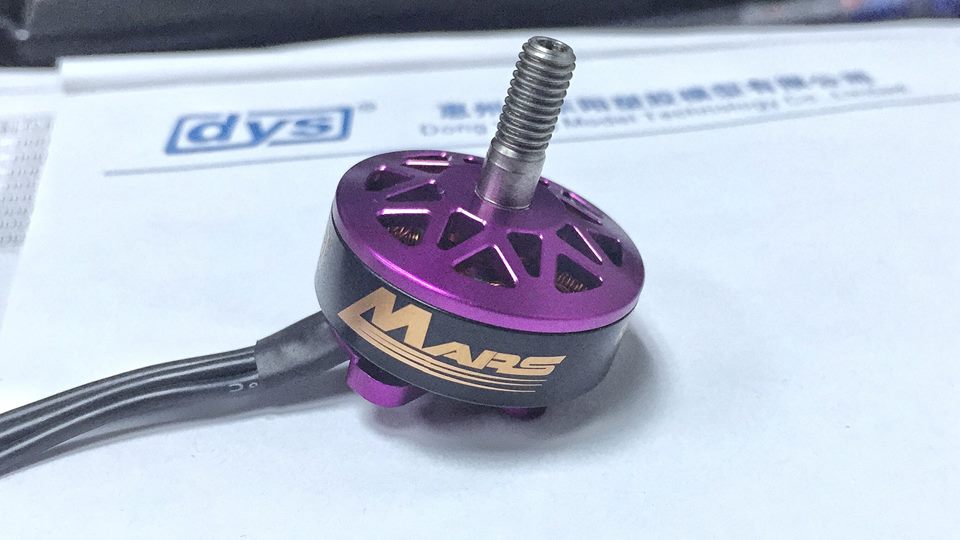

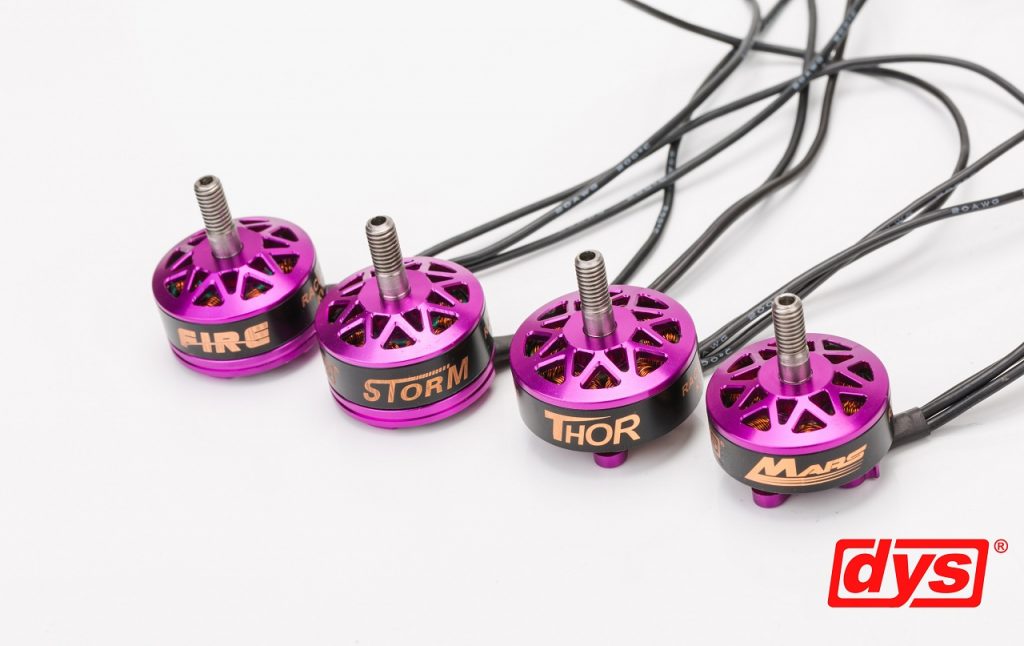

DYS Mars – EMAX RS2306 competitor

montis — Wed, 07 Jun 2017 09:36:21 +0000

DYS is about ot release their last motor from the new motors family – DYS Mars motor. Mars size is 2306 and it will be available in 2400KV and 2750KV variants. This is response to sucessful EMAX RS2306 motor.

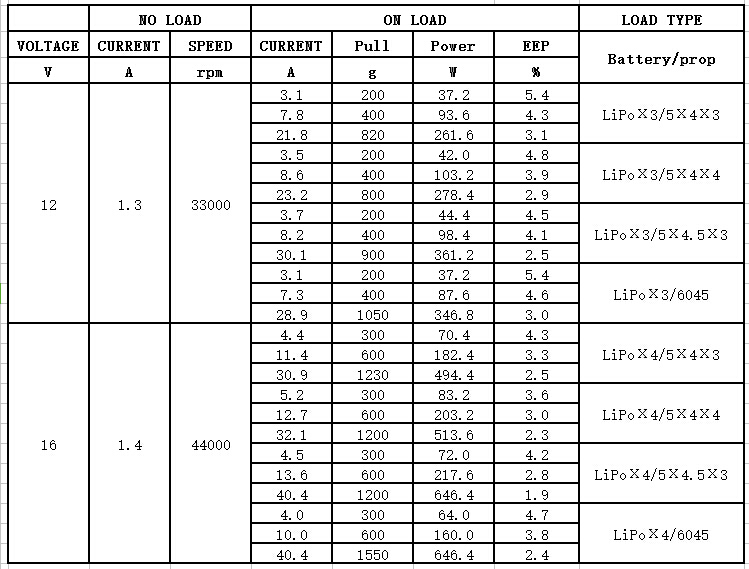

Thrust data for 2400KV

Specifications:
KV……………………………………………………………………………………….2400
Configu ration…………………………………………………………………………NP
Stator Diameter…………………………………………………………………23.0mm
Stator Length…………………………………………………………………….6.0mm
Shaft Diameter……………………………………………………………………….M5

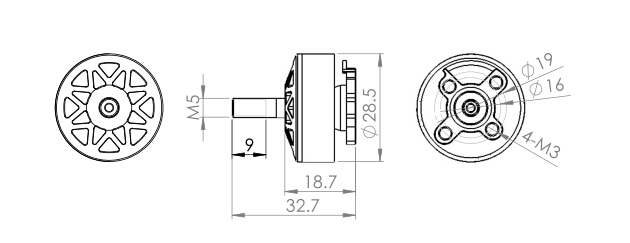

Motor Dimensions(Dia.*Len)………………………………………..Φ28.5×18.7mm
Weight (g)……………………………………………………………………………..34.36g
No.of Cells(Lipo)……………………………………………………………………….3-6S
Max Continuous current(A)……………………………………………………34.5A
Max Continuous Power(W)…………………………………………………..574.4W
Internal resistance……………………………………………………………………0.04?

Thrust data for 2750KV

Specifications:
KV……………………………………………………………………………………….2750
Configu ration…………………………………………………………………………NP
Stator Diameter…………………………………………………………………23.0mm
Stator Length…………………………………………………………………….6.0mm
Shaft Diameter……………………………………………………………………….M5

Motor Dimensions(Dia.*Len)………………………………………..Φ28.5×18.7mm
Weight (g)……………………………………………………………………………..34.36g
No.of Cells(Lipo)……………………………………………………………………….3-6S
Max Continuous current(A)……………………………………………………40.4A
Max Continuous Power(W)…………………………………………………..646.4W
Internal resistance……………………………………………………………………0.04?

Thrust data for 2750KV

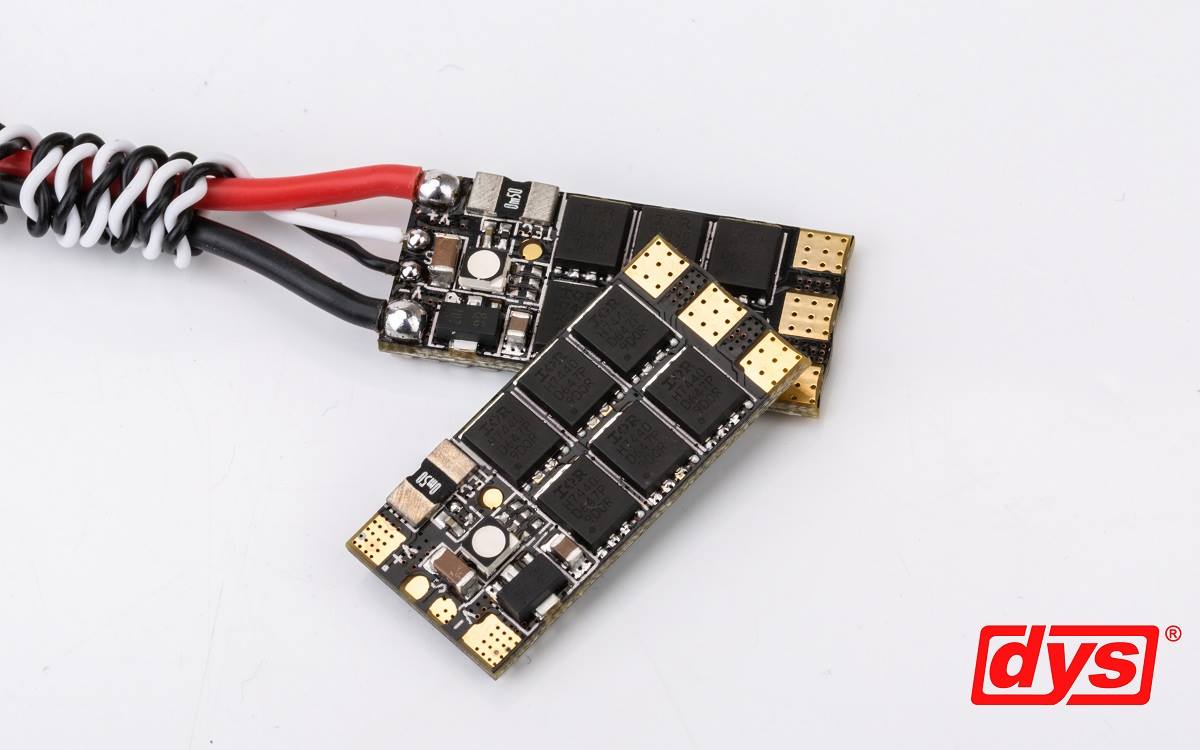

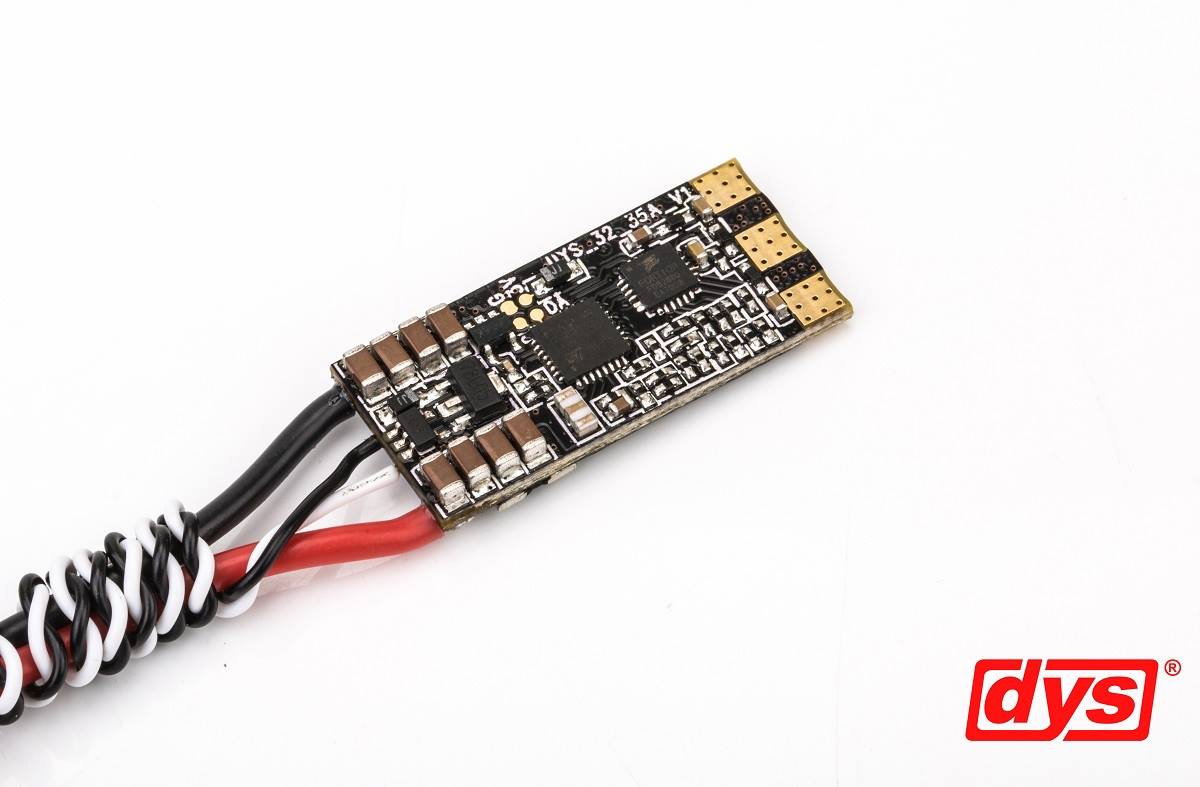

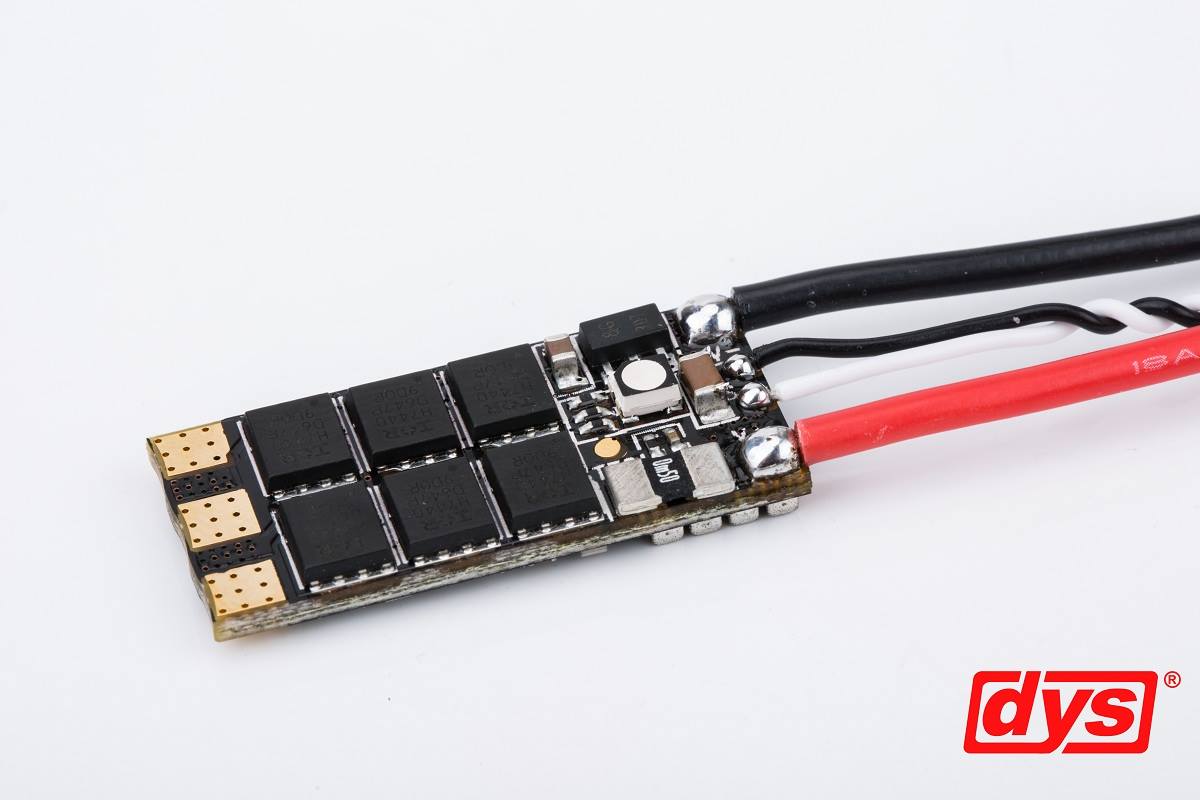

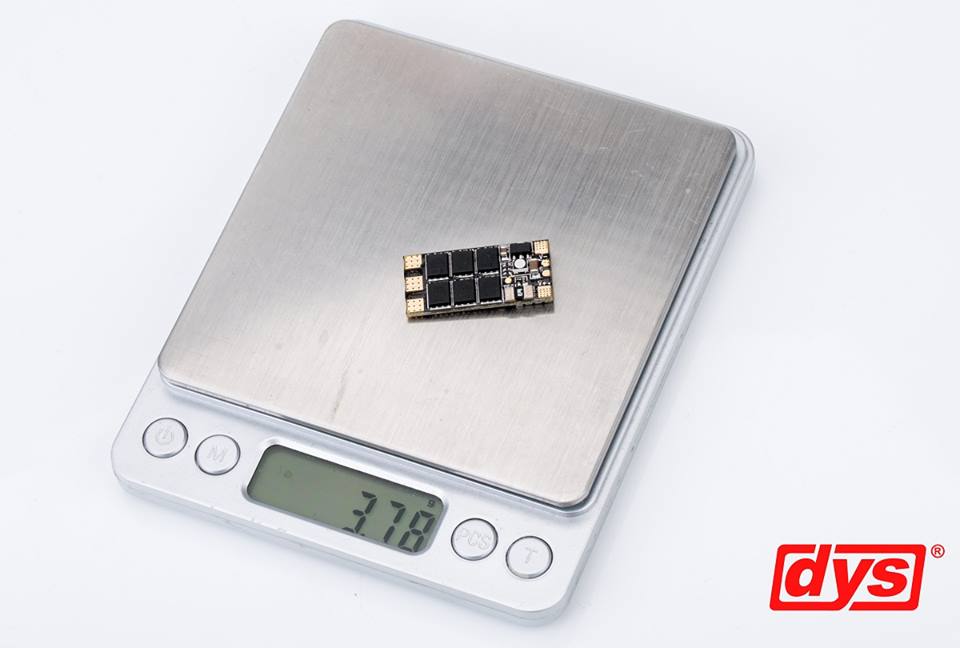

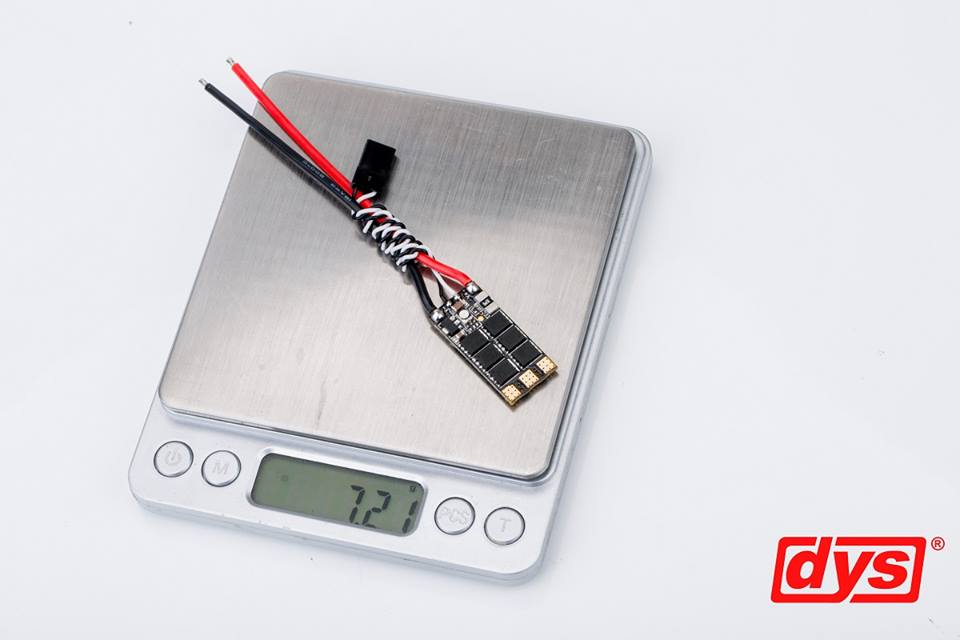

DYS first BLHeli_32bit ESC

montis — Thu, 04 May 2017 17:37:43 +0000

BLHeli_32 market starts to accelerate. DYS has announced their first ESCs running?BLHeli_32?bit firmware. They are capable of 35A continuous current, supports DShot300?and up to DShot1200. They are rated for 2-6S and are only 3.78g without any cables, and the size is 32x15mm. We can see current sensor and multicolored LED on the ESC. Current sensor is for current limiting and LED possibly for displayin ESC statuses.

We dont have much infomation on this ESC, but possible features are:

programmable PWM frequency of up to 48KHz
Auto-timing for higher efficiency and realiability
Voltage/Current limiting
Adjustable “Brake on Stop” force
Improve direction change in Bidirectional mode
ESC Telemetry
Configuring from FC using DShot commands

These ESC’s are listed @ Bangggood:

https://www.banggood.com/DYS-BLHeli_32bit-35A-35amp-Brushless-ESC-2-6S-Dshot1200-Ready-For-FPV-Racing-p-1148598.html

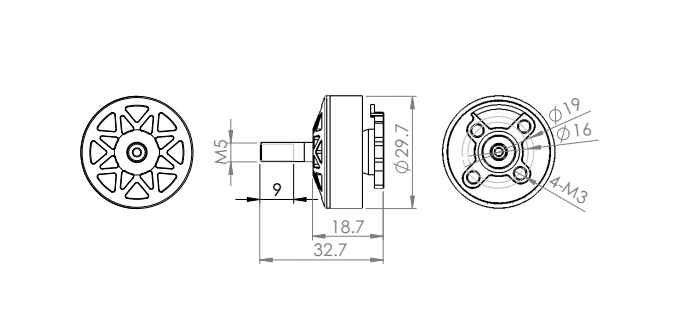

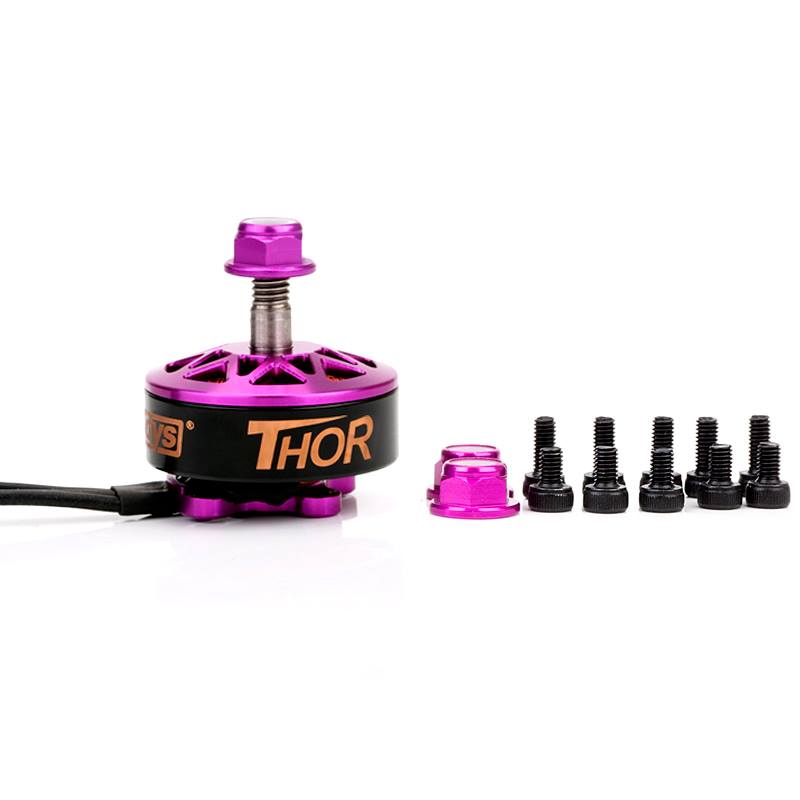

DYS Thor 2408 – supersized motor

montis — Mon, 01 May 2017 21:59:37 +0000

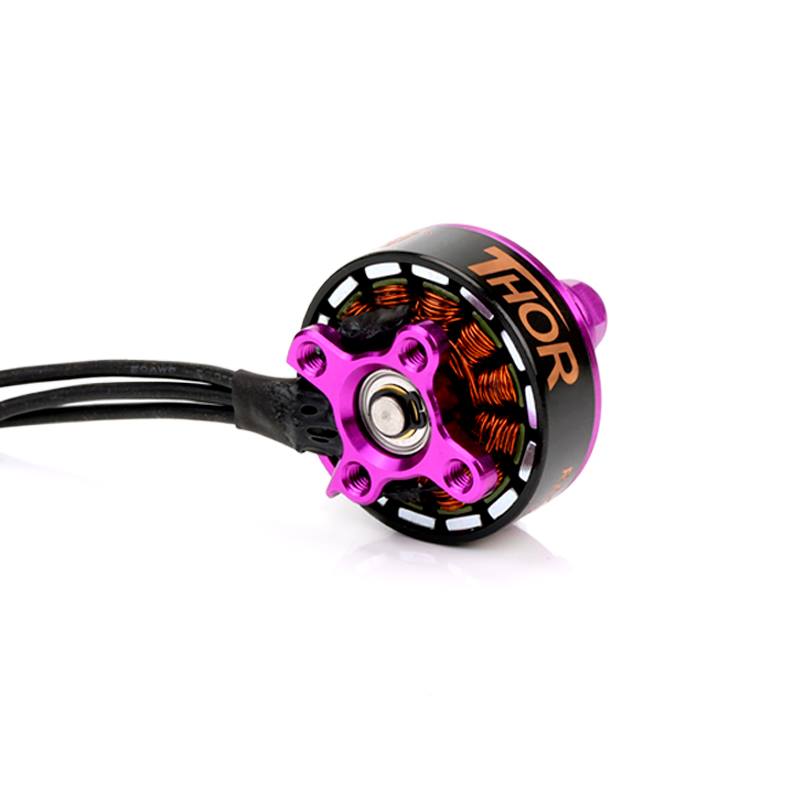

DYS is preparing to release their Thor motor. It is a sequel of the Fire and Storm motor line. While we dont have the full data, according to the fact that?the outer dimensions of this motor is 2mm wider than Storm, we guess that it’s size should be?2407. The design is similar to the Storm motor, only the base ot the motor is more open. This motor comes in 2200KV and 2500KV. Suitable for bigger quads and 6 -7” props.

Edit (2017-05-24): Now listed on Banggood and finally we kow the exact size of this motor – 2408!?Also thrust table is added.

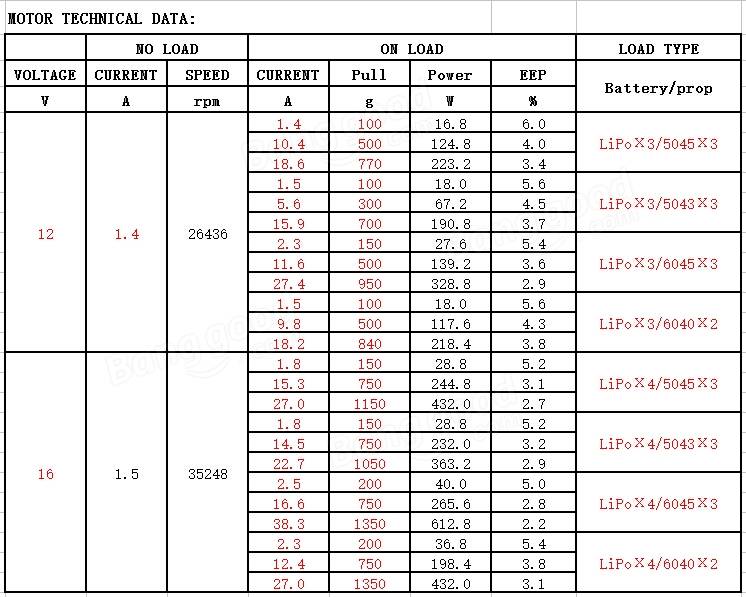

2200KV

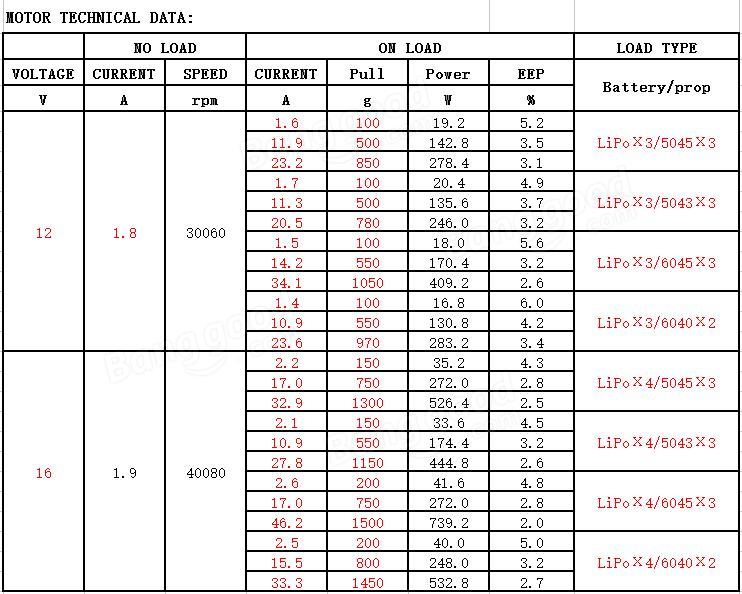

2500KV

Availabe @?Banggood: ?https://www.banggood.com/DYS-Thor-2408-2200KV-2500KV-3-6S-Brushless-Motor-for-FPV-Racing-Drone-Multicopter-p-1154353.html

Specification:
Item name: Thor 2408 motor
KV: 2200KV/2500KV
Pull: 1.35kg / 1.45kg
Motor Size: Φ29.7×18.7mm
Battery: 3-6s

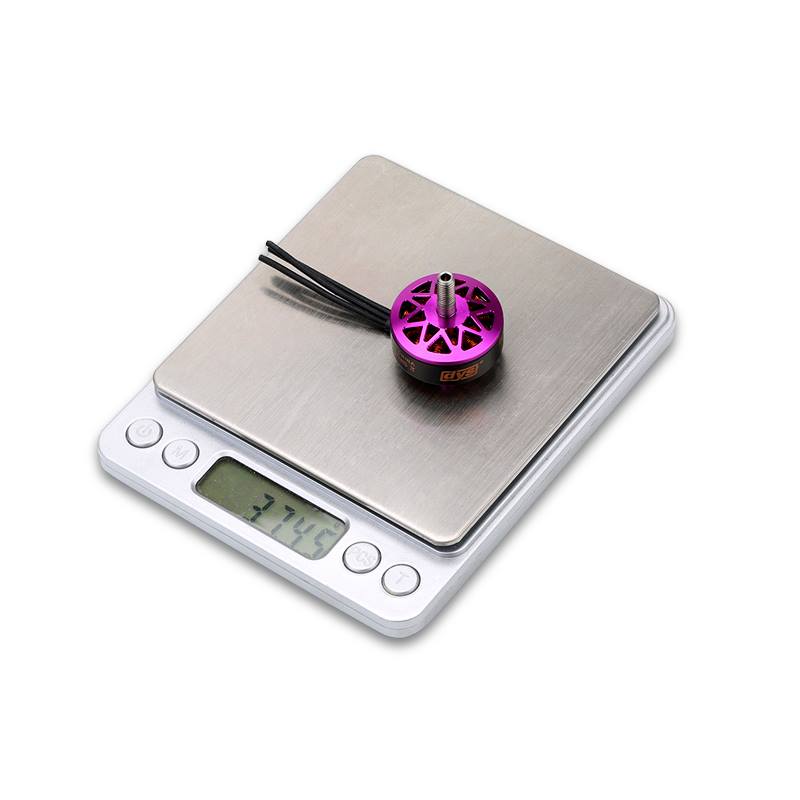

Weight: 37.45g
Configu ration: NP
Shaft Diameter: M5
Max Continuous current(A): 38.3 (2200KV) / 6.2(2500KV)
Max Continuous Power(W):?612.8W (2200KV) / 739.2W(2500KV)
Resistance:?0.04?
EZO bearing
0.1mm?iron core

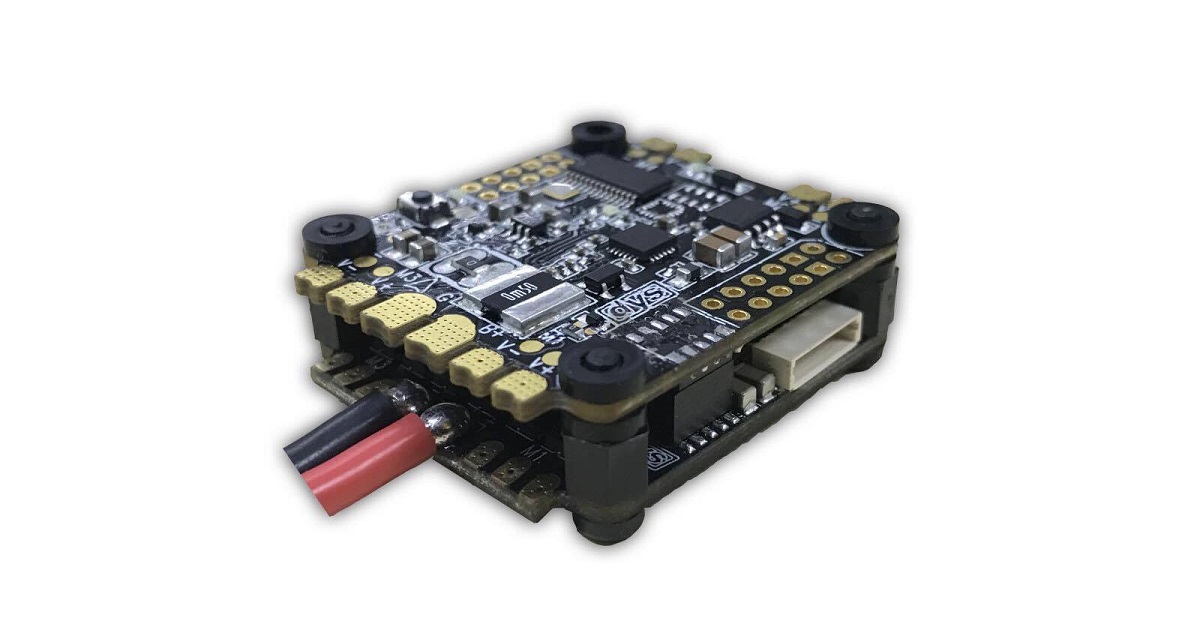

DYS F4 FC, F30A and F20A 4in1 ESC

montis — Fri, 24 Mar 2017 09:23:02 +0000

DYS, known as quality products manufacturer, released their first F4 Flight Controller, F30A 1in1 ESC and F20A 4in1 ESC. One of the most interesting features – these two components have interconnection sockets and can be staked one on another without any wire connection. This allows tight and neat installation. Despite beeing a?pair, that fits one another, they can be used separately – FC has tabs for separate ESC’s and 4in1 ESC have separate PWM inputs for all 4 ESC’s.

F4 FC

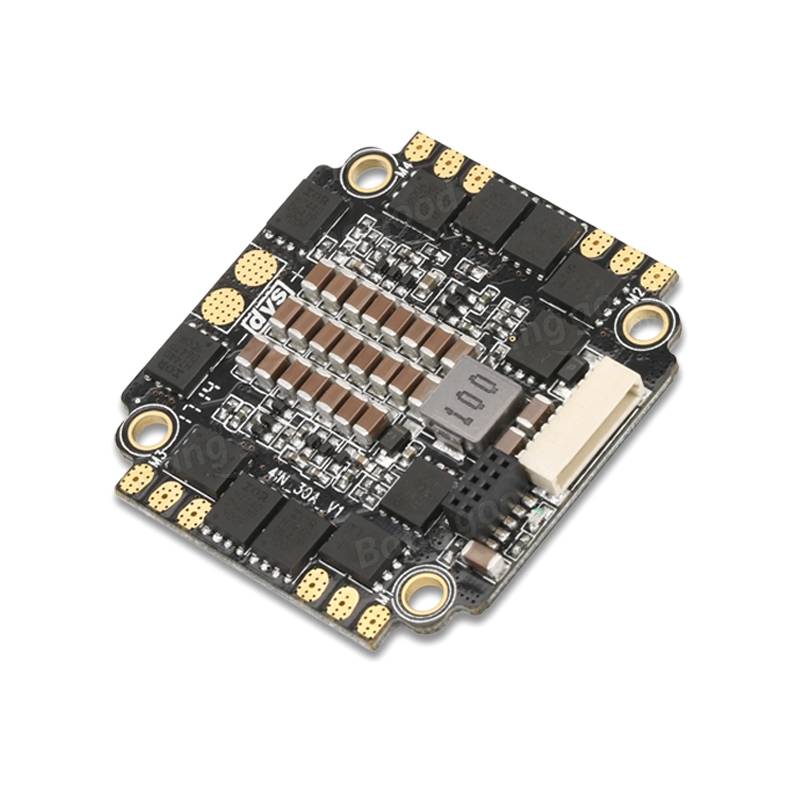

F30A?4in1 30A ESC

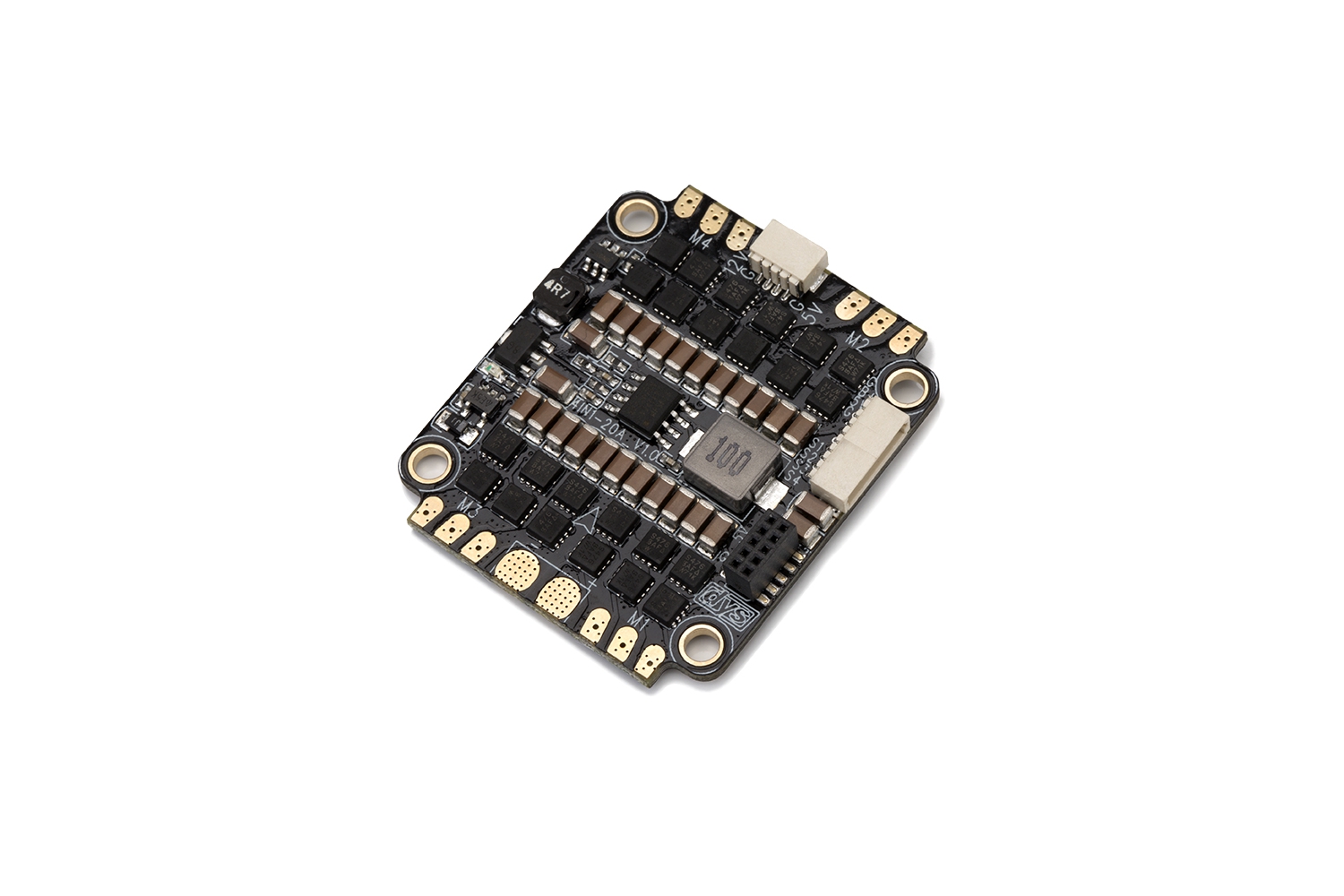

F20A 4in1 20A ESC

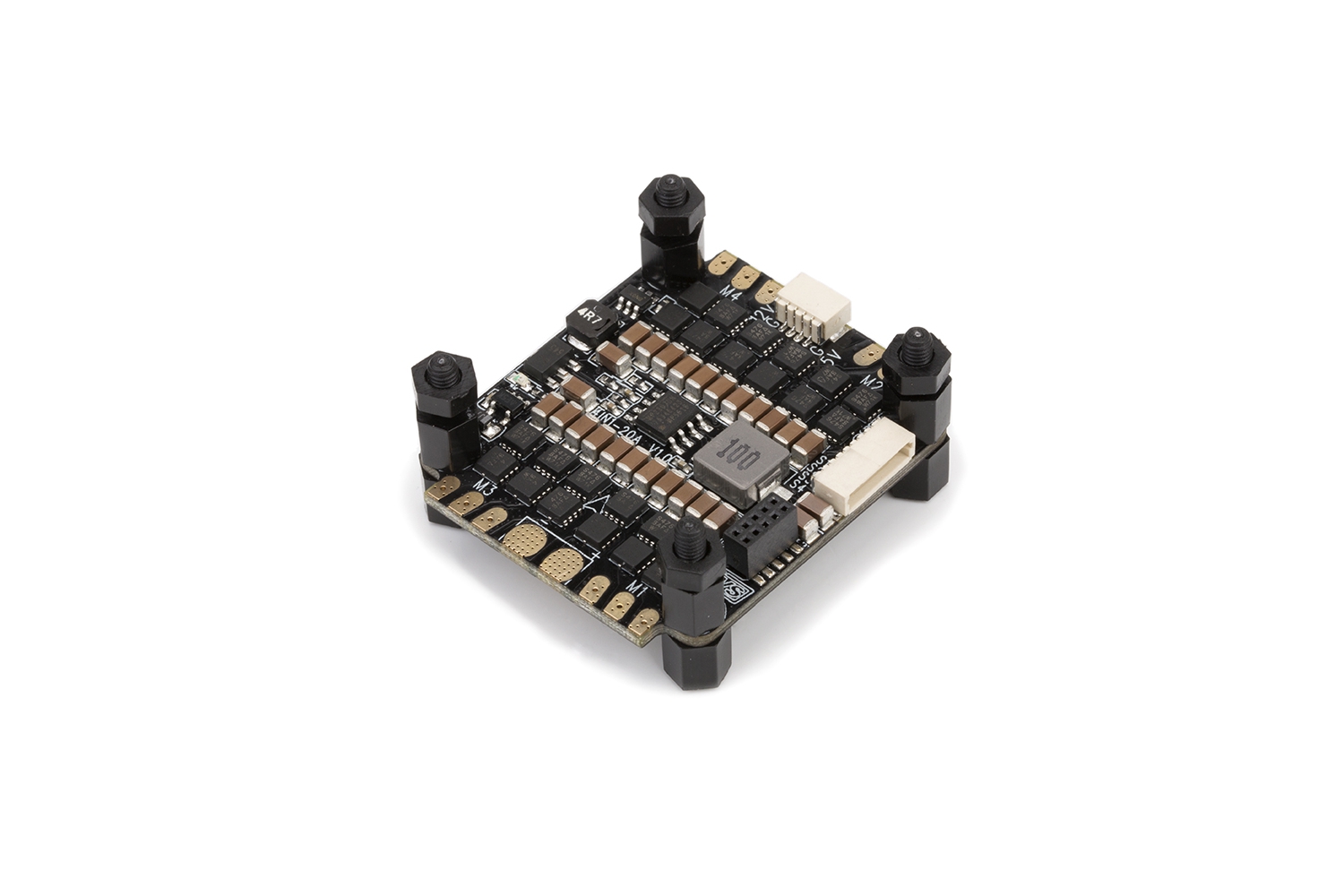

Stacked one on another

Check availability?@ Banggood. F4 FC:?www.banggood.com/DYS-30_5x30_5mm-Omnibus-F4-Flight-Control-Integrated-with-OSD-5V-BEC-and-Current-Sensor-p-1136875.html

F30A 4in1 ESC:?www.banggood.com/DYS-F30A-30amp-4-in-1-BLHeli_S-ESC-2-4S-BB2-BEC-5V12V-3A-Dshot600-Oneshot125-Oneshot42-Multishot-p-1143250.html

F20A 4in1 ESC:?www.banggood.com/DYS-F20A-20amp-4-in-1-BLHeli_S-ESC-2-4S-BB2-Supports-Dshot600-Oneshot125-Oneshot42-Multishot-p-1129473.html

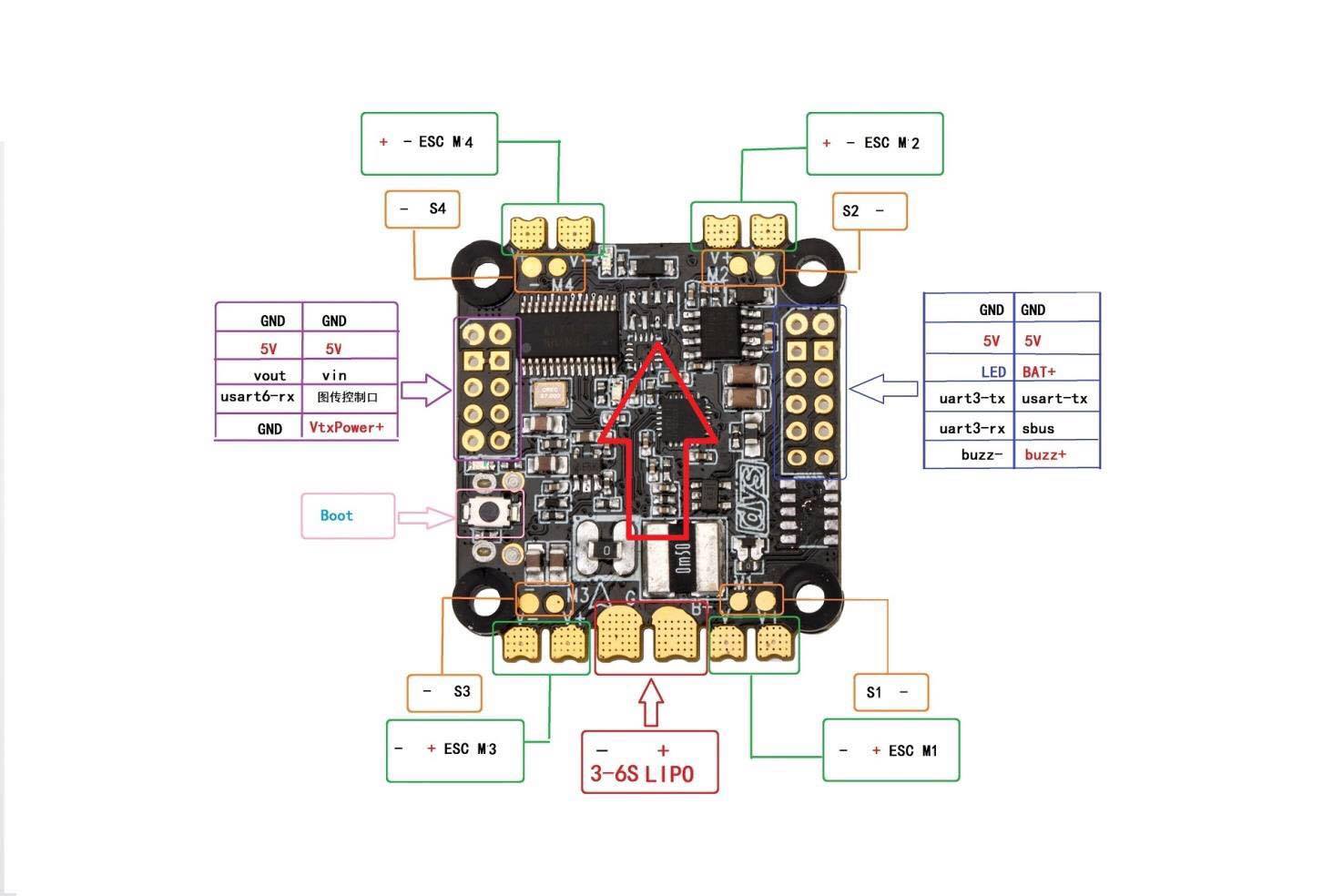

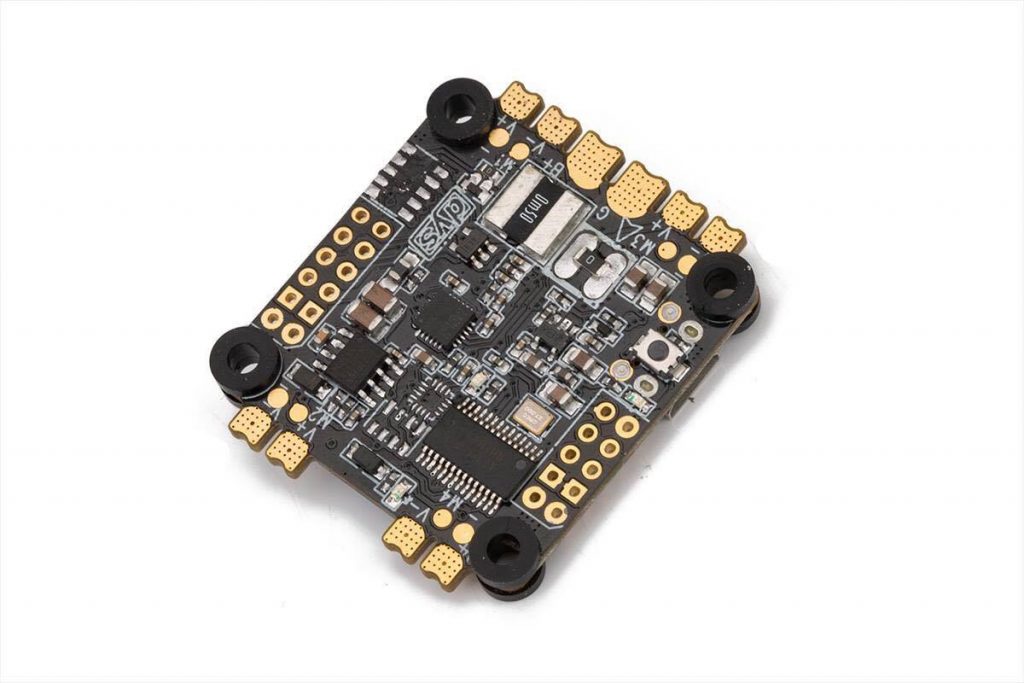

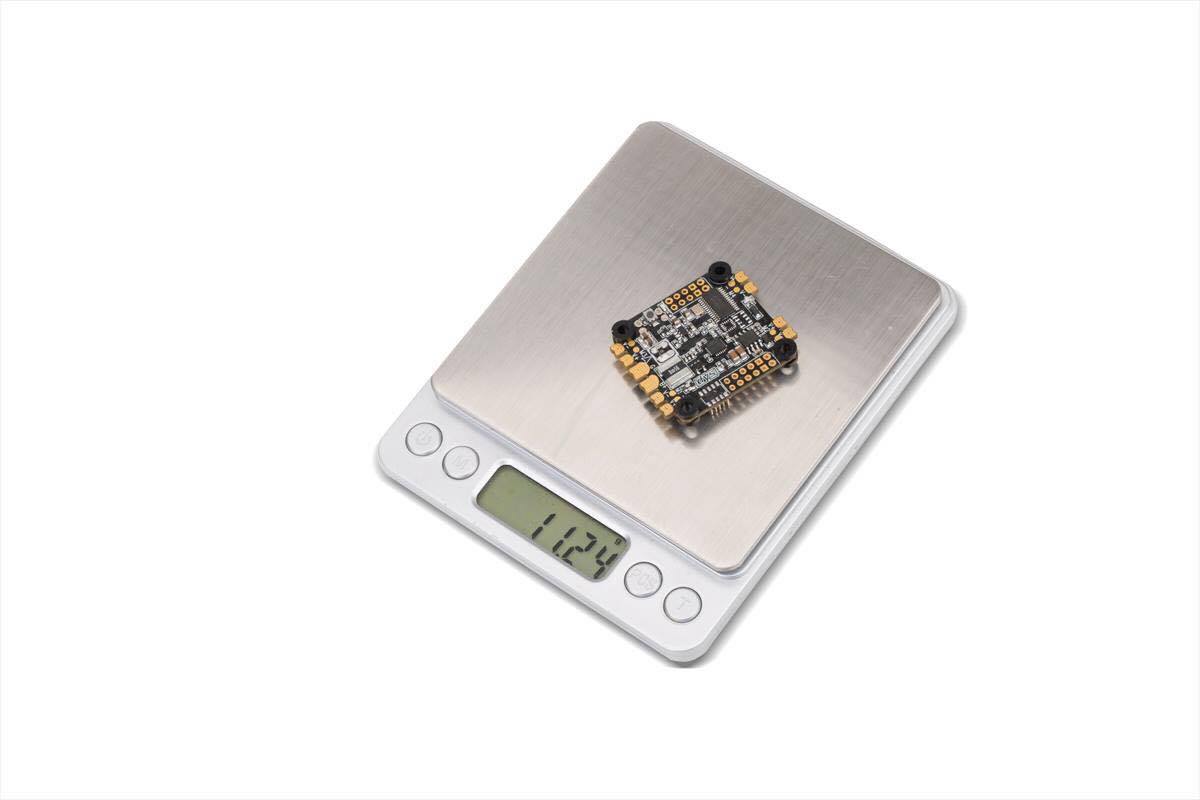

F4 Flight Controller
Specifications:
Pre flash Betaflight 3.1.6 OMNIBUSF4 firmware
STM32F405 GRT6
PCB 3OZ copper
BEC 5V 3A output
Stackable with DYS F Series ESC. ( DYS 4in1 F20A ESC)
OSD included
MAX 150A current capacity
Support smartaudio
Configurable TBS VTX, radio frequency. (Including up coming DYS VTX)
Support 3-6S lipo battery
Weight 11.2g

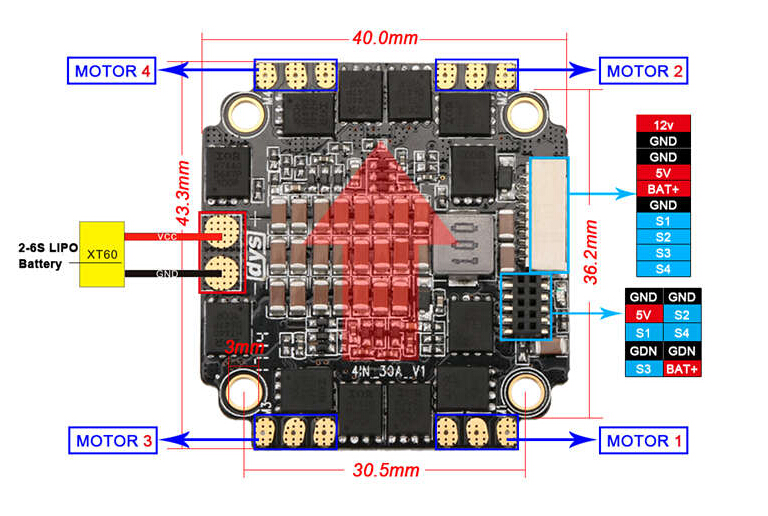

30A 4-in-1 F30A esc

Specifications:

– Continue current: 30A Burst Current: 35A up to 10S

– Input voltage: 3-6s Lipo

– BEC output: 5V/12 ?3A

– Weight: 12.95g (doesn’t include cable and connector)

– Firmware: BLHeli_S

– Support Dshot150/300/600, Oneshot125/42, Multishot, PWM

– Size: 40*30.5mm

– With UAV conformal coating

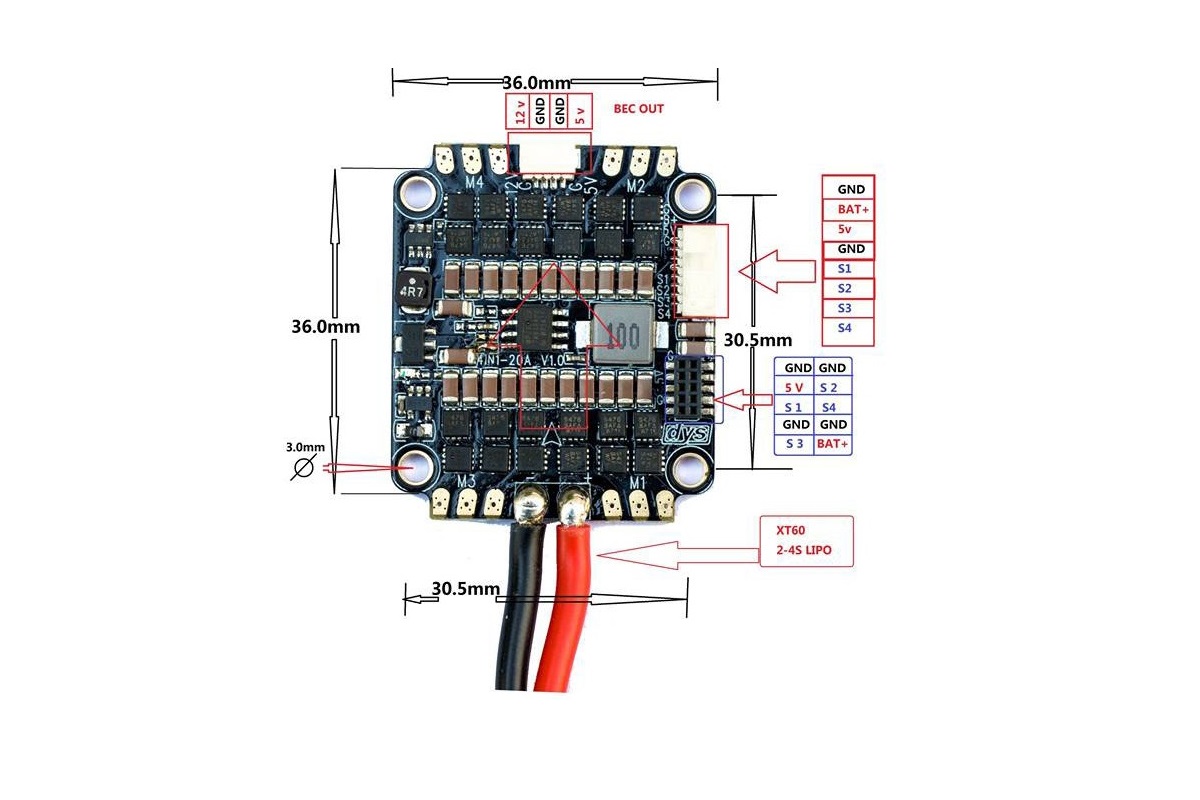

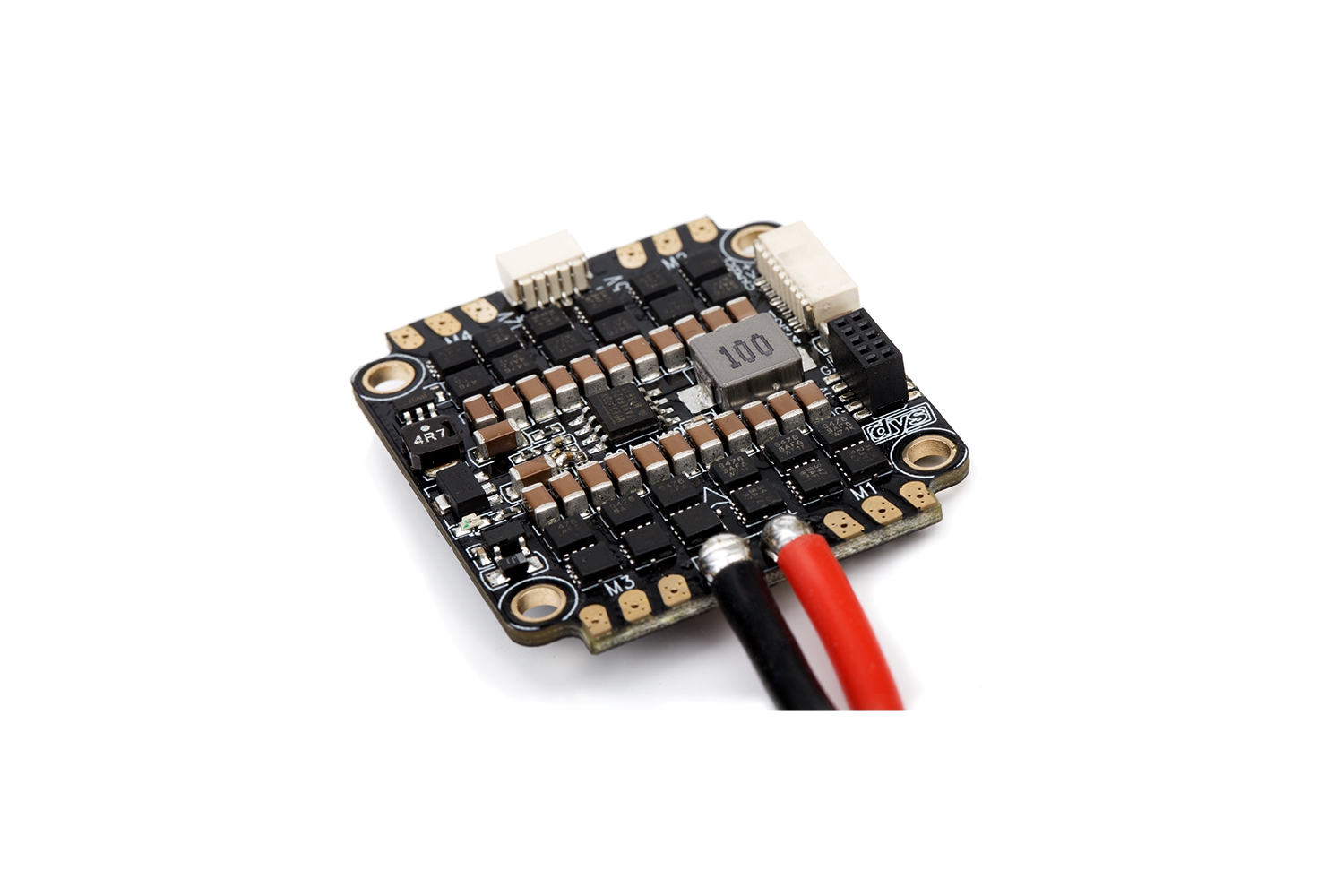

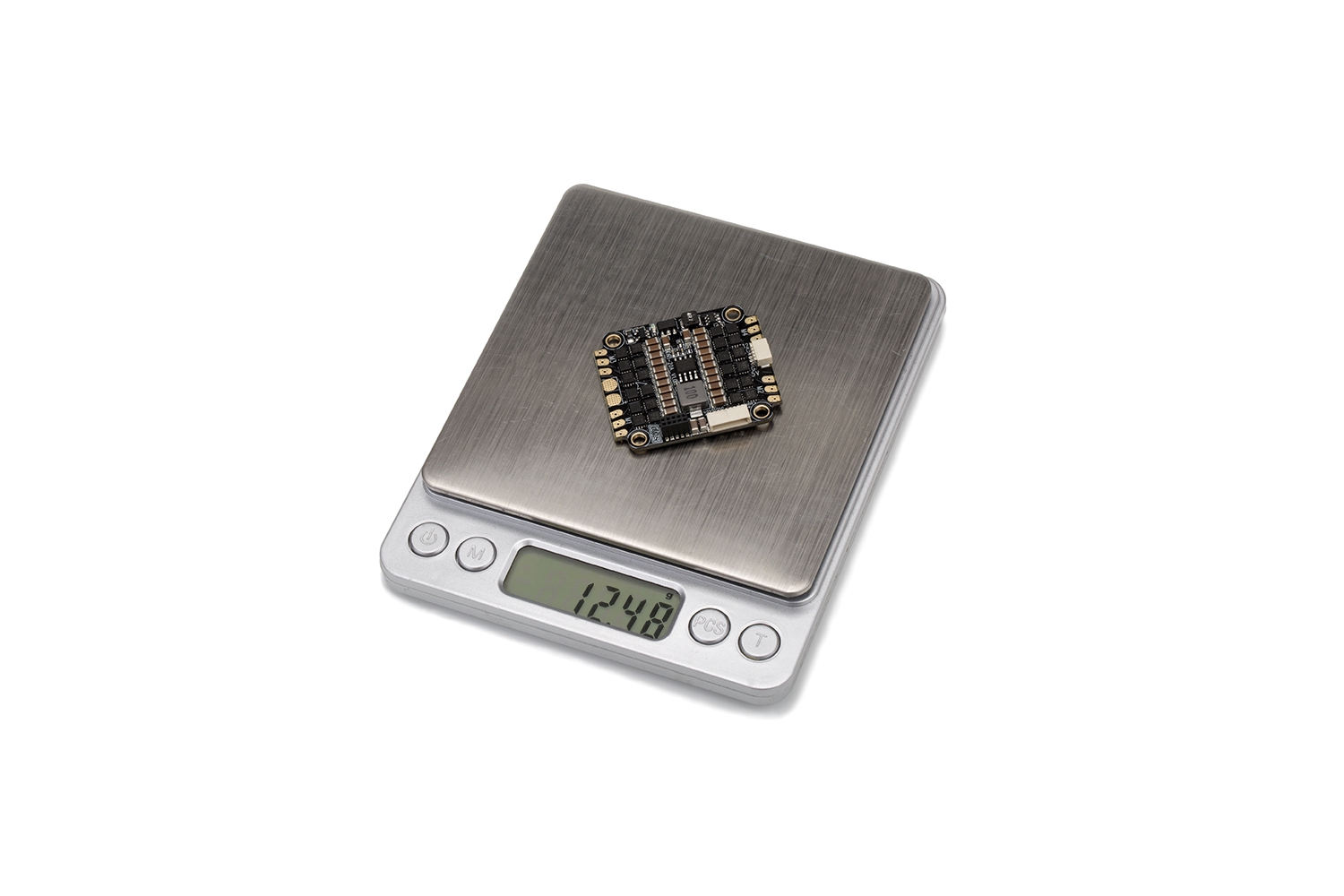

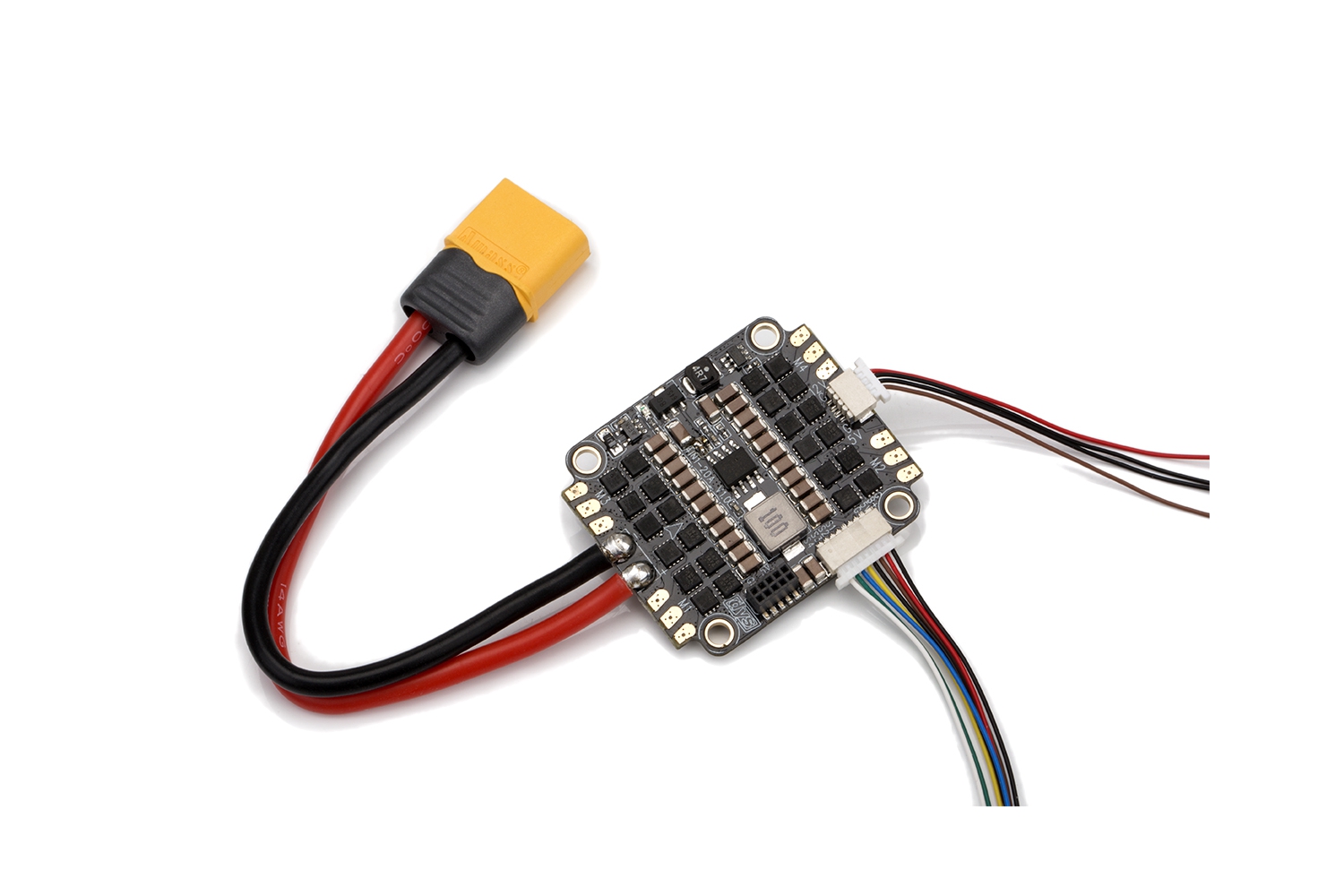

20A 4-in-1 F20A esc
Specifications:
– Continue Current: 20A, Burst Current: 25A up to 10S
– Input Voltage: 2-4S Lipo
– BEC Output: 5V/12 3A
– Firmware: BLHeli_S
– Support Dshot150/300/600, Oneshot125/42, Multishot, PWM
– Main IC: EMF8BB21F16G SILABS, 8bit C8051, run 50MHz
– Size: 36*36*8mm
– Weight: 21g(include cable and connector)

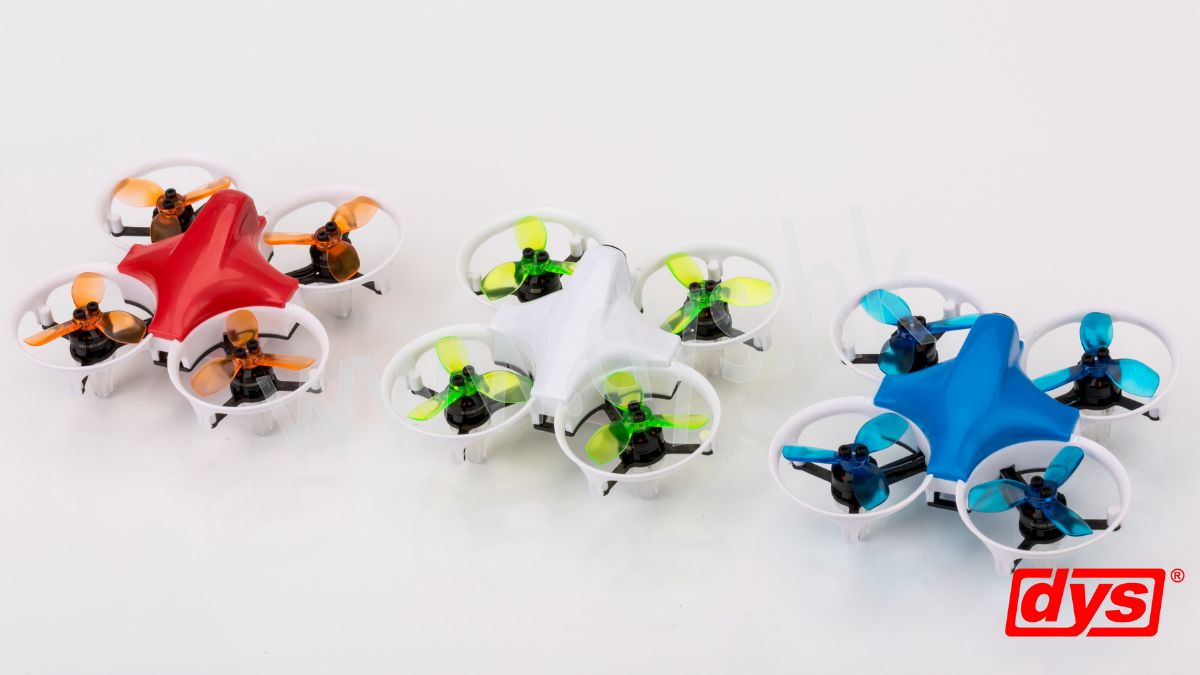

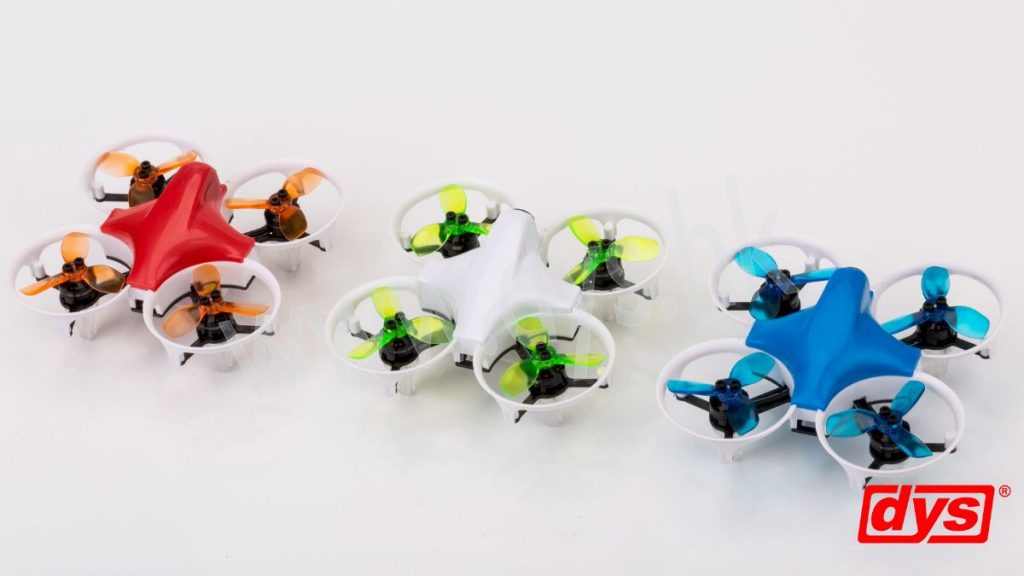

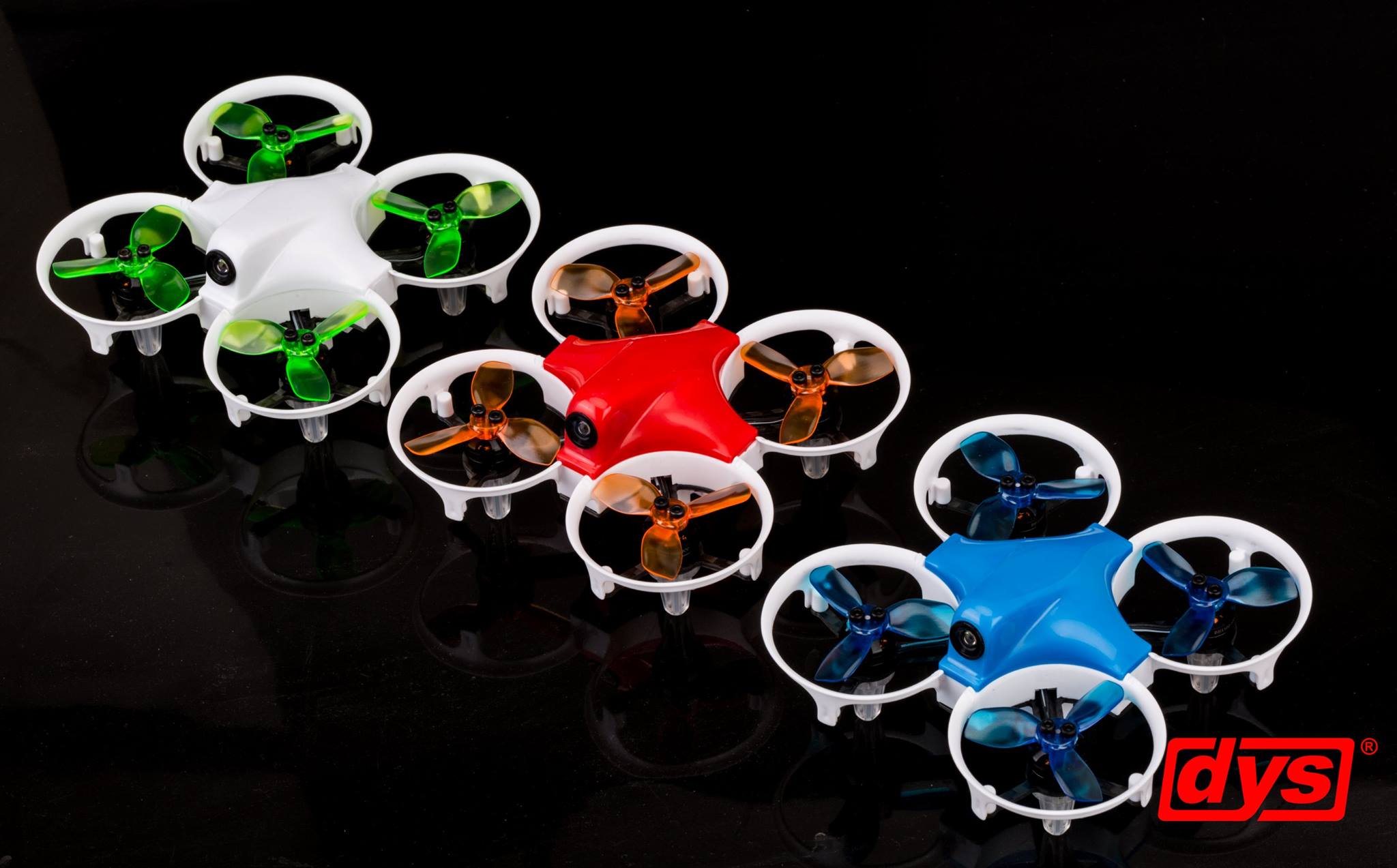

Rumors: DYS ELF – 83mm brushless Tiny Whoop

montis — Tue, 07 Mar 2017 10:58:04 +0000

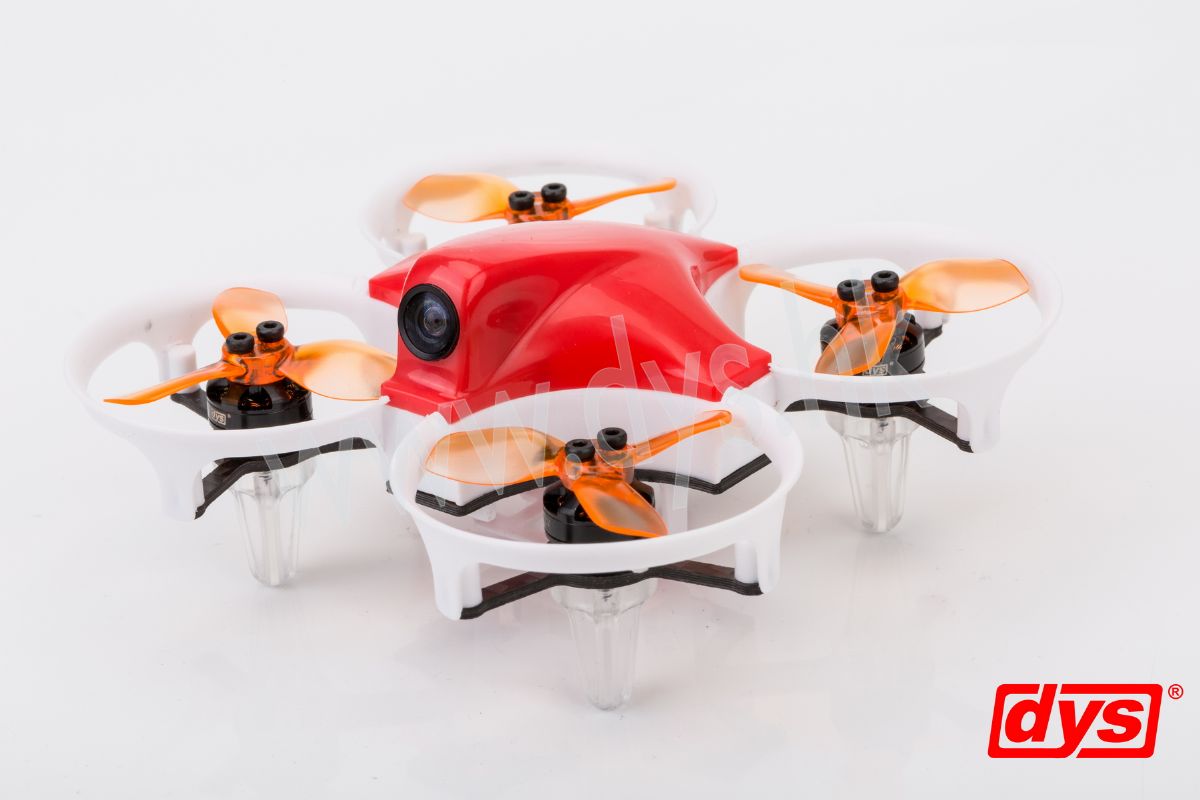

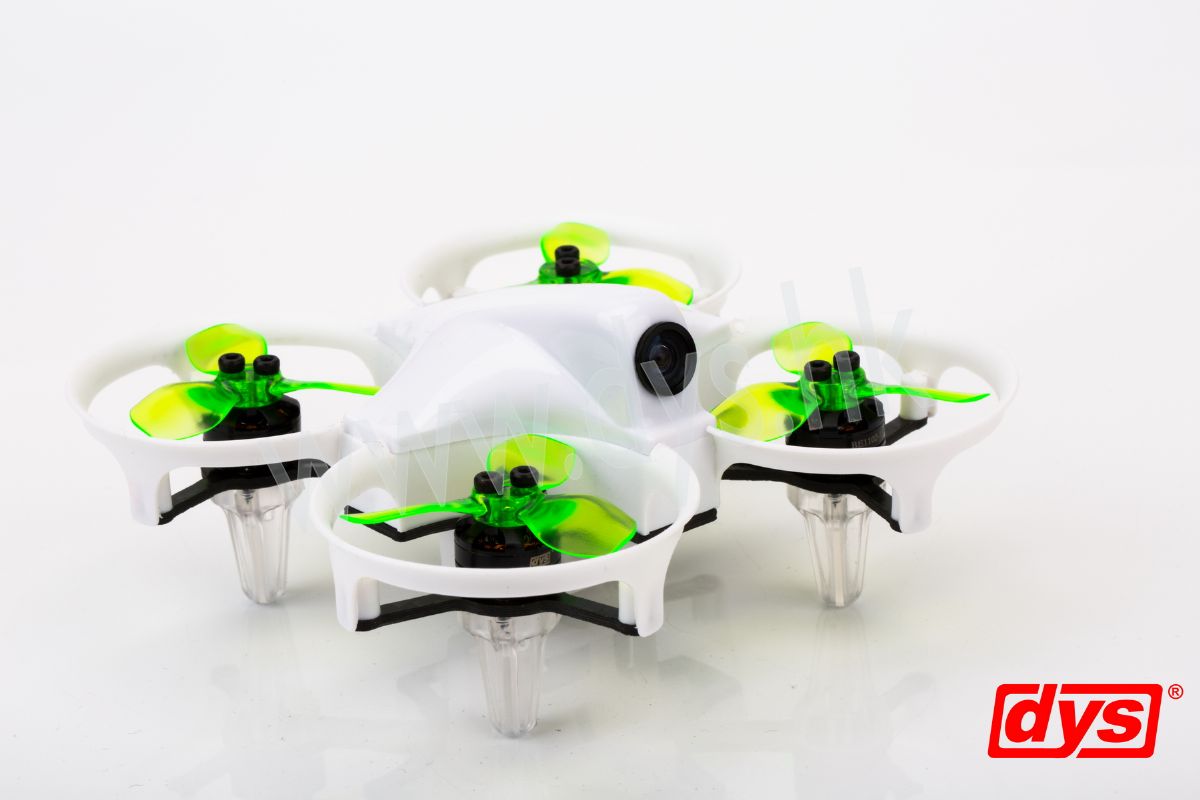

Looks like everyone is into micro brushless bussiness lately. DYS is working on their new brushless Tiny Whoop. It will have new DYS 1102 10000KV motors, DYS 2030 triblade propellers. This is all we know so far.

EDIT (2017-03-08): This tiny brushless whoop was listed @ Gearbest:?http://www.gearbest.com/brush-fpv-racer/pp_616204.html.?Preliminary price – $175.99. That’s a bit on the high side, but on the other hand it is listed as RTF bundle, including some unknown 2.4ghz transmitter. Other info:?F3?Flight Controller,? 7.4V 550mAh LiPo Battery,?BLHeli-S with 10A Continuous Current.

Also listed @ Banggood:?http://www.banggood.com/DYS-83mm-Micro-Brushless-FPV-Racing-Drone-F3-BLheli_S-Dshot-5_8G-25MW-48CH-VTX-BNF-RTF-p-1132509.html. Price without fancy new controller $148 and $166 with Frsky D8 mode compatible transmitter. I strongly advise to opt for this transmitter – only $18 more and you’ll get small and portable transmitter to throw into your backpack.

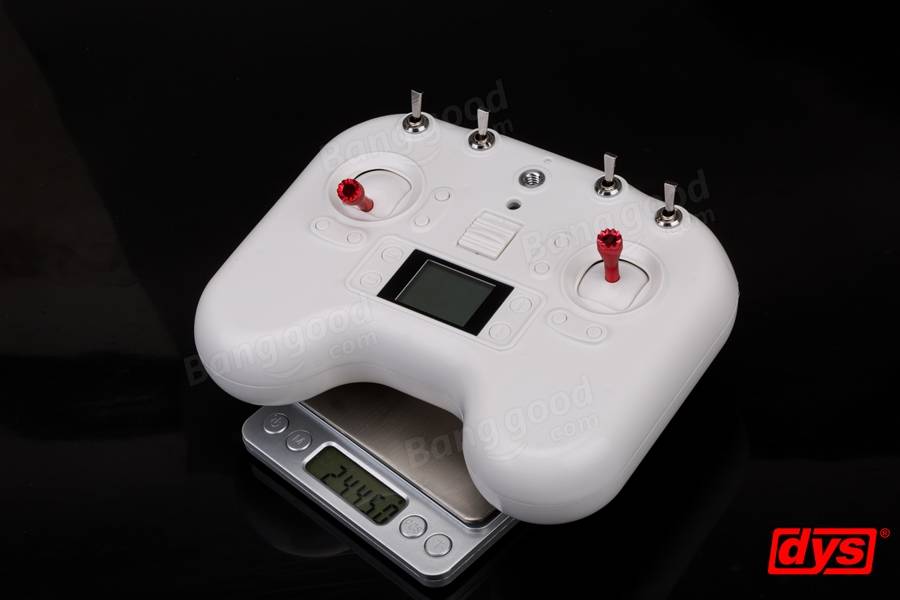

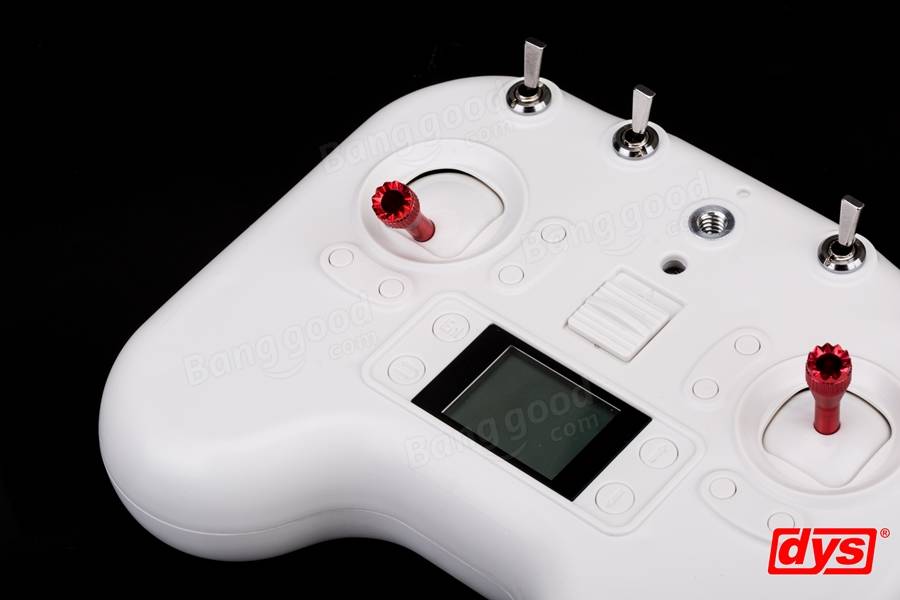

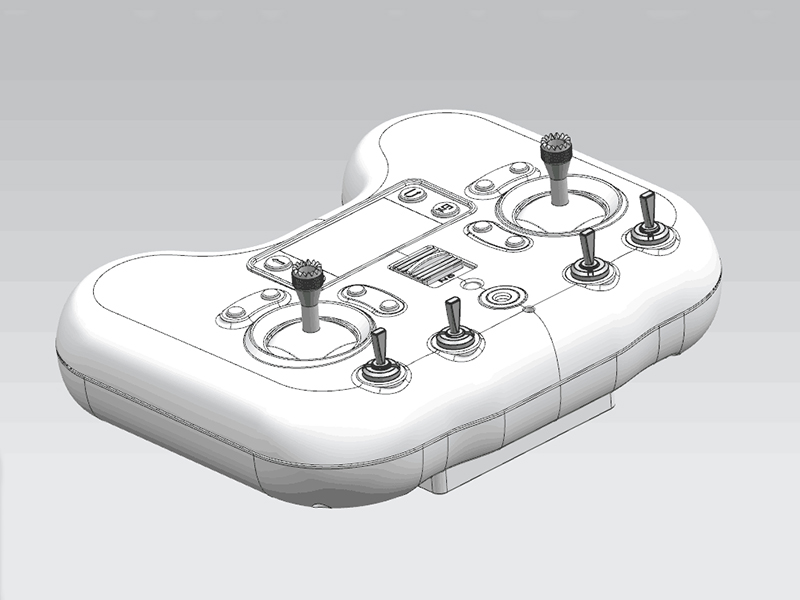

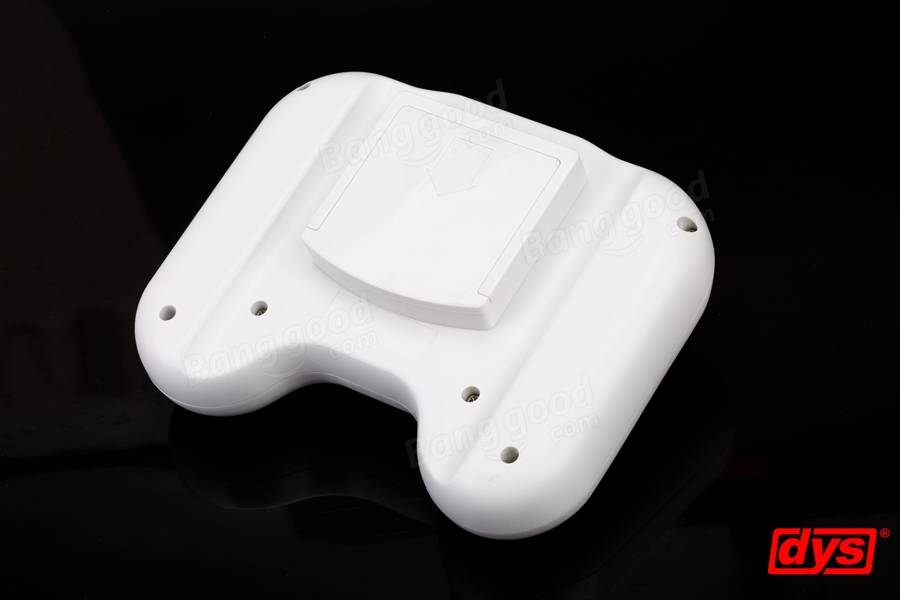

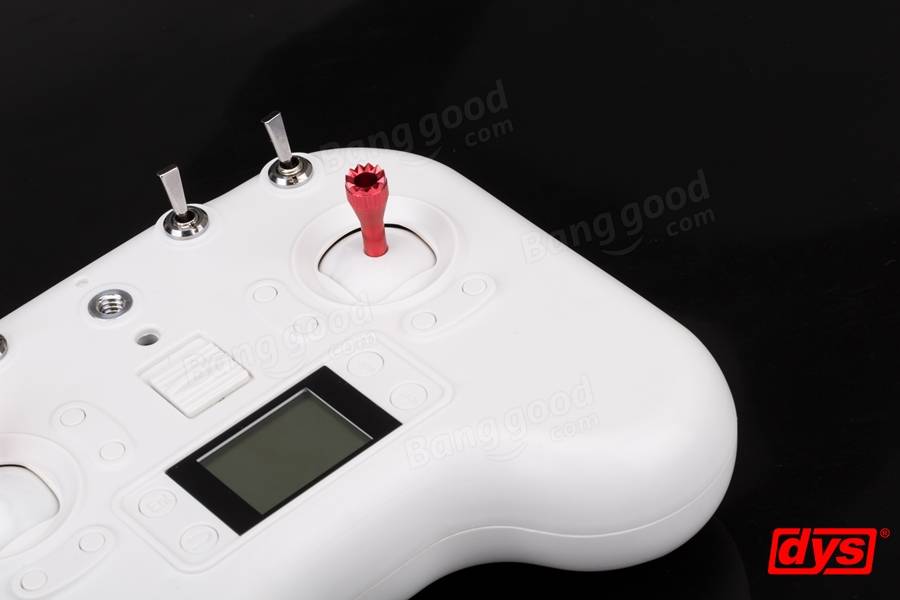

EDIT(2017-03-09): Possible picture of remote controller for this RTF quadcopter:

Source: www.foxtechpv.com

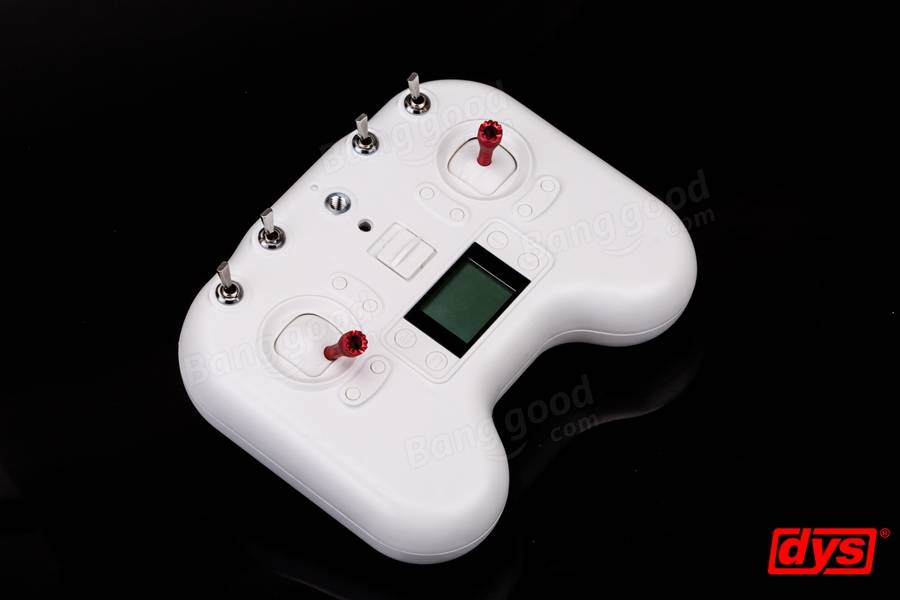

EDIT (2107-04-03): Some?photos of the new Frsky compatible transmitter.

And its got new name – DYS ELF 83mm brushless quad!
