Flywoo GOKU Versatile F4 5-IN-1 AIO

montis — Thu, 12 Aug 2021 23:10:11 +0000

Flywoo released the new whoop AIO board?GOKU Versatile F4 5-IN-1 AIO. It has?F411 MCU, built-in 250mw VTX,?1S 5A ESC， OSD, Frsky SPI receiver, 3 serial ports (one is softserial),?I2C functionality and?2 x WS2812 LEDs. This board has everything you need to build a whoop, just add the camera, motors and install it into frame.

The weight of the GOKU Versatile F4 AIO board is only 4 grams. One of the lightest whoop boards.

Available @ Flywoo:?https://flywoo.net/products/goku-versatile-f4-5-in-1-aio

Features?:
Built-in 250mw VTX, 1S 5A ESC, OSD and SPI Frsky receiver
Available 3 serial ports and 12C?functionality
Mounting Pattern: 25x25mm, M2
Ultra light weight 4g
Built-in?2XWS2812 LEDs
Reasonable layout , easy to build

Specifications:
Flight Controller
MCU:?STM32F411CEU6?
GYRO: MPU6000
UARTS: 1/2
Soft serial port：1
I2C: SCL/SDA
BEC: 5V
Input Voltage: 1S ( <4.35v)
Firmware:?FLYWOOF411FR
Mounting:??25x25mm, M2

Onboard 4in1 ESC
MCU: EFM8BB21
Power supply: 1S LiPo/LiPo HV? Current: 5A
Firmware: BLHeli_S
Factory firmware: O_H_5_REV16_8.HEX
Default protocol: DSHOT 150/300/600

Frsky SPI D8 receiver Version (optional)
SPI BUS receiver Frsky D8 compatible
Compatible Non EU transmitter D8? Channels: 8ch

Onboard 5.8g VTX
Output power: 25mW~250mW switchable
Frequency: 40CH
Frequency: 5.8GHz 5 bands 40 channels(include Race band) IRC ready

Weekly news & new products: Week 35

montis — Sun, 30 Aug 2020 22:29:35 +0000

(Almost) weekly news. This is compilation of the new products, news and other interesting events in the RC hobby world that appeared or happened in the last week.

RunCam Racer 4 digital FPV Camera

Followup of the digital RunCam drama. Gal Kremer got his hands on the new RunCam Racer 4 camera and showed the actual footage recorded with DJI Air unit. So we know that RunCam Racer 4 actually works with the DJI system and even DJI can’t do anything about it.

HGLRC AEOLUS 2207.5 motors

HGLRC announced the new AEOLUS 2207.5 motors with 1750KV, 1900KV and 2550KV options.

Kakute F7 mini V3 FC

Holybro released upgraded Kakute F7 mini V3. Redesigned layout, added port for connecting DJI Air or Caddx Vista digital unit. One of the best user manual’s in the market.

Kakute F7 mini V3 FC User Manual: http://www.holybro.com/manual/Holybro_KakuteF7_Mini_V3_Manual_v1.0.pdf

Available @ Banggood: https://www.banggood.com/Upgrade-20x20mm-Holybro-KAKUTE-F7-Mini-V3-…-1449223.html

JHEMCU GHF411 Pro 35A ESC AIO

JHEMCU released updated GHF411 Pro AIO board with, redesigned layout, larger motor pads, added DJI Air unit support, 5V and 9V BEC, added blackbox, 2-6S battery input and 35A ESC. Killer specs for unbelievably low price (~ 34$).

Available @ Banggood: https://www.banggood.com/Upgrade-25_5x25_5mm-JHEMCU-GHF411AIO-Pro-F4-…-1652742.html

HQProp 76mm 6 blades cinewhoop prop

HQProp posted a photo of the upcoming 6 bladed 3 inch propeller for cinewhoops. This prop should make less noise than props with less blades.

https://www.banggood.com/HQProp-Duct-75MMX6-75mm-3-Pitch-6-Blades-…-1740462.html

Source: Facebook, web

Racerstar StarF7 AIO FC board with 40A 4in1 ESC

montis — Mon, 13 Jul 2020 22:56:57 +0000

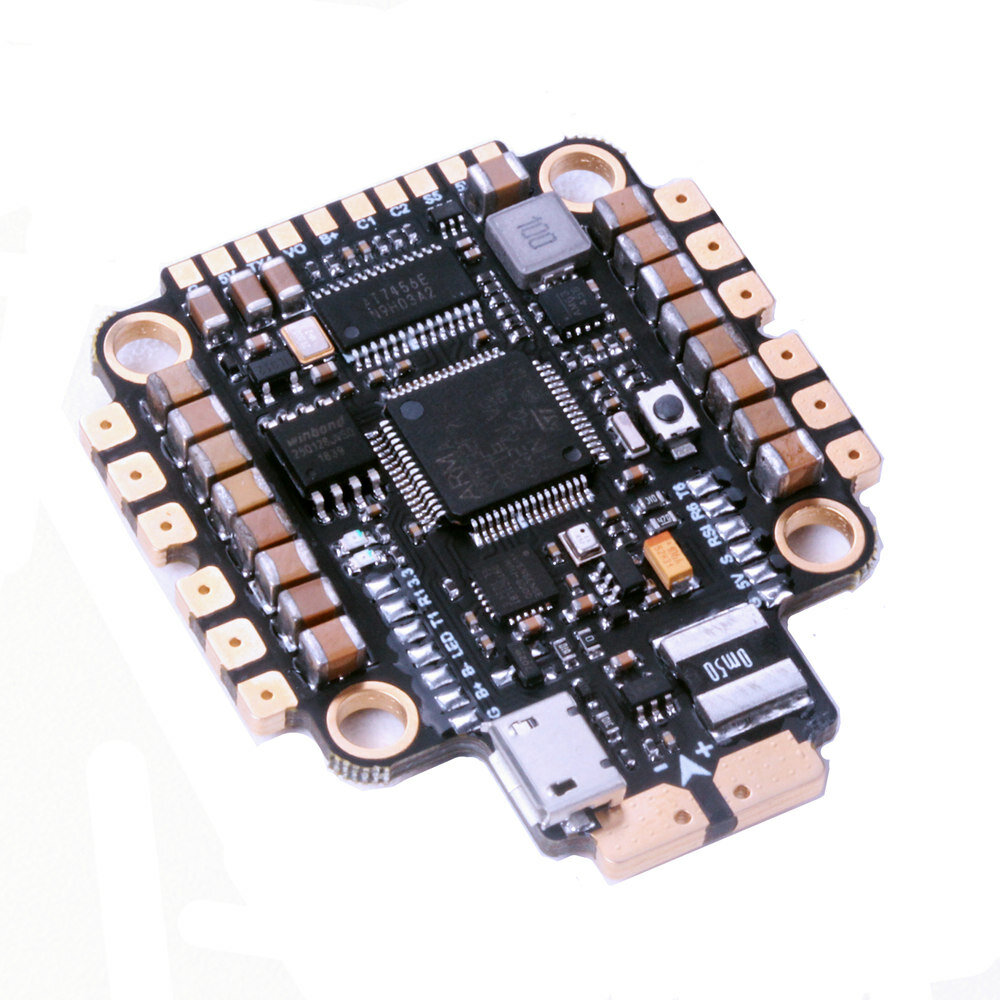

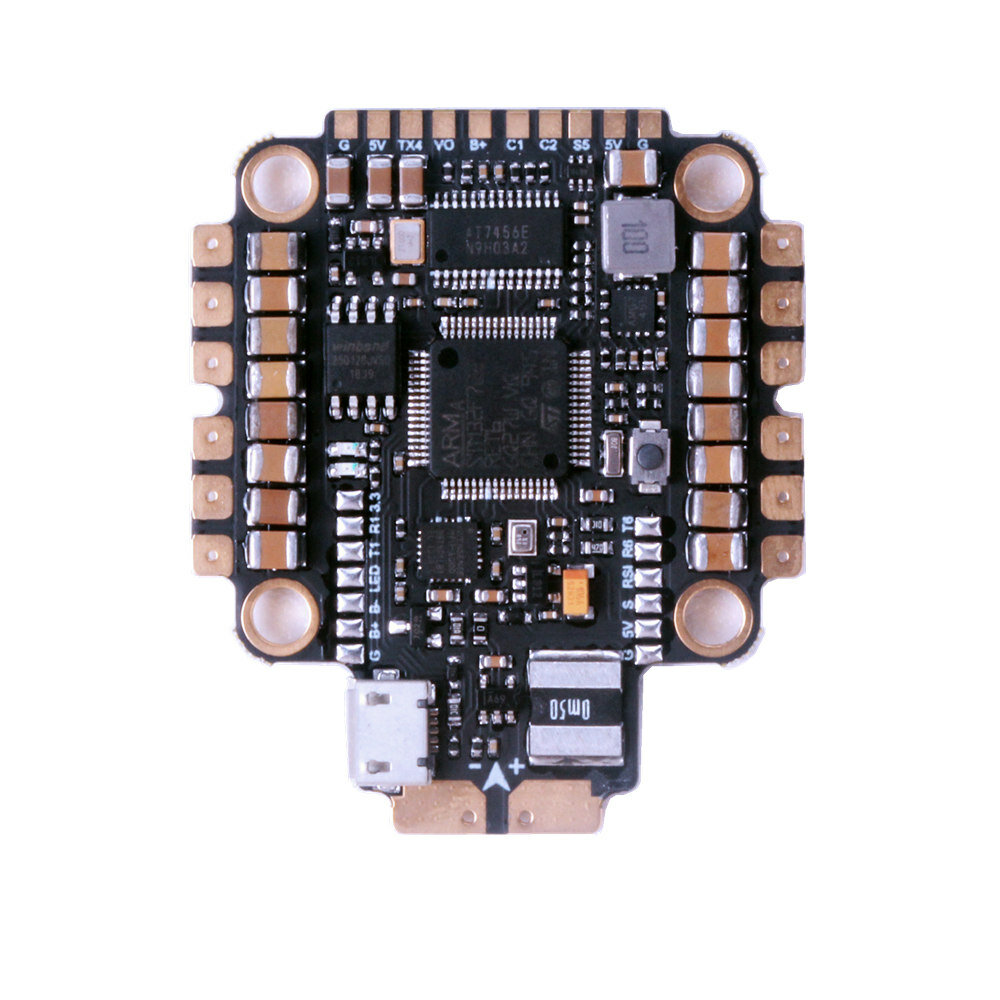

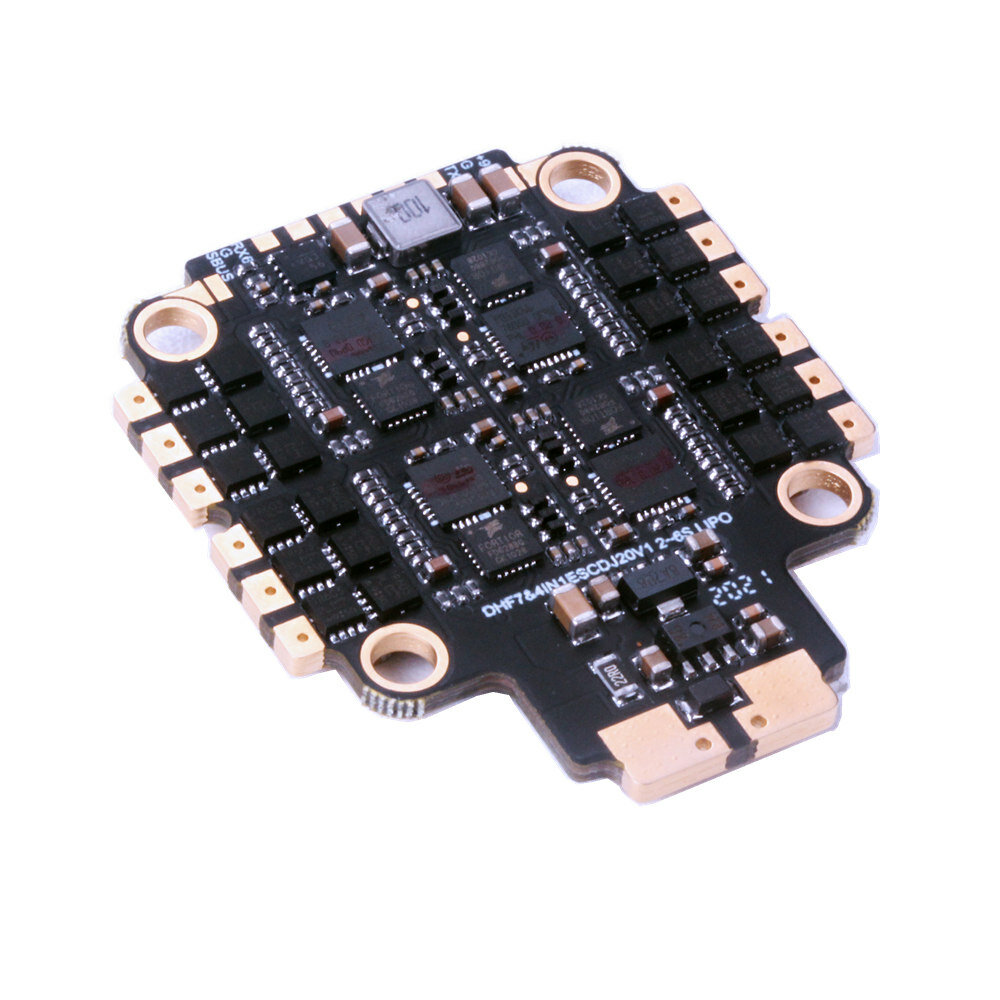

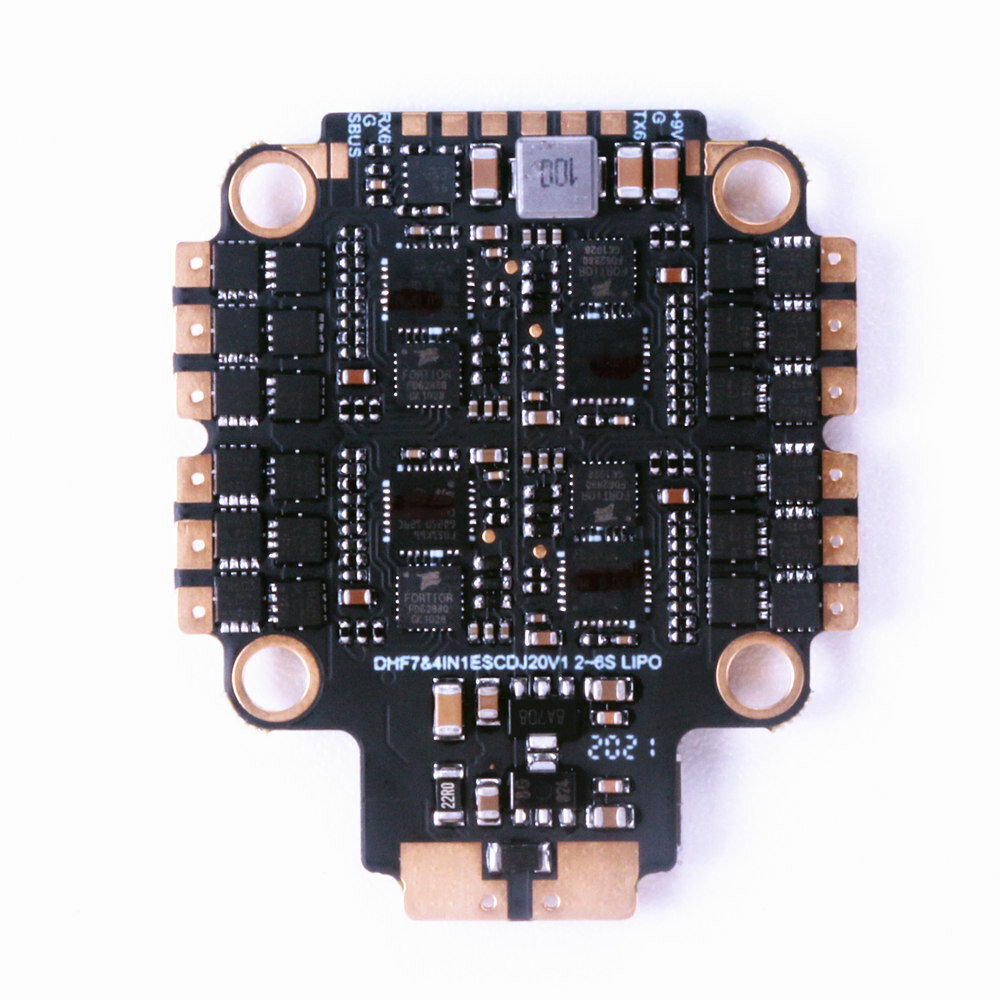

Racerstar released an interesting AIO flight controller StarF7. It is single board AIO flight controller with 4in1 ESC on the same board. It is the same type of the flight controller as Lumenier ALPHA AIO F4 FC with 30A BLHeli_32 ESC and Racerstar TattooF4S FC with 30A BLHELI_32 4in1 ESC.

Racerstar StarF7 has F722 MCU on board, ESCs run BLHeli_32 firmware, are rated for 40A continuous (45A burst) current and supports 2-6S battery input.

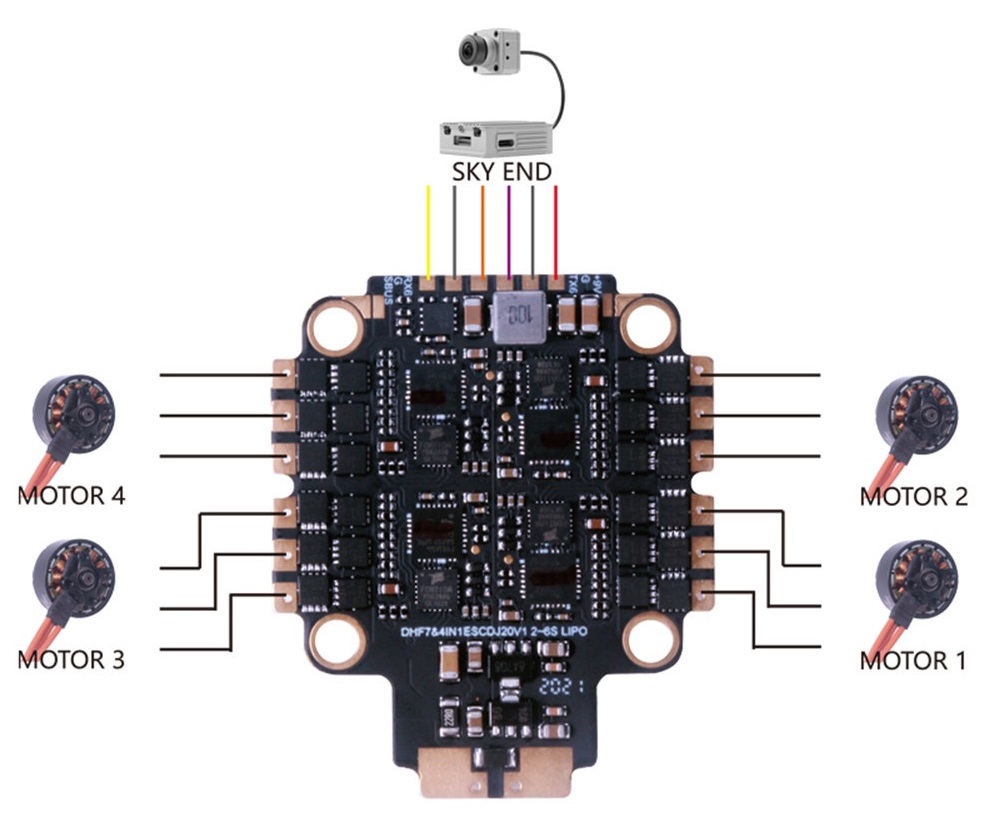

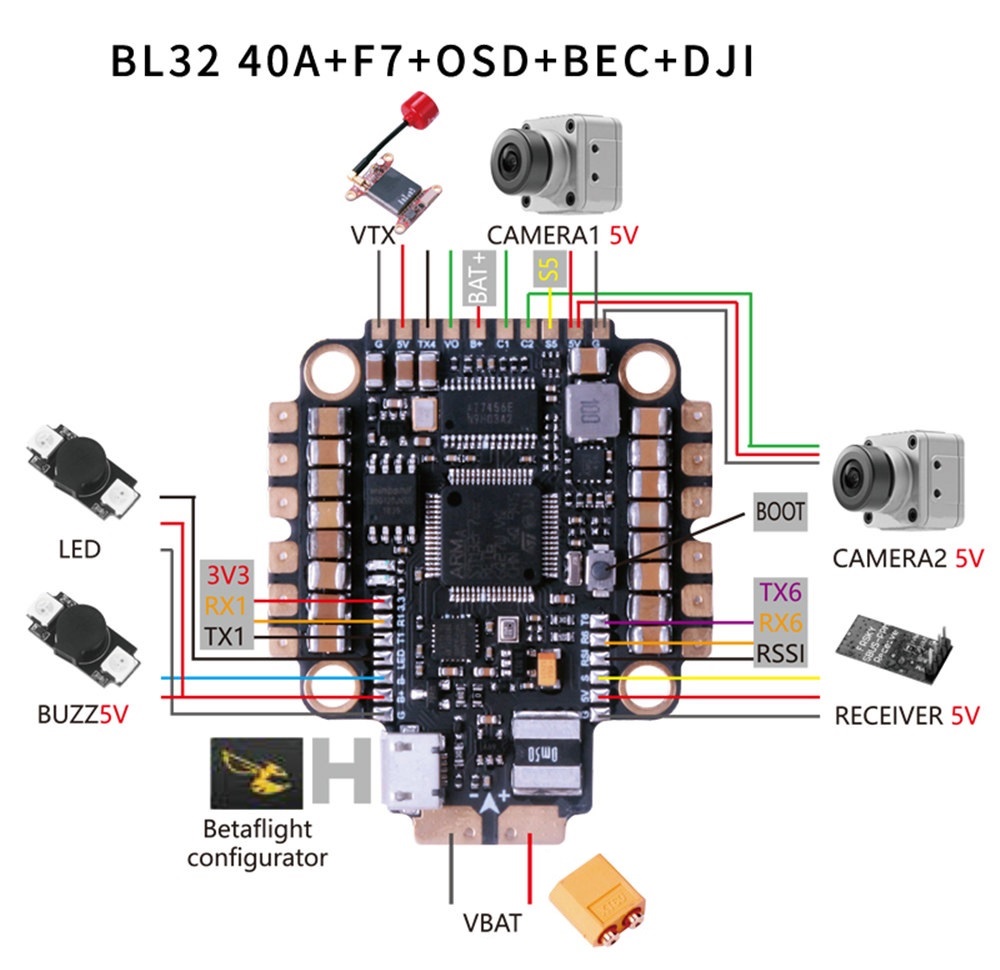

AIO flight controller uses most popular MPU6000 Gyro connected via SPI interface. Board provides 5V/2A and 9V/3A regulated power source for DJI digital FPV system. There are special solder pads for connecting the DJI Air module on the bottom side of the FC.

You can also find Barometer, Current sensor, OSD and flash memory for black box on the board. There are two switchable camera inputs, so you can hook up two cameras on one quad. Total weight of the board is 30g.

Available @

Banggood: https://www.banggood.com/30_5x30_5mm-Racerstar-StarF7-F7-Flight-Controller-AIO-…-1706211.html

Specification:

Model: StarF7 Flight Controller AIO 40A 4in1 ESC Board
Input Voltage: Support 2-6S Lipo
Size: 51x43mm
Mounting Hole: 30.5×30.5mm ( M4)
Weight: 30g

F7+OSD+BEC+CURRENT+DJI+BLACK BOX (DUAL CAMERA)

Input Voltage: 2-6S Lipo

Output Voltage: 5V@2A

CPU: STM32F722RET6

ICM-MPU6000 Accelerometers and Gyroscopes SPI

– MicroUSB Socket

BlackBox

40A BLheli_32 2-6S 4in1 Brushless ESC

Con. Current: 40A

Burst Current: 45A (10S)

BEC: 9V/3A

Programming: YES

Support DShot1200 In default

Package Included:

1x Racerstar StarF7 F7 FC AIO 40A ESC Board

1x bag of Screws

1x Cable
