Flywoo Firefly 1S Nano Baby Quad

montis — Wed, 18 Aug 2021 20:53:18 +0000

Firefly 1S Nano Baby?is the smallest and the lightest quadcopter from Flywoo. It is equipped with newly released Flywoo GOKU Versatile 5in1 AIO?flight controller?with integrated VTX and Frsky RX on board. The all-in-one flight controller weight is only 4g.?New Flywoo ROBO 0802.4 16500KV brushless motors are equipped with the new Gemfan 40mm propellers. FPV camera is new Flywoo 1S Nano camera (looks completely the same as Caddx Ant Lite camera) with the weight of only 1.2g (this weight is without wires).

As you can see almost all the?Firefly 1S Nano Baby quad components are new or at least newly rebranded ones.

Total weight of the?Firefly 1S Nano Baby quad is only 20.4g and it is capable of flying up to 8 minutes and more with Flywoo’s new (see, also new!) 1S 450mah battery.

Flywoo Firefly 1S Nano Baby quad flight video.

Available @ (preorder)

Flywoo:?https://flywoo.net/collections/new/products/firefly-1s-nano-baby-quad-40mm

Makerfire?(5% discount code: ‘Montis‘):?https://shop.makerfire.com/collections/new-arrival/products/flywoo-firefly-1s-nano-baby-quad-40mm

Specifications:

Flight Controller: GOKU Versatile F4 5-IN-1 1S AIO W/250mw VTX
MCU: STM32F411CEU6
GYRO: MPU6000
UARTS:1/2
Soft serial port:?1
I2C: SCL/SDA
BEC: 5V
Input Voltage: 1S (<4.35v)
Firmware: FLYWOOF411FR
Mounting: 25x25mm, M2

Motor: ROBO 0802.4 16500KV Fpv Motor
Compatible Propellers: Gemfan 40mm
Camera:?1.2g Flywoo 1S Nano Camera
Recommend Battery: GNB 450mAh 1S 80C Lipo Battery for tiny quad -PH 2.0(Not include)
Receiver: SPI Frsky\Elrs 2.4G\TBS CRSF
Flight time: 8mins with GNB 450mAh 1S 80C Lipo Battery for tiny quad -PH 2.0

Weight: 20.4g

Flywoo GOKU Versatile F4 5-IN-1 AIO

montis — Thu, 12 Aug 2021 23:10:11 +0000

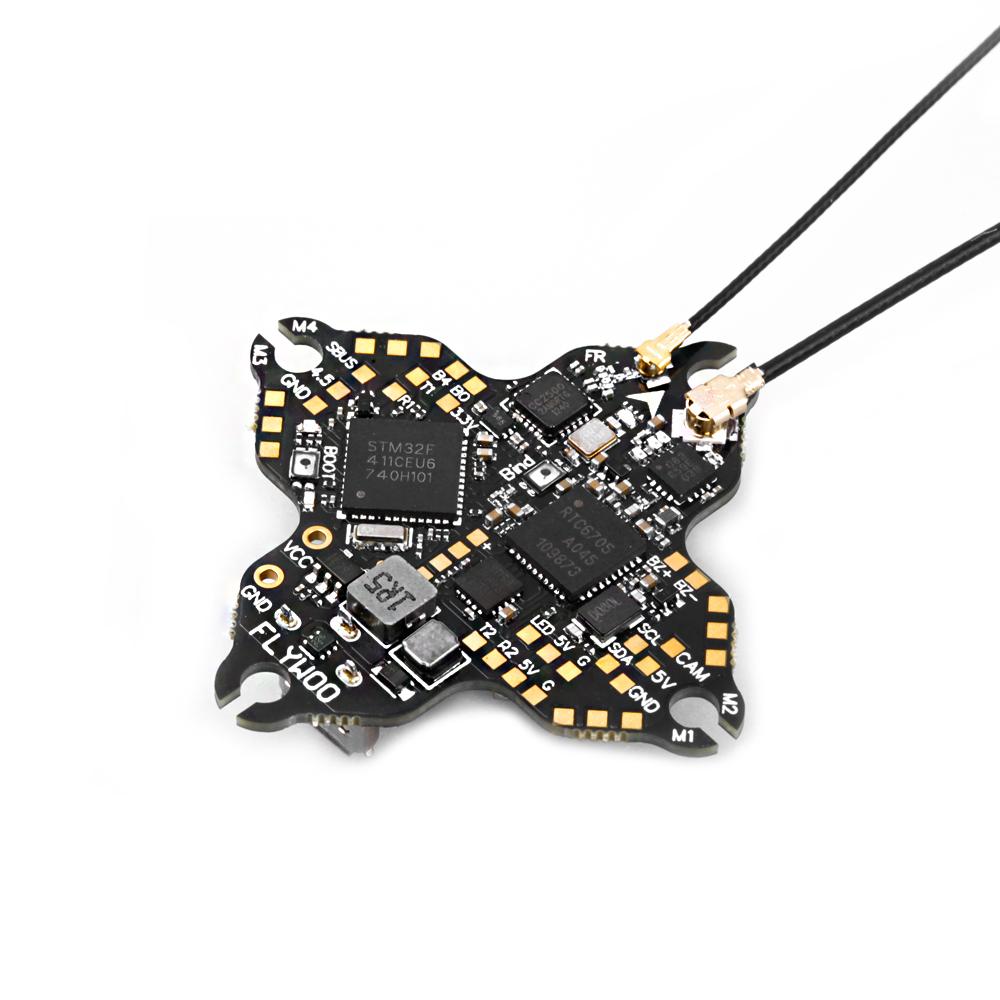

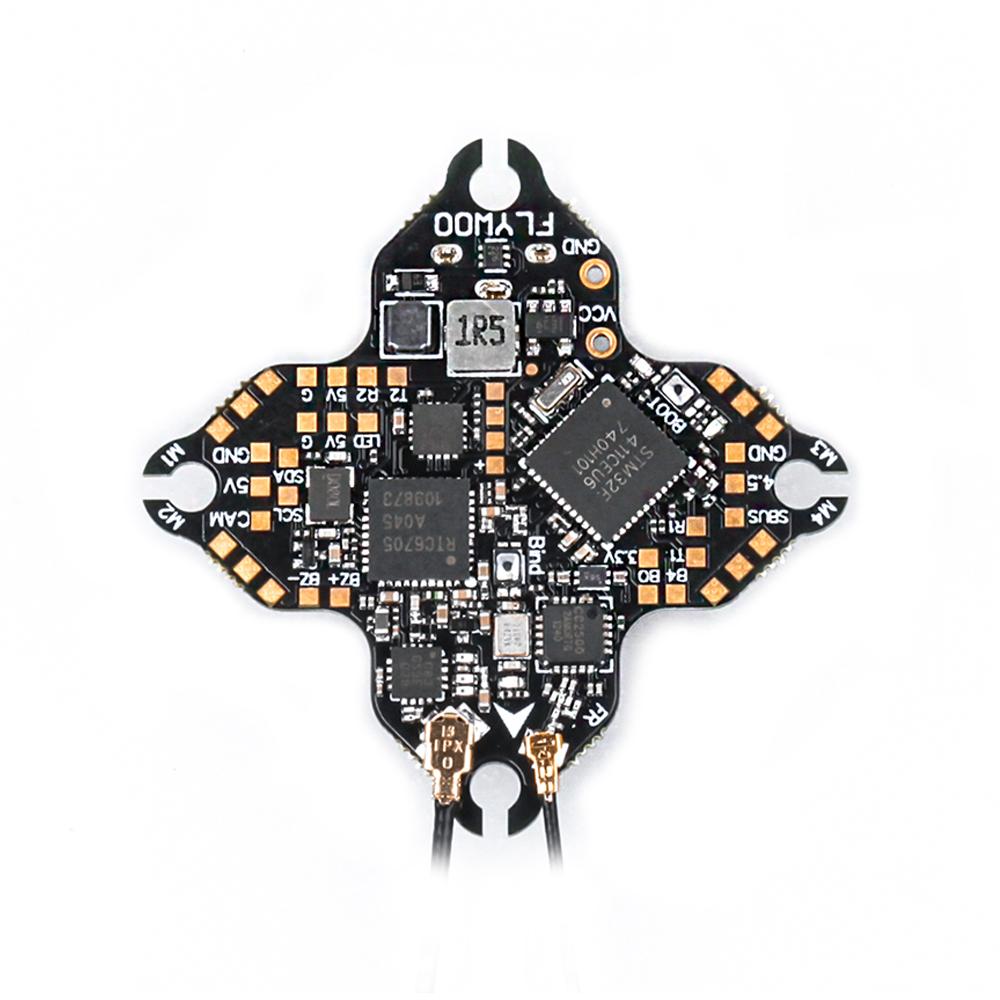

Flywoo released the new whoop AIO board?GOKU Versatile F4 5-IN-1 AIO. It has?F411 MCU, built-in 250mw VTX,?1S 5A ESC， OSD, Frsky SPI receiver, 3 serial ports (one is softserial),?I2C functionality and?2 x WS2812 LEDs. This board has everything you need to build a whoop, just add the camera, motors and install it into frame.

The weight of the GOKU Versatile F4 AIO board is only 4 grams. One of the lightest whoop boards.

Available @ Flywoo:?https://flywoo.net/products/goku-versatile-f4-5-in-1-aio

Features?:
Built-in 250mw VTX, 1S 5A ESC, OSD and SPI Frsky receiver
Available 3 serial ports and 12C?functionality

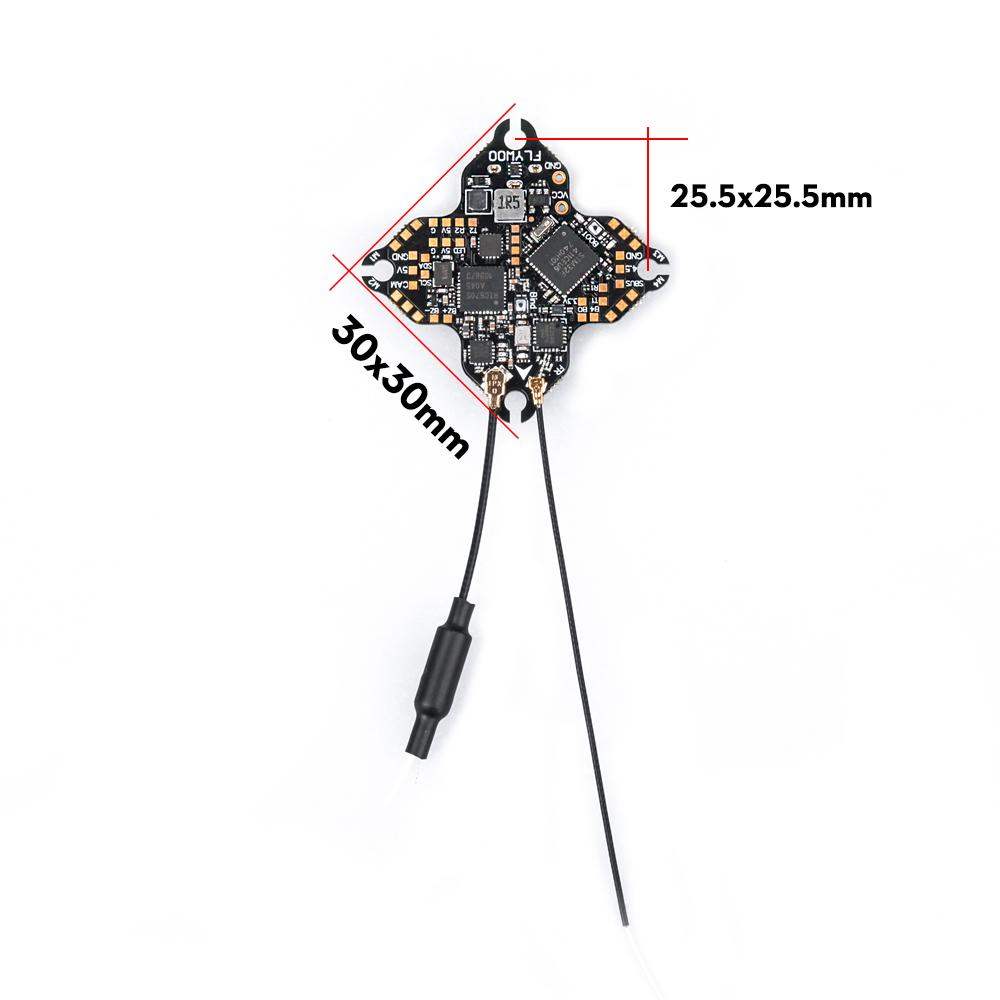

Mounting Pattern: 25x25mm, M2
Ultra light weight 4g

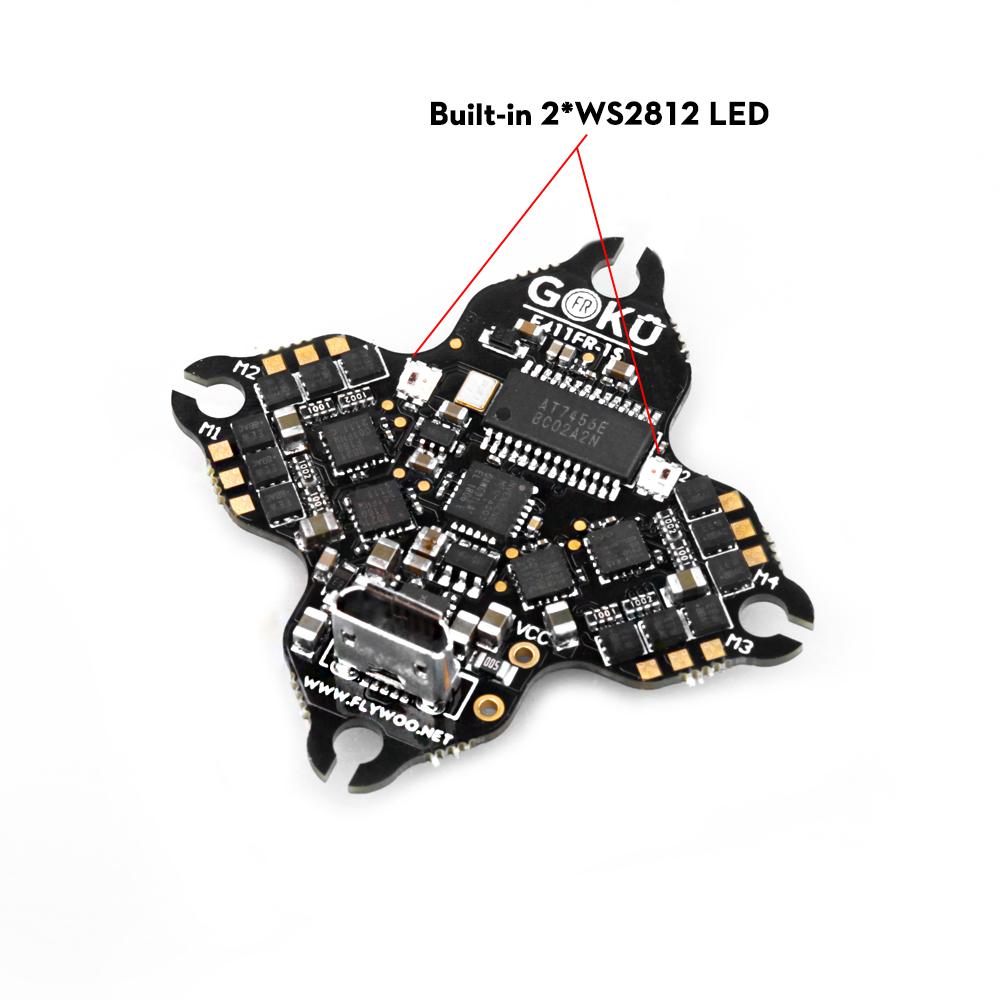

Built-in?2XWS2812 LEDs
Reasonable layout , easy to build

Specifications:
Flight Controller
MCU:?STM32F411CEU6?
GYRO: MPU6000
UARTS: 1/2
Soft serial port：1
I2C: SCL/SDA
BEC: 5V
Input Voltage: 1S ( <4.35v)
Firmware:?FLYWOOF411FR
Mounting:??25x25mm, M2

Onboard 4in1 ESC
MCU: EFM8BB21
Power supply: 1S LiPo/LiPo HV? Current: 5A
Firmware: BLHeli_S
Factory firmware: O_H_5_REV16_8.HEX
Default protocol: DSHOT 150/300/600

Frsky SPI D8 receiver Version (optional)
SPI BUS receiver Frsky D8 compatible
Compatible Non EU transmitter D8? Channels: 8ch

Onboard 5.8g VTX
Output power: 25mW~250mW switchable
Frequency: 40CH
Frequency: 5.8GHz 5 bands 40 channels(include Race band) IRC ready
