1 Happymodel and BetaFPV ELRS receivers with TCXO
http://www.dzskam.com/news/happymodel-and-betafpv-elrs-receivers-with-tcxo/
http://www.dzskam.com/news/happymodel-and-betafpv-elrs-receivers-with-tcxo/#respondWed, 23 Nov 2022 19:41:28 +0000http://www.dzskam.com/?p=11770All ExpressLRS transmitters and receivers work on the certain frequency. Both devices must operate on the exact frequency in order to be able to talk to each other. The precision of the frequency is mostly dependable on the crystal oscillator (XO). This makes crystal oscillator the very important part in the ELRS hardware.
One of the most notorious problems with ExpressLRS hardware is that some manufacturers hardware have unacceptable high frequency error. And in the high or low temperatures it gets even worse. There is certain threshold of the frequency error for the link to work. Up to 40 ppm error (=~100 kHz) frequency difference is considered still acceptable.
BetaFPV SuperD receiver is the first ExpressLRS receiver with full dual diversity and temperature compensated crystal. Receiver has two SX1280 LoRa RF ICs, two PA/LNA amplifiers and two antenna connectors. Power amplifier provides 100mW for telemetry link.
Both manufacturers dual diversity receivers have multicolored LED for status indication. SuperD and EP1 Dual receiver RGB status indication is shown below.
RGB Color
Status
Description
Rainbow
Fade effect
Power on
Green
Quick flash
WIFI upgrading mode
Red
Quick flash
No RF chip detected
Orange
Double flash
Binding mode
Orange
Triple flash
Connected, but mismatched model-match configuration
Orange
Slow flash
Waiting for connection
Solid on
Connected and color indicates packet rate (see below)
The RGB light color corresponding to the packet rate
]]>http://www.dzskam.com/news/happymodel-and-betafpv-elrs-receivers-with-tcxo/feed/0Happymodel Pancake FC
http://www.dzskam.com/news/happymodel-pancake-fc-vtx-rx/
http://www.dzskam.com/news/happymodel-pancake-fc-vtx-rx/#respondMon, 20 Jun 2022 12:30:00 +0000http://www.dzskam.com/?p=11375Happymodel has added another flight controller in their portfolio – Happymodel Pancake FC with integrated OpenSource VTX and ExpressLRS RX. It is rare to see video transmitter and radio receiver integrated on the single FC board, except highly integrated whoop/toothpick AIO boards. Happymodel Pancake is an interesting exception.
Happymodel Pancake is powered by STM32F411 MCU and has old trusty MPU6000 gyro. Flight controller can be powered from 2-6S battery directly and has only one 5V power out regulator on board.
The board has multiple (20x20mm and 30.5×30.5mm) mounting options. The FC itself is 20x20mm mount size with breakable tabs for mounting on the bigger 30.5×30.5mm stack.
Onboard video transmitter is based on the open source project Open VTX (https://github.com/OpenVTx/OpenVTx). It can output 0, 25, 100 and 400mW output power. OpenVTX firmware also has so called RCE (Race) mode. It will force pitmode on boot and only use 25mW.
Onboard ExpressLRS receiver is connected directly to the MCU via SPI interface. This means the ExpressLRS receiver firmware is embedded into the Betaflight source code. You cannot update the ExpressLRS firmware separately from the Betaflight firmware. New ExpressLRS firmware versions must be updated in the Betaflight code and we all know how rarely the new Betaflight versions are released (approximately once in a year). This is the biggest problem with integrated SPI RX. ExpressLRS receiver has ceramic antenna on the board, so you don’t need to worry where to place the receiver antenna. The range is somehow limited in comparison to the regular antenna, so this board is definitely not for the long range.
Receiver Packet Rate option: 50Hz/150Hz/250Hz/500Hz Support ExpressLRS v2.0 or latest* RF Frequency: 2.4GHz Antenna: SMD ceramic antenna Telemetry output Power: <12dBm Receiver protocol: SPI ExpressLRS Compatible with ExpressLRS V2.0 TX Module ExpressLRS firmware cannot be flashed separately
Onboard 5.8g OPENVTX
Firmware: OpenVTX Smartaudio v2.1 PIT Mode support RCE Mode support Channels: 48ch Transmitting Power: 0/RCE/25mw/100mw/400mw Power supply: DC 5V Current (5v): <650ma (400mw) Antenna connector: U.FL
]]>http://www.dzskam.com/news/happymodel-pancake-fc-vtx-rx/feed/0Happymodel Mobula7 1S ELRS whoop

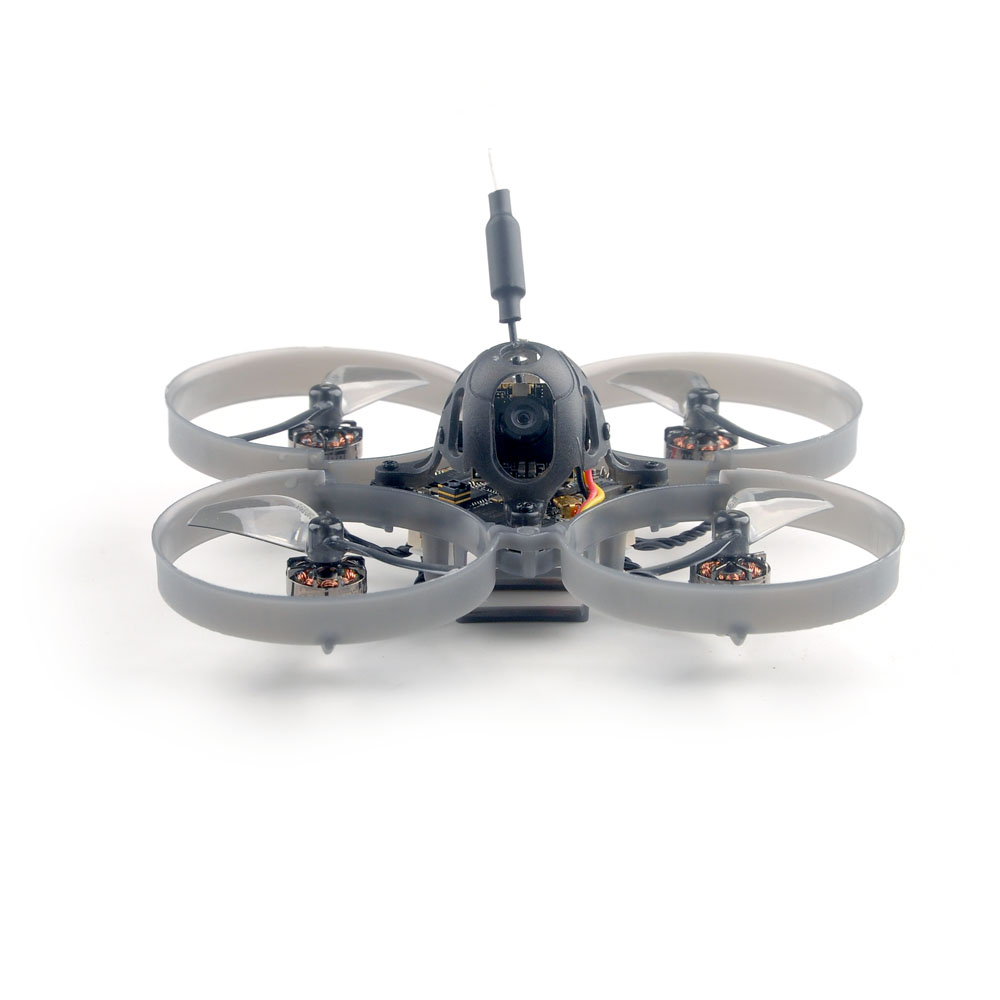

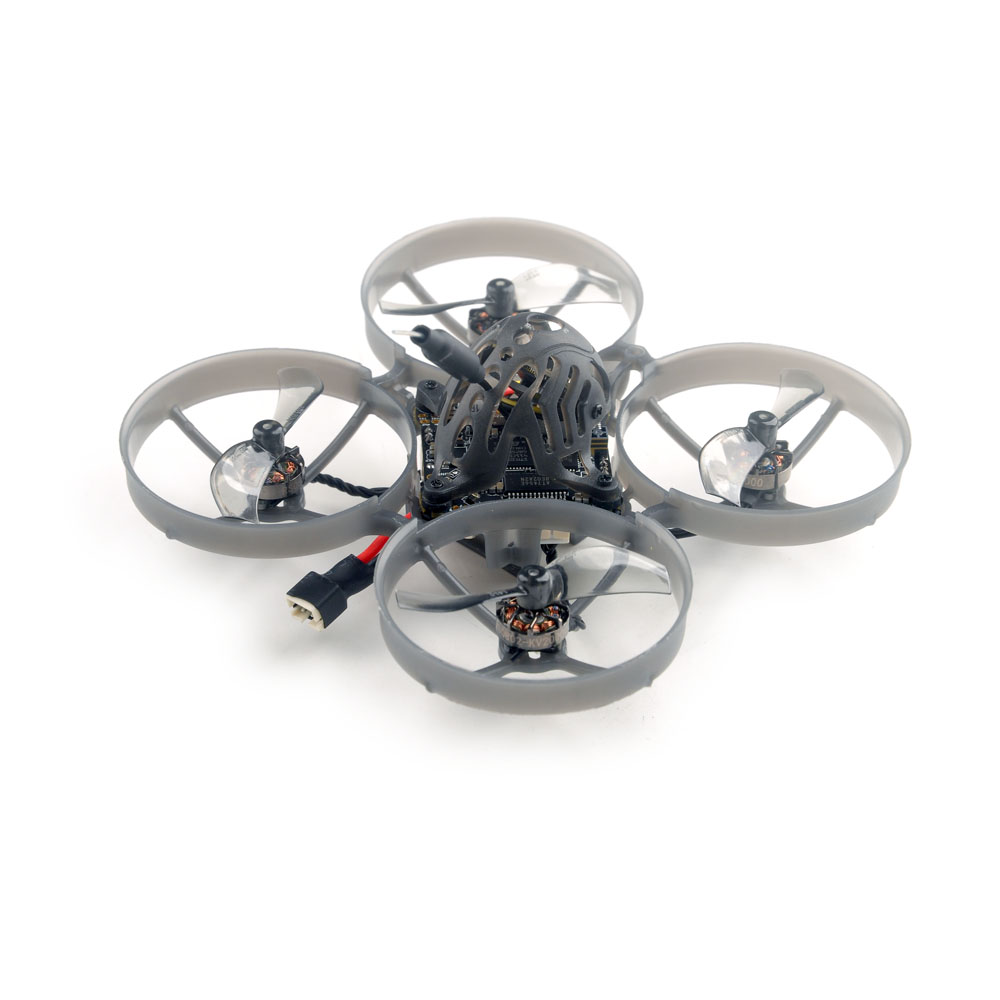

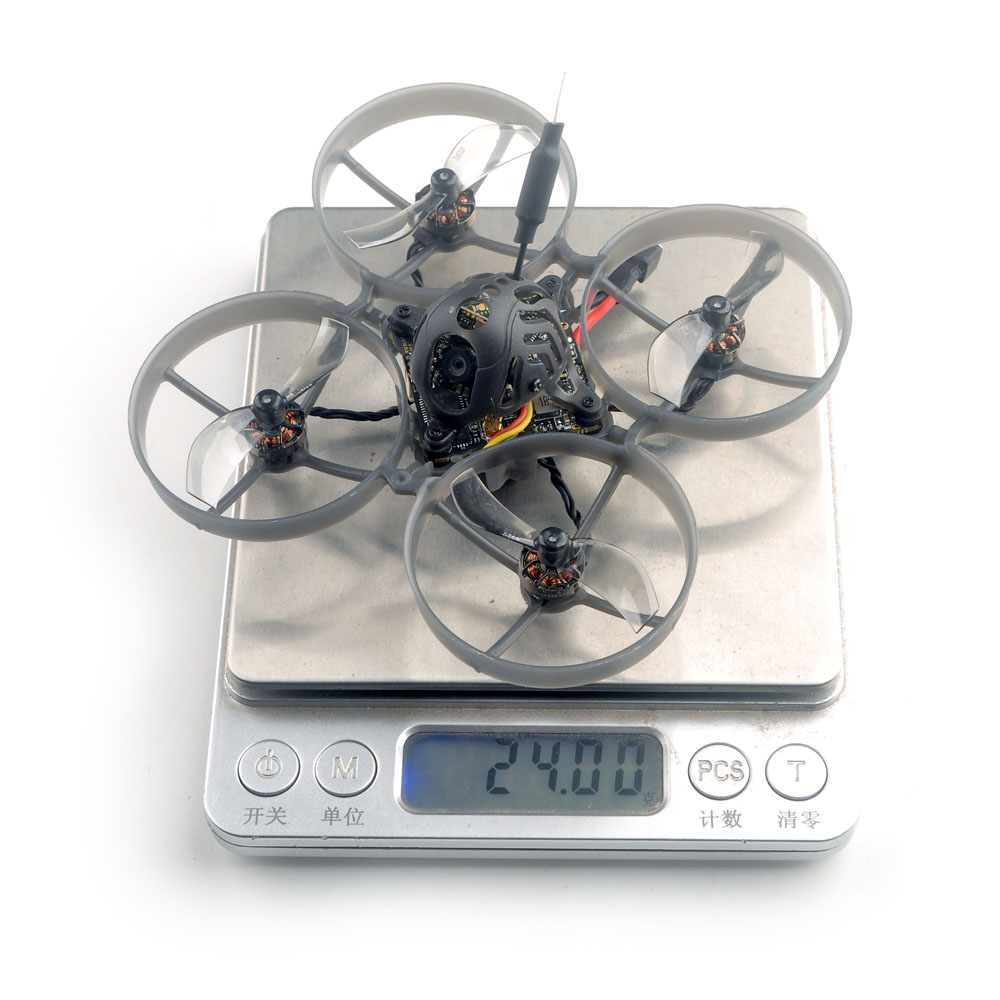

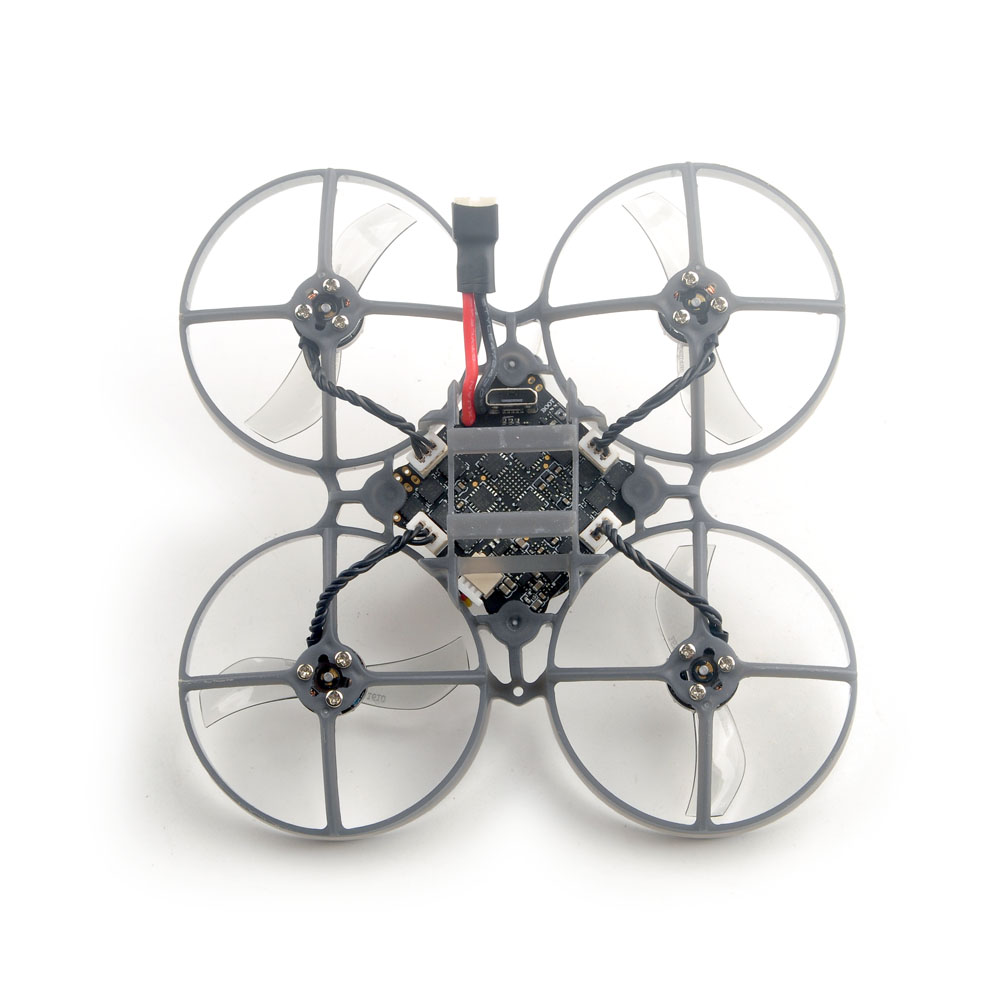

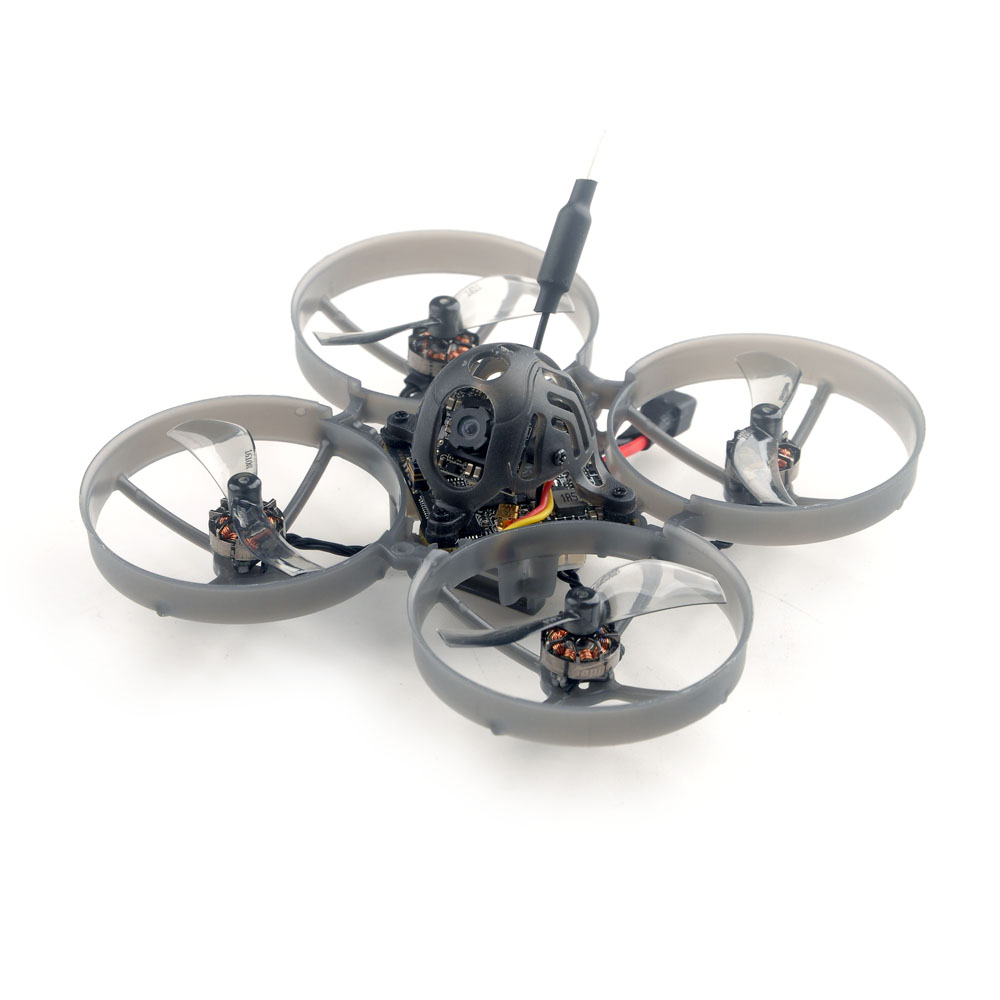

http://www.dzskam.com/news/happymodel-mobula7-1s-elrs-whoop/
http://www.dzskam.com/news/happymodel-mobula7-1s-elrs-whoop/#commentsFri, 21 Jan 2022 00:50:30 +0000http://www.dzskam.com/?p=10972Happymodel is releasing the new Mobula7 brushless whoop with the new Happymodel X12?5-in-1 AIO flight controller with integrated ExpressLRS receiver, OPENVTX (up to 400mw), 12A Brushless Blheli_S ESC and Betaflight OSD.

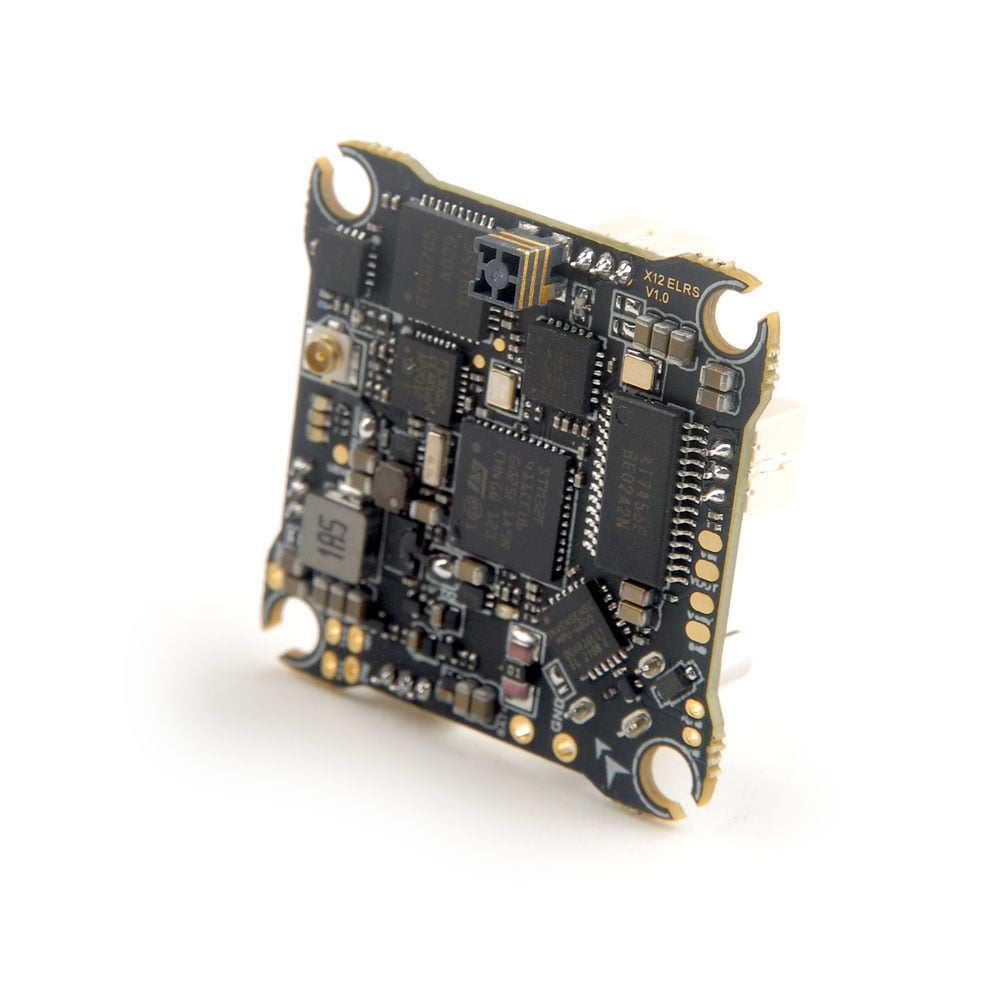

Happymodel X12?5-in-1 AIO flight controller has on board Express LRS 2.4GHz receiver, connected via SPI bus. This means that ExpressLRS firmware updates are possible only by updating the Betaflight firmware as ExpressLRS receiver code is included inside the Betaflight.?Happymodel X12 AIO also has on board VTX with OpenVTX firmware. This means the VTX supports SmartAudio and IRC Tramp control protocols. VTX is capable of outputting up to 400mW of RF power.

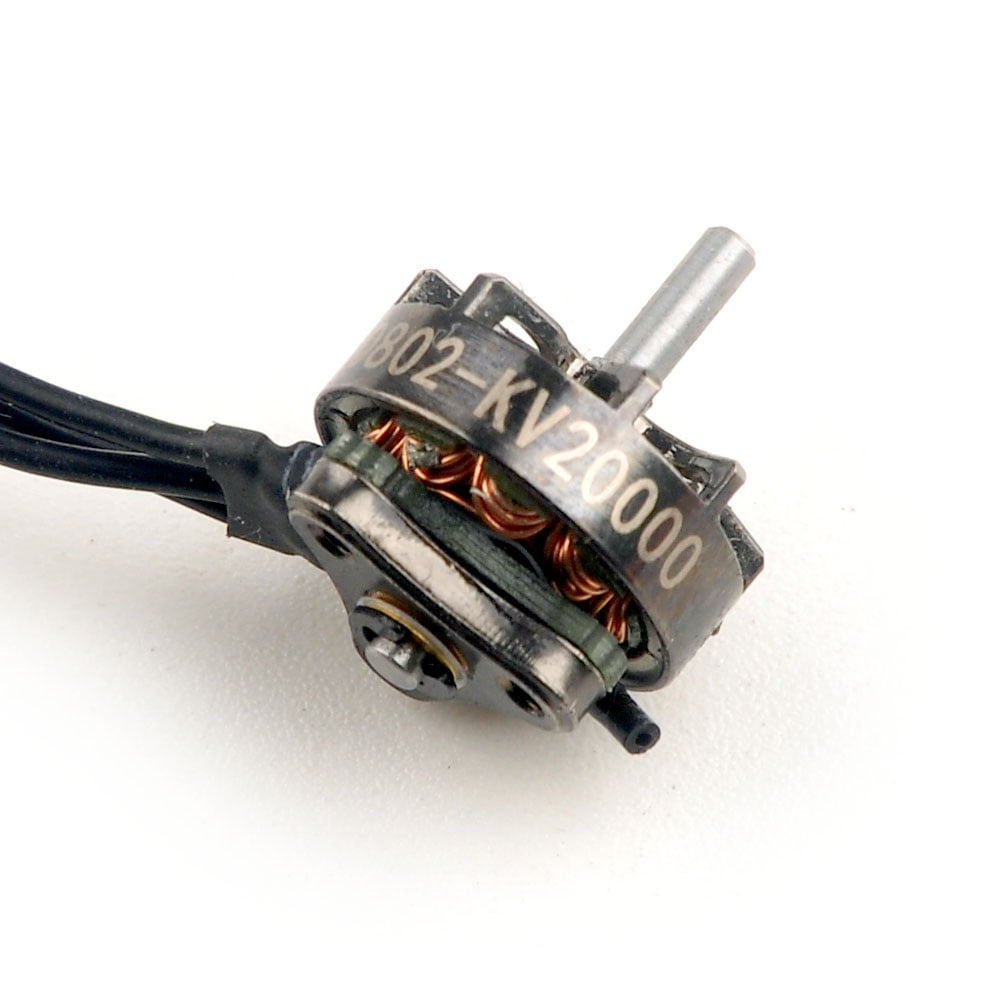

Also the Mobula 7 will have the new?third-generation RS0802 motors with a unibell design. Happymodel RS0802 motors have 1.5mm shaft and include PCB bottom plate for soldering the motor wires.
Release date: 2022-02
Features:
X12 5-IN-1 AIO flight controller built-in 2.4G ELRS V2.0 and Openvtx
VTX Power up to 400mw
ELRS V2.0 Support
NEW RS0802 KV20000 motors
Runcam Nano3 The lightest 1/3 CMOS 800TVL Camera
Smooth and powerful
Compatible for 1S Lipo/LIHV
Recommend 1S 450mah/550mah/650mah battery(Not include)
Frsky D8 compatible
Compatible Non EU transmitter D8 model
Channels: 8ch
No ground interference ( Transmitter and receiver 1 m from the ground): 200meterFailsafe support
Onboard Flysky SPI receiver Version
SPI BUS receiver
Protocol: AFHDS and AFHDS-2A Switchable
Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
No ground interference ( Transmitter and receiver 1 m from the ground): 200meter
Failsafe support
PNP Version?(without onboard receiver)
Full UART1 for external Receiver
Support CRSF/GHOST/SBUS/IBUS/DSMX protocol
IR1 pad(invert RX1) used for SBUS input
Onboard 5.8g VTX
Firmware version: OPENVTX Smartaudio v2.1 PIT Mode support RCE Mode support
Channels:48ch
Transmitting Power: 0/RCE/25mw/100mw/400mw
Power supply: DC 5V
Current (5v): <650ma (400mw)
Camera
Model: RunCam Nano 3
Image Sensor: 1/3″ CMOS
Horizontal Resolution: 800TVL
Lens : 2.1mm(M8) FOV 150°
Signal System: NTSC
S/N Ratio: >50dB
Electronic Shutter Speed: Auto
Auto Gain Control (AGC): Auto
Min. Illumination: 0.01Lux@1.2F
D-WDR: Auto
Day/Night: Color
Power:DC 3-5.5V
Current: 110mA@5V 120mA@3.3V
Housing Material: ABS
Net Weight: 1.2g
Dimensions: L14mm*W14mm*H9mm
]]>http://www.dzskam.com/news/happymodel-mobula7-1s-elrs-whoop/feed/5Happymodel ExpressLRS EPW5 and EPW6 PWM receivers
http://www.dzskam.com/news/happymodel-expresslrs-epw5-and-epw6-pwm-receivers/
http://www.dzskam.com/news/happymodel-expresslrs-epw5-and-epw6-pwm-receivers/#respondMon, 10 Jan 2022 11:56:03 +0000http://www.dzskam.com/?p=10937Happymodel has released two receivers with PWM outputs for servos, designed to be used in the fixed wing aircrafts (and not only).?EPW5 and EPW6?receivers are?the 5CH and 6CHPWM receivers for 2.4GHz and 900MHz bands respectively. Both receivers can also be flashed with the firmware to output the CRSF protocol via RX/TX (PWM3/PWM2) pads.
Happymodel EPW5
Short the PWM1 P and – pads for entering the bootloader mode on startup. Connect PWM2 to TX and PWM3 to RX for UART firmware upload.
Specifications:
Item:?Happymodel EPW52.4GHz PWM receiver ESP8285, SX1280/1281
Antenna connector: IPEX MHF 1/U.FL 5x PWM outputs
RF Frequency: 2.4GHz (2400~2480MHz)
Telemetry power: 12dbm
Receiver protocol: PWM or CRSF
Input voltage: +5V DC @ “+” pad
PCB size: 17mm x 14mm
Weight: 1.1g with antenna
Default firmware version:?ExpressLRS v2.0
Firmware: DIY_2400_RX_PWMP, ?PWM receiver via 1~5 PWM outputs HappyModel_EP_2400_RX, ?CRSF Serial receiver via TX and RX
Firmware update via UART or WIFI
Package Included:
1 x Happymodel EPW5 2.4GHz pwm Receiver
2 x 2.4GHz antenna
3 pin 2.54mm
Bind Procedure:
Supply power to the EPW5 RX, wait until the Green LED on the RX is off, immediately turn off the power, and then repeat again the above steps. When the RX is powered on for the third time, the Green LED light will start to double-flash, which means that the RX enters the binding mode
Get into menu of ELRS.LUA V2.0 version from your radio transmitter and then press BIND, the Green LED on the RX module will getting to be solid if bind successfully.
Receiver LED status meanings:
LED solid means bind successful or Connection established; LED double-flash means in bind mode; LED flash slowly means no signal connection from the TX module; LED flash fast means in WIFI hotspot mode, you can connect the WIFI of the RX and upgrade firmware of the RX via visit 10.0.0.1 from the web browser(password: expresslrs)
Happymodel EPW6
Happymodel EPW6 receiver comes with the?915MHz and?868MHz antennas included, so you are sure you’ll get the right antenna for your band.
Short the PWM1 P and – pads for entering the bootloader mode on startup. Connect PWM2 to TX and PWM3 to RX for UART firmware upload.
Specifications:
Item:?Happymodel EPW6 900MHz PWMreceiver ESP8285, SX1276
Antenna connector: IPEX MHF 1/U.FL 6x PWM outputs
RF Frequency: 868MHz(EU), 915MHz(FCC)
Telemetry power: <17dbm
Receiver protocol: PWM or CRSF
Input voltage: +5V DC @ “+” pad
PCB size: 18.5mm x 16mm
Weight: 1 g without antenna
Default firmware version: ExpressLRS v2.0
Firmware target: DIY_900_RX_PWMP (Factory default firmware), ?PWM receiver via 1~6 PWM outputs HappyModel_RX_ES900_RX, ?CRSF Serial receiver via TX and RX
Firmware update via UART or WIFI
Package Included:
1 x Happymodel EPW6 900MHz pwm receiver
1 x 915MHz antenna
1 x 868MHz antenna
3 x 6pin 2.54mm
Bind Procedure:
Supply power to the EPW6 RX, wait until the Green LED on the RX is off, immediately turn off the power, and then repeat again the above steps. When the RX is powered on for the third time, the Green LED light will start to double-flash, which means that the RX enters the binding mode
Get into menu of ELRS.LUA V2.0 version from your radio transmitter and then press BIND, the Green LED on the RX module will getting to be solid if bind successfully.
Receiver LED status meanings:
LED solid means bind successful or Connection established; LED double-flash means in bind mode; LED flash slowly means no signal connection from the TX module; LED flash fast means in WIFI hotspot mode, you can connect the WIFI of the RX and upgrade firmware of the RX via visit 10.0.0.1 from the web browser(password: expresslrs)
]]>http://www.dzskam.com/news/happymodel-expresslrs-epw5-and-epw6-pwm-receivers/feed/0Happymodel Fyujon – a combination of VTX and RX

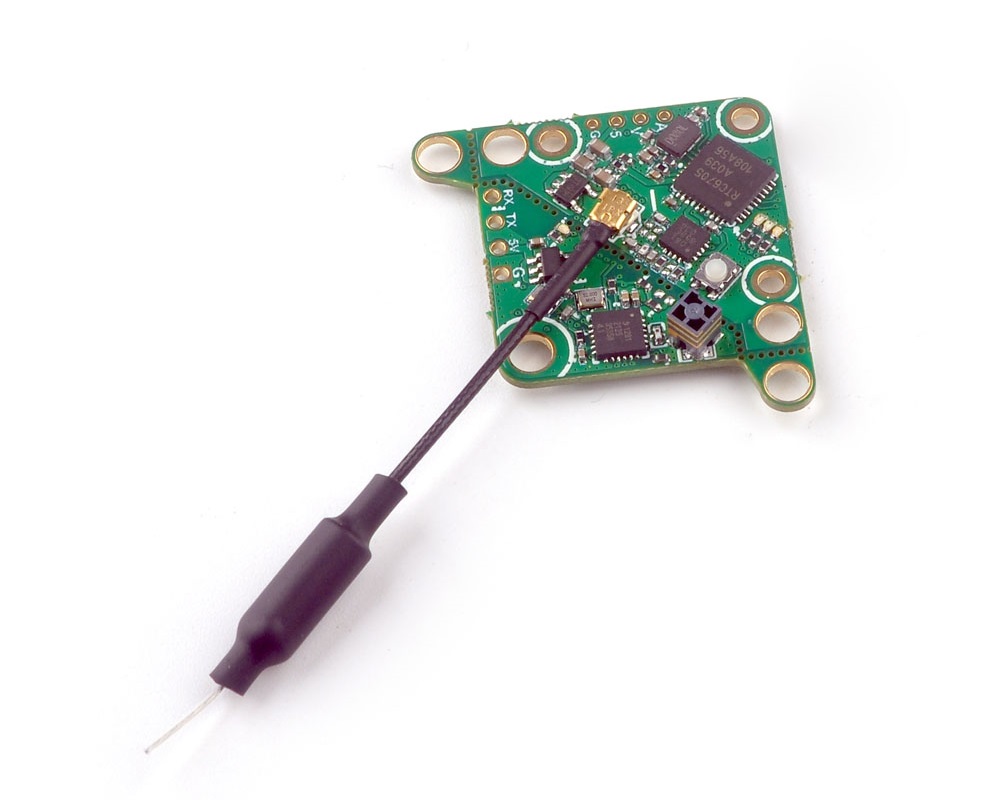

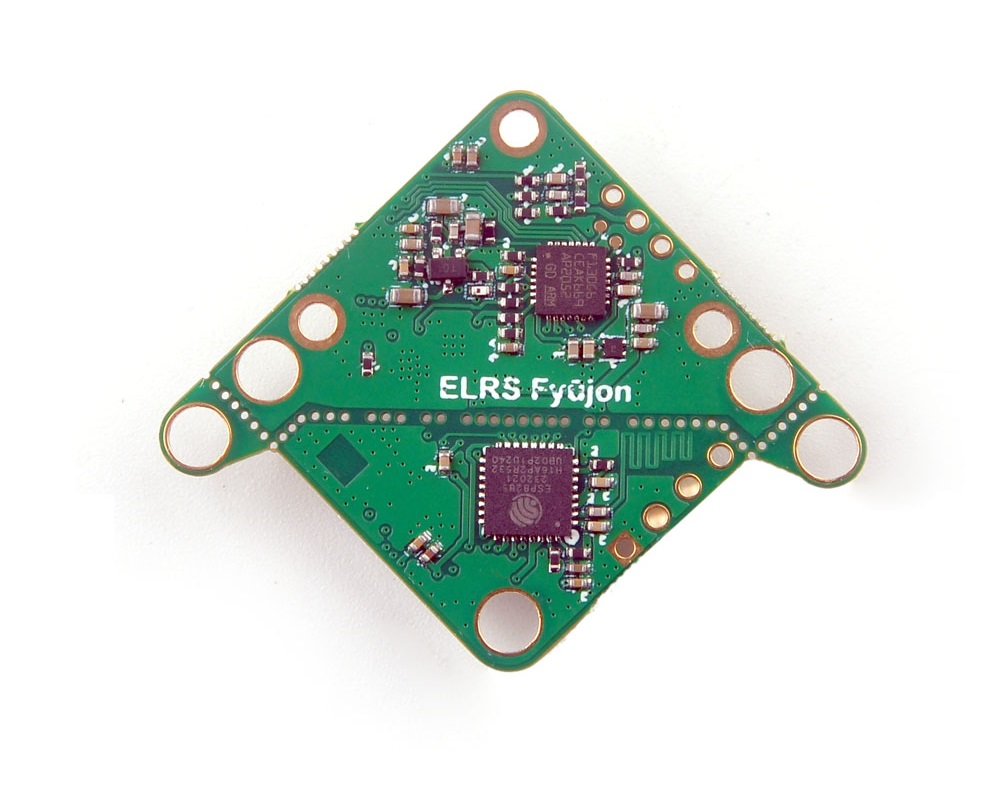

http://www.dzskam.com/news/happymodel-fyujon-vtx-expresslrs-rx/
http://www.dzskam.com/news/happymodel-fyujon-vtx-expresslrs-rx/#respondTue, 30 Nov 2021 01:52:01 +0000http://www.dzskam.com/?p=10761Happymodel Fyujon (Japanese?fyu-jon?means “fusion” – a combination of the several elements) is 2 in 1 module integrating the 5.8GHz VTX and 2.4GHz ELRS Receiver combo. It’s the first VTX and ELRS RX on one board in the market!

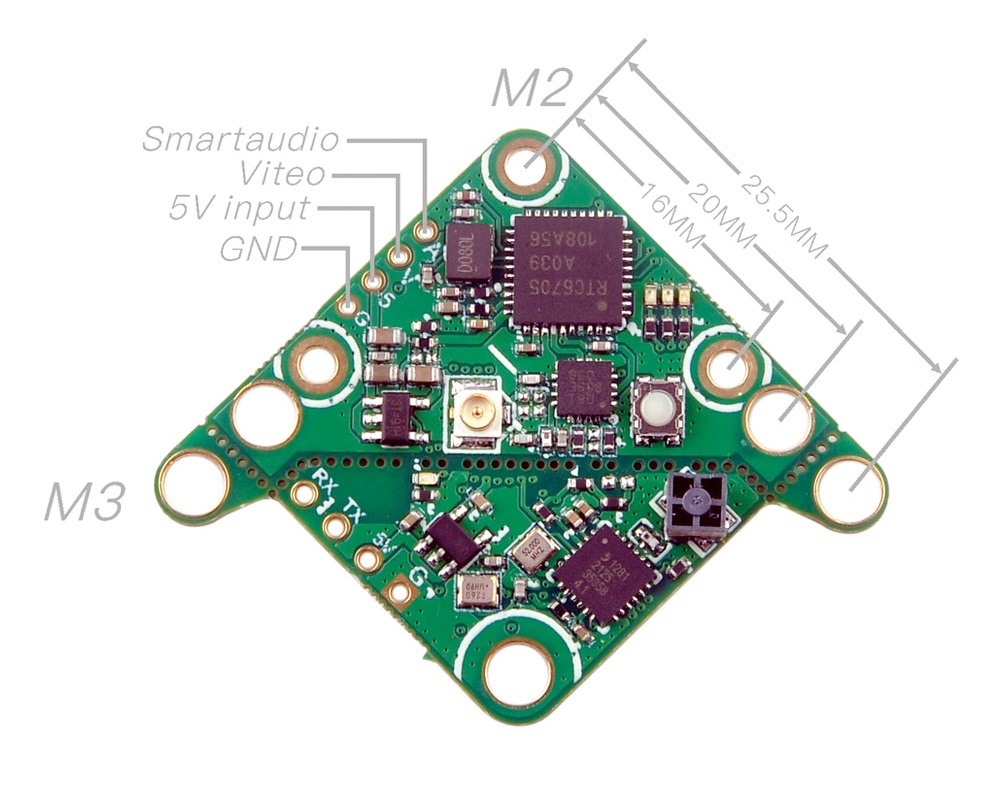

The Fyujon VTX and RX can be used as one board or can be split into separate components. Happymodel Fyujon has mounting holes for 16x16mm, 20x20mm stacks or can be mounted on 25.4×25.4mm whoop/toothpick mount.
Happymodel Fyujon VTX has OpenVTX firmware, meaning it can support both TBS SmartAudio and IRC Tramp VTX control protocols.

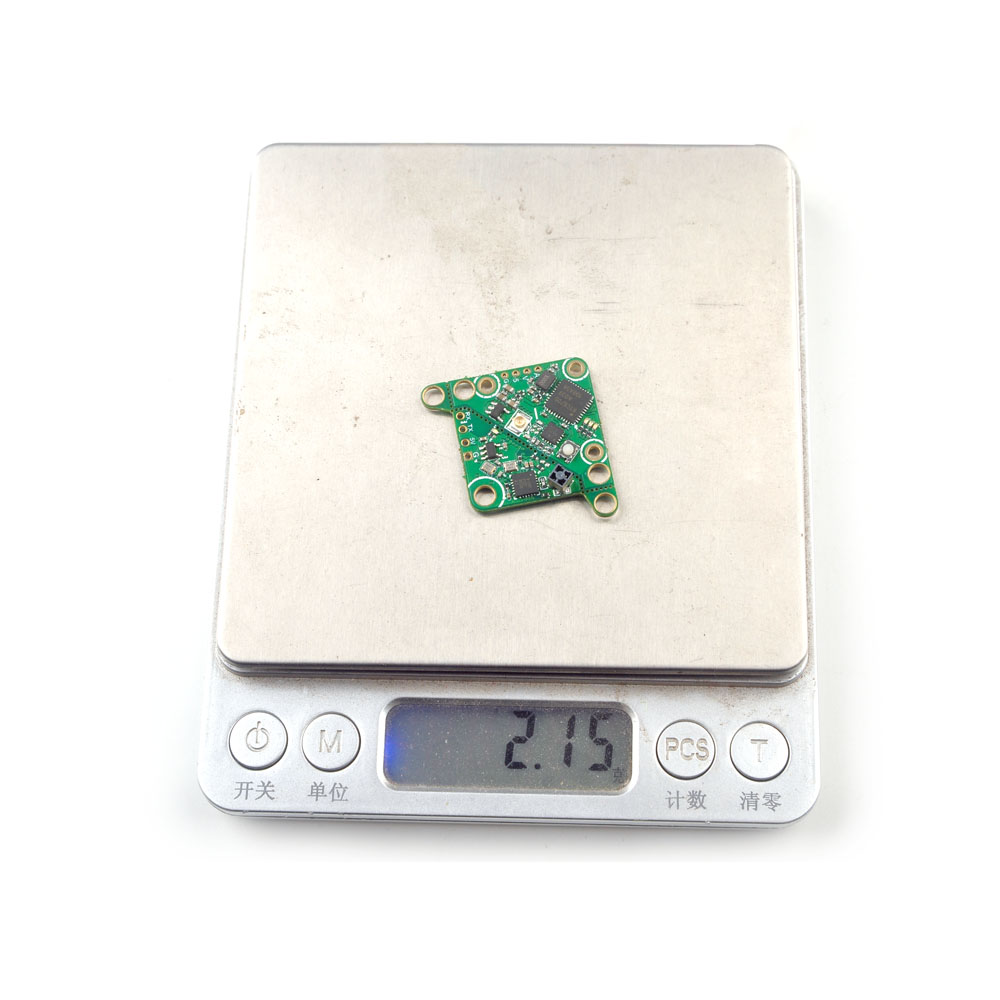

Happymodel Fyujon VTX and ELRS RX weight is?only 2.1 grams (excluding the VTX antenna).
2.4GHz Receiver Specifications
MCU: ESP8285
SX1280/1281IMLTRT RF Module
SMD Ceramic antenna
Frequency Range: 2400 MHz to 2500 MHz
Maximum receive refresh rate: 500Hz
Minimum receiver refresh rate: 50Hz
Working Voltage: 5v
Antenna: Onboard SMD ceramic antenna
Antenna Peak gain: 3.7Db
ELRS Firmware target: HappyModel EP 2400 RX
5.8GHz VTX Specifications
Frequency: 5.8G 48CH
Transmitting Power: 0/RCE/25mw/100mw/300mw
Power supply: DC 5V
Current (5v): <650ma (300mw) SmartAudio/IRC Tramp protocol ready
Happymodel Fyujon VTX Table
# SMARTAUDIO
# vtxtable
vtxtable bands 6
vtxtable channels 8
vtxtable band 1 BOSCAM_A A FACTORY 5865 5845 5825 5805 5785 5765 5745 5725
vtxtable band 2 BOSCAM_B B FACTORY 5733 5752 5771 5790 5809 5828 5847 5866
vtxtable band 3 BOSCAM_E E FACTORY 5705 5685 5665 5645 5885 5905 5925 5945
vtxtable band 4 FATSHARK F FACTORY 5740 5760 5780 5800 5820 5840 5860 5880
vtxtable band 5 RACEBAND R FACTORY 5658 5695 5732 5769 5806 5843 5880 5917
vtxtable band 6 LOWRACE? L FACTORY 5333 5373 5413 5453 5493 5533 5573 5613
vtxtable powerlevels 5
vtxtable powervalues 1 2 14 20 26
vtxtable powerlabels 0 RCE 25 100 400
save
]]>http://www.dzskam.com/news/happymodel-fyujon-vtx-expresslrs-rx/feed/0Happymodel Diamond F4 5in1 AIO flight controller

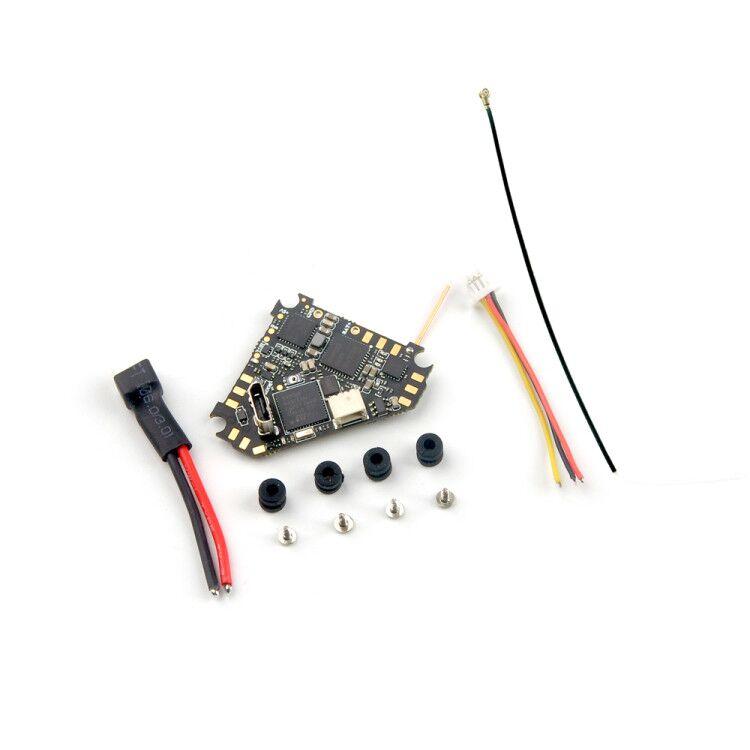

http://www.dzskam.com/news/happymodel-diamond-f4-5in1-aio-flight-controller/

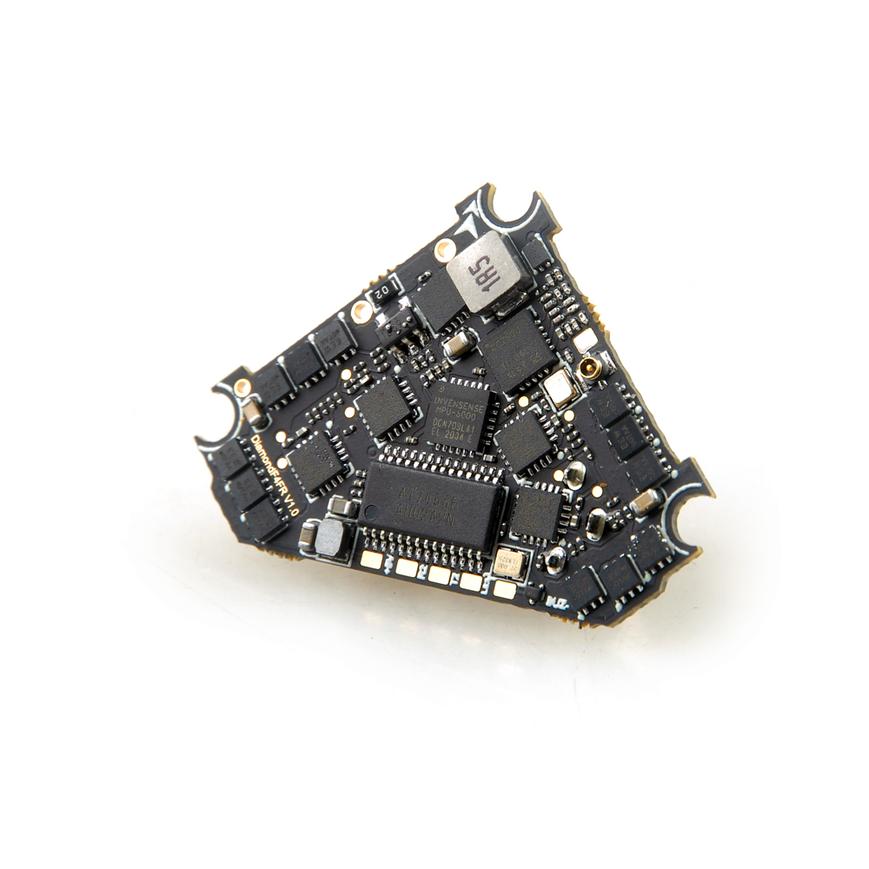

http://www.dzskam.com/news/happymodel-diamond-f4-5in1-aio-flight-controller/#commentsTue, 26 Jan 2021 13:47:14 +0000http://www.dzskam.com/?p=9648Happymodel is continuing to release new AIO flight controllers. This time it is DiamondF4– the lightest F4 AIO flight controller with integrated Frsky or Flysky receiver and integrated VTX. Integrated VTX can be switched from 25mw to 200mw of power output. Other features are pretty standard – F411 MCU, MPU-6000 SPI gyro, 5A (6A burst) 4in1 ESC, OSD and Current sensor, but the total weight of the 5in1 AIO FC is only 3.42 grams!

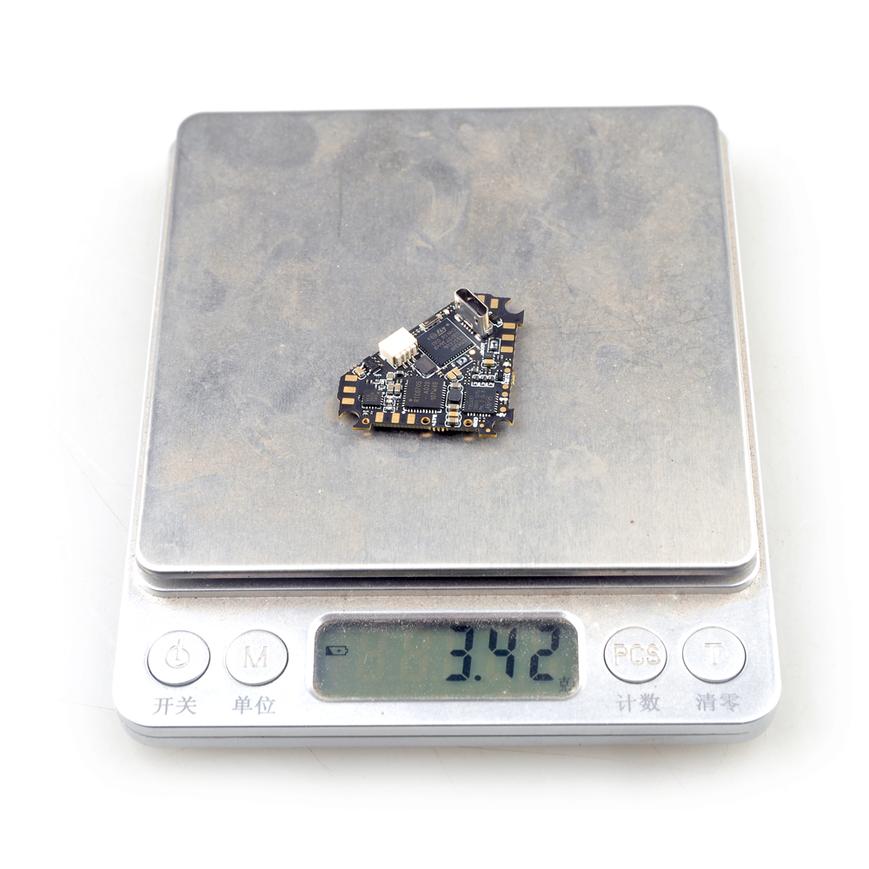

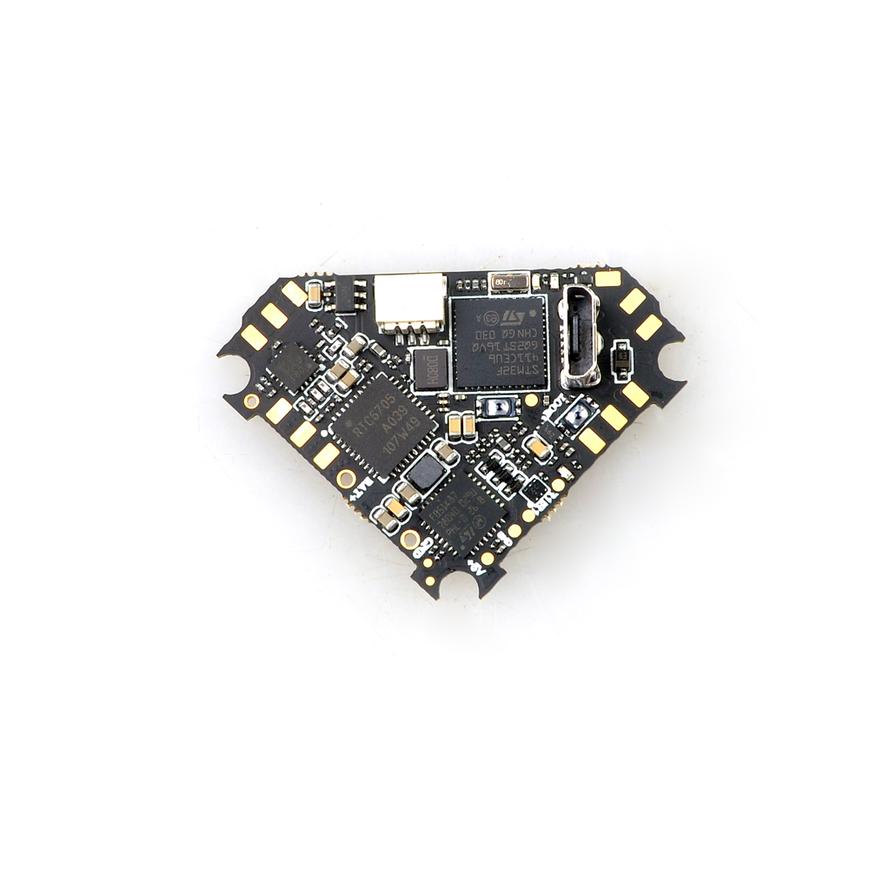

The weight is only 3.42 grams. This is the lightest whoop/toothpick FC with integrated VTX! The closest alternative is the BetaFPV 1S VTX FC with the weight of 3.92g.
In the package you will get the FC, PH2.0 battery pigtail, FPV camera connector pigtail and the full size RX antenna.
Onboard 4in1 ESC
MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HV Current: 5A continuous, peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_5_REV16_8.HEX
Default protocol: DSHOT600
Onboard Frsky SPI D8 receiver Version
SPI BUS receiver Frsky D8 compatible
Compatible Non EU transmitter D8 model Channels: 8ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 200m~300m
Onboard Flysky SPI receiver Version
SPI BUS receiver protocols: AFHDS and AFHDS-2A Switchable
Channels: 8ch (AFHDS) or 14ch (AFHDS-2A)
No ground interference ( Transmitter and receiver 1 m from the ground): 200~300m
Failsafe support
]]>http://www.dzskam.com/news/happymodel-diamond-f4-5in1-aio-flight-controller/feed/2Happymodel Moblite6 and Moblite7
http://www.dzskam.com/news/happymodel-moblite6-and-moblite7-mobulite-tiny-whoop/
http://www.dzskam.com/news/happymodel-moblite6-and-moblite7-mobulite-tiny-whoop/#commentsFri, 04 Dec 2020 16:31:33 +0000http://www.dzskam.com/?p=9466Happymodel is going to release new lighter versions of their popular Mobula series – Moblite6 and Moblite7. They are 65mm and 75mm brushless whoops accordingly. They have the same frames as in previous versions, but all the other components are totally new. New Happymodel EX0802 unibell design brushless motors, new DiamondF4 AIO flight controller, newest RunCam Nano4 Lite camera. Moblite whoops have so called “low rider” camera placement between the two front ducts with a special low profile camera holder. This allows to reduce the weight and improve the flight characteristics. RunCam Nano4 Lite is totally new camera with the lightweight lens from the RunCam Nano3 and thus total weight of the camera is only 1.0g!
Moblite6 weights only 18.6g and Moblite7 weights only 19.5g.
The overall stripped off design of the whoop reminds… the skeleton, but the total flight time is greatly improved.
Fun fact – the 2 bladed propellers in the photo of the Moblite7 are made from the 4 bladed HQProp propellers by cutting off the two blades… I wonder what propellers will the production Moblite7 is going to have.
Moblite6 and Moblite7 will be using the new Happymodel DiamondF4 flight controller with built in SPI Frsky receiver and built in 25-200mW VTX. The Frsky receiver has IPEX antenna connector and comes with a normal dipole antenna.
The total weight of the DiamondF4 flight controller is only 3.42g (antennas excluded).
Original idea of this whoop belongs to the Mr. ShutterBug (Nate Payne):
And the first flight video of the Moblite7:
Release date: TBD,Frsky version ~ December 20, Flysky version ~ January 10
Motor Model: EX 0802 19000KV
Configuration:9N12P
Stator Diameter:8mm
Stator Length:2mm
Shaft Diameter:Φ1mm
Motor Dimension(Dia.*Len):Φ10.5mm*14.9mm
Weight(g): 1.7g
No.of Cells(Lipo): 1S only
Onboard 4in1 ESC MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HV
Current: 5A continuous, peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_50_REV16_8.HEX
Default protocol: DSHOT600
Onboard Frsky SPI D8 receiver Version SPI BUS receiver Frsky D8 compatible
Compatible Non EU transmitter D8 model
Channels: 8ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 200m~300m
Runcam Nano4 Lite Model: RunCam Nano4 Lite
Image Sensor: 1/3″ CMOS
Horizontal Resolution: 800TVL
Lens: 2.1mm(M8) FOV 160°
Signal System: PAL/NTSC Non Switchable
S/N Ratio: >50dB
Electronic Shutter Speed: Auto
Auto Gain Control (AGC): Auto
Min. Illumination: 0.01Lux@1.2F
D-WDR: Auto
Day/Night: Color
Power:DC 3-5.5V
Current: 170mA@5V 180mA@3.3V
Housing Material: ABS
Net Weight: 1.0g
Dimensions: L14mm*W12mm*H9mm
]]>http://www.dzskam.com/news/happymodel-moblite6-and-moblite7-mobulite-tiny-whoop/feed/7Happymodel CrazyF411 20A AIO toothpick FC

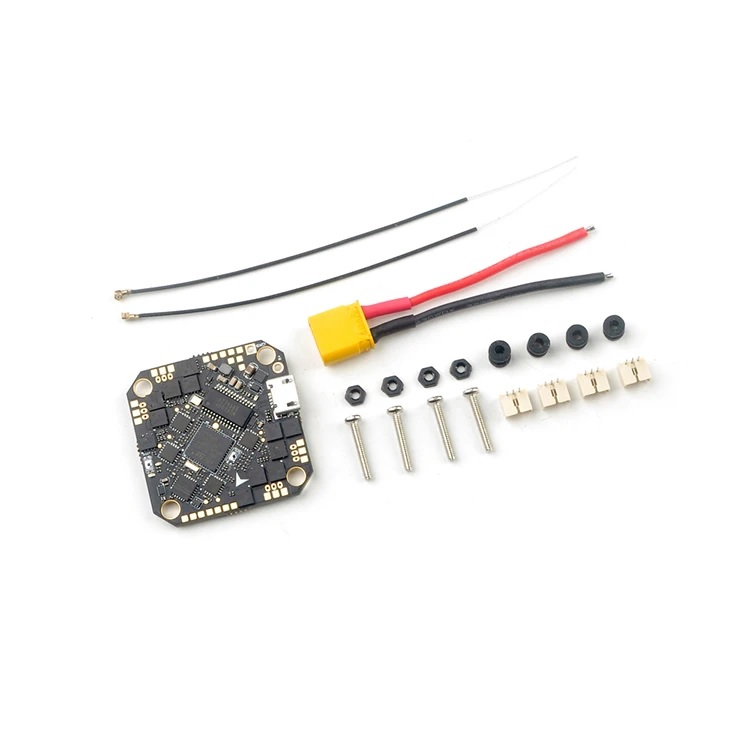

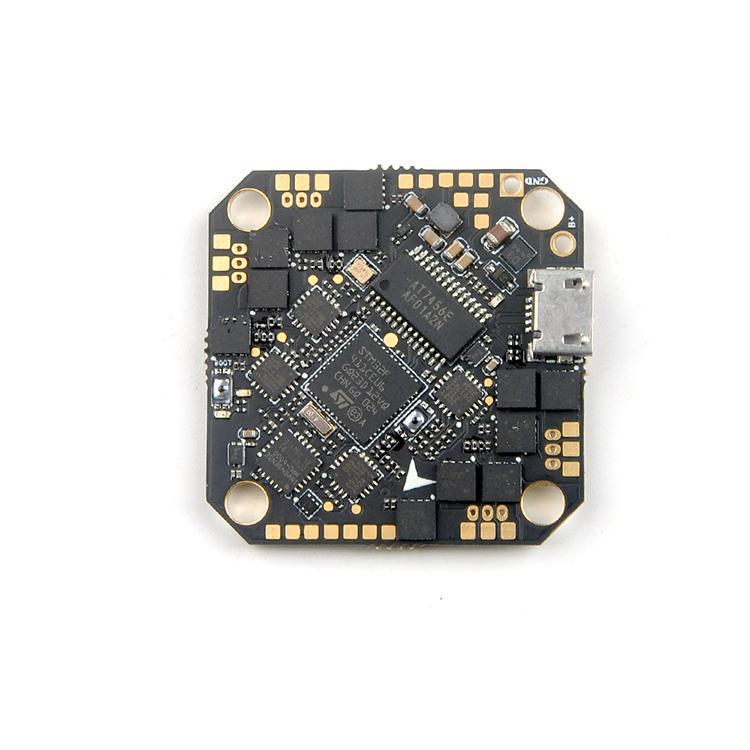

http://www.dzskam.com/news/happymodel-crazyf411-20a-aio-toothpick-fc/
http://www.dzskam.com/news/happymodel-crazyf411-20a-aio-toothpick-fc/#commentsThu, 29 Oct 2020 01:20:28 +0000http://www.dzskam.com/?p=9180Happymodel is about to release the CrazyF411 20A AIO toothpick flight controller. This is the most powerful whoop/toothpick style flight controller released from Happymodel. It supports 2-4s battery input and provides 20A to the motors. One of the most interesting features is the integrated SPI Frsky receiver working with D8/D16 protocols. This integrated receiver has PA/LNA power amplifier and the diversity antenna. This should give more control range for this flight controller.

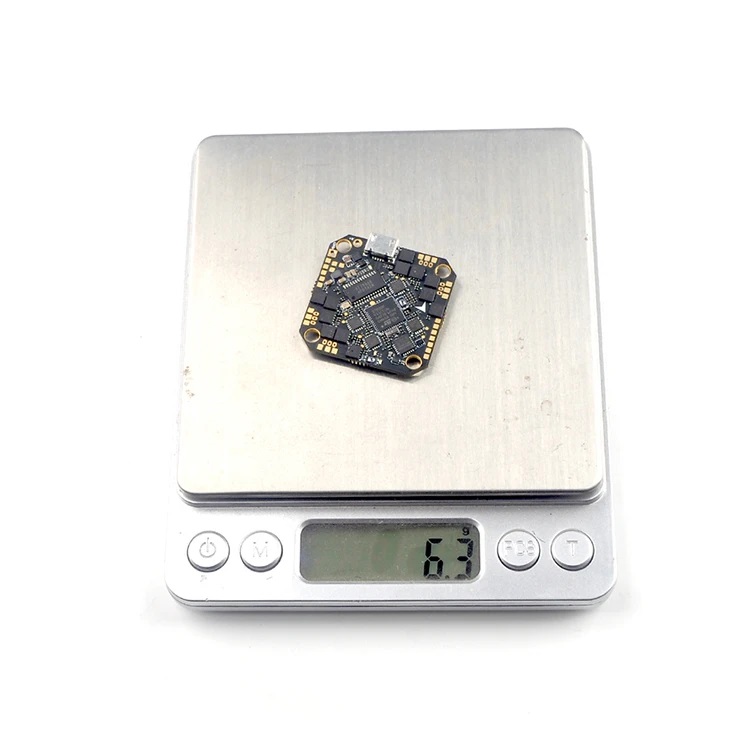

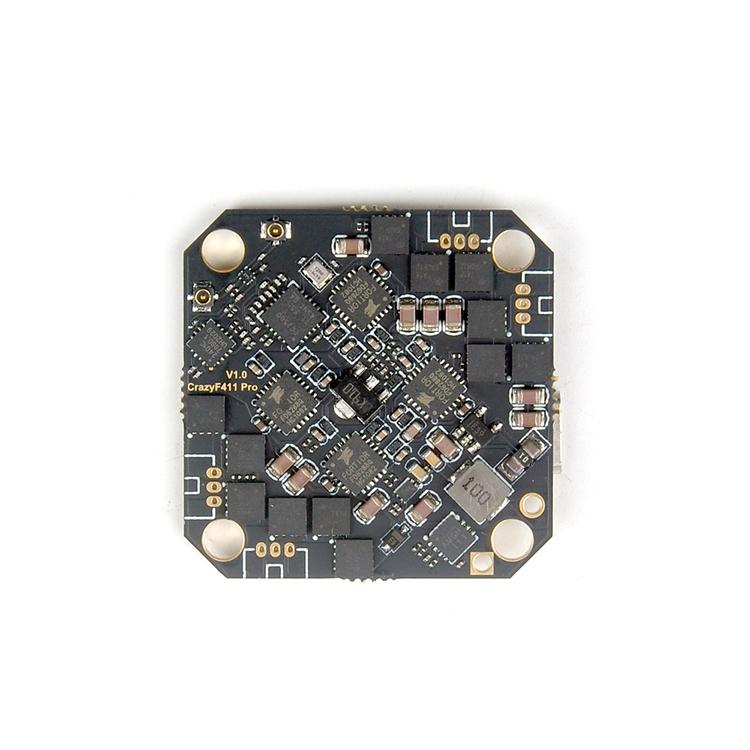

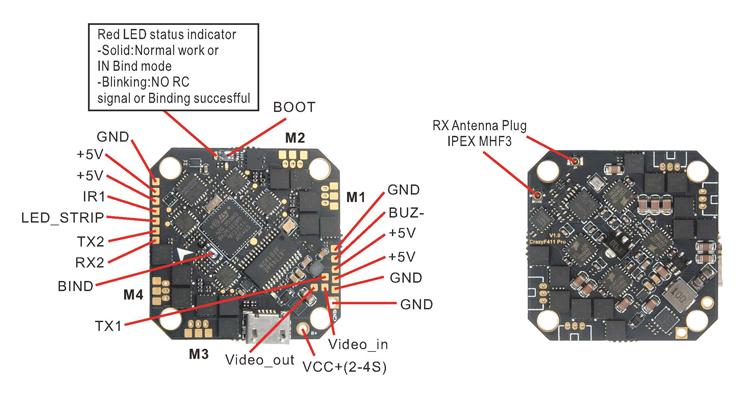

Features:
CrazyF411 pro is a high integration AIO F4 flight controller which could handle 20A continuous current .
It comes with 4*Motor Pluggable Pins and Not Pre-solder in default, fits your needs of self-assembly best.
Compatible with 120X/130X/140X/ motors
Integrated with a STM32F411CEU6 processor, Betaflight OSD, 20A ESC and Frsky D8/D16 protocol SPI receiver(with Power amplifier) support 2-4S battery
]]>http://www.dzskam.com/news/happymodel-crazyf411-20a-aio-toothpick-fc/feed/2Happymodel Crux3 – 3inch toothpick
http://www.dzskam.com/news/happymodel-crux3-3inch-toothpick/
http://www.dzskam.com/news/happymodel-crux3-3inch-toothpick/#respondSun, 27 Sep 2020 21:19:44 +0000http://www.dzskam.com/?p=8953Happymodel has announced their second 3 inch toothpick called Crux3. This toothpick has new Happymodel 1202.5 6400KV motors. There is new CrazybeeX V2.2 flight controller installed in the heart of the Crux3 toothpick. CrazybeeX V2.2 is AIO flight controller with integrated 5.8GHz video transmitter and Flysky/Frsky/DSMXreceiver.
Happymodel Crux3 can be powered with 2S batteries and should have Insta360 camera mount.
The total weight of the Happymodel Crux3 is only 41g (without the battery).
Features: 41gram 1-2s brushless Toothpick drone
New AIO 4in1 CrazybeeX flight controller
CADDX ANT Camera
New 1202.5 brushless motor
XT30 connector
Recommend to use 2s 350mah/400mah/450mah/520mah battery
Compatible with Insta360 Go Camera
Receiver option:
Internal SPI Frsky version (Compatible with ACCST D8/D16, Recommend D8 mode)
Internal SPI Flysky version(Compatible with AFHDS and AFHDS-2A Flysky transmitter)
Internal SPI DSM2/DSMX version(Compatible with Spektrum or Multiprotocol DSM2/X radio)
External Frsky RXSR receiver version(ACCST D16 sbus output)
External TBS Crossfire Nano receiver version
Introduction: Motor Mode: EX1202.5 KV 6400
Configuration: 9N12P
Stator Diameter:12mm
Stator Length:2.5mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ14mm*14.5mm
Weight(g): 4.4g
No.of Cells(Lipo): 1-2S Propellers Gemfan 3018-2
Center Thickness:5.5mm
Prop Diameter:76.5mm
Center Hole diameter:1.5mm Flight controller (Frsky SPI RX version) CRAZYBEEX FR V2.2 FC Firmware target: CrazybeeF4FR
(Flysky SPI RX version) CRAZYBEEX FS V2.2 FC Firmware target: CrazybeeF4FS
(DSM2/X SPI RX version)CRAZYBEEX DXS V1.0 FC firmware target:CrazybeeF4DXS
(External Frsky RXSR version) CRAZYBEEX PNP V2.2 Firmware target:CrazybeeF4DX
(External TBS CRSF NANO version) CRAZYBEEX PNP V2.2 Firmware target:CrazybeeF4DX
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5 * 28.5MM
Power supply: 1-2S battery input (DC 2.9V-8.7V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in SPI Frsky/Flysky receiver or no receiver
Built-in 5V 1A BEC Onboard 4in1 ESC MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HV
Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: S_H_50_REV16_7.HEX
Default protocol: DSHOT600 Onboard Frsky SPI D8 receiver Version SPI BUS receiver Frsky D8 compatible
Compatible Non EU transmitter D8 model
Channels: 8ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 200m~300m Onboard Flysky SPI receiver Version SPI BUS receiver
Protocol: AFHDS and AFHDS-2A Switchable
Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
No ground interference ( Transmitter and receiver 1 m from the ground): 200~300m
Failsafe support Onboard DSM2/X SPI receiver Version SPI BUS receiver DSM2/DSMX compatible
Channels: Max 12ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 200m~300m
RSSI enable(show on the goggles) External Frsky R-XSR receiver version Weight: 1.5g
Number of channels: 16CH (1-16CH from SBUS channel, 1~8CH from CPPM channel)
Operating Voltage Range: 3.5V~10V
Operating Current:70mA@5V
Firmware Upgradable
Compatibility: FrSky X Series modules and radios in D16 mode
Could support Frsky New ACCESS Protocol ( Upgrade firmware) External TBS CRSF Nano receiver version Original TBS CROSSFIRE Receiver ,CRSF Protocol , Official TBS transmitter compatible Onboard 5.8g VTX Output power: 25mw~200mw switchable
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz 5bands 40 channels
With Race band
Smartaudio ready Caddx ANT 1200tvl camera Image Sensor: 1/3″ CMOS Sensor
Horizontal Resolution: 1200 TVL
TV System: NTSC or PAL
IMAGE: 16:9 or 4:3
Synchronization: Internal
Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio : >52dB (AGC OFF)
Video Output: CVBS
Lens: 1.8mm
Min. Illumination: 0.001Lux@F1.2
Auto Gain Control: YES
BLC: YES
WDR: Global WDR
DNR: 3D DNR
Dimensions: 14*14mm(with bracket to 19*19mm)
Wide Power Input: DC 3.7-18V
Work Temperature: -20℃~+60℃
Weight: 2g (N.W.)
Package included:
Item Name 1*Crux3 Frame and canopy
Option1: CrazybeeX FR V2.2 built-in internal Frsky SPI D8/D16 receiver
Option2: CrazybeeX FS V2.2 built-in internal Flysky SPI receiver
Option3:CrazybeeX DXS V1.0 built-in internal DSM2/DSMX SPI receiver
Option4:CrazybeeX PNP V2.2 with External Frsky RXSR receiver
Option5:CrazybeeX PNP V2.2 with External TBS crossfire nano receiver
4*Happymodel EX1202.5 KV6400 brushless motor
1*Gemfan 3018 bi-blade Propellers(4cw+4ccw)
1*Caddx Ant 1200TVL Global WDR with OSD 2g Ultra Light Nano FPV Camera
1*5.8G 25mw~200mw 40ch vtx (Flight controller built-in)
1*Screw Driver
1*Propeller disassemble tool
1*Happymodel Handbag
]]>http://www.dzskam.com/news/happymodel-crux3-3inch-toothpick/feed/0Happymodel CrazybeeX 5in1 1-2S whoop FC
http://www.dzskam.com/news/happymodel-crazybeex-5in1-whoop-fc/

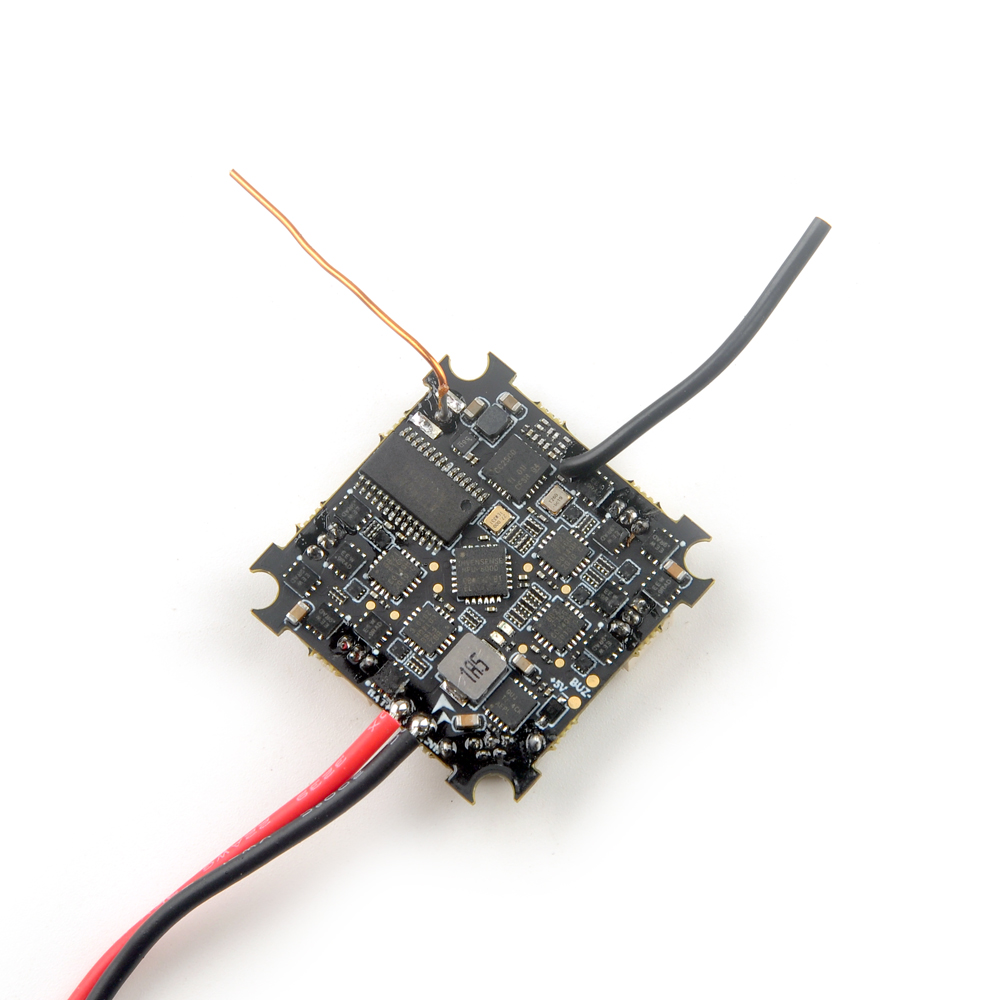

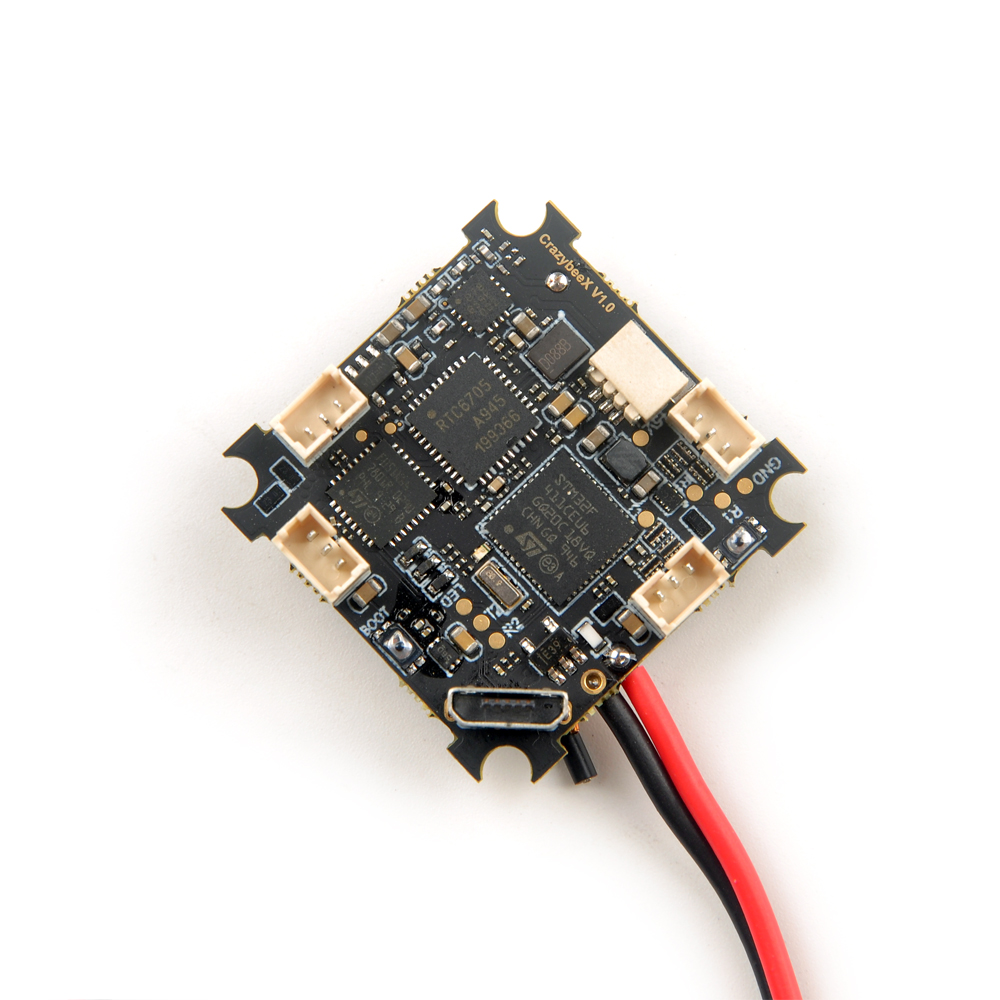

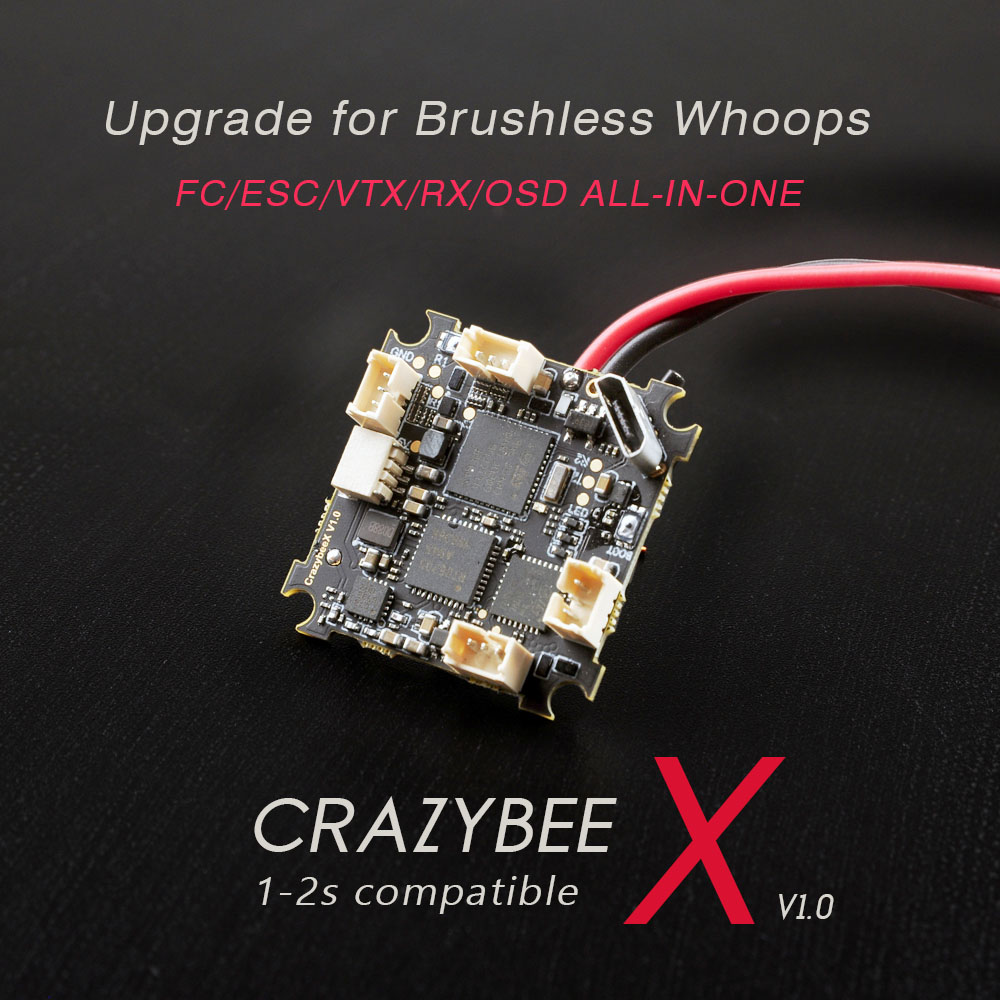

http://www.dzskam.com/news/happymodel-crazybeex-5in1-whoop-fc/#respondSun, 28 Jun 2020 14:49:17 +0000http://www.dzskam.com/?p=8383Happymodel is about to release CrazybeeX5in1 AIO whoop flight controller. It is the first 5in1 AIO flight controller which could handle 2S. This flight controller is upgraded CrazybeeF4 Lite, includes the F4 MCU, OSD, 4in1ESC, RX and VTX on one board and is capable of 1-2S battery input.
The weight of the CrazybeeX 5in1 AIO flight controller is about 4.5 grams.
You only need to add the camera (such as RunCam Nano 3) and plug in the motors to make the complete build.

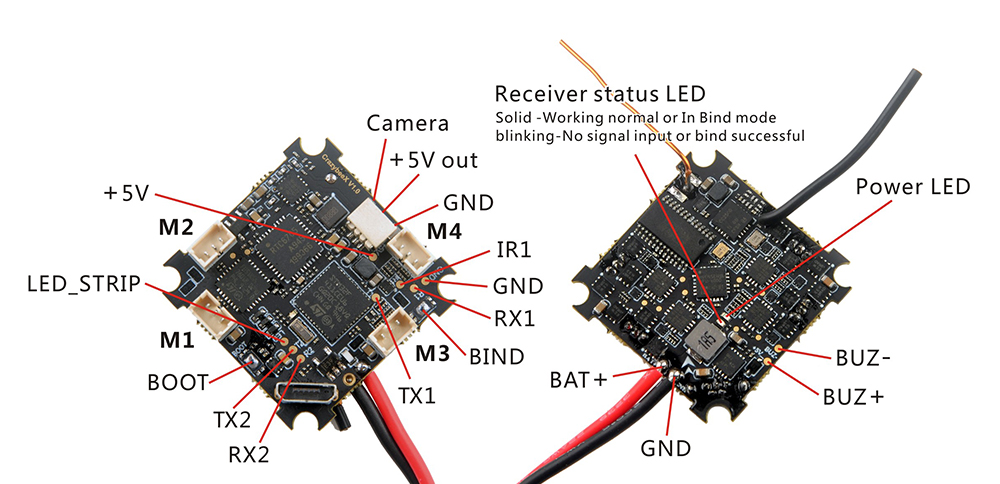

Happymodel CrazybeeX V1.0 connection pinout:
Noticed: RX1 can be used for IBUS/DSM2/DSMX signal imput from the external receiver. IR1 is the inverted signal of RX1 , used for SBUS input from external receiver. RX1 and IR1 couldn’t be used at the same time.
Bind procedure:
Make the on board receiver get into bind mode: For 3.5.7 version firmware Plug USB and then press the bind button for 1 second , the Red LED on the top of the flight controller will getting to be solid , this indicate the receiver is in bind mode; For 4.0.x version firmware Plug USB and then connect betaflight configurator and then move to CLI tab , type “bind_rx_spi” ,the Red LED on the top of the flight controller will getting to be solid , the onboard receiver is in bind mode; For 4.1.x or 4.2.x the bind code is “bind_rx”
Make your transmitter get into bind mode . If bind is successful the red led will starting to blink. The red LED wouldn’t blinking when binding with some new ACCESS firmware frsky radio, but the bind is actual successful , need to go to CLI command and type “save” to finish the binding .
Difference between the CrazybeeX Series flight controllers
SPI BUS receiver Frsky D8/D16 compatible
Support Frsky_X_LBT(EU-LBT), Futaba S-FHSS (Need Betaflight 4.0.5 firmware or latest)
Channels: 8ch/16ch
Failsafe support
Transmitter and receiver 1 m from the ground: 100m~200m
Onboard 5.8g VTX
Output power: 25mw
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz 5bands 40 channels
With Raceband Smartaudio ready
Default vtx_power should set to be “2”
Onboard Voltage and Current detector
Voltage Meter scale: 110
Amperage Meter scale: 1175
