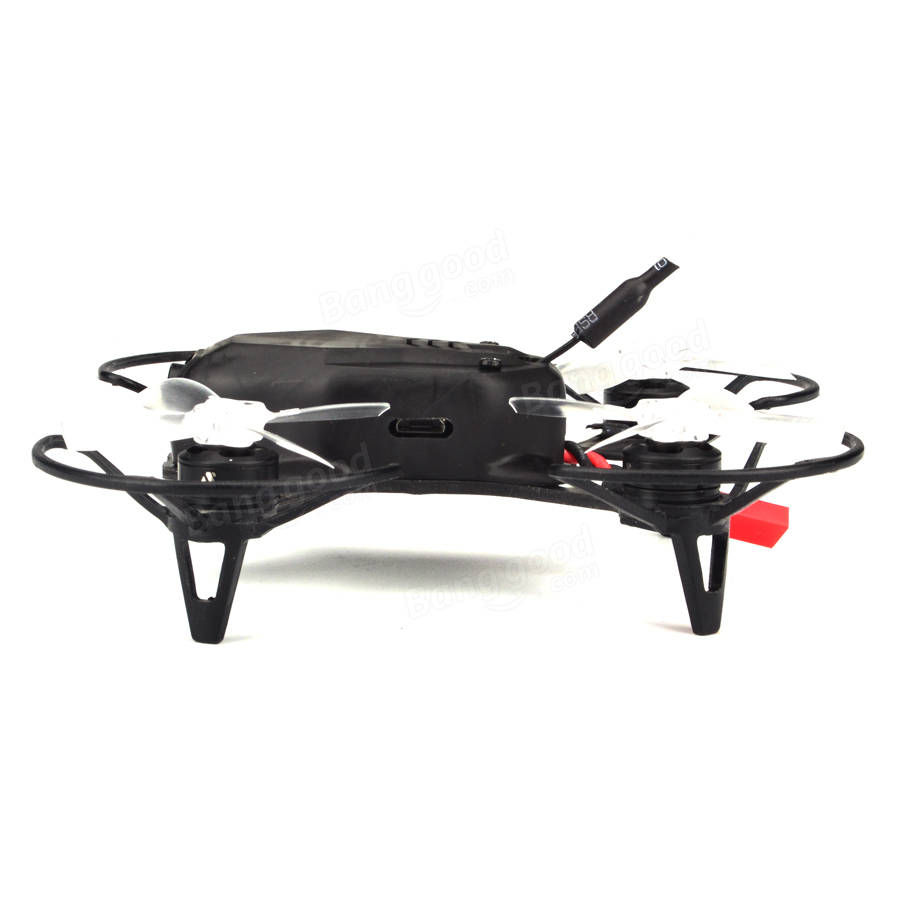

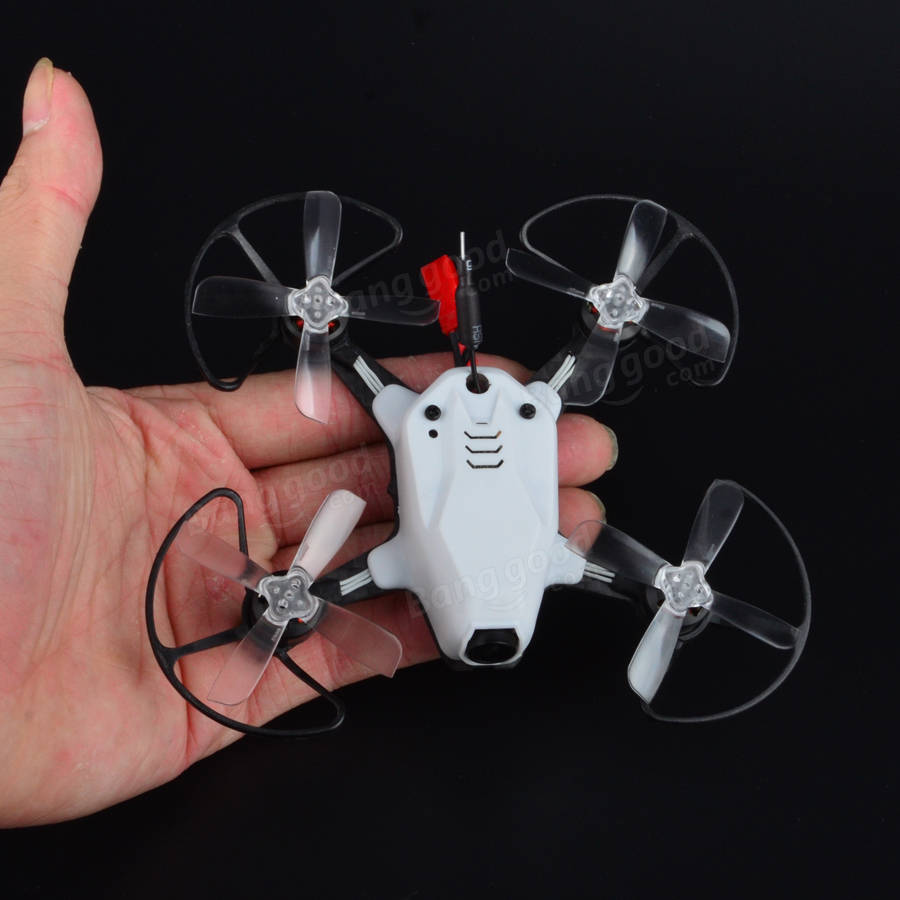

Awesome YOUBI Mini XV-95 – Little brother of Atom

montis — Tue, 29 Aug 2017 12:14:30 +0000

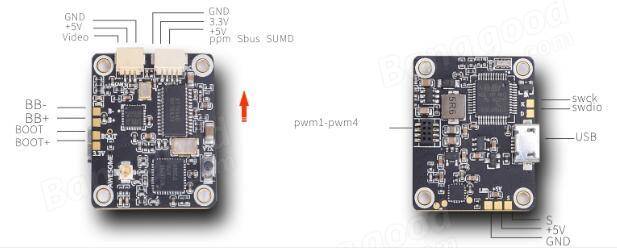

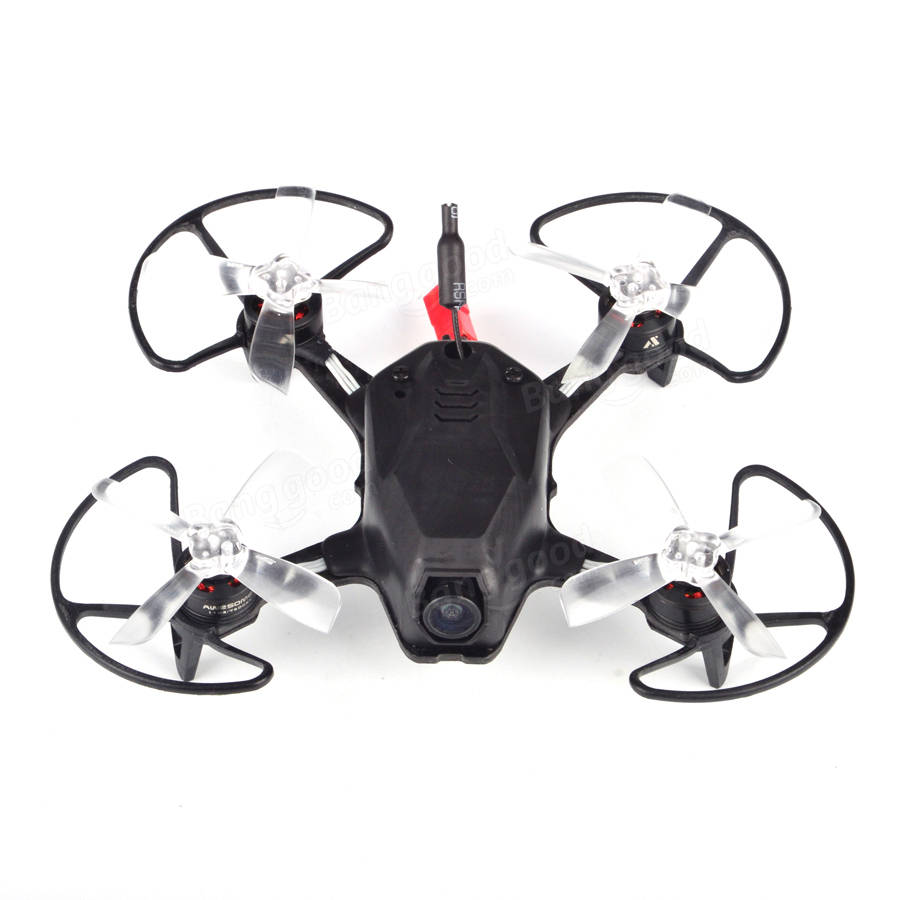

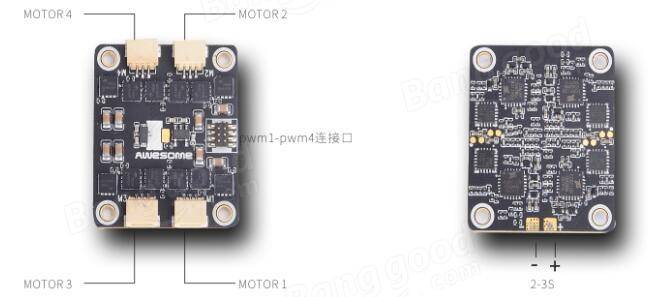

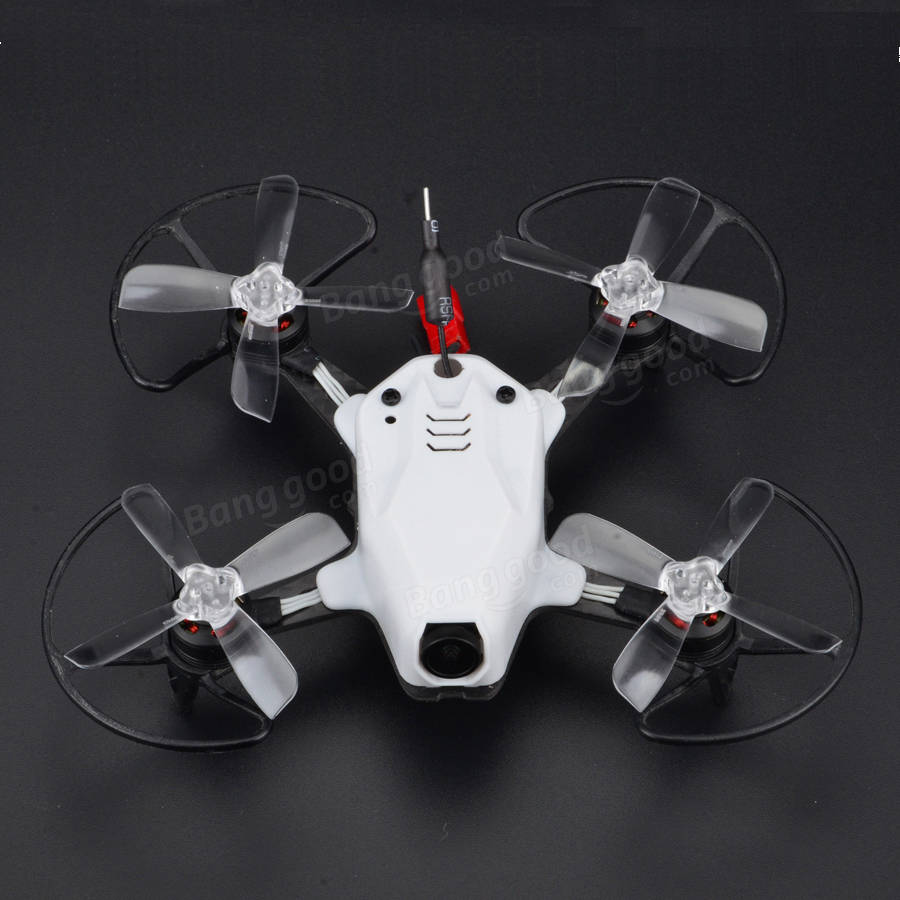

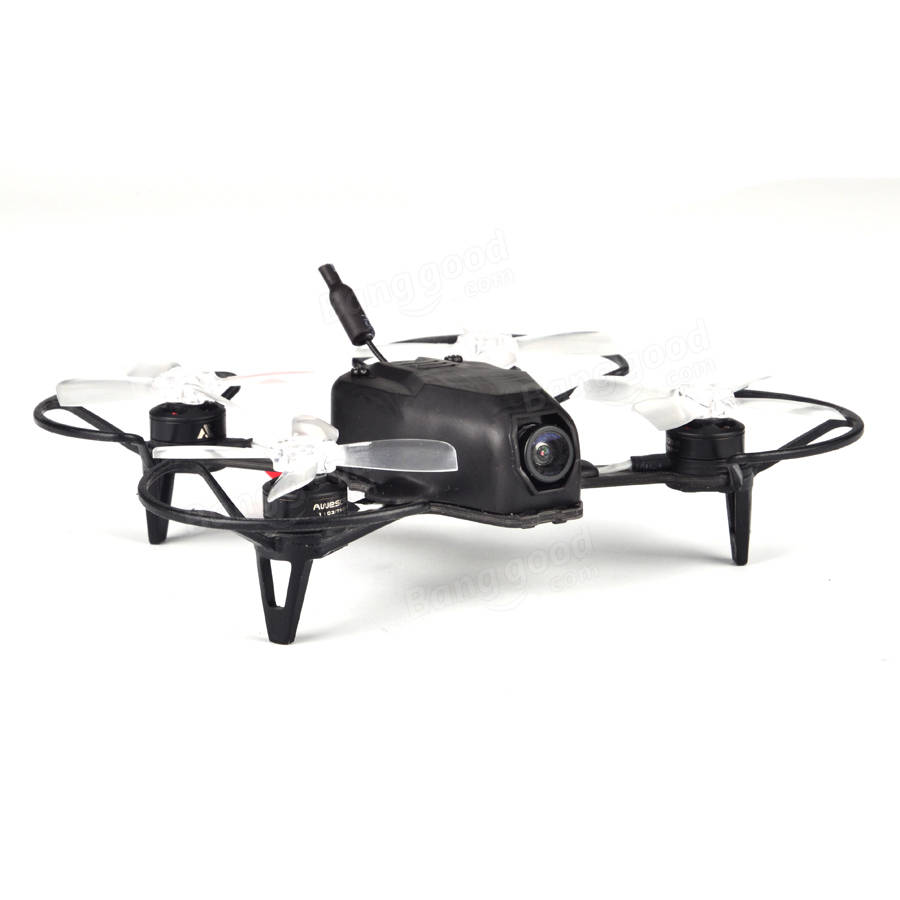

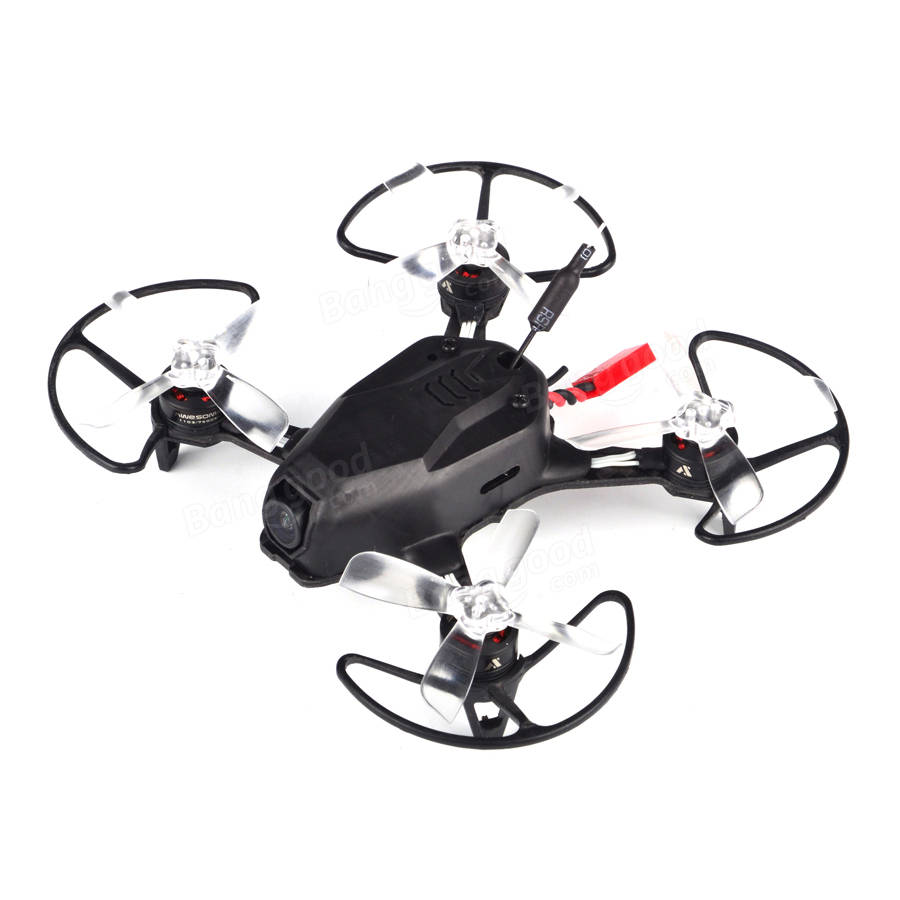

Smaller version of the Awesome YOUBI XV-130 (that was cloned from Rotorx Atom V2) appeared – YOUBI Mini XV-95. This version is smaller, only 95mm size. Powered by 1103/7500KV sized motors. FC-ESC rig is F3 Omnibus + OSD and 4-in-1 10A BLHeli_S ESC. Total weight is only 45g! without battery! Battery is 2S 500mAh. I wonder if it will accept 3S battery.

No information about carbon base plate thickness. It may be 1.5mm or 2mm. YOUBI XV-130 initialy had very weak baseplate, lets hope little YOUBI has this issue fixed.

?? ??

Listed @ Banggood: https://www.banggood.com/AWESOME-Mini-YOUBI-XV-95-95mm-FPV-Racing-Drone-Omnibus-F3-OSD-5_8G-25mW-Blheli_S-10A-600TVL-Camera-p-1192113.html

Specification:
Brand name: AWESOME
Item model: Mini YOUBI XV-95
Wheelbase: 95mm
Wing length: 50mm
Motor: 1103 7500KV
ESC: 10A Blheli_S
Flight controller: Omnibus F3
Propeller: 2035
FPV Transmitter: 5.8G 25MW 48CH
Camera: 600TVL
Color: Black / white
Body size: 85x100x38mm
Weight(without battery): 45g
Package weight: 210g

Package Included:
1 X Mini YOUBI XV-95 FPV Racing Drone
8 X Propeller (4XCW 4XCCW)
1 X 2S 500mAh 25C Lipo battery

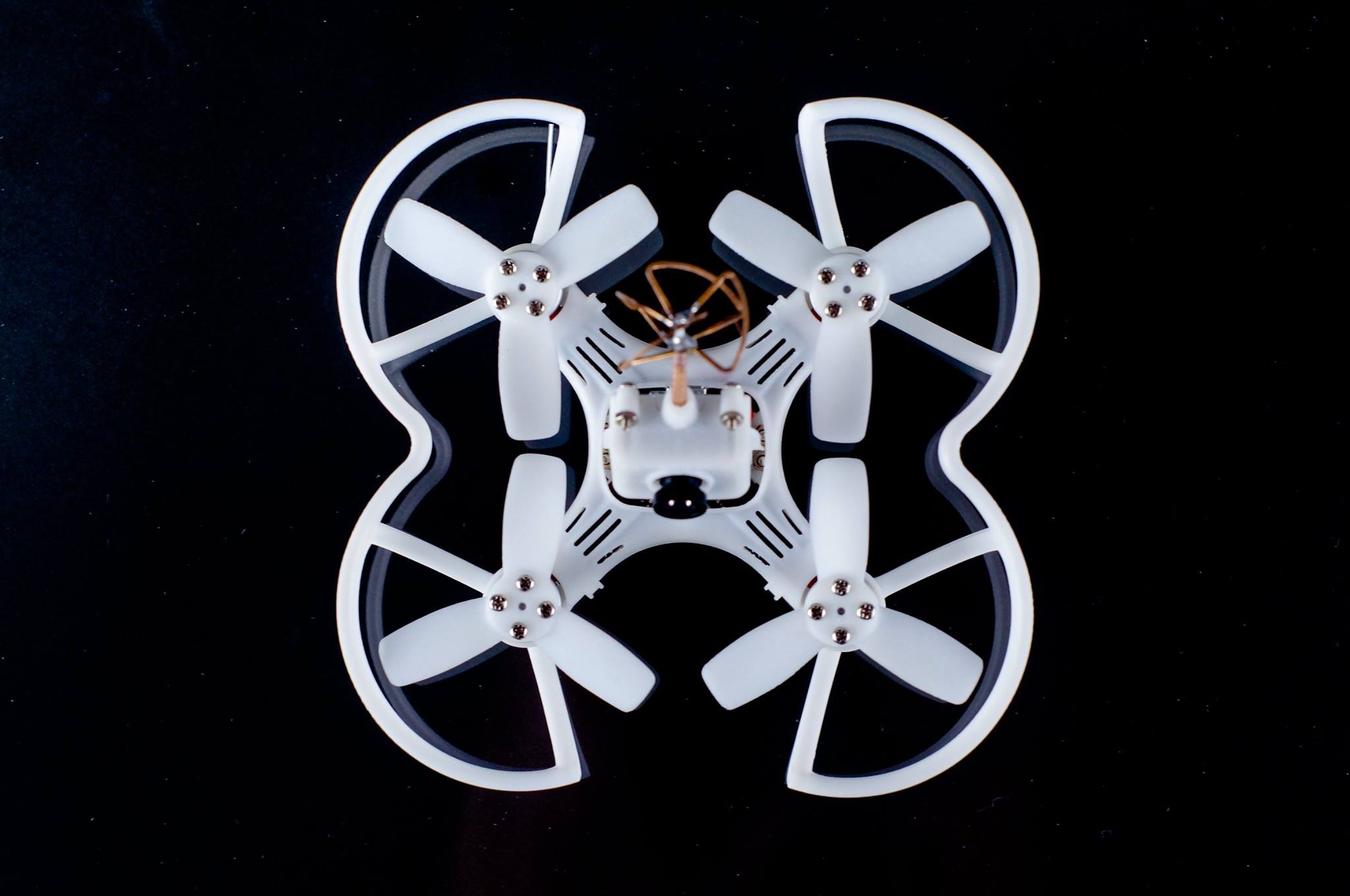

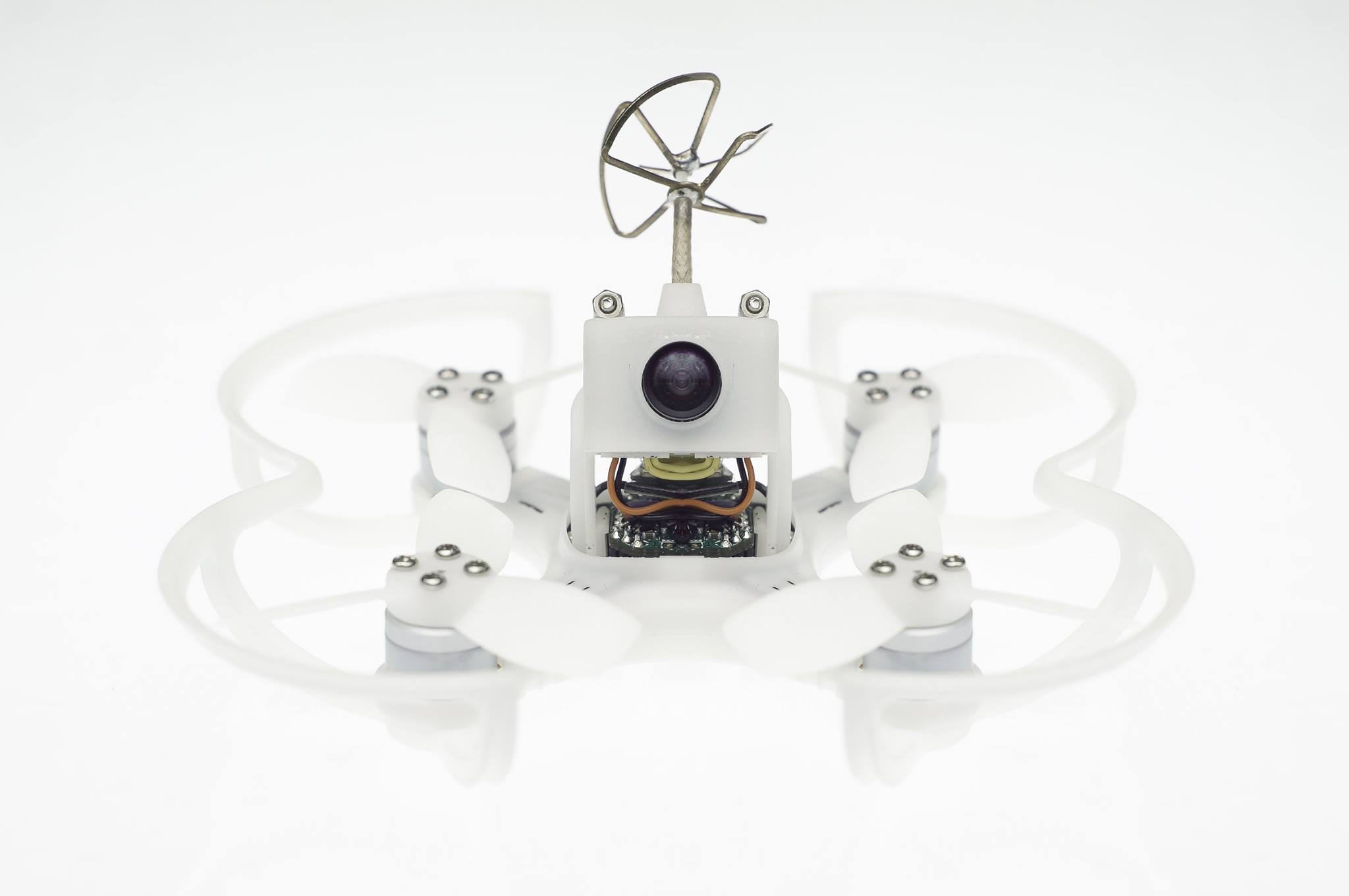

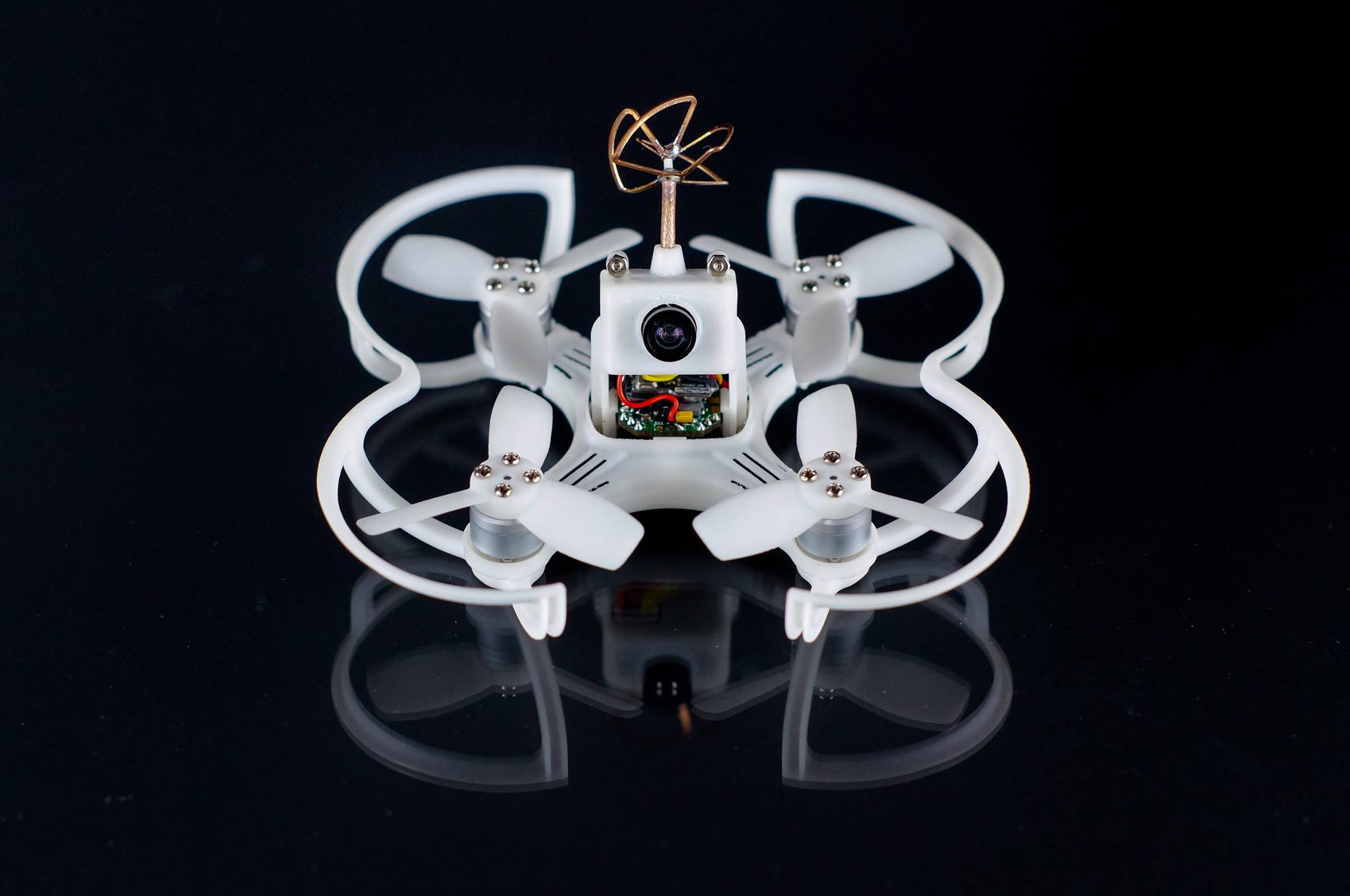

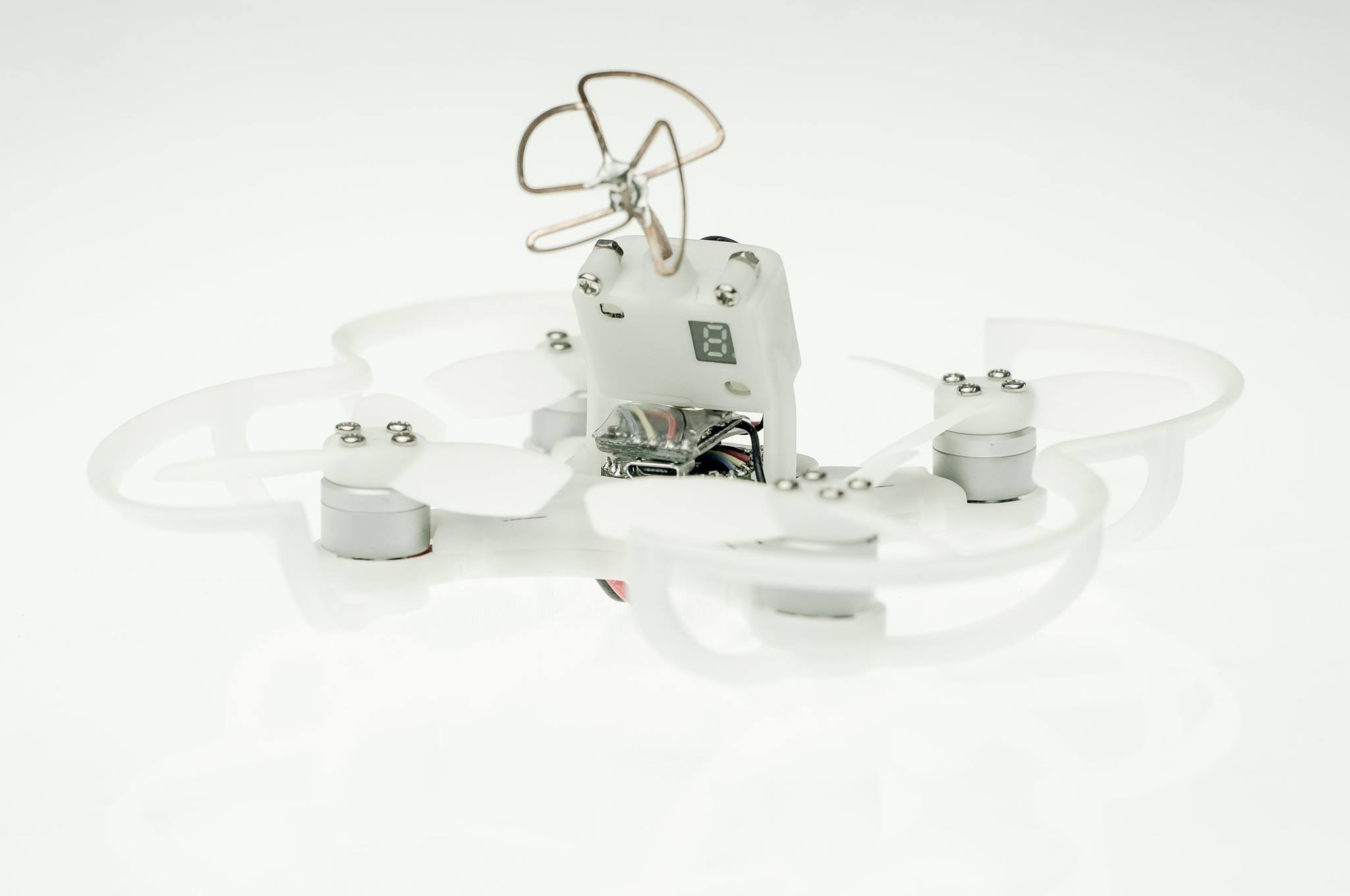

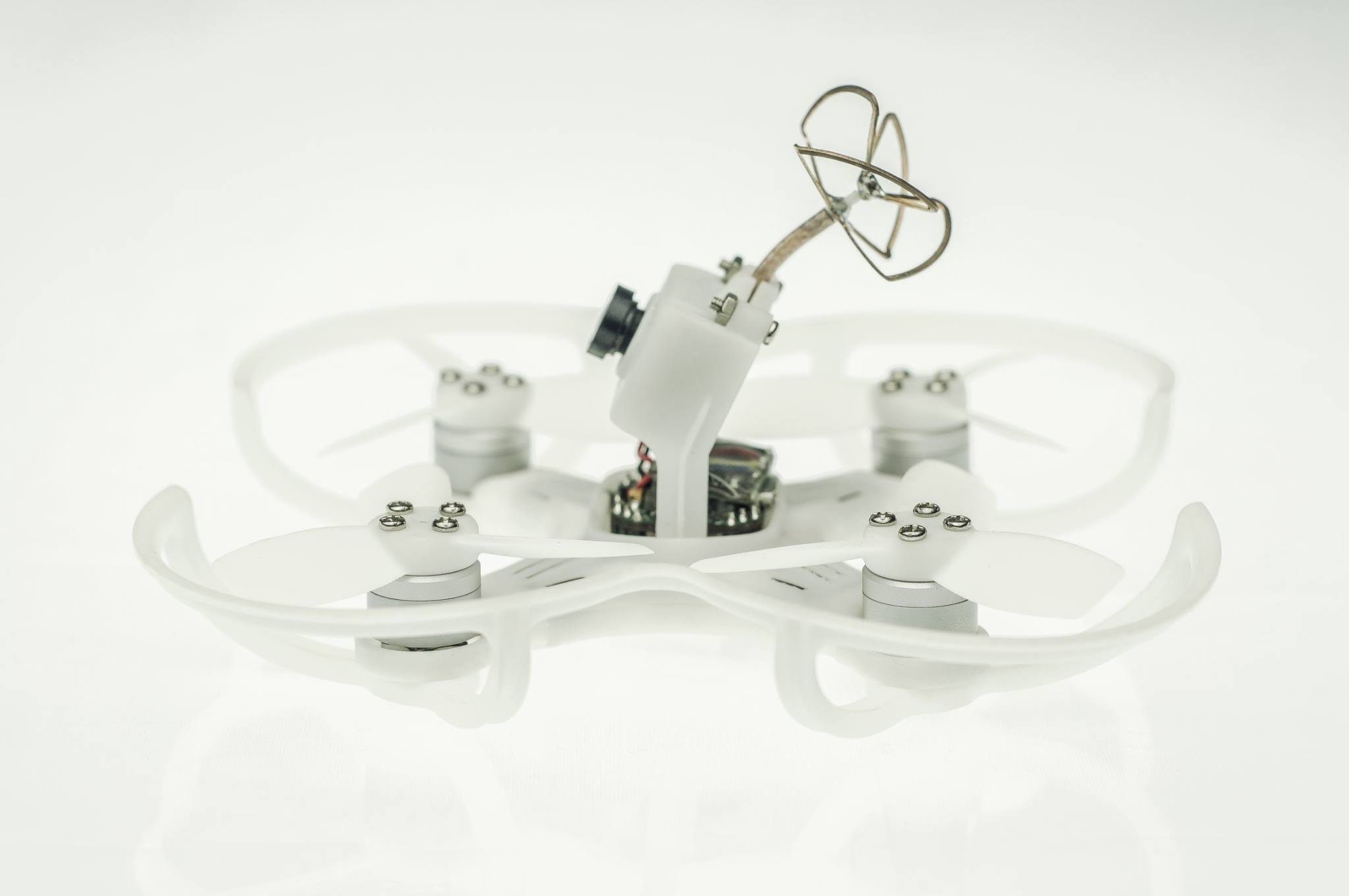

EMAX Babyhawk 85mm micro brushless quadcopter

montis — Tue, 17 Jan 2017 01:30:15 +0000

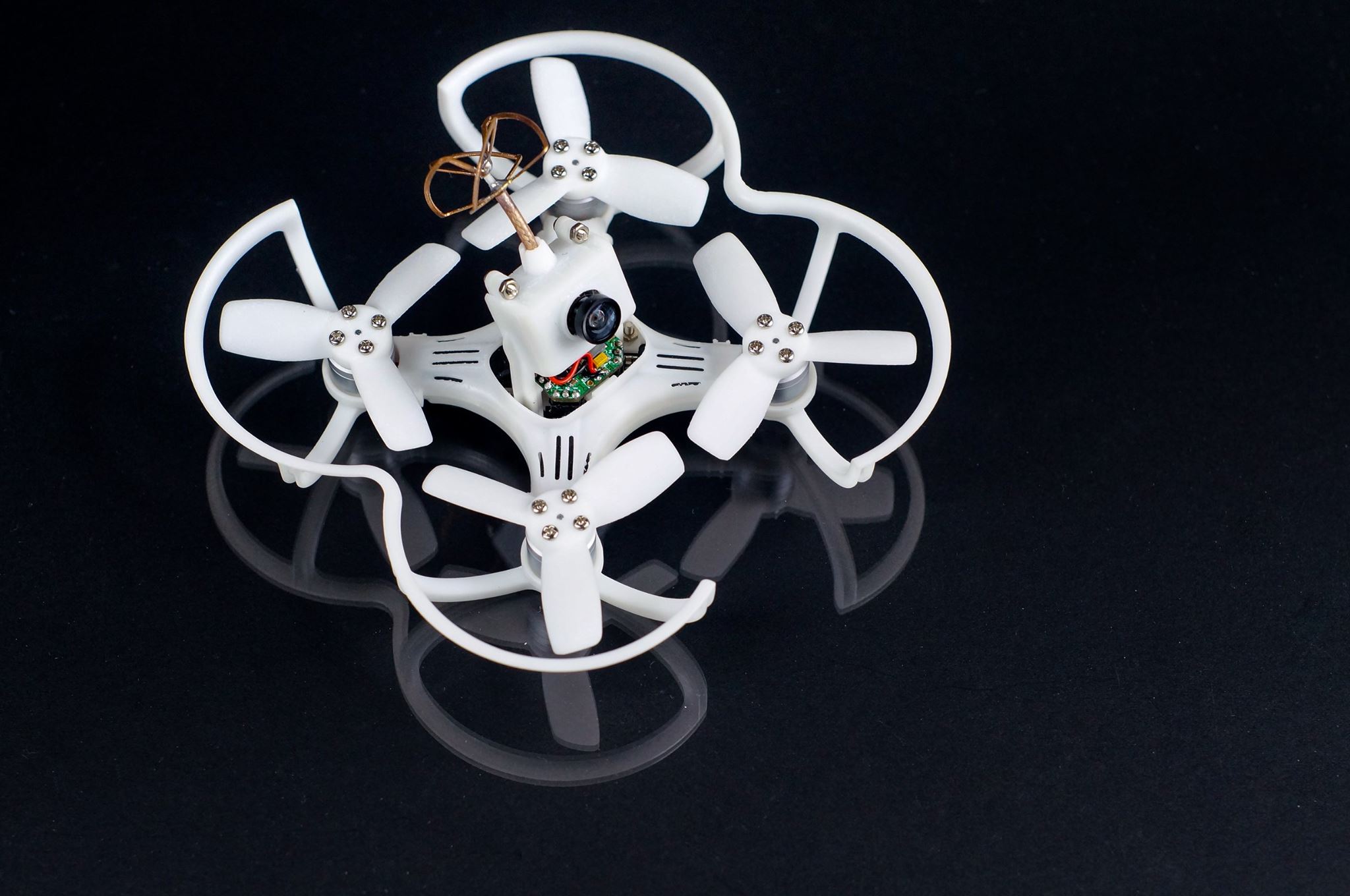

A new micro quadcopter from EMAX was introduced in the sub 100 mm brushless quad league. Almost all of the quad components are?manufacured by EMAX. It is equiped with?EMAX?designed All-In-One Camera and VTX, EMAX femto f3 flight controller, easily-replaceable solderless connected 6A BLHeli_S 2s-4s capable ESCs, and EMAX 1104 5000kv motors. Even propeller is propreitary EMAX?2.3″ sized propeller. According to the preliminary data motors and props on this little beast produces approximately 500g of thrust! Weight without battery is?60g and full weight with 2S 300mah lipo is 78g. Receiver was not included in the weight measures – you must add yours.

Release date – about march of 2017. Preliminary price -$99 for PNP version.

Check the availability here:?http://www.banggood.com/EMAX-Babyhawk-85mm-Bullet-6A-BLHeli_S-Femto-F3-AIO-5_8G-25MW-COMS-VTX-Mirco-Brushless-FPV-Racer-PNP-p-1121958.html

PNP (Plug-n-Play) Combo INCLUDES:

-EMAX All-in-One Camera and VTX 25MW CMOS
-EMAX Femto F3 FlightController/PDB board with built in 5v regulator
-EMAX Bullet 6A BLHeli_S Plug-In ESCs
-EMAX 1104 5000kv Brushless Motor

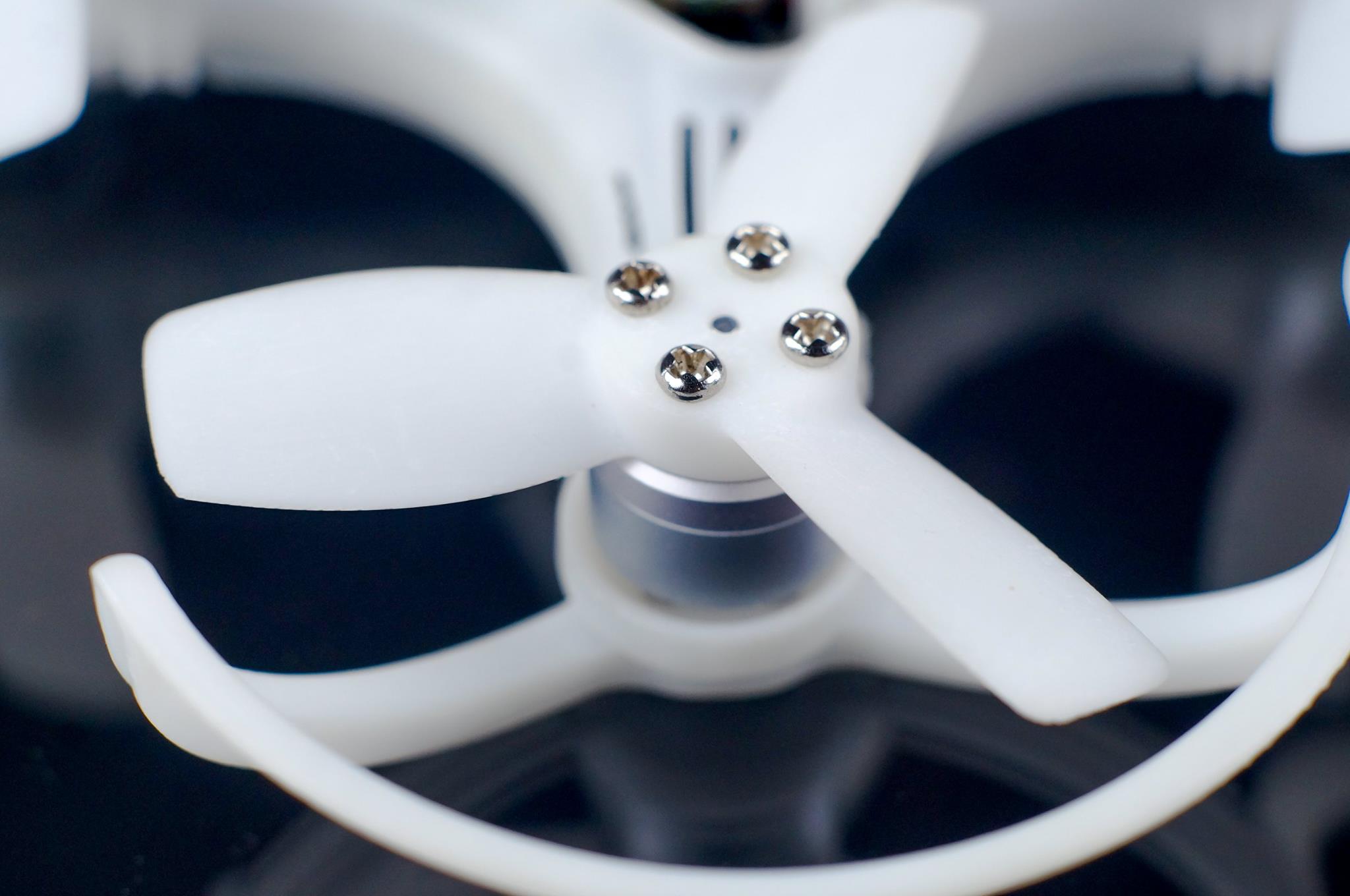

-EMAX 2.3″ Propellers
-EMAX 85mm Molded PC Plastic Body/Frame
-EMAX 85mm Molded PC Plastic Motor Guards
**Just need pwm, ppm, sbus ready Radio Receiver to make it fly!

WEIGHT:
Babyhawk + 2.3″ Propellers = 60g
Babyhawk + 2.3″ Propellers + Motor Guards = 68g
Babyhawk + 2.3″ Propellers + 2S 300mah lipo = 78g
Babyhawk + 2.3″ Propellers + Motor Guards + 2S 300mah lipo = 86g

Kingkong 90GT – a better version of Kingkong Q90

montis — Wed, 11 Jan 2017 01:36:04 +0000

Shortly after Kingkong Q90 micro brushless quadcopter release, a better version of this micro brushless quadcopter appeared – Kingkong 90GT. First of all it got less weight – it went from 54g to 43g (9 grams less!) so it is really lightweight. Got rid of the hudge casing of the flight controller and it was moved from the top deck to the lower deck, where it should be. Other specs are the same as older model – F3 SPRacing flight controller, 1103 7800KV motors, 800TVL camera with 16CH 25mW VTX (as in the Kinkong Q100), 2S battery, 1935 props. It is strange why Kingkong decided to go from 6A down to?3A Blheli_S 4 in 1 Brushless ESC.?Probably 1103 motors dont pull more than 3A? I’m doubtful. Battery is weak only 25C , so I recommend to search for better batteries with higher C rating especialy when only one battery in included.

Can be purchased:

@ Bangggod:?http://www.banggood.com/Kingkong-90GT-90mm-Brushless-Mini-FPV-Racing-Drone-with-Micro-F3-Flight-Controll-16CH-800TVL-VTX-p-1118870.html

@ Gearbest:?http://www.gearbest.com/multi-rotor-parts/pp_605472.html

@ Geekbuying:?http://www.geekbuying.com/item/KINGKONG-Brushless-90GT-90mm-FPV-Racing-375461.html

Specifications

Flight Control: ?Micro F3 6Dof Version
Motor: ? ? ? ? ? ? ? 1103 7800KV Motor
ESC : ? ? ? ? ? ? ? ?3A Blheli_S 4 in 1 Brushless ESC
Camera: ? ? ? ? ? 800TVL CMOS Camera ?FOV150 Degree
Propeller: ? ? ? ? 2 CW & 2 CCW ?(Black and Green)
FPV Transmitter: 16CH 25mW VTX?, micro 5V DC Output PDB
Battery: ? ? ? ? ? ??2S ?7.4V??350mAh?25C
